EN54-24 Fire Rated Horn Speakers

30W

952.247UK
FH30V

Moulded ABS weatherproof horn speakers with EN54-24 fire rating. Low impedance (8 Ohm) or 100V operation with switchable volume tappings (70V settings also included). Hard-wired with a fire-resistant… more

  • EN54-24 fire systems certification
  • IP66 weatherproof
  • 5VB fireproof ABS material
DESCRIPTION VERSION PACKED
952.246UK

FH15V Horn Speaker EN54 100V - 15W IP66

15W Box Label
952.247UK

FH30V Horn Speaker EN54 100V - 30W IP66

30W Box Label

EN54-24 Fire Rated Horn Speakers

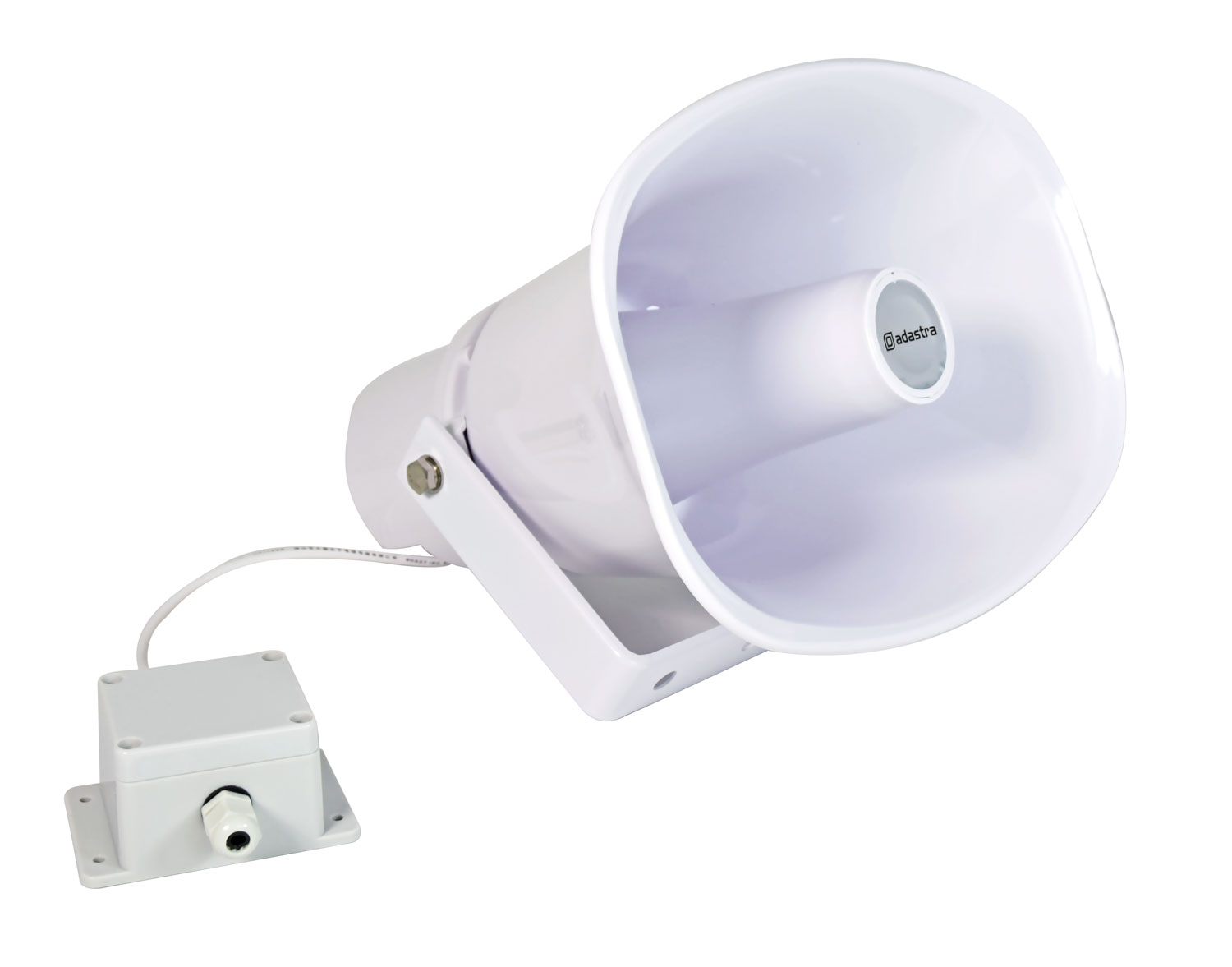

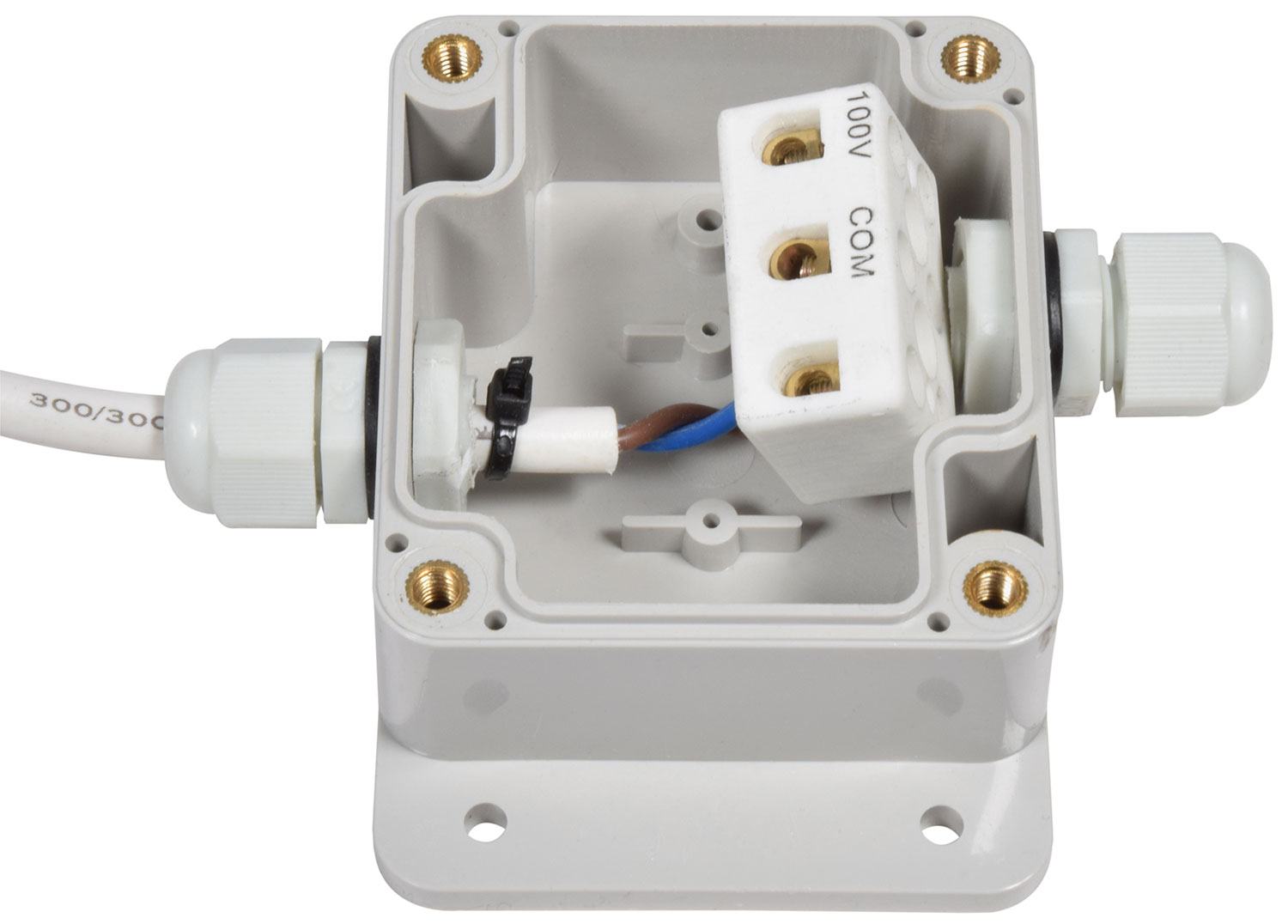

Moulded ABS weatherproof horn speakers with EN54-24 fire rating. Low impedance (8 Ohm) or 100V operation with switchable volume tappings (70V settings also included). Hard-wired with a fire-resistant cable and junction box, fitted with a ceramic screw terminal block and thermal fuse. Surface mounting via a powder-coated steel adjustable U-bracket. Designed for voice announcements and alerts in commercial PA installations.

  • EN54-24 fire systems certification
  • IP66 weatherproof
  • 5VB fireproof ABS material
  • 100V, 70V or 8 Ohm operation
  • Ceramic terminals and thermal fuse
  • Power rms : 8 Ohms 30W
  • Tappings 3.8W, 7.5W, 15W, 30W (100V) & 8 Ohms
  • SPL @ 1W/1m 113dB
  • Frequency response 300Hz - 6.5kHz
  • Dimensions 300 x 282 x 203mm
  • Weight 2.26kg
  • Construction 5VB fire-rated ABS housing, powder-coated steel bracket
  • IP rating IP66
  • Fire rating EN54-24 certified
  • Connection Hard-wired fire-resistant cable, ceramic terminal block
  • Circuit protection Thermal fuse
