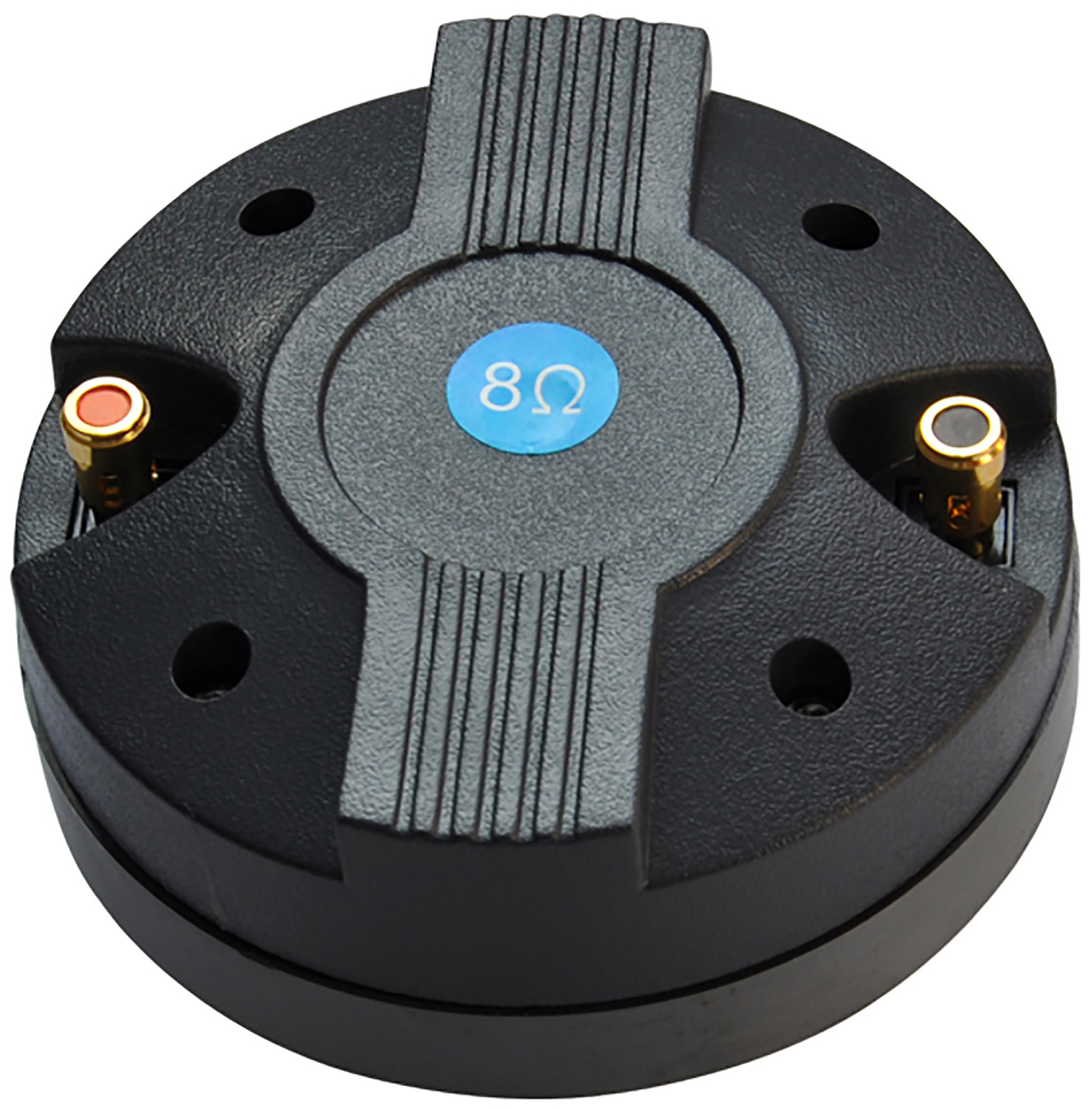

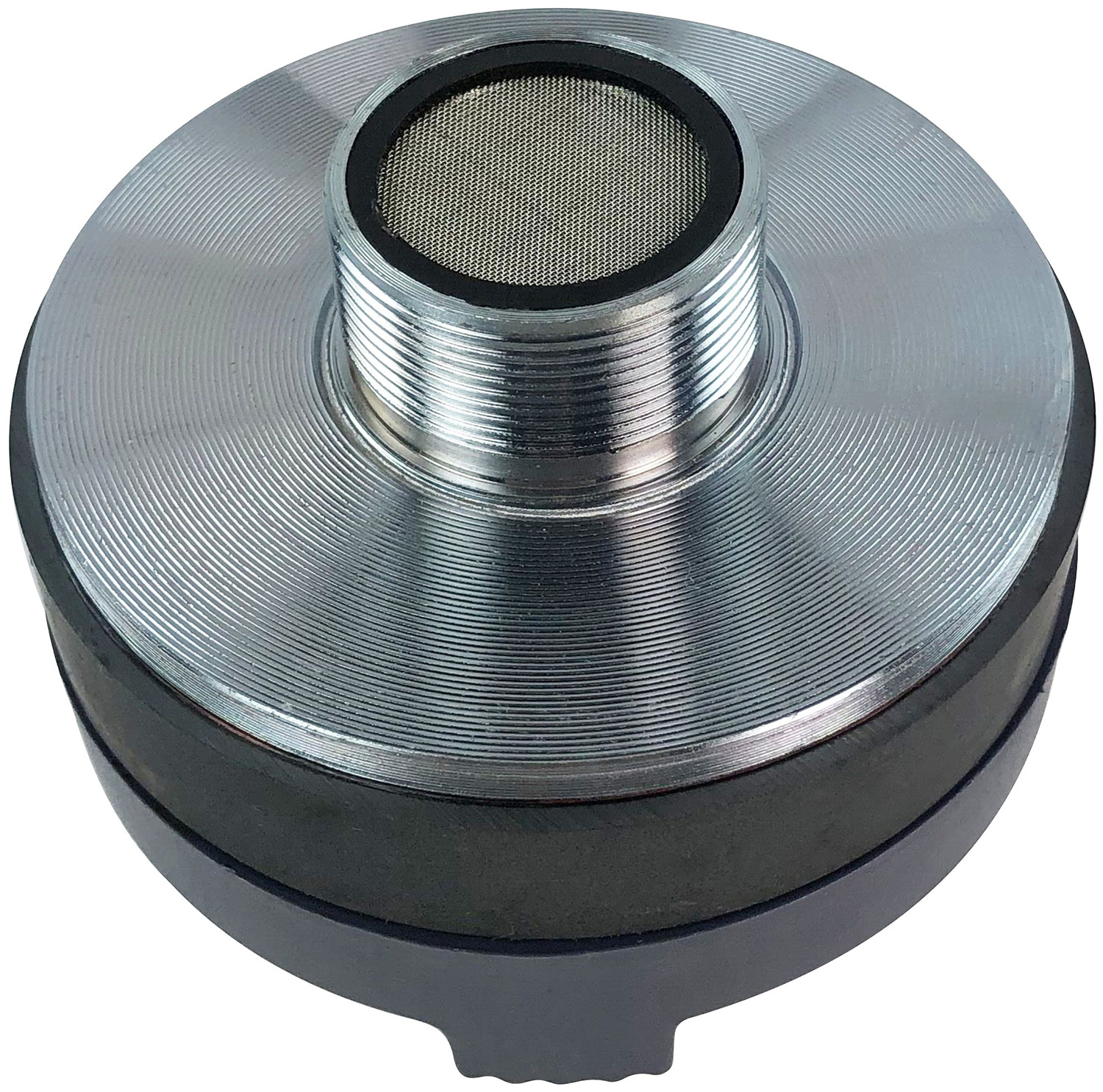

High frequency titanium compression drivers
44mm (1.75") 60Wrms
902.114UK
HFCASA-15/15A
High frequency titanium compression drivers with standard 34mmØ threaded exit. Designed to couple with tweeter flares in full-range PA speakers for accurate and powerful high frequency reproduction. more
- Direct replacements for CASA series full range active cabinets
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
902.109UK
25mm (1") HF Driver 20Wrms |
25mm (1") 20Wrms | Box Label |
![]() |
902.111UK
34mm (1.35") HF Driver 35Wrms |
34mm (1.35") 35Wrms | Box Label |
![]() |
902.114UK
44mm (1.75") HF Driver 60Wrms |
44mm (1.75") 60Wrms | Box Label |
![]() |
902.103UK
34mm (1.35") HF Driver 40Wrms |
34mm (1.35") 40Wrms | Box Label |
High frequency titanium compression drivers
High frequency titanium compression drivers with standard 34mmØ threaded exit. Designed to couple with tweeter flares in full-range PA speakers for accurate and powerful high frequency reproduction.
- Direct replacements for CASA series full range active cabinets
- Weight 1.65kg
- Dimensions 68 x 115mmØ
- Sensitivity @ 1W/1m 110dB
- Diaphragm Titanium
- Magnet Ceramic
- Voice coil 44.4mmØ (1.75")
- Frequency response 600Hz - 20kHz
- Power handling : max 120W
- Power handling : rms 60W
- Throat 25mmØ (1")
- Impedance 8 Ohms
- Thread 34mmØ
In the Box
- HF compression driver (suitable for CASA series cabinet)
