Figure 8 Bell Wire
White 100m
808.207UK
Two core bell wire with solid copper clad steel conductor and white PVC sheath. more
- Solid copper clad steel conductor
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
808.207UK
Fig.8 Bell Cable CCS White 100m |
White 100m | Reel |

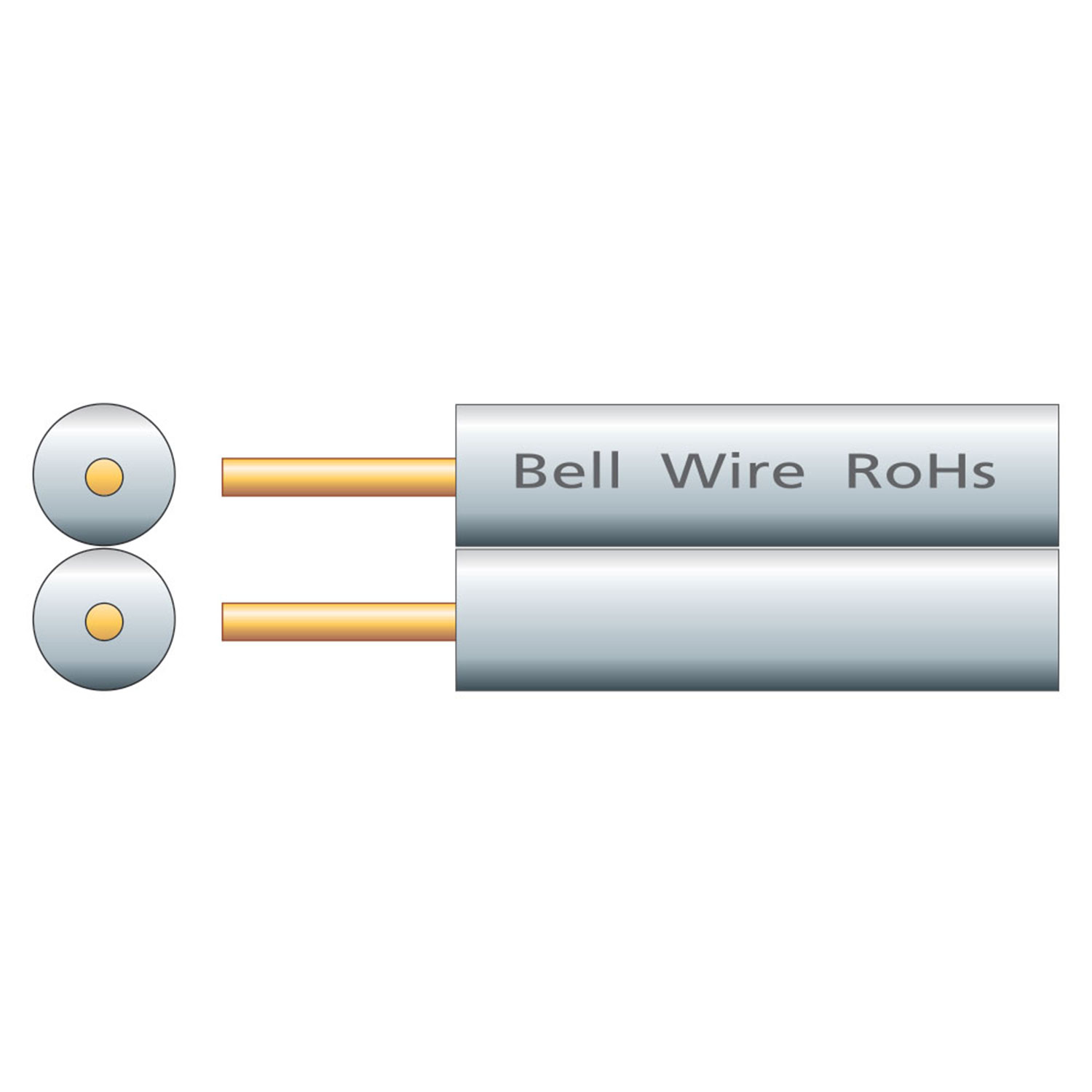

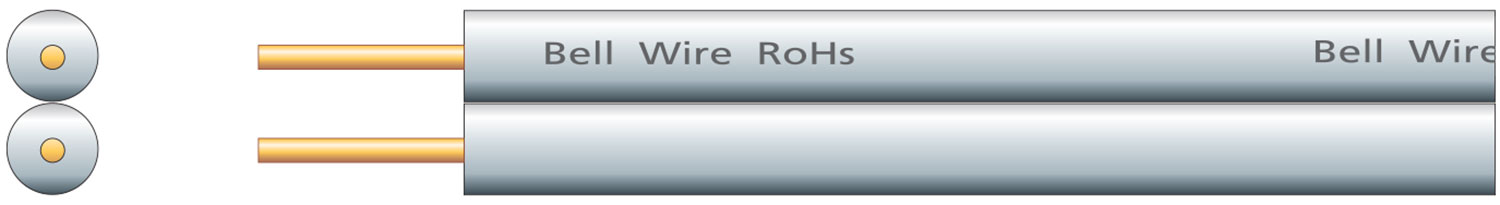

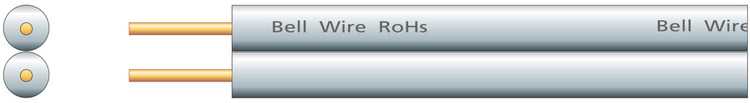

Figure 8 Bell Wire
Two core bell wire with solid copper clad steel conductor and white PVC sheath.
- Solid copper clad steel conductor
- Conductor CCS
- Strands 2 x 0.5mmØ
- CSA 0.196mm²
- Current 1A max.
- Cable : diameter 2 x 4mmØ
- Colour White
- Cable : length 100m
- Weight 1.3kg
