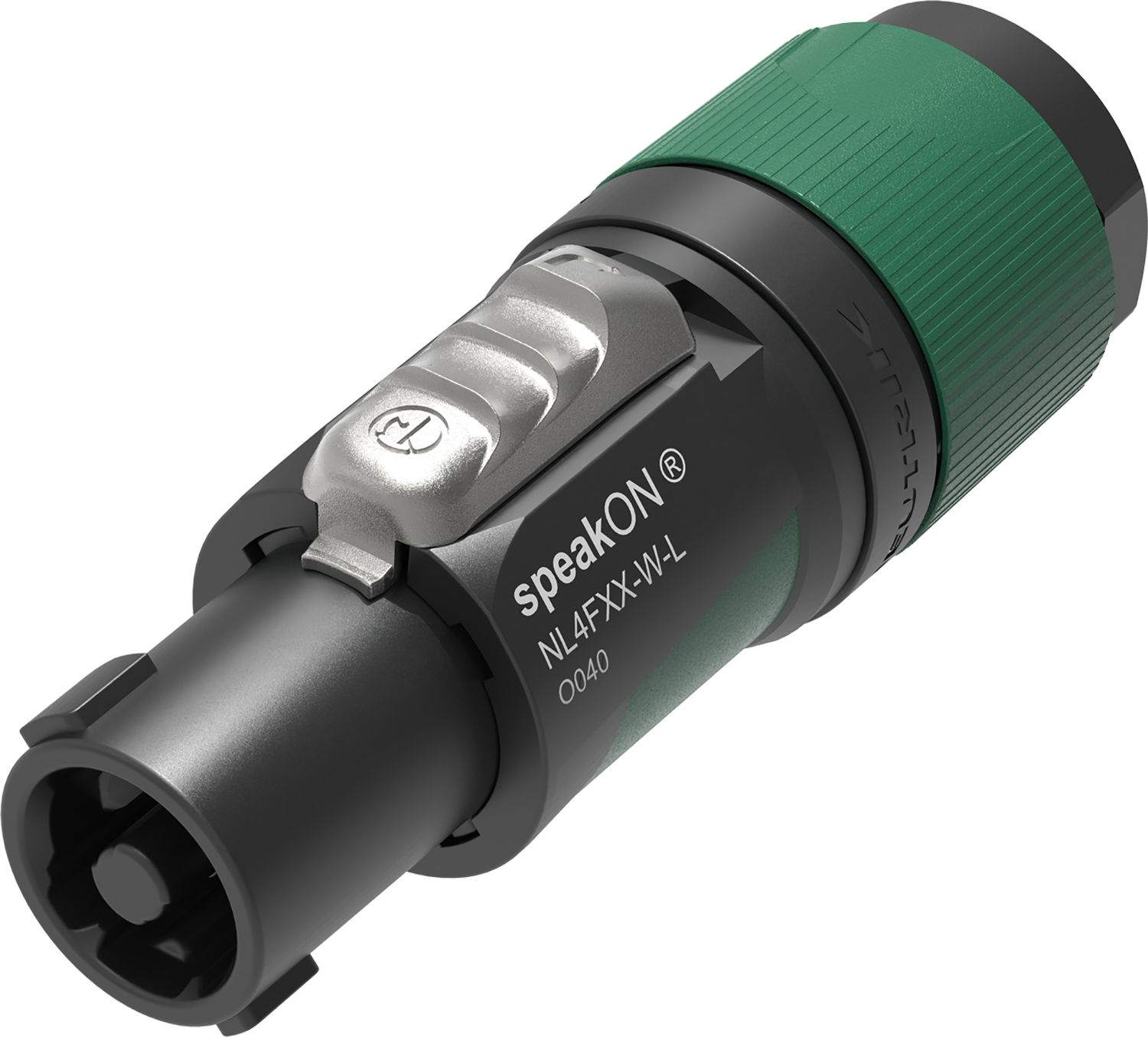

Neutrik® NL4FXX Speakon Cable Connectors
10-16mm
763.482UK
4 pole speakon cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm and 10-16mm Speakon connectors are the industry-standard for loudspeaker… more
- Up to 37 A rms current rating
- Easy to assemble because the strain relief locks withthe insert mechanically and aligns with the housing
- Ergonomic design with slip-proof two-componentmolded housing
Neutrik® NL4FXX Speakon Cable Connectors
4 pole speakon cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm and 10-16mm Speakon connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. Speakon cable connectors feature solid contacts with screw-type terminals including a stranded wire protection
- Up to 37 A rms current rating
- Easy to assemble because the strain relief locks withthe insert mechanically and aligns with the housing
- Ergonomic design with slip-proof two-componentmolded housing
- Easy and reliable twist lock system
- Improved kink protection by two-component bushing
- Cable : dimensions 10-16mm
- Contact resistance ≤ 2 mΩ
- Lifetime Typically 5’000 mating cycles
- Terminals Screw type
- Temperature range -33 °C to +80 °C
- IP rating IP20
