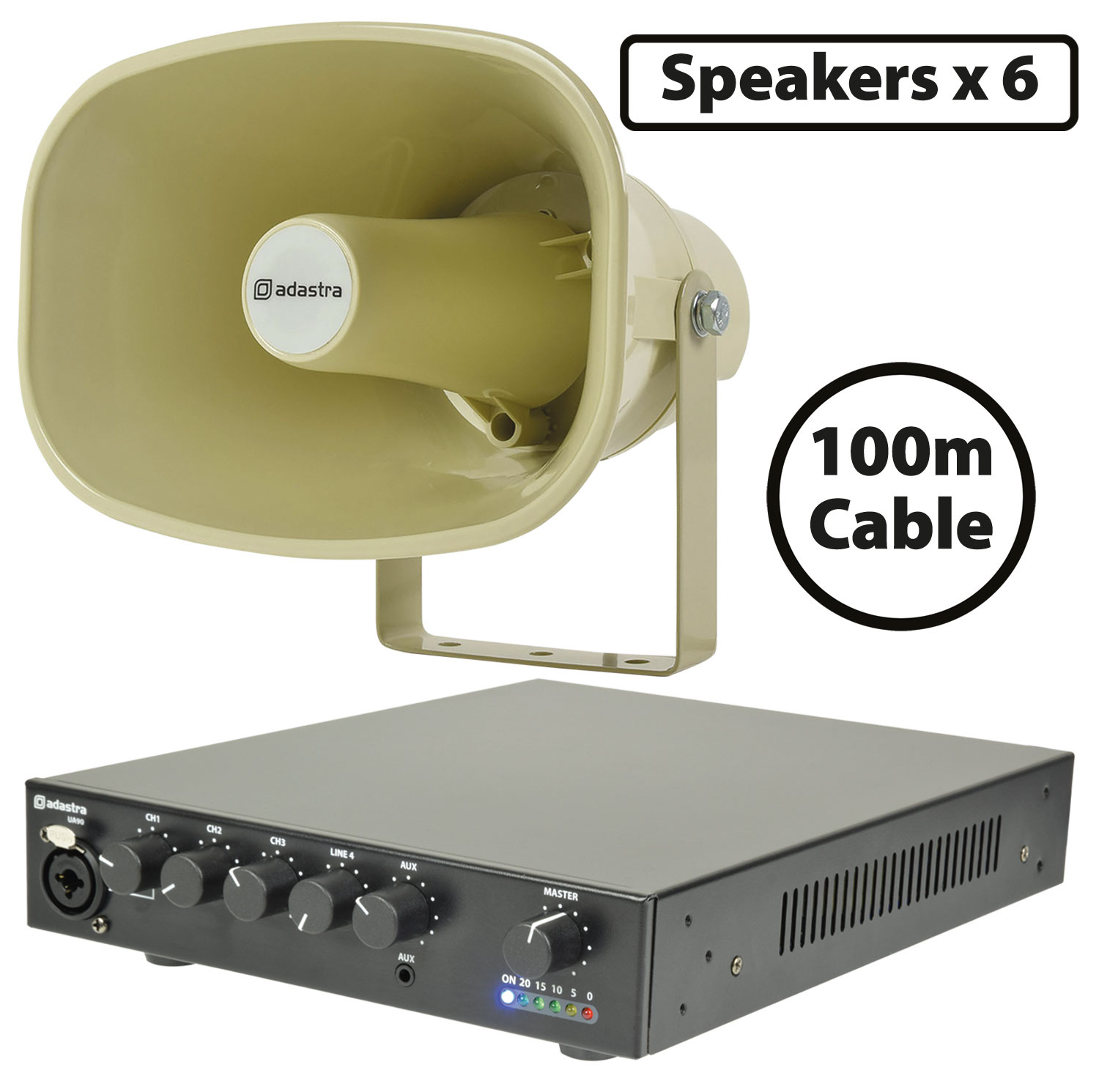

Market Ground / Forecourt 100V Horn Speaker Packages

6 x 15W horns

300.082UK
6*EH15V+UA90

Public address for outdoor commercial and service areas

Outdoor 100V moulded ABS horn speaker packages comprise a full kit for delivering voice alerts in industrial and public outdoor (or indoor) areas. Horn speakers are the most rugged of all speaker… more

  • Amplifier, cable and speakers packed separately
  • Compact UA-series 100V amplifier (953.183UK, 953.186UK, 953.189UK)
  • EH15V or EH30V weatherproof horn speakers (952.257UK, 952.258UK)
DESCRIPTION VERSION
300.082UK

6 x ABS Horn Speakers 15W with UA90 Mixer-amp

6 x 15W horns

Recommended Accessories

804.380UK

2 core round mains PVC, 2 x 24/0.2mm, 6A, 6.35mmØ, Black, 100m

Black 100m
952.352UK

Conference/paging microphone with LED collar

952.353UK

Conference microphone - slimline

Market Ground / Forecourt 100V Horn Speaker Packages

Outdoor 100V moulded ABS horn speaker packages comprise a full kit for delivering voice alerts in industrial and public outdoor (or indoor) areas. Horn speakers are the most rugged of all speaker units, able to withstand adverse weather conditions and have a focussed mid-range sound for voice projection. UA series mixer amplifiers can be rack mounted in pairs or easily fixed to a wall or under a worktop and have 3 mic/line input channels, 1 Line and 1 Aux input. Each package matches the maximum Wattage tappings of all horn speakers with the max. power of the UA series amplifier (<90% volume setting recommended). Using lower tappings, more speakers can be addded to the amplifier, provided that the total combined speaker Watts is <90% its max output power.

  • Amplifier, cable and speakers packed separately
  • Compact UA-series 100V amplifier (953.183UK, 953.186UK, 953.189UK)
  • EH15V or EH30V weatherproof horn speakers (952.257UK, 952.258UK)
  • 100m speaker cable supplied (804.380UK also available separately)
  • Add a paging microphone for voice alerts (952.341UK, 952.362UK, 952.363UK)
  • Protect any exposed speaker cable from UV with conduit or capping
  • Note: for 100V operation, do not use 8Ω tappings or terminals
  • Note: use terminal block to extend speaker cable. Do not short + and - together

In the Box

  • UA-series compact mixer-amplifier
  • 2, 3, 4 or 6 x EH-series ABS horn speakers
  • 100m speaker cable
