Add-on 100V Washroom / Corridor Ceiling Speaker Packages

12 x mini speakers

300.079UK
12*EC36V+US90

Extend an existing PA system to cover additional small areas

Add-on mini 100V ceiling speaker packages for commercial PA systems are designed to enable the installer to add sound for corridors, washrooms and smaller areas. US series slave amplifiers can be rackā€¦ more

  • Amplifier, cables and speakers packed separately
  • US-series 100V slave-amplifier (953.196UK, 953.199UK)
  • 4, 8 or 12 mini EC36V ceiling speakers (952.138UK)
DESCRIPTION VERSION
300.077UK

4 x Mini Ceiling Speakers 3" with Compact 60W Slave Amp

4 x mini speakers
300.078UK

8 x Mini Ceiling Speakers 3" with Compact 60W Slave Amp

8 x mini speakers
300.079UK

12 x Mini Ceiling Speakers 3" with Compact 90W Slave Amp

12 x mini speakers

Add-on 100V Washroom / Corridor Ceiling Speaker Packages

Add-on mini 100V ceiling speaker packages for commercial PA systems are designed to enable the installer to add sound for corridors, washrooms and smaller areas. US series slave amplifiers can be rack mounted in pairs or easily fixed to a wall or under a worktop and can accept the 100V speaker feed as a signal input. Simply connect the 100V input of the US slave amplifier to the last speaker in line as if it was another speaker and then power the mini ceiling speakers from it. Using lower tappings, more speakers can be addded to the amplifier, provided that the total combined speaker Watts is <90% its max output power.

  • Amplifier, cables and speakers packed separately
  • US-series 100V slave-amplifier (953.196UK, 953.199UK)
  • 4, 8 or 12 mini EC36V ceiling speakers (952.138UK)
  • 50m speaker cable supplied (804.381UK also available separately)
  • 0.5m twin RCA link lead from mixer/amp output included (190.052UK)
  • US series slave amplifiers can operate from an existing 100V speaker feed
  • Note: use terminal block to extend speaker cable. Do not short + and - together

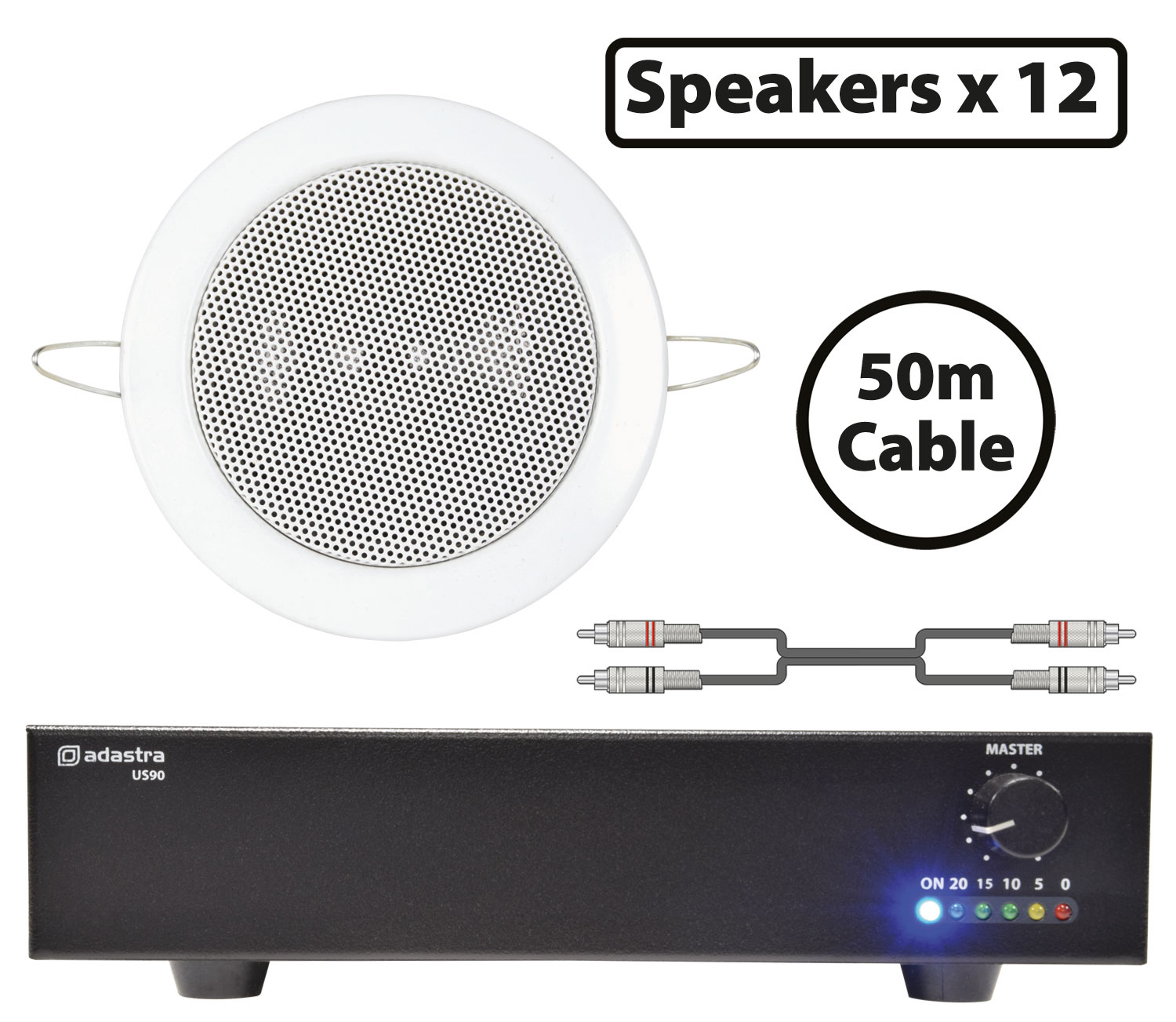

In the Box

  • Half-width 1U slave amplifier
  • 4, 8 or 12 mini 100V ceiling speakers
  • 50m speaker cable
  • 1 x twin RCA connection lead 0.5m
