CORVA High Power Active PA Cabinets

CORVA active speaker cabinets are a milestone in the Citronic commitment to high quality sound at all levels, packing a remarkable level of output into a single heavy duty cabinet. Designed for stacking or pole mounting, these cabinets can equally be deployed at height, using the 12 x M8 flying points. Each enclosure is loaded with specially designed heavy duty drivers to deliver powerful and immediate sound pressure levels. Each powerful class-D bi-amplifier section is DSP controlled with a menu-driven colour display for setting EQ profiles, dynamics and gain. In-depth editing is enabled via a USB interface to connect a PC and accurately adjust, test and save custom DSP settings. For larger sound reinforcement applications, CORVA active cabinets have the capability and flexibility to provide big sound on demand.

• Specially developed heavy duty driver components
• Inbuilt high power class-D bi-amplifiers

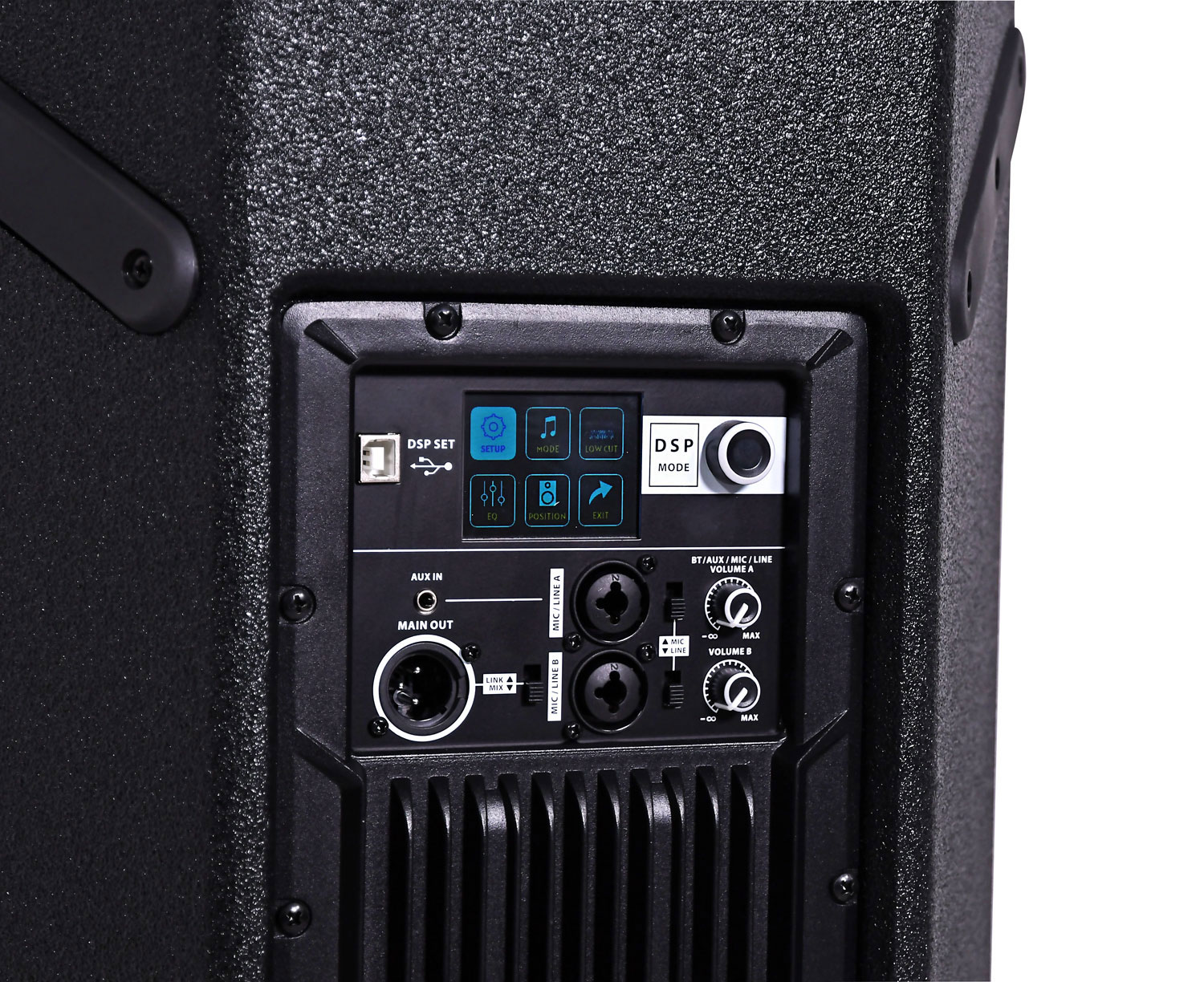

• Menu driver DSP with colour display and USB-PC interface
• Sturdy MDF enclosure with polyurea finish

• Weight 29.5kg
• Dimensions 640 x 380 x 370mm
• SPL max. 130dB
• Sensitivity @ 1W/1m 99dB
• Frequency response 50Hz - 20kHz
• Output power : max. 1400W
• Output power : rms 700W
• HF driver 75mmØ (3") Ti compression driver
• Main driver 300mmØ (12") with 100mm voice coil
• Fuse rating T4A
• Power supply 230Vac, 50Hz (Powercon)
• Construction 15mm MDF with polyurea finish
• Inputs 2 x Mic/Line (XLR/6.3mm) + Aux (3.5mm)
• Line output XLR
• Amplifier : construction Class-D, DSP controlled
• Impedance 8 ohms (main driver and HF driver)
