P Series Stereo & Sub Power Amplifiers
2 x 400W + 800W
172.248UK
P44800
2.1 power amplifiers with 2 channels for mid-top cabinets and a single high power sub output with integral active crossover. Designed as a cost effective and efficient solution for bi-amplified sound… more
- Stereo full range output
- Mono summed sub output (can be full range)
- Active crossover with variable frequency
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
172.248UK
P44800 Amp 2 x 400W + 800W Sub |
2 x 400W + 800W | Box Label |
P Series Stereo & Sub Power Amplifiers
2.1 power amplifiers with 2 channels for mid-top cabinets and a single high power sub output with integral active crossover. Designed as a cost effective and efficient solution for bi-amplified sound systems where subs and top cabinets are run together from this single amplifier.
- Stereo full range output
- Mono summed sub output (can be full range)
- Active crossover with variable frequency
- Weight 21kg
- Power rms @ 4 Ohms 400 + 400 + 800W (sub)
- Power rms @ 8 Ohms 250 + 250 + 500W (sub)
- Fuse rating F12A
- Power supply 240Vac, 50Hz (IEC)
- Input impedance (balanced/unbalanced) 40k Ohms / 20k Ohms
- Controls 3 x channel level + crossover frequency

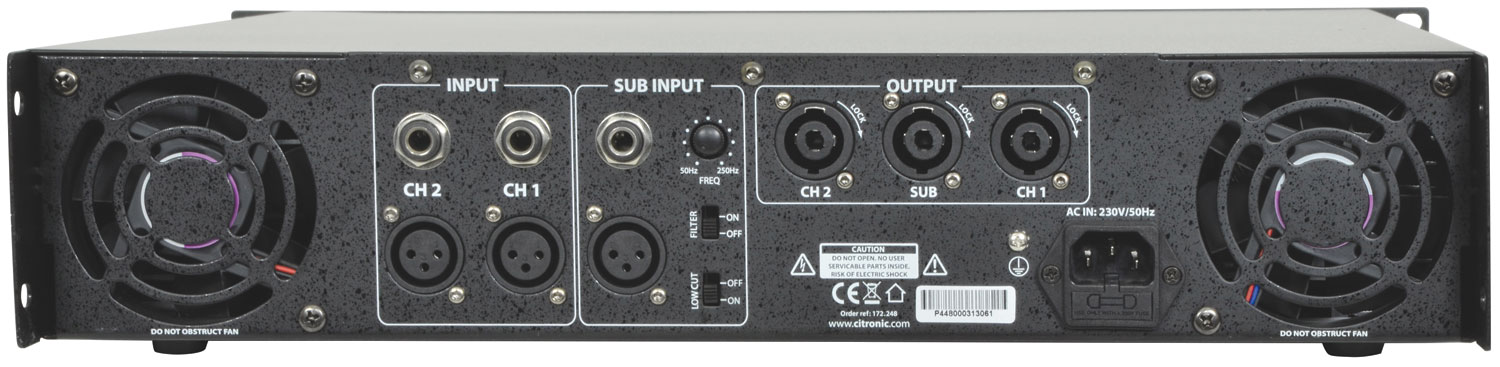

- Connections 3 x XLRF, 3 x jack, 3 x SPK
- Cut-off frequency 50 - 250Hz (12dB/oct)
- Damping factor >250 (20-400Hz @ 8 Ohms)
- Slew rate 6.5V/us
- Frequency response 10Hz - 50kHz (-2dB)
- THD +N 0.04%
- Signal to noise ratio 86dB
- Low-cut filter 30Hz fixed (12dB/oct)
- Dimensions 483 x 439 x 88mm
