UHF Wireless Beltpack Microphone System
863.1MHz
171.983UK
NU1-N
Wireless microphone system with fixed UHF beltpack transmitter and half rack-width receiver. Supplied with a choice of neckband or lavalier microphones. The receiver unit is compatible with standard… more
- Pilot tone & mute circuit for stable signal
- Licence free operation in UK & EU
- Rack-mounting accessories included
UHF Wireless Beltpack Microphone System

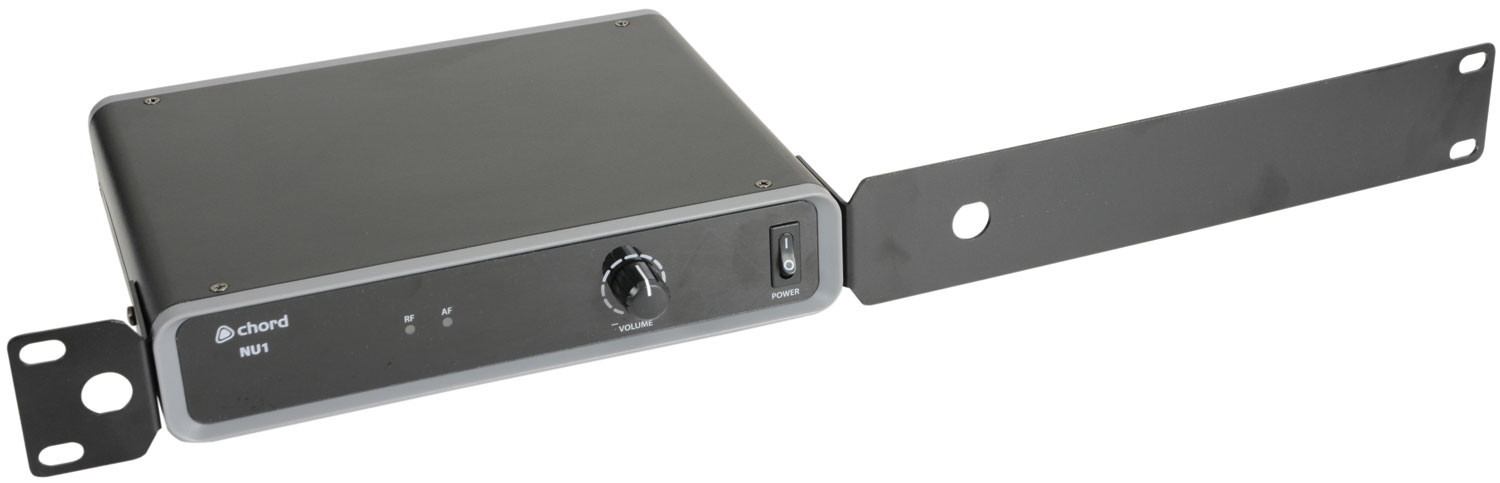

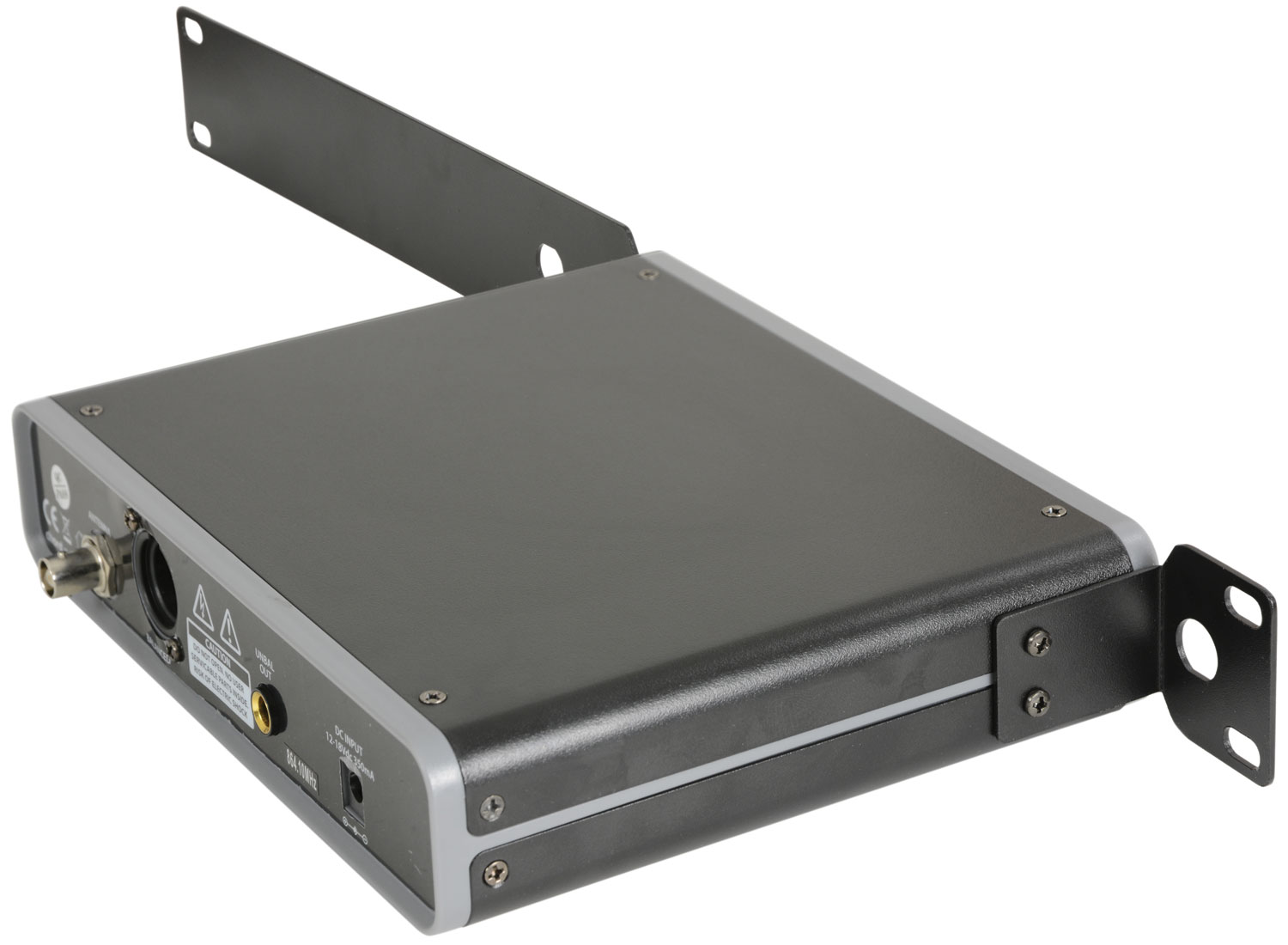

Wireless microphone system with fixed UHF beltpack transmitter and half rack-width receiver. Supplied with a choice of neckband or lavalier microphones. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories.
- Pilot tone & mute circuit for stable signal
- Licence free operation in UK & EU
- Rack-mounting accessories included
- Supplied with mains adaptor and 2 x AA batteries
- Carrier frequency 863.1MHz
- Power supply 12-18Vdc, 350mA (mains adaptor included)
- Range 60m
- Batteries 2 x AA (for transmitter - included)
- Signal to noise ratio >105dB
- THD <0.5% @ 1kHz
- Frequency response 50Hz-18KHz ±1 dB
- Image rejection >85dB
- Output impedance 2.2k Ohms
- Output level 400mV (balanced), 200mV (unbalanced)
- Dimensions : receiver 44 x 198 x 190mm
- Weight : receiver 710g
- Dimensions : transmitter 205 x 68 x 25mm
- Weight : transmitter 76g (no battery)

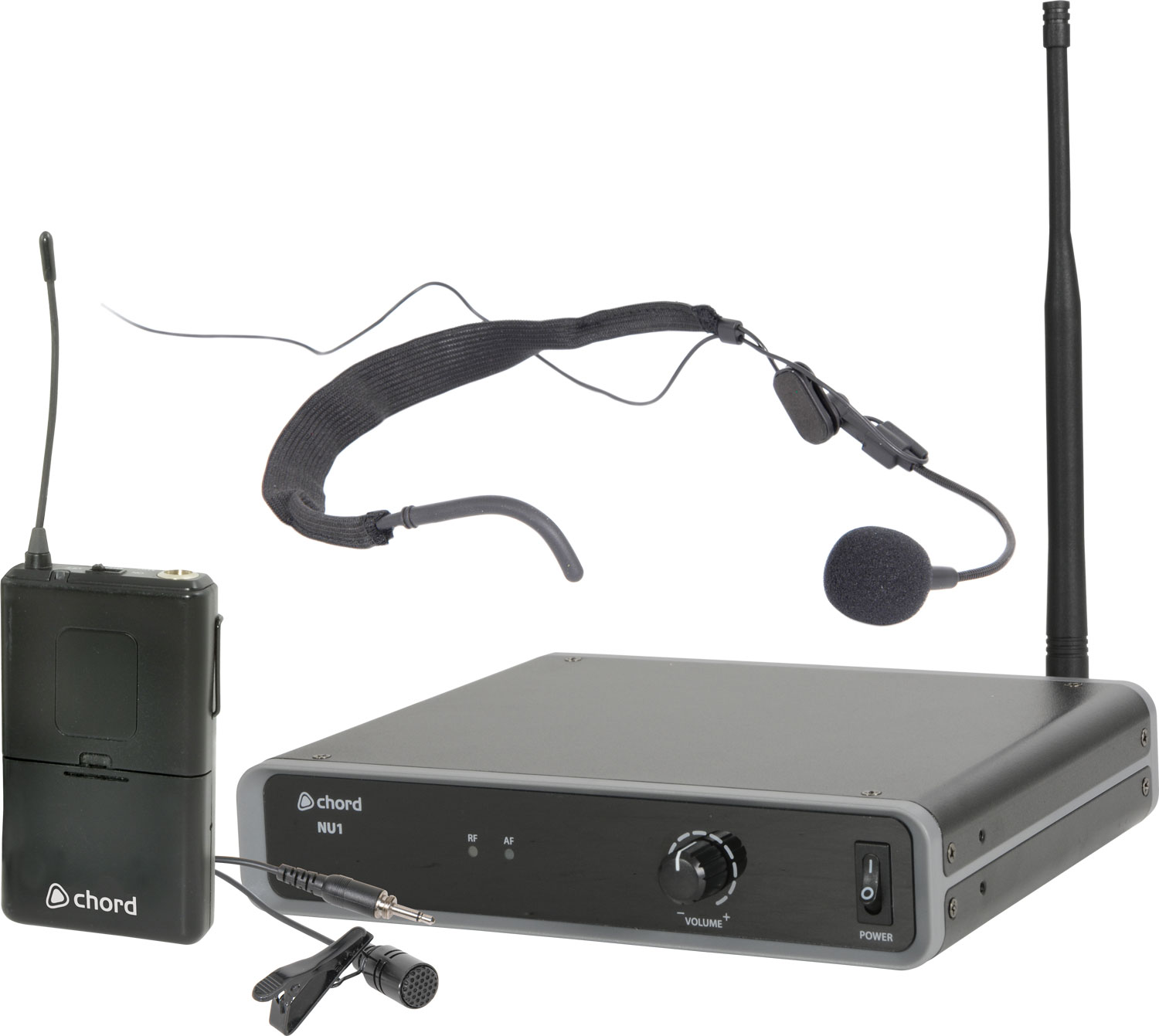

In the Box
- UHF receiver
- Beltpack transmitter
- Neckband microphone
- Lavalier microphone
- 2 x AA batteries
- UHF antenna
- Antenna lead
- Rack-mounting kit
- Mains power adaptor
- 6.3mm jack to jack lead
