SU20 Compact Dual UHF Microphone Sets

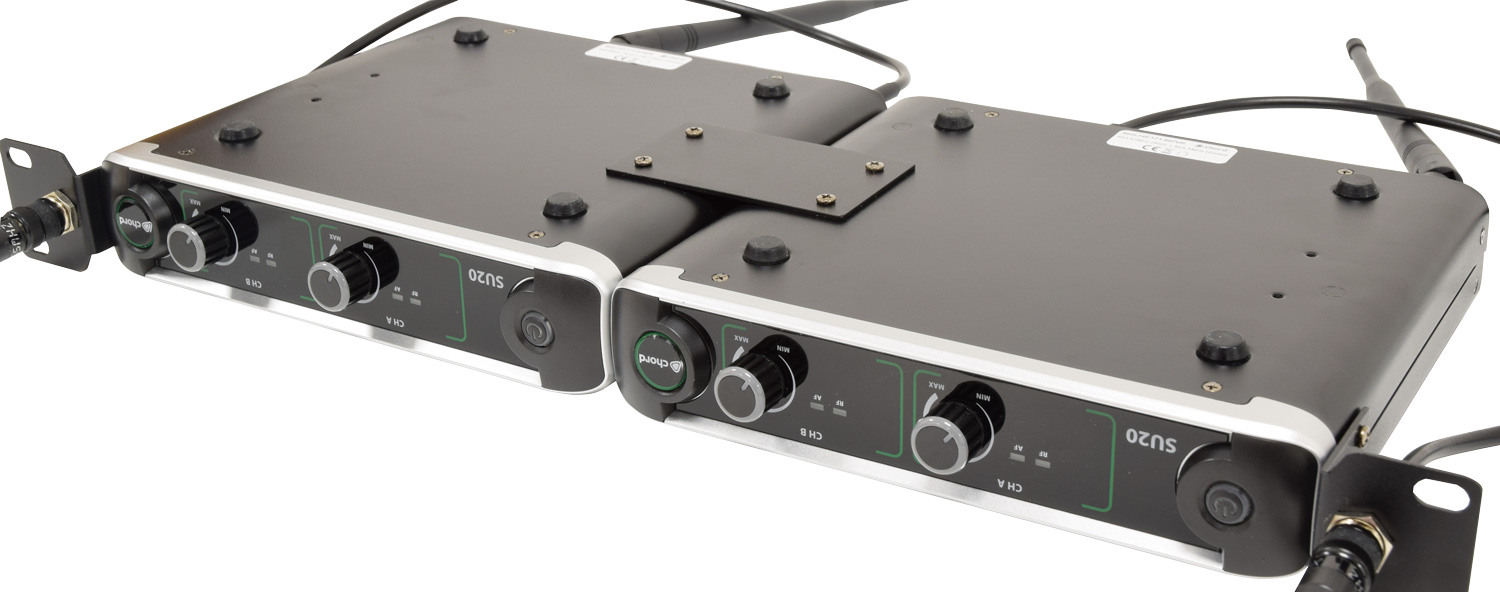

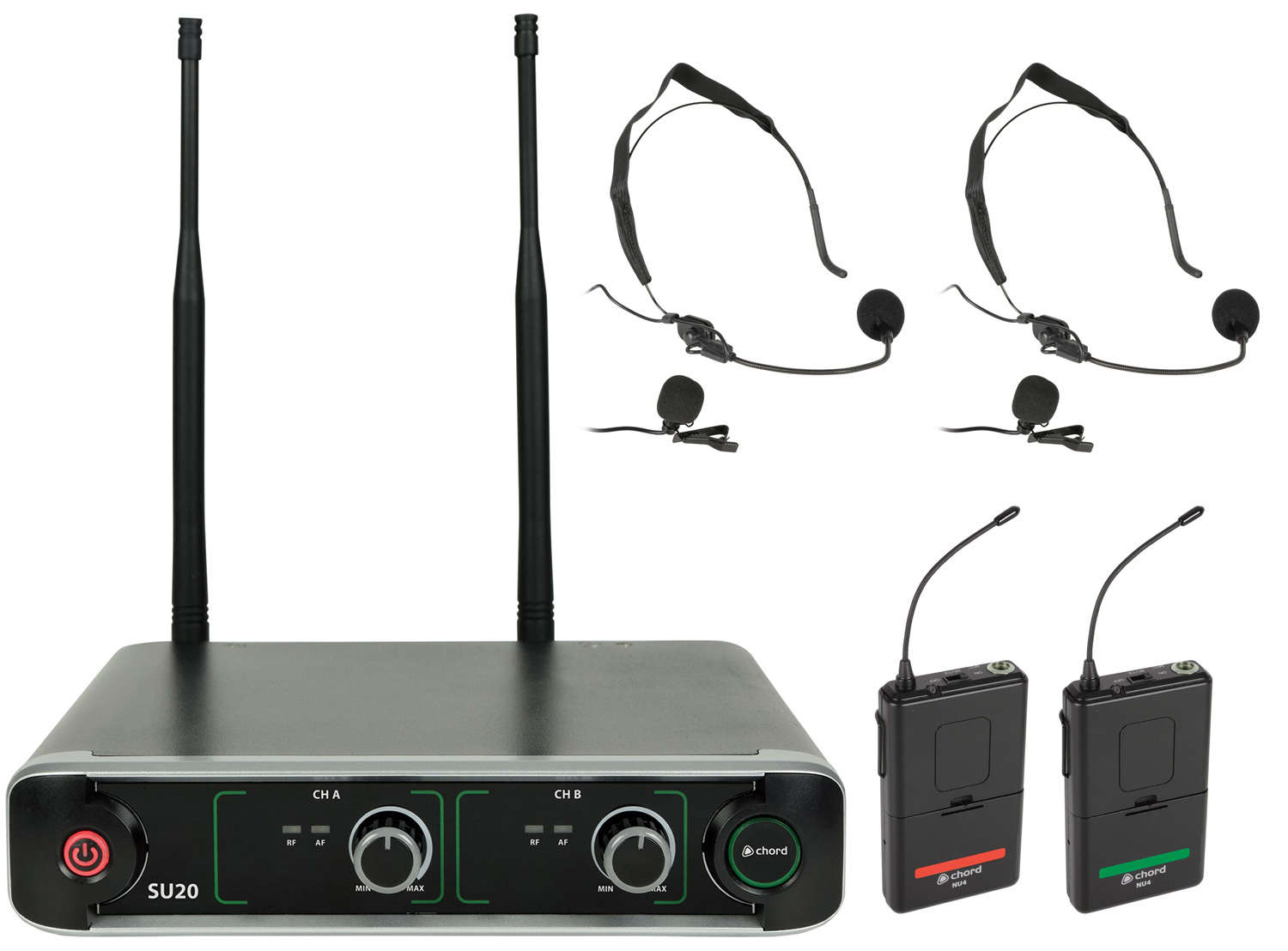

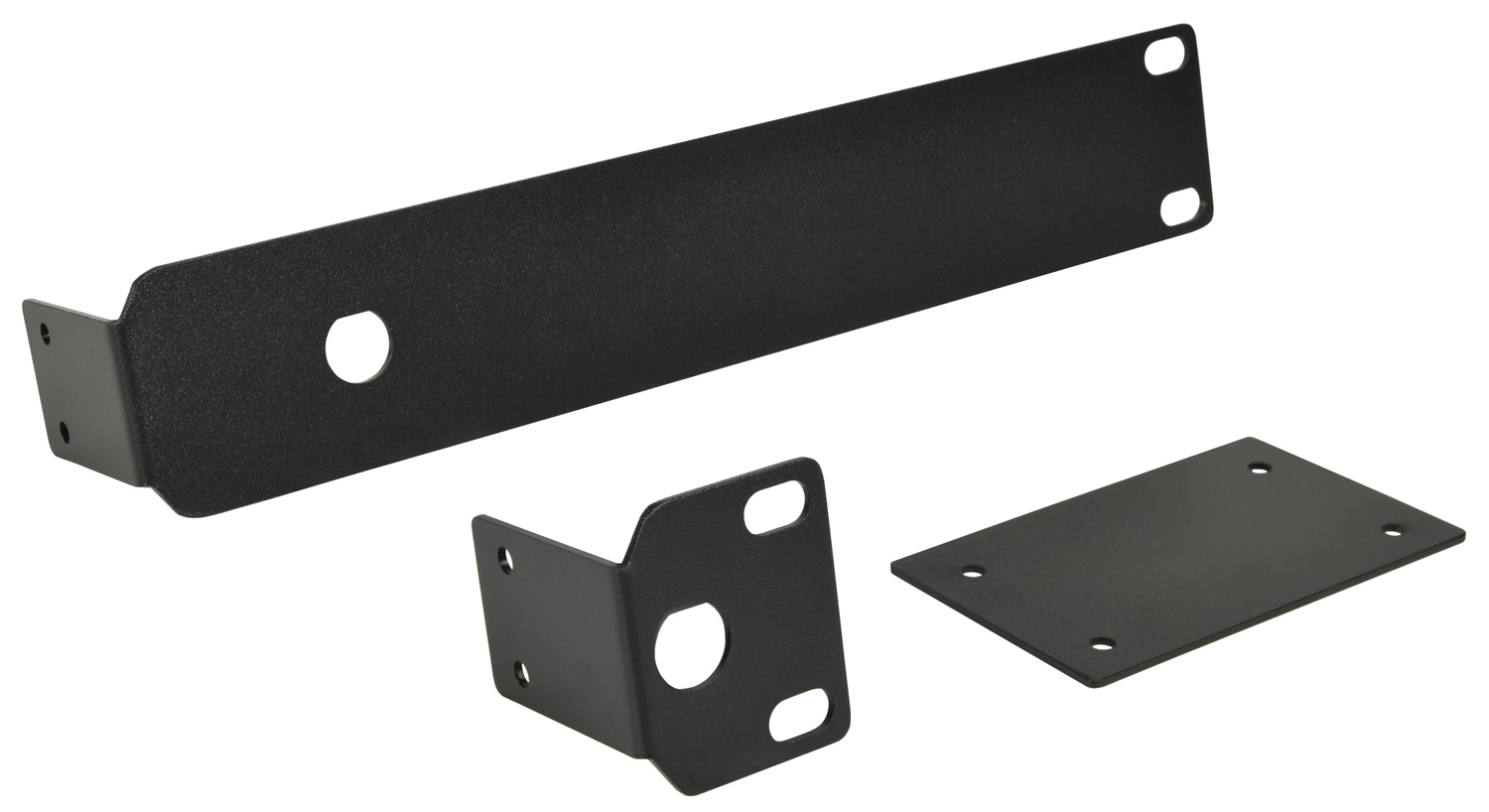

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space. BNC cables and detachable antennas are provided for rear or front mounting as required. Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.

• Up to 2 sets (4 microphones) can be used together
• Available in handheld or beltpack versions with 2 carrier frequency options

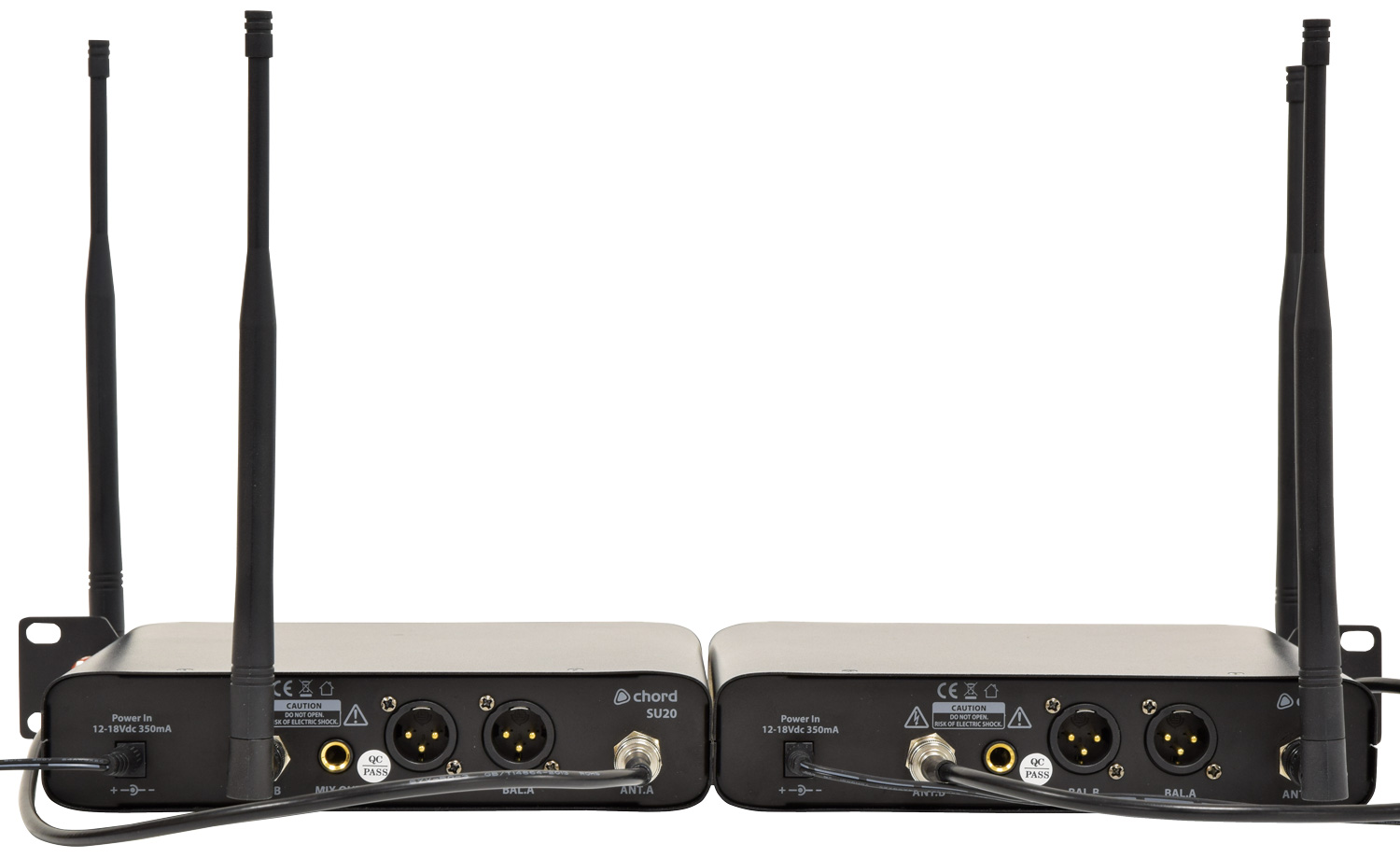

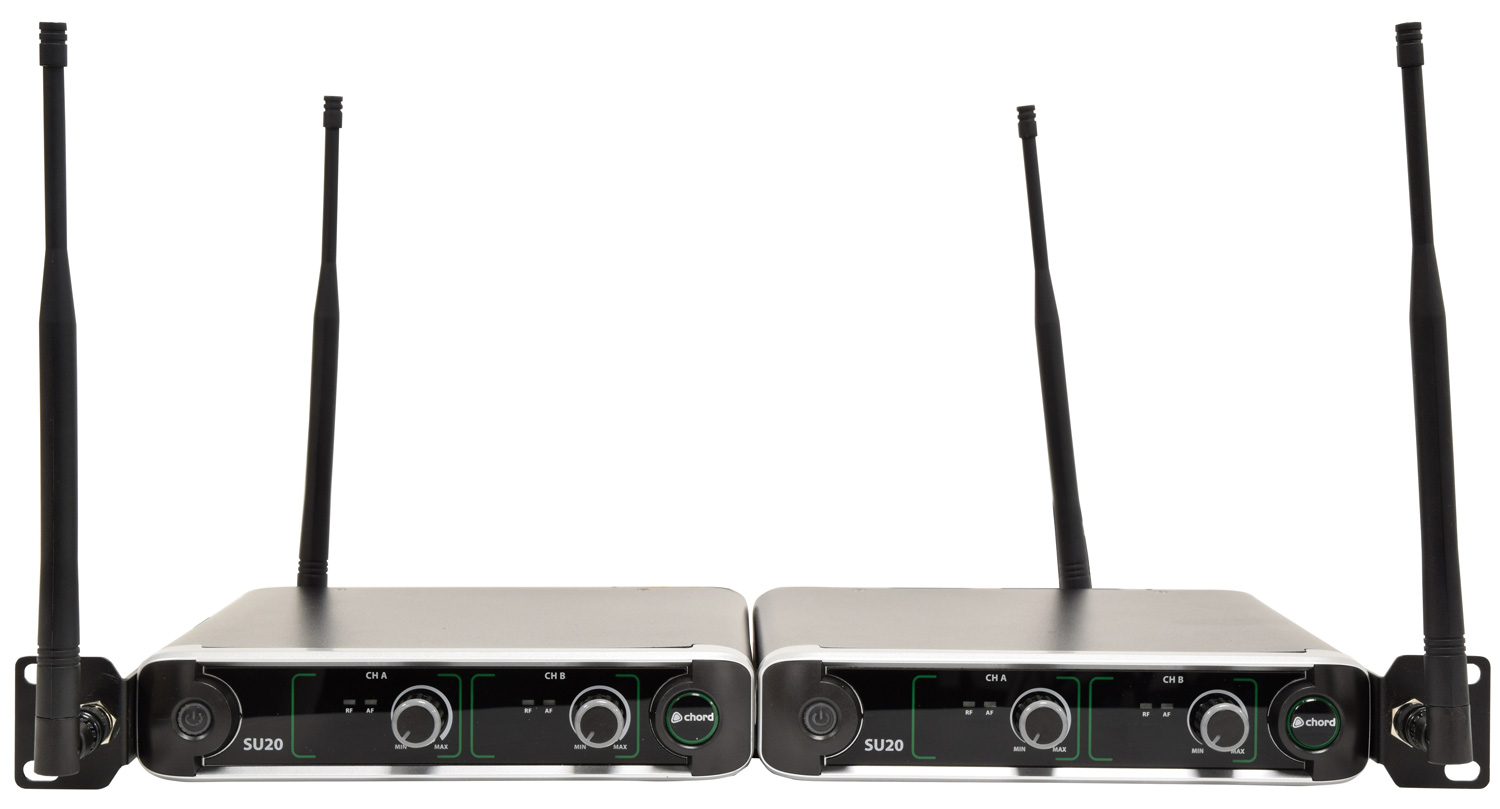

• Front or rear mountable antennas
• Compact half-rack receiver

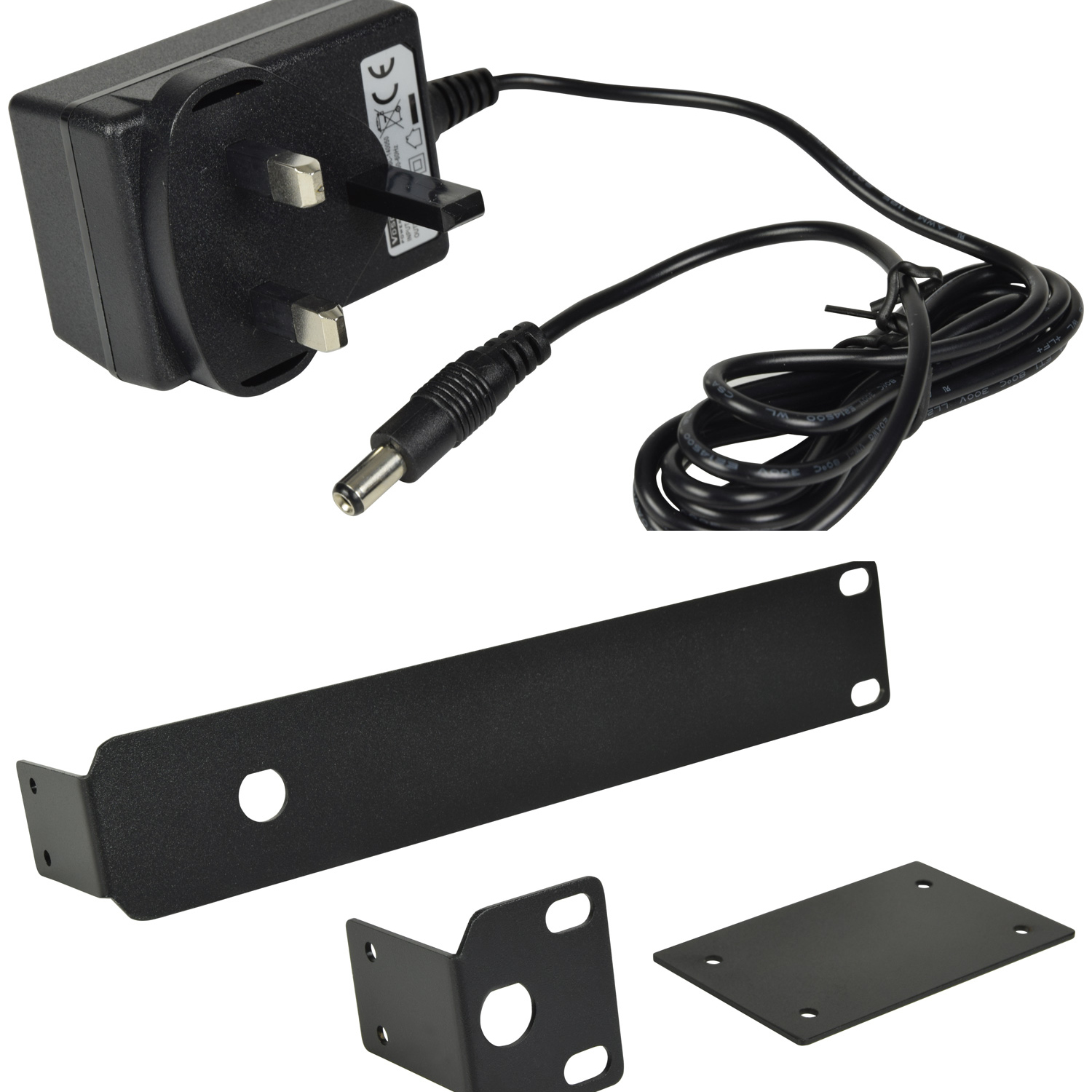

• Supplied with power adaptor and 4 x AA batteries

• Carrier frequencies 863.42MHz (Red) + 864.3MHz (Green)
• Weight : beltpack transmitter 74g (no battery)
• Dimensions : beltpack transmitter 110 x 676 x 24mm
• Weight : handheld transmitter N/A
• Dimensions : handheld transmitter N/A

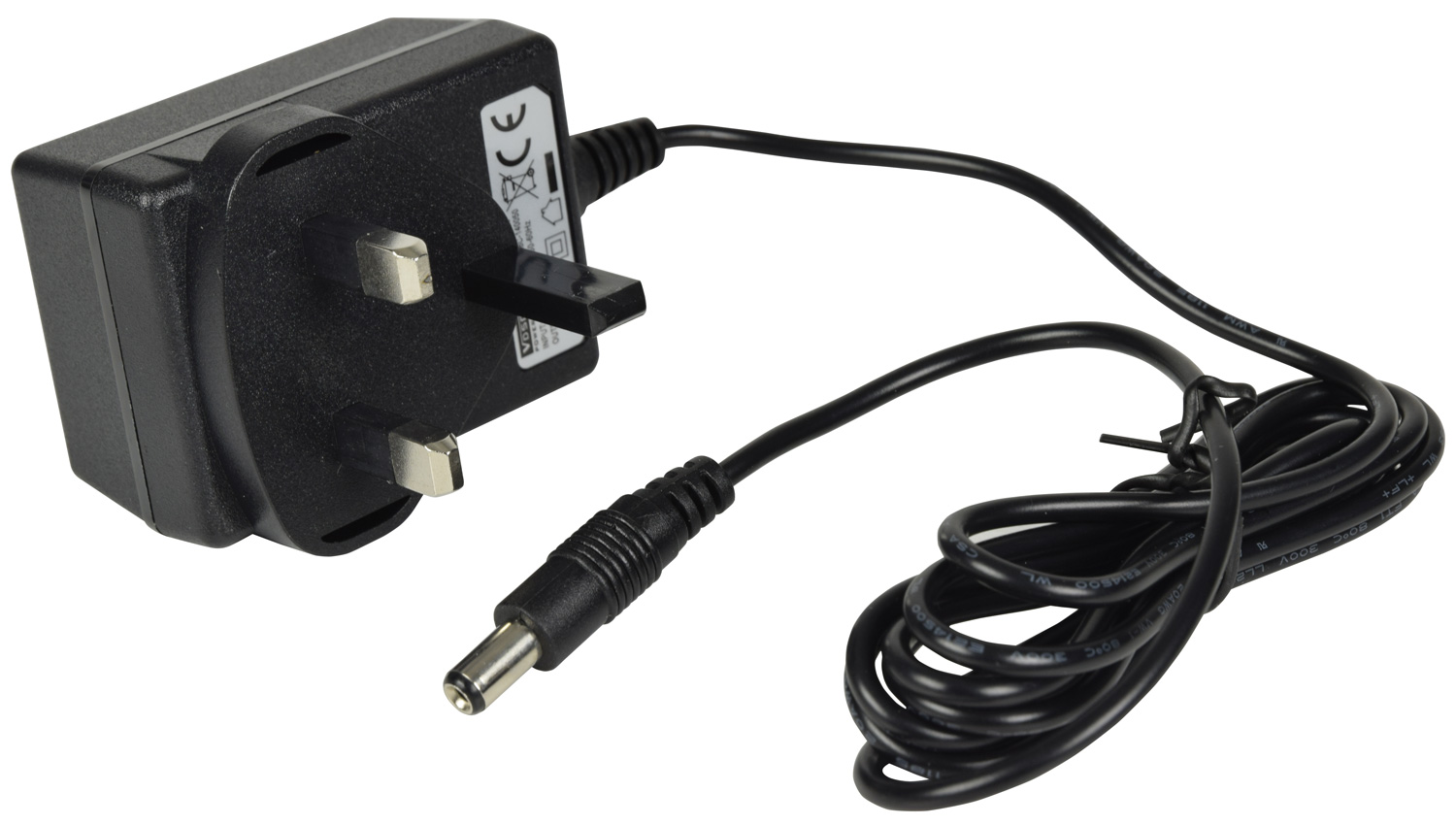

• Power supply 14Vdc 350mA (adaptor supplied)
• Antenna connection BNC
• Batteries 4 x AA (2 per transmitter) included
• Range 60m
• Microphone : polar pattern Cardioid (handheld, neckband or lavalier)

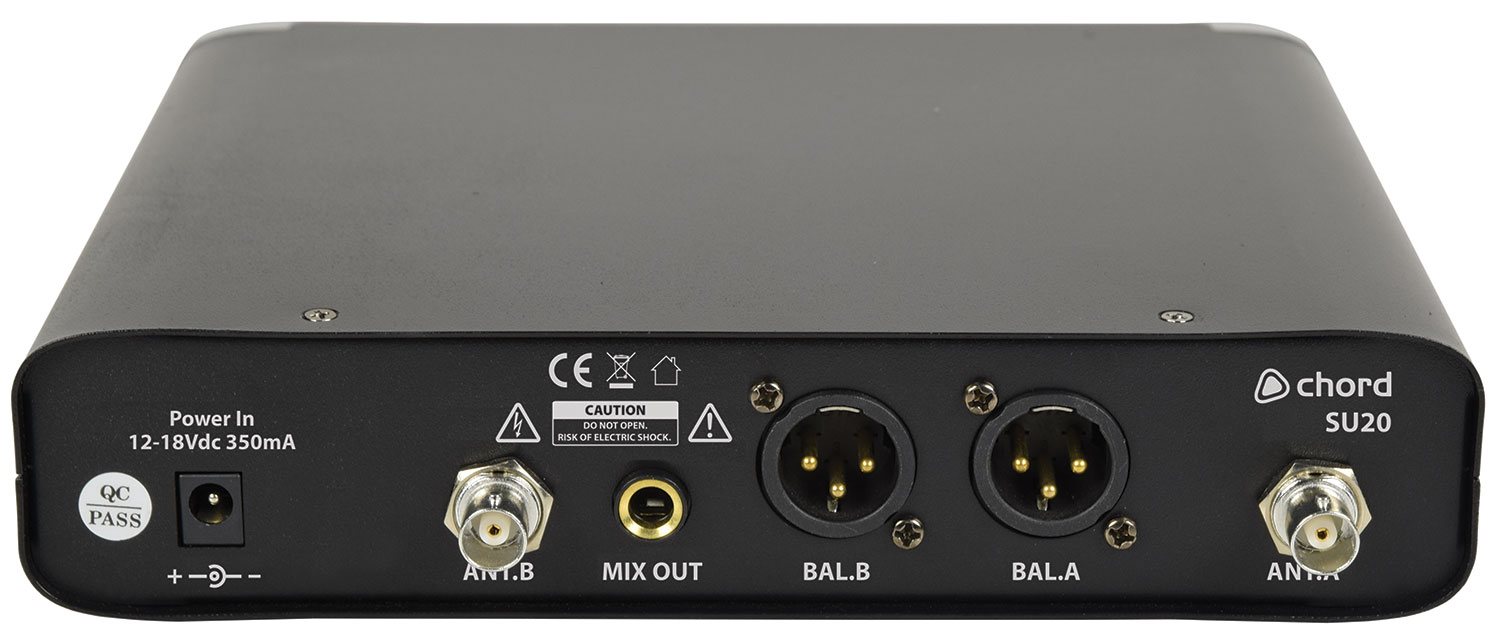

• Output connections 2 x balanced XLR, 1 x unbalanced 6.3mm jack
• Output impedance 2.2k Ohms
• Output level 400mV (balanced), 200mV (unbalanced)
• Frequency response 50Hz - 18kHz (±3dB)
• S/N ratio >80dB
• THD <0.5% @ 1kHz
• Dimensions : receiver 203 x 187 x 42mm
• Weight : receiver 845g
