B-8 Pedal Wireless System 2.4GHz

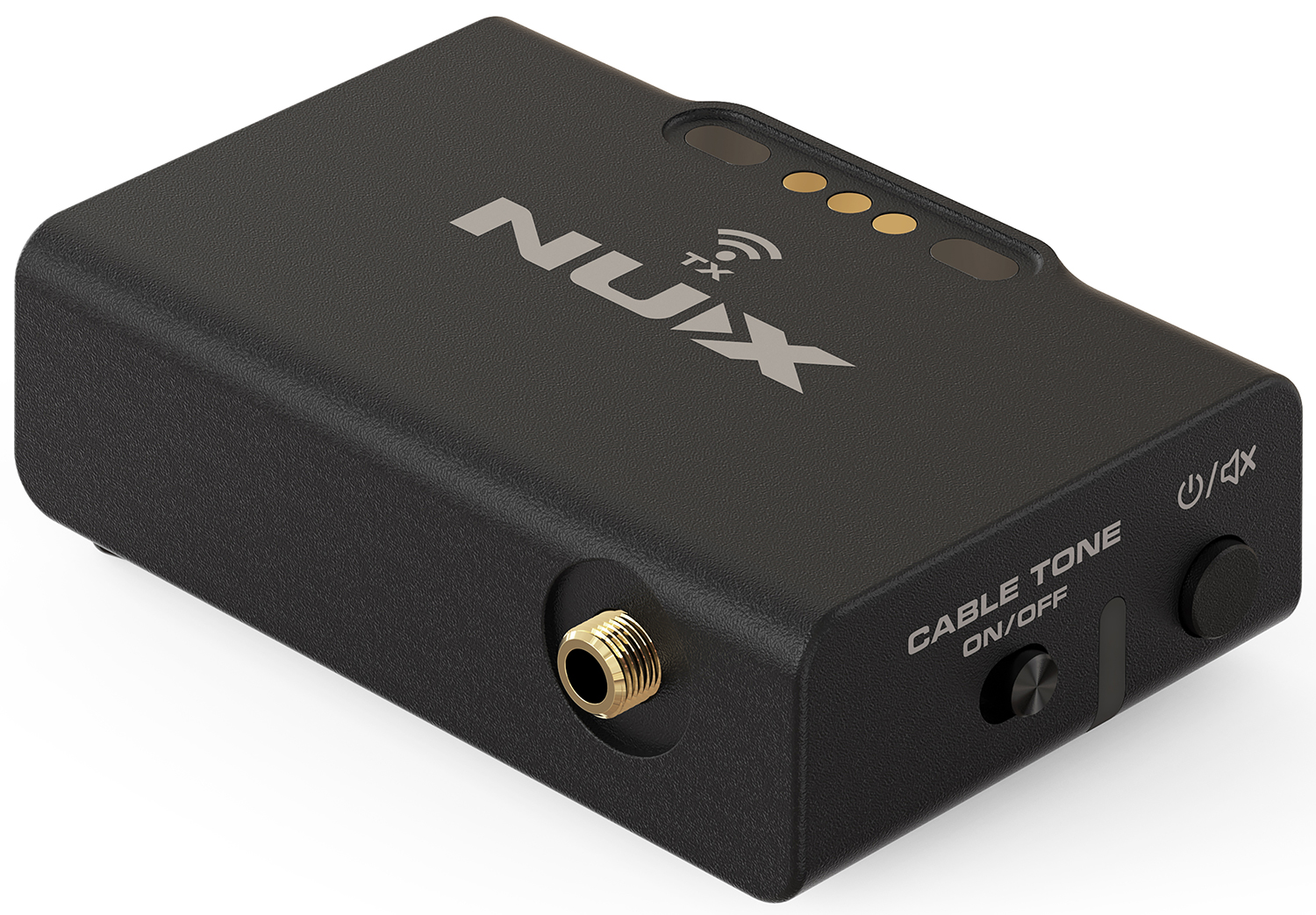

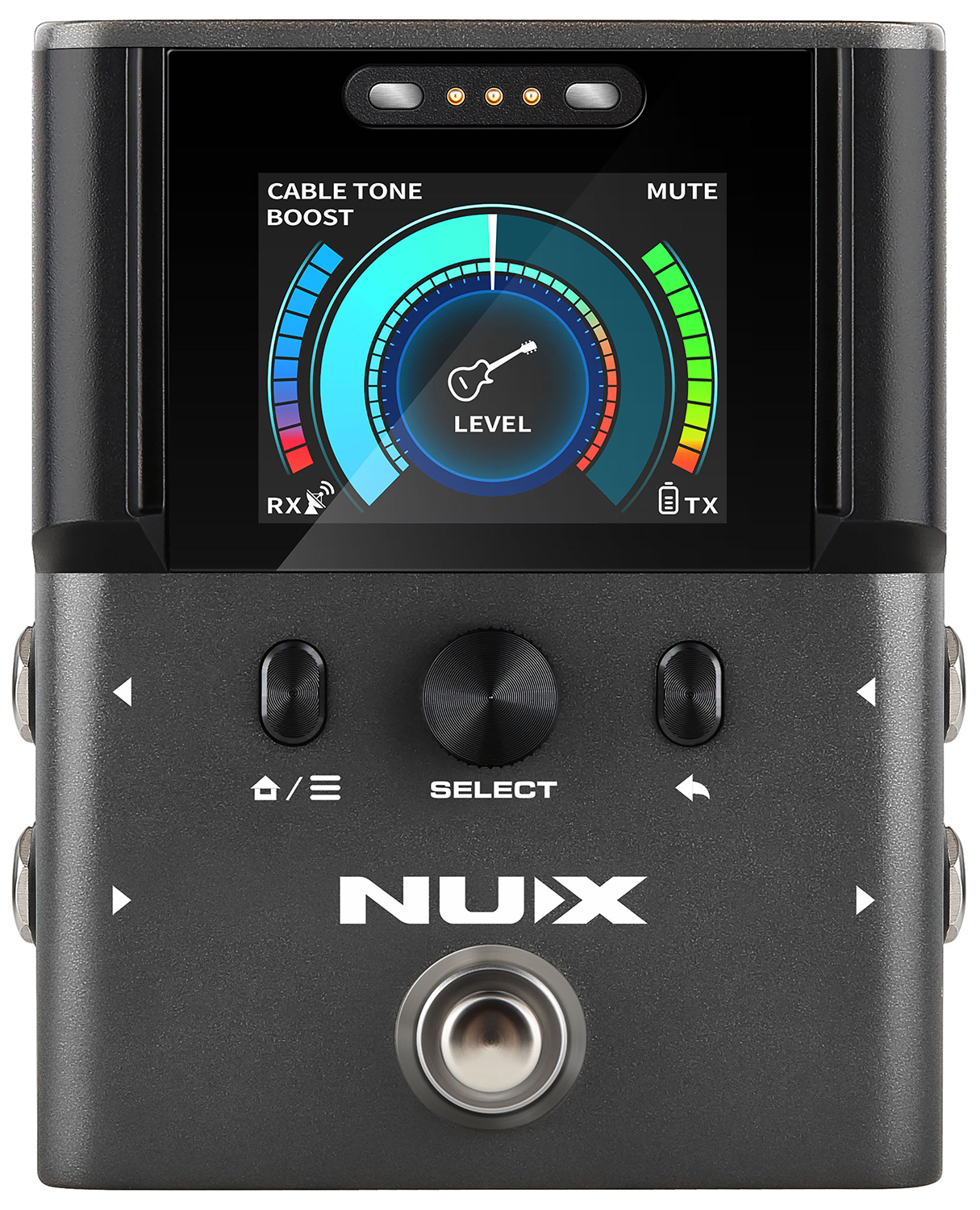

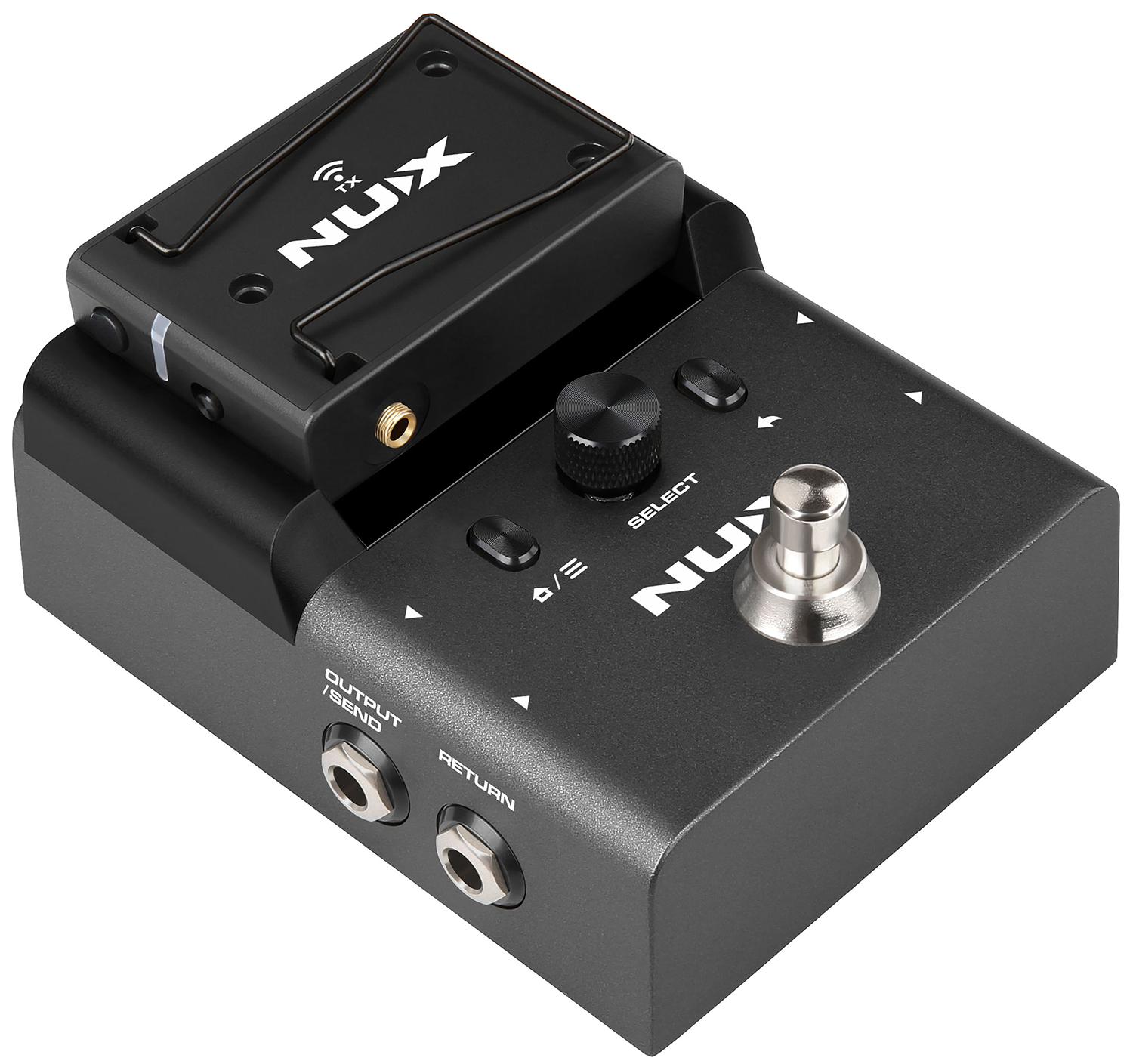

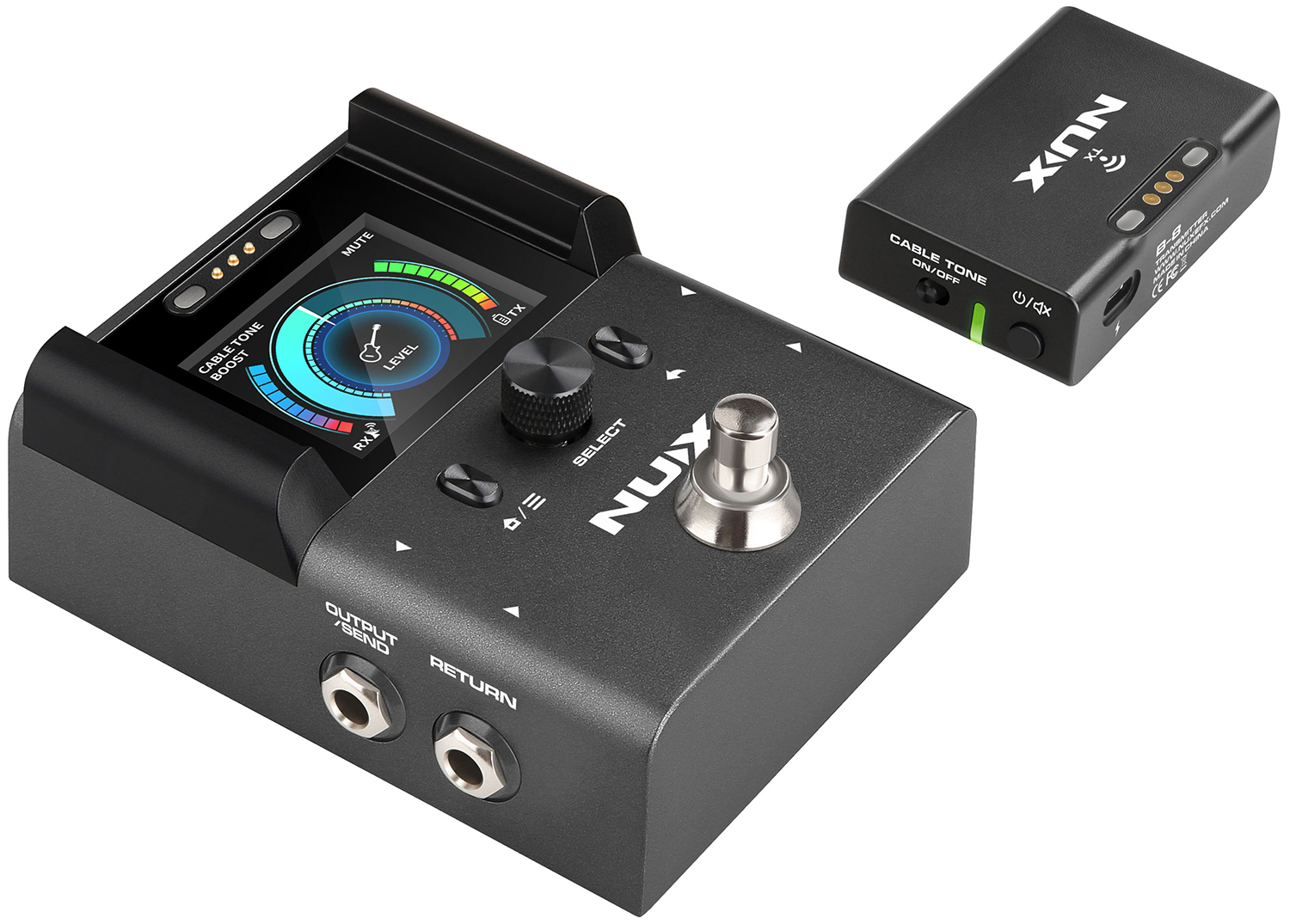

B-8 is the instrument wireless system re-defined, comprising a floor pedal receiver and a rechargeable transmitter pack. Operating on the 2.4GHz radio band, the B-8 offers a variable buffer to choose between higher reception stability or lower latency (as low as 2.5ms). The signal is encoded as 48kHz 24-bit digital for clean and detailed audio output. The receiver pedal is powered by an included 9Vdc power adaptor and serves as a charging station for the transmitter pack, which can also be charged via USB if required. The pedal also includes a full colour multi-function display and an inbuilt tuner with several different modes and settings. There is even an option to personalise the start-up screen with a custom GIF image or animation. A switchable Cable Tone function offers the option of adding the tonal character of using a long guitar lead. A send-return loop is included for inserting effects and sending the buffered output to an amplifier or D.I balanced output to a mixing console. To drive amps or effects with a stronger signal, the B-8 also has an adjustable boost function. B-8 is not simply a wireless system but a complete problem-solving tool for guitar or bass players and is also suitable other instruments, with features to meet the most demanding requirements in a wide variety of setups.

• Operates on the license-free 2.4GHz band.
• High quality 48kHz 24-bit digital audio
• Up to 50m wireless range
• Adjustable latency for signal stability
• Selectable Cable Tone and boost functions
• Inbuilt guitar / chromatic / strobe tuner functions
• Send and Return effects loop

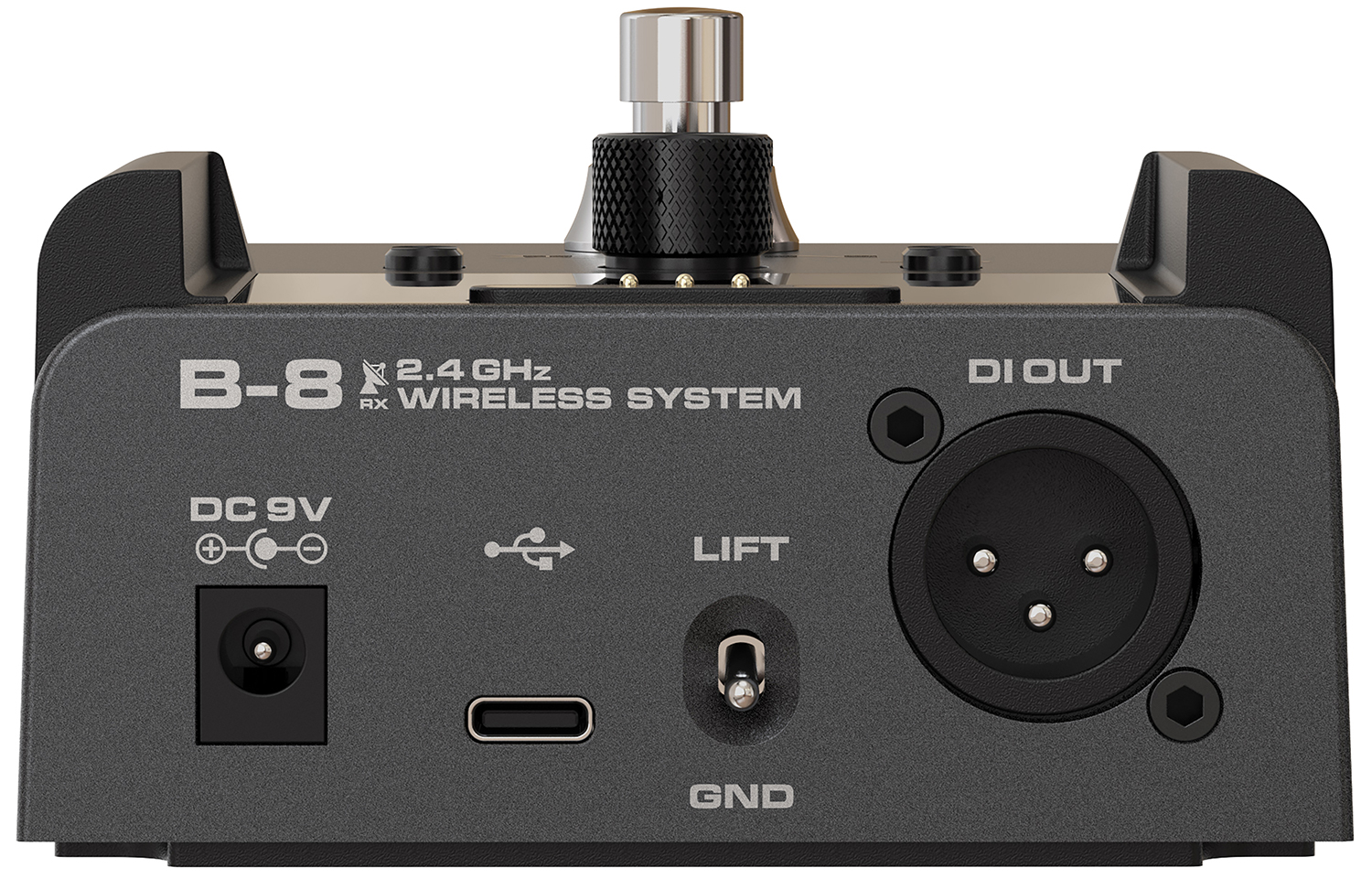

• Output jack to amplifier or balanced XLR to mixer

• Power supply 7-12Vdc 500mA (9Vdc adaptor supplied)
• Battery 3.7V, 500mAh rechargeable Li-po (Transmitter)
• Battery life up to 6.5 hours
• Wireless range 50m max.
• Carrier frequencies 2.4GHz band (2400-2483.5MHz)
• Sampling format 48kHz 24-bit
• Frequency response 20Hz - 20kHz
• Latency 2.5ms (lowest) to 8.7ms (most stable)
• Input impedance 1M ohm
• Input level +6.2 dBV, 5.78 Vp-p max (1 kHz at 1% THD)
• THD +N 0.01% @ 1kHz (typical)
• Dynamic range 122dB A-weighted (Output/Send)
• Mute -64dB
• Dimensions : receiver 122 x 95 x 60mm
• Weight : receiver 500g
• Dimensions : transmitter 73 x 49 x 23mm
• Weight : transmitter 63g
