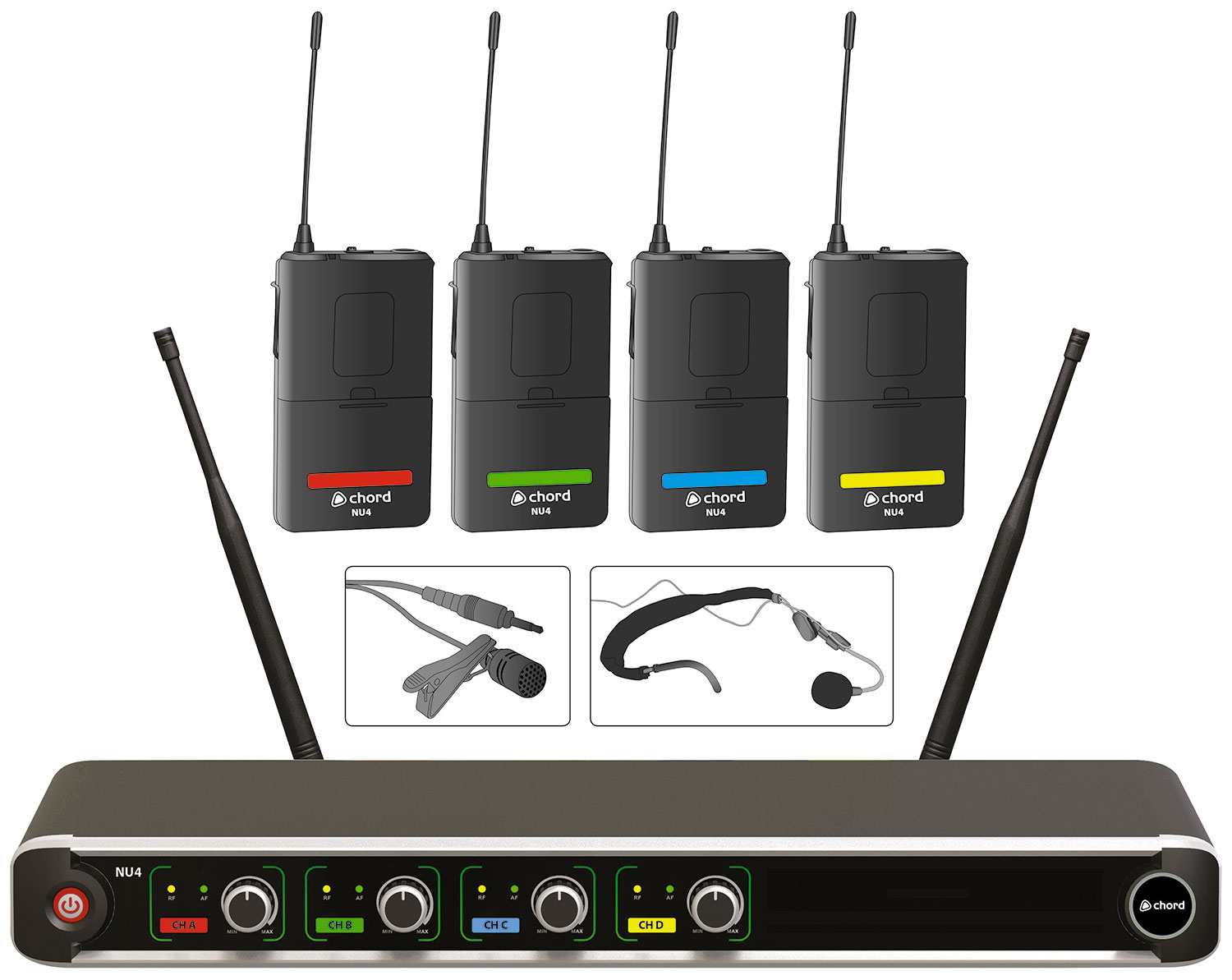

NU4 Quad UHF Wireless Microphone System
4 x neckband/lapel
UHF wireless system with 4 independent channels. The receiver is 19" rack-mountable and features 4 separate XLR outputs or a mixed jack output. Available in sets with 4 handheld or 4 beltpack… more
- Individual or mixed outputs
- 4 licence-free UHF frequencies with pilot tone
- Supplied with 4 colour coded transmitters
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
171.843UK
NU4-H Quad UHF System - Handheld |
4 x handheld | Gift Box |
|
171.844UK
NU4-N Quad UHF System-Neck/Lapel |
4 x neckband/lapel | Gift Box |
|
171.845UK
NU4-C Quad UHF System - Combo |
2 hand + 2 beltpack | Gift Box |
Recommended Accessories |
|||
|
171.954UK
NU4 Handheld Microphone Transmitter Yellow 863.1MHz |
Yellow 863.1MHz | Box Label |
|
171.955UK
NU4 Handheld Microphone Transmitter Red 864.8MHz |
Red 864.8MHz | Box Label |
|
171.956UK
NU4 Handheld Microphone Transmitter Green 864.3MHz |
Green 864.3MHz | Box Label |
|
171.957UK
NU4 Handheld Microphone Transmitter Blue 863.42MHz |
Blue 863.42MHz | Box Label |
|
171.958UK

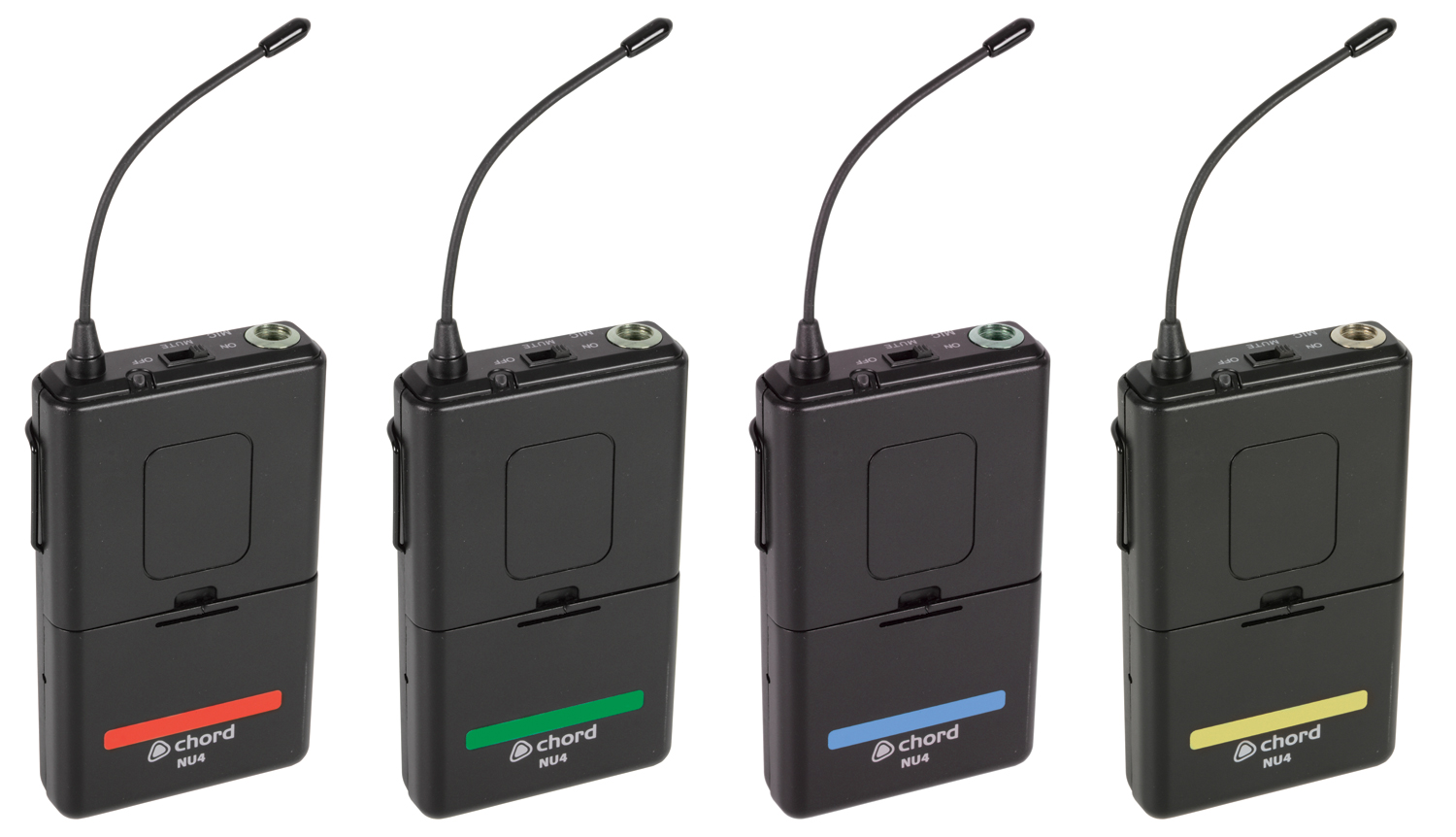

NU4 Beltpack Transmitter Yellow 863.1MHz |
Yellow 863.1MHz | Box Label |
|
171.959UK
NU4 Beltpack Transmitter Red 864.8Hz |
Red 864.8MHz | Box Label |
|
171.960UK
NU4 Beltpack Transmitter Green 864.3MHz |
Green 864.3MHz | Box Label |
|
171.961UK
NU4 Beltpack Transmitter Blue 863.42MHz |
Blue 863.42MHz | Box Label |
NU4 Quad UHF Wireless Microphone System
UHF wireless system with 4 independent channels. The receiver is 19" rack-mountable and features 4 separate XLR outputs or a mixed jack output. Available in sets with 4 handheld or 4 beltpack transmitters (with a choice of neckband or lavalier microphone for each beltpack) or a combo set with 2 of each. Suitable for vocal groups, theatres and presentations.
- Individual or mixed outputs
- 4 licence-free UHF frequencies with pilot tone
- Supplied with 4 colour coded transmitters
- 19" rack-mountable (1U)
- Dimensions : handheld transmitter N/A
- Weight : handheld transmitter N/A
- Dimensions : beltpack transmitter 205 x 68 x 25mm
- Weight : beltpack transmitter 76g (no battery)

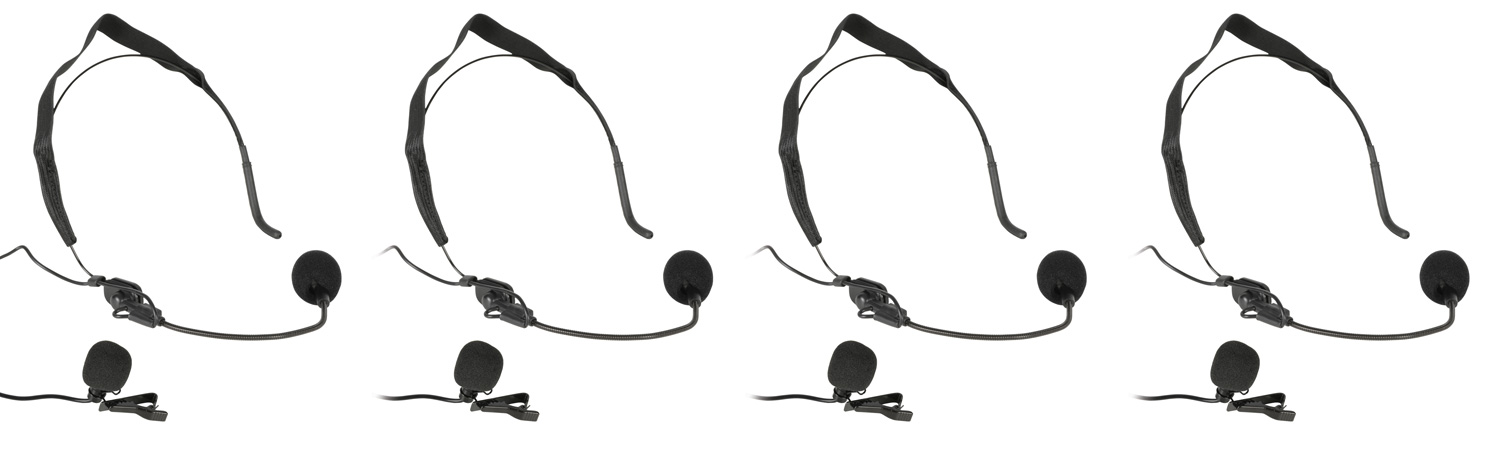

- Dimensions : neckband microphone 180 x 140 x 60mm
- Weight : neckband microphone 20g
- Dimensions : lavalier microphone 27 x 12mmØ
- Weight : lavalier microphone 20g
- Power supply 12-18Vdc 500mA adaptor (supplied)
- Carrier frequencies Red 864.8 ,Green 864.3, Blue 863.42, Yellow 863.1 (all in MHz)
- Wireless range Up to 60m
- Batteries 8 x AA (included)
- Dimensions : receiver 482 x 225 x 44mm (inc. rack ears)
- Weight : receiver 3.0kg

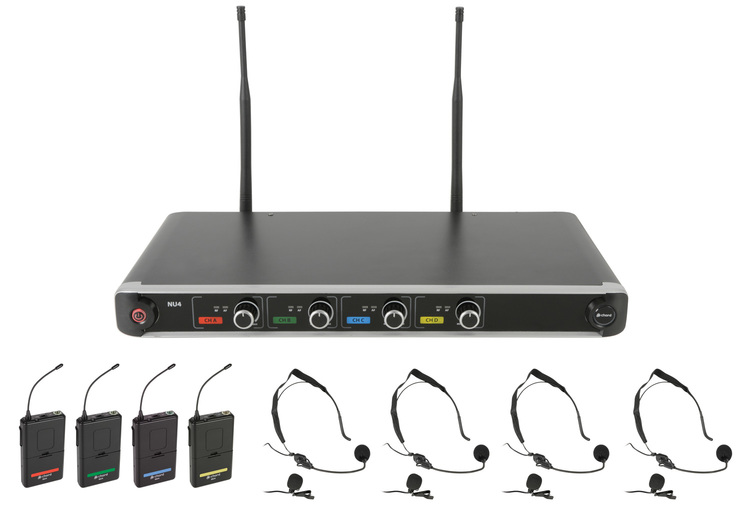

In the Box
- 1U rack-mountable receiver
- 4 x handheld or beltpack transmitters (with neckband and lavalier mics)
- 2 x UHF antennas
- 2 x BNC extension leads (for rack-mounting)
- 2 x rack-mount ears
- DC power adaptor
- 8 x AA batteries
