Aluminium LED Tape Profile - Raised Bar
1m
156.826UK
AL1-B5712
Extruded aluminium arch profile for LED tape installation. Supplied with snap-fit diffuser, end caps and clips for mounting onto walls or ceilings. Creates a gently raised bar profile with central… more
- Easy fit clip on diffuser
- Protects LED tape and aids cooling
- Diffuser reduces glare and softens light output
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
156.826UK
Aluminium LED Tape Profile Raised Bar 1m |
1m | Tube |
Aluminium LED Tape Profile - Raised Bar

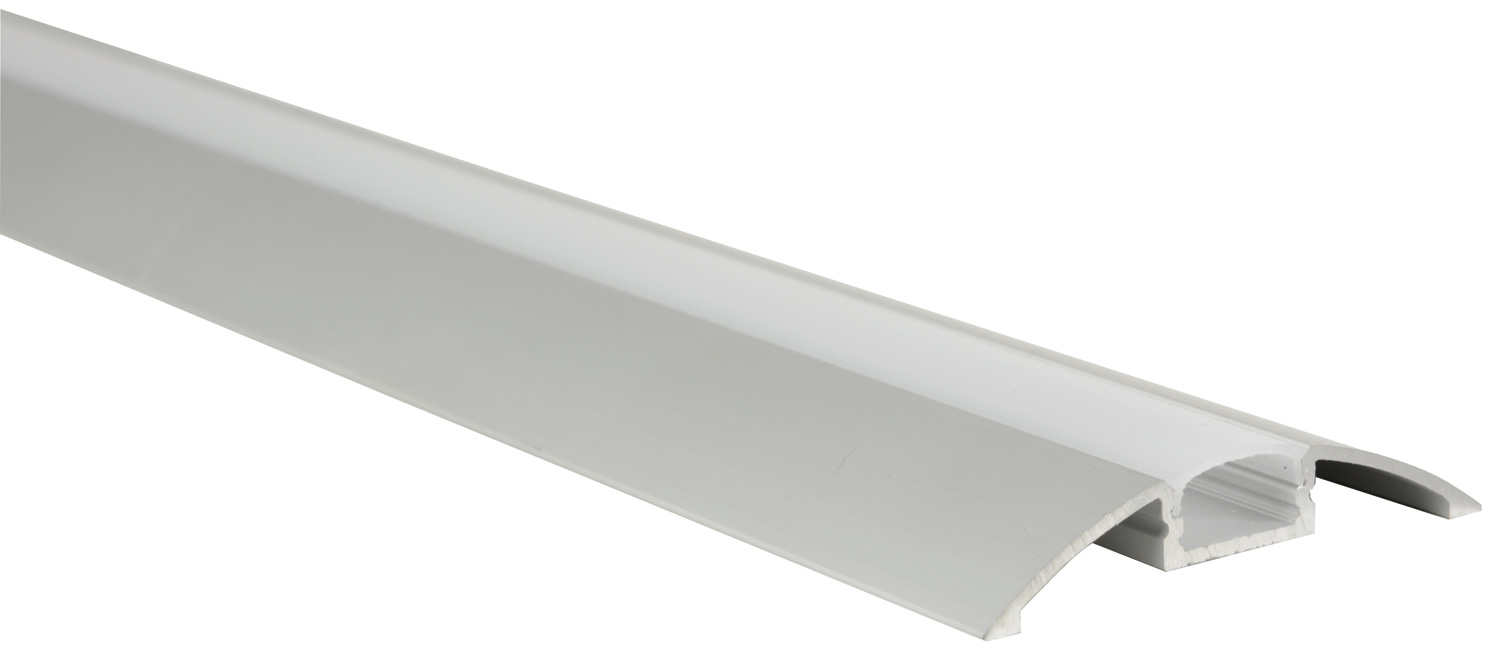

Extruded aluminium arch profile for LED tape installation. Supplied with snap-fit diffuser, end caps and clips for mounting onto walls or ceilings. Creates a gently raised bar profile with central light source for subtle lighting or architectural highlights.
- Easy, snap-fit diffuser
- Creates a gently raised illuminated bar
- Length 1m

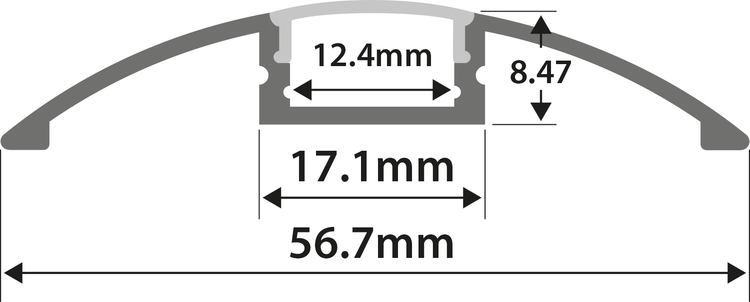

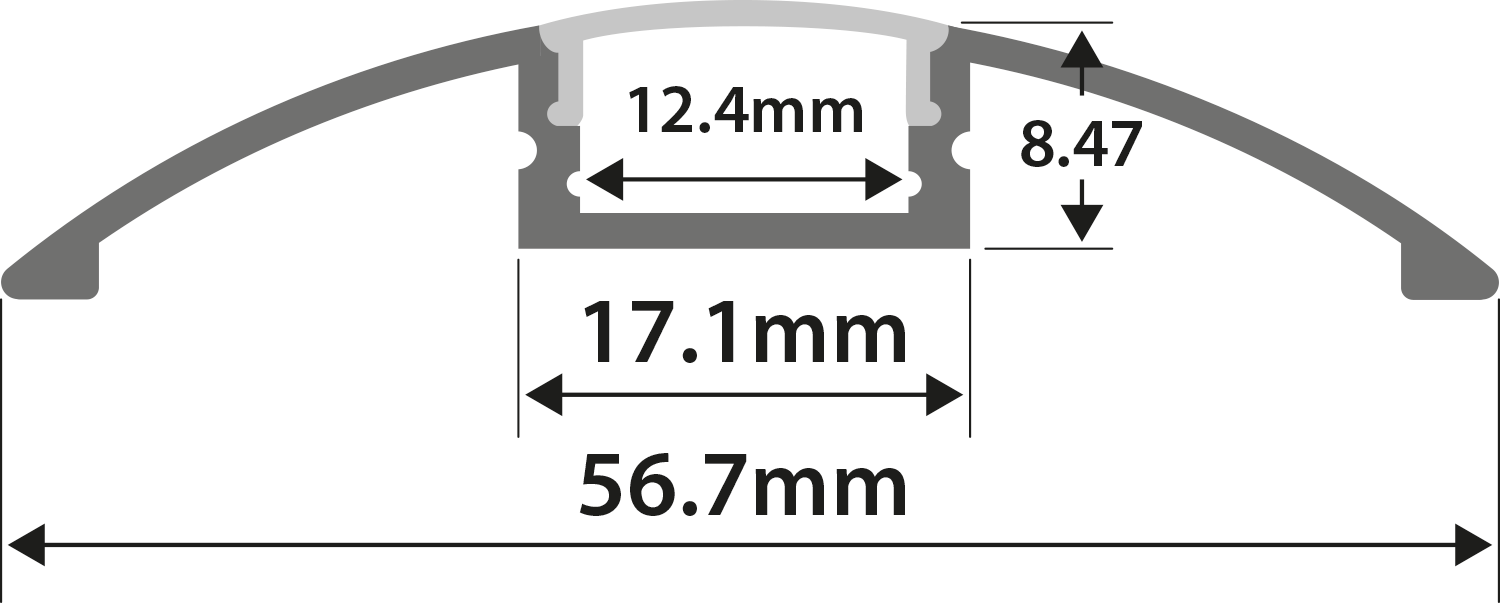

- External cross-section 57 x 12mm
- Internal cross-section 12 x 7mm
- Diffuser visible width 17mm
In the Box
- 1 x aluminium extrusion
- 1 x diffuser
- 2 x end caps
