Flexible Links for LED Tape
10mm single colour
Packs of 5 flexible links comprising 150mm wire with a snap connector at each end for connecting lengths of LED tape to extend runs or negotiate corners. Snap connectors fit onto connection pads on… more
- Solderless connection for LED tapes
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
156.147UK
DIY Single Colour Flexible Link - Pack of 5 |
8mm single colour | Poly Bag |
|
156.148UK
DIY RGB Flexible Link - Pack of 5 |
10mm RGB | Poly Bag |
|
156.149UK
Professional Single Colour Flexible Link - Pack of 5 |
10mm single colour | Poly Bag |
|
156.150UK
Professional RGB Flexible Link - Pack of 5 |
12mm RGB | Poly Bag |
Flexible Links for LED Tape

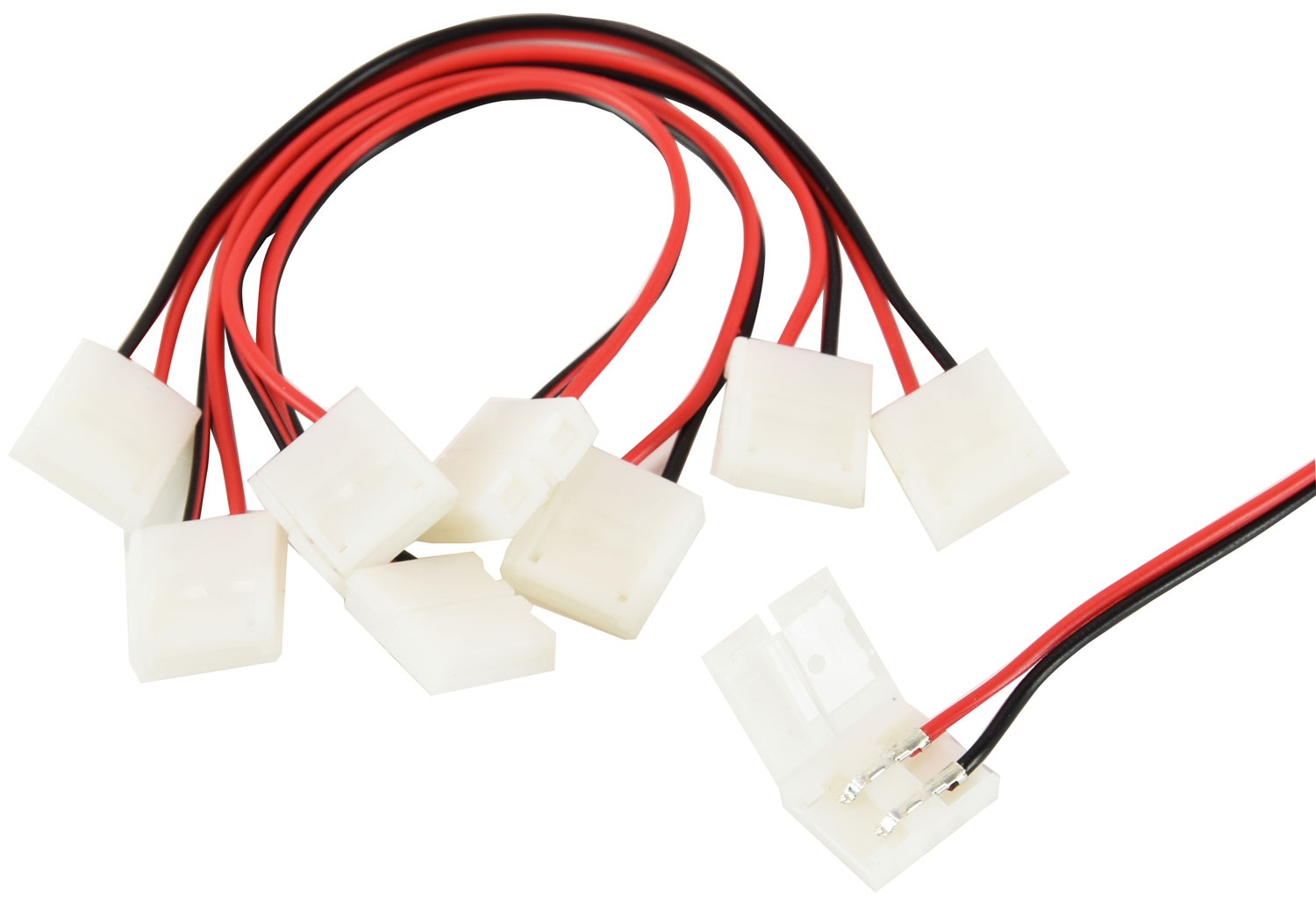

Packs of 5 flexible links comprising 150mm wire with a snap connector at each end for connecting lengths of LED tape to extend runs or negotiate corners. Snap connectors fit onto connection pads on the tape after paring back any silicone or waterproof coating to make an electrical connection without the need for solder. Where needed, these links can also be cut in half to provide bare wire connection to power supplies with screw terminals. A quick and mess-free solution for in-line connection in LED tape installations.
- Solderless connection for LED tapes
- Tape version 10mm single colour
- Cores 2 (red + black)
- Weight (each) 3g
- Dimensions (each) 165 x 15 x 5mm
- IP rating IP20
- Wire length 150mm
In the Box
- 5 x 150mm wires with snap connectors
