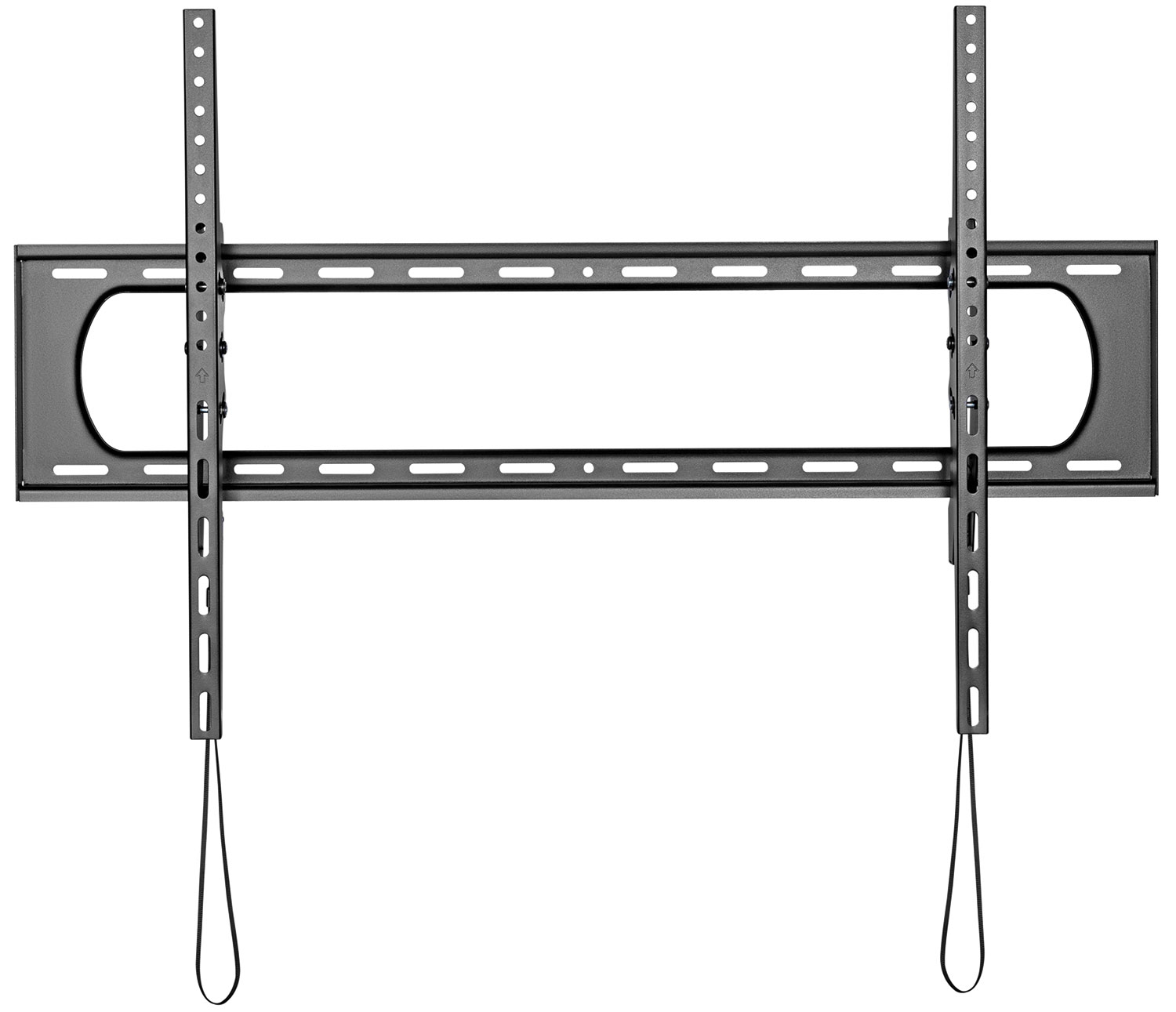

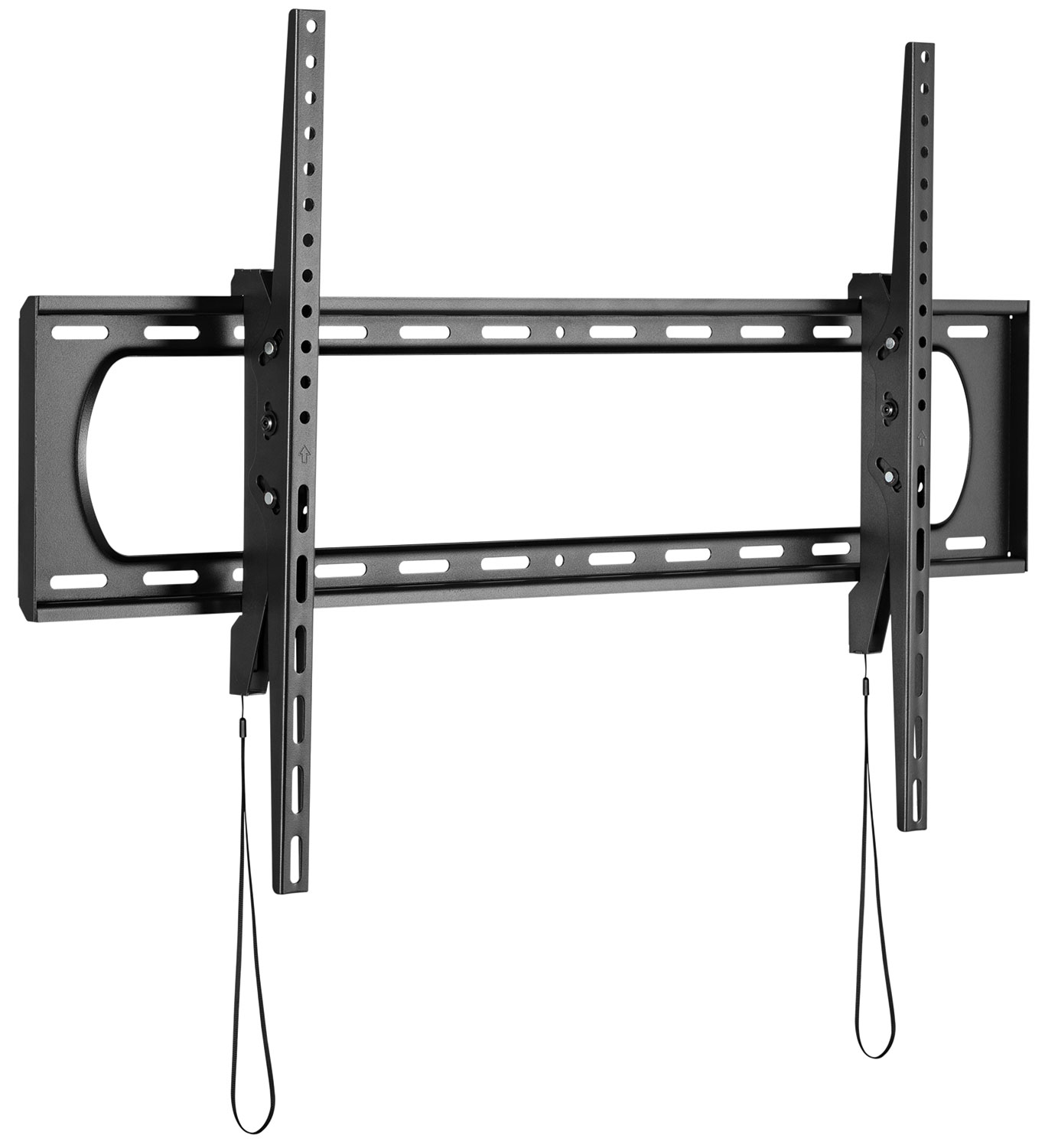

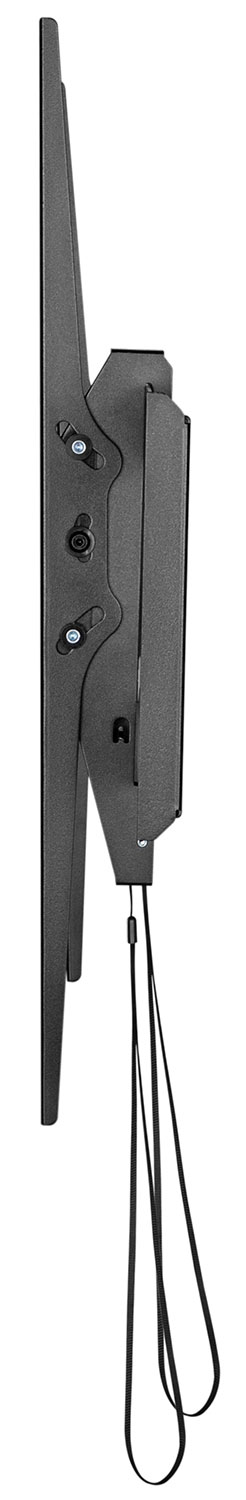

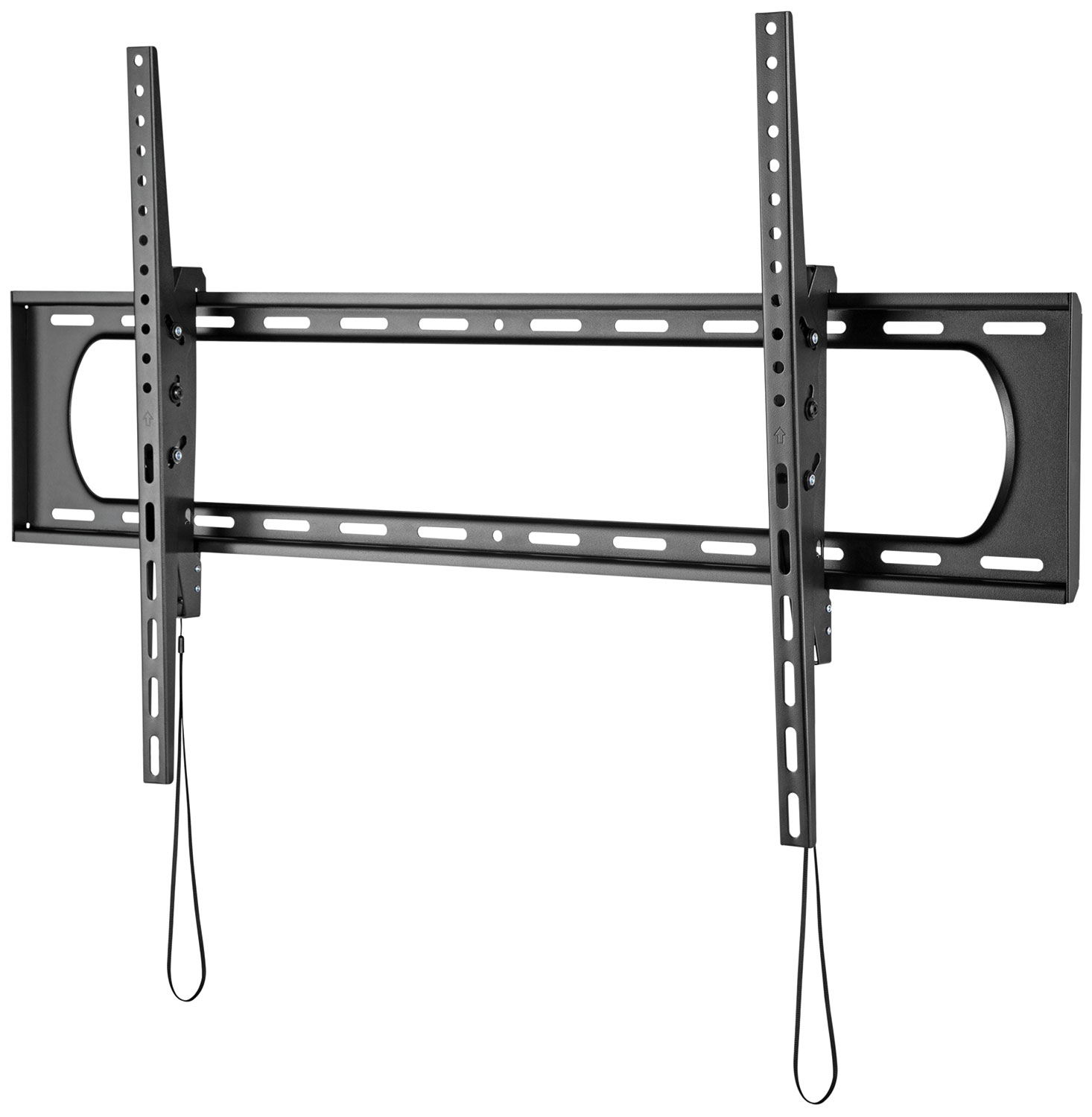

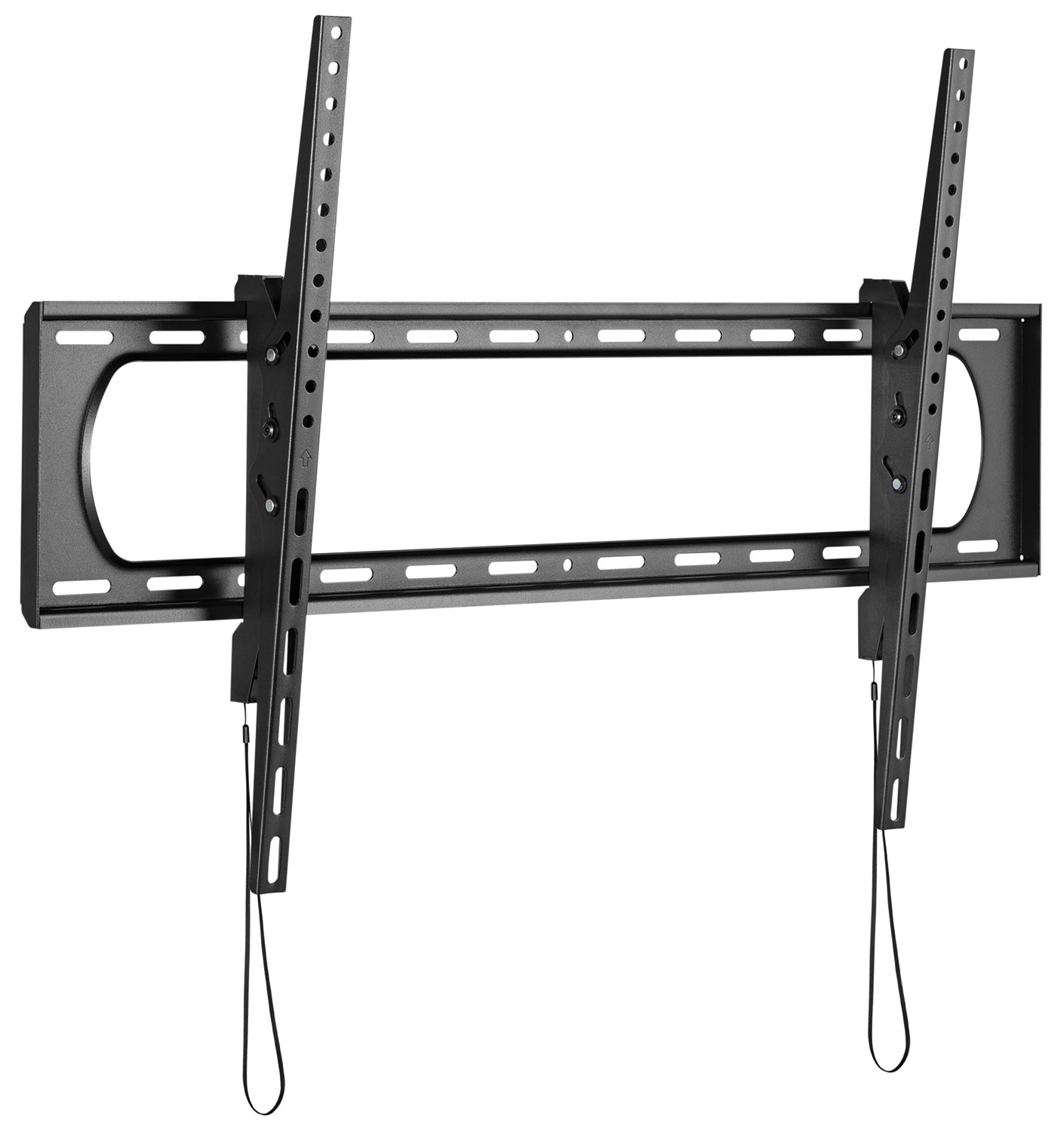

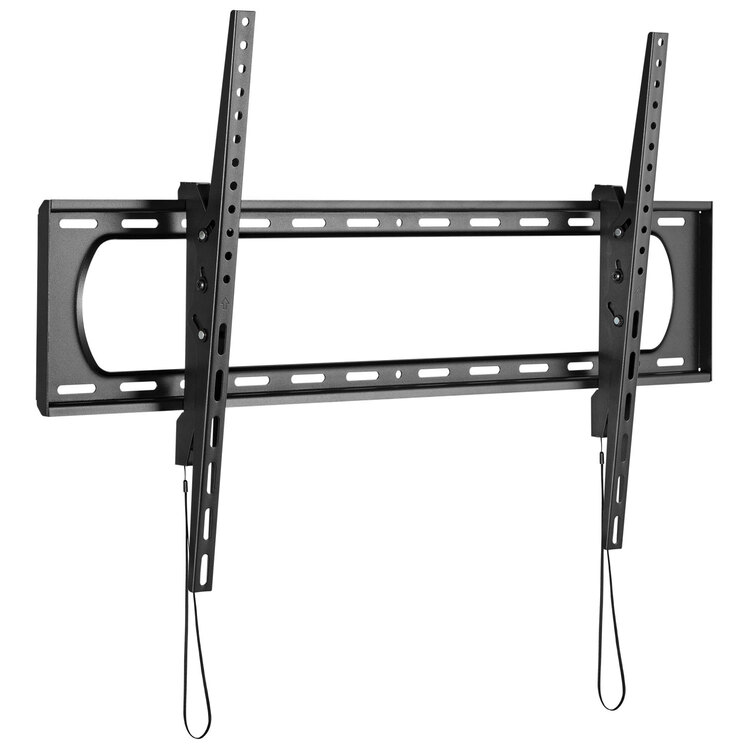

Tilting Heavy Duty TV Bracket for Extra Large Screens 60" to 120"
129.169UK
A heavy-duty, easy to assemble tilting wall mounting for extra large TVs up to 120" in screen size and 120kg in weight. Designed for quick and easy installation and removal via the self-locking… more
- Auto lock/release mechanism allows for quick and easy screen installation and removal
- Toolless tilt adjustment for effortless positioning
- Heavy-Duty construction provides strength and durability
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
129.169UK
Tilting Heavy Duty TV Bracket for XL Screens 60" to 120" |
Gift Box |
Tilting Heavy Duty TV Bracket for Extra Large Screens 60" to 120"
A heavy-duty, easy to assemble tilting wall mounting for extra large TVs up to 120" in screen size and 120kg in weight. Designed for quick and easy installation and removal via the self-locking mechanism that can be opened by simply pulling on 2 drawstrings either side of the unit. Supplied with a large range of installation hardware, these brackets are ideal for both home and business applications.
- Auto lock/release mechanism allows for quick and easy screen installation and removal
- Toolless tilt adjustment for effortless positioning
- Heavy-Duty construction provides strength and durability
- Open Architecture provides increased ventilation and easier access to wires
- Suitable for extra large screens up to 120" and 120kg in weight
- Maximum 900x600 VESA compatible
- Supplied with a wide range of installation hardware
- Max. VESA 900x600
- Max. weight load 120kg
- Screen size 60" to 120"
- Distance from wall 80mm
- Tilt angle adjustment +10° to -10°
- Dimensions 1005m x 625mm x 80mm
- Weight 4.3kg
In the Box
- 1pc TV bracket
- 4pcs M6 x 14mm
- 4pcs M8 x 16mm
- 4pcs M6 x 30mm
- 4pcs M8 x 35mm
- 4pcs D8 Washer
- 4pcs 5mm Spacer
- 4pcs 15mm Spacer
- 6pcs Wall screw
- 6pcs Wall plug
- 6pcs Washer
- 1pc Magnetic spirit level
- 1pc User guide
