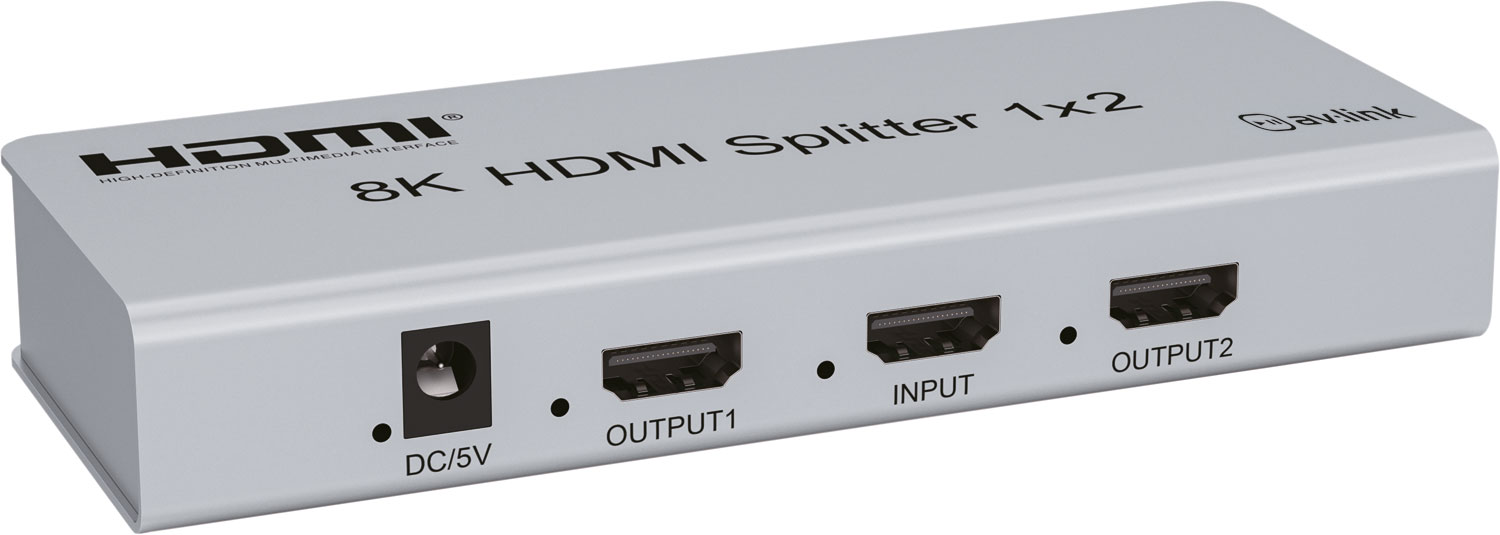

8K HDMI Splitter with EDID

Slimline 8K HDMI splitters to easily connect a single HDMI source to multiple displays at the same time. This up to the minute version will support HDMI resolutions up to 7680 x 4320 @ 60Hz, compatible with the latest technology and comes equipped with an 8-mode EDID switch allowing precise selection of the required video and audio formats.

• Supports HDMI resolutions up to 7680 x 4320 @ 60Hz for compatibility with the latest 8K technology.
• 8-mode EDID switch for precise video and audio selection
• Simple connection and installation
• Tough metal chassis with attractive satin silver finish
• Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats
• Ideal for gaming, entertainment, hospitality and other commercial venues requiring multiple display feeds from a single HDMI source

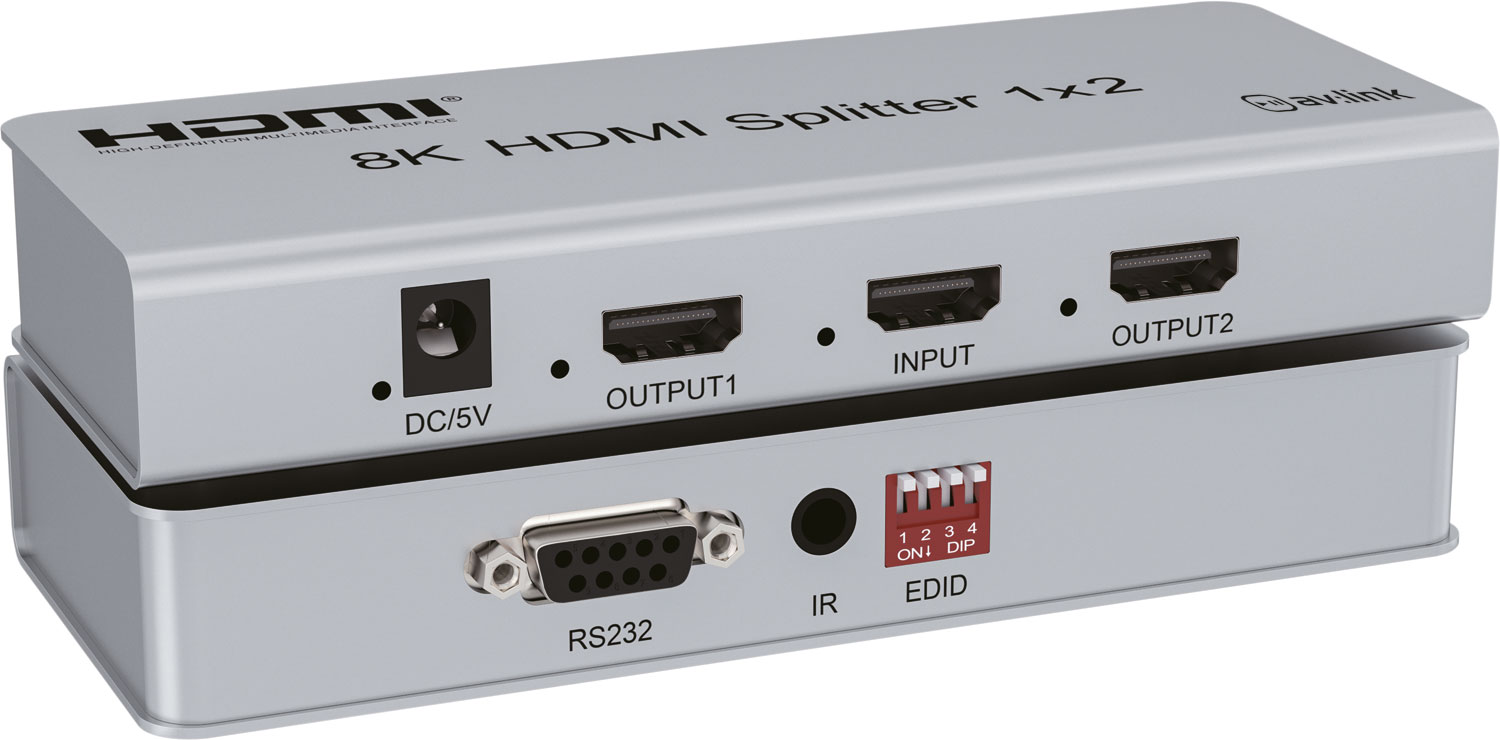

• Output connections 2x HDMI, 3.5mm IR Extension Socket (not supplied)
• Max. working current 0.7A

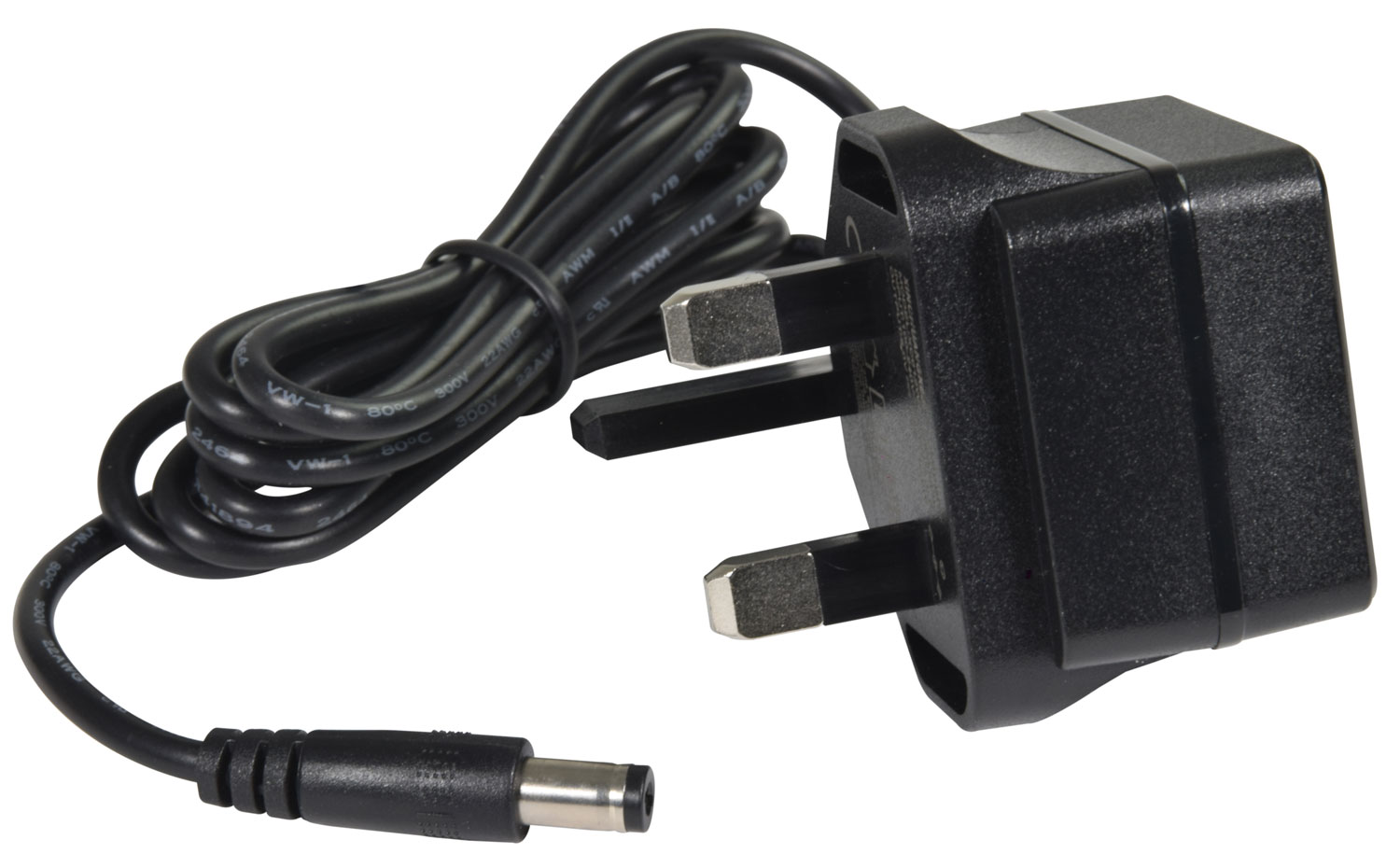

• Power supply Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/2A
• Dimensions 154 x 60 x 24mm
• Weight 335g
• Video resolution Up to 7680 x 4320 @ 60Hz
• Display colours 8/10/12bit deep colour
• Audio format DTS-HD, Dolby-trueHD, DTS, Dolby-AC3 and DSD
• Input connections HDMI, RS232 Serial (online firmware updates only)
• Max. baud rate 40Gbps
• Transmission distance 10m max 8K @ 60Hz
• Operating temperature range -15°C to +55°C
