4K HDMI Matrix 4x4

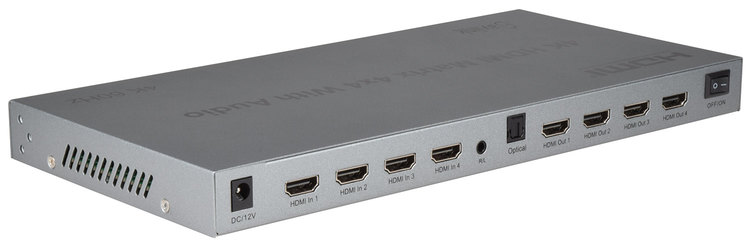

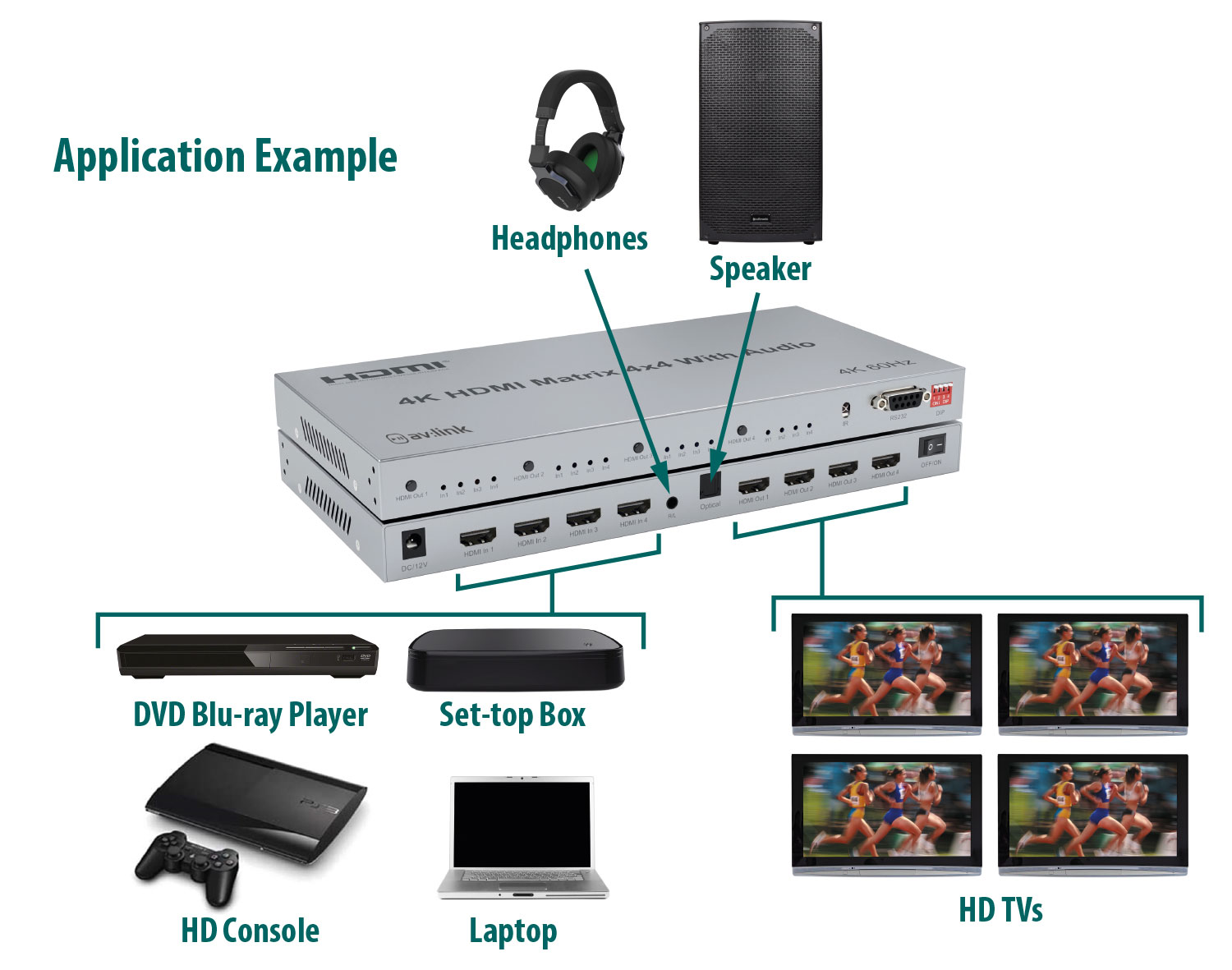

A 4K HDMI matrix to switch between 4 source devices and 4 display outputs. Use with HDMI cables of a combined 30m per input/output for 4K@30Hz and FHD resolutions, or a combined 10m per input/output for 4K@ 60Hz. SPDIF and 3.5mm stereo outputs allow the audio signal from HDMI output #1 to be simultaneously channelled through a separate sound system and/or headphones. Robust metal chassis incorporates an EDID switch panel for specific video and sound requirements and an RS232 port for serial data communication with a connected PC or laptop. Compatible with the latest 4K digital TV boxes making it ideal for hospitality and entertainment venues and supplied with IR remote to switch between sources for all outputs.

• Supports HDMI resolutions up to 3840 x 2160 @ 60Hz for compatibility with the latest 4K digital TV boxes
• Simple setup and operation
• Gold plated HDMI connectors for optimum signal transfer
• Supports DTS-HD, Dolby TrueHD , LPCM7.1, DTS, Dolby-AC3 and DSD audio formats
• Digital SPDIF and analogue 3.5mm jack audio outputs
• Smart EDID management for precise video and audio settings
• Ideal for entertainment, hospitality and other commercial venues with multiple sources and displays

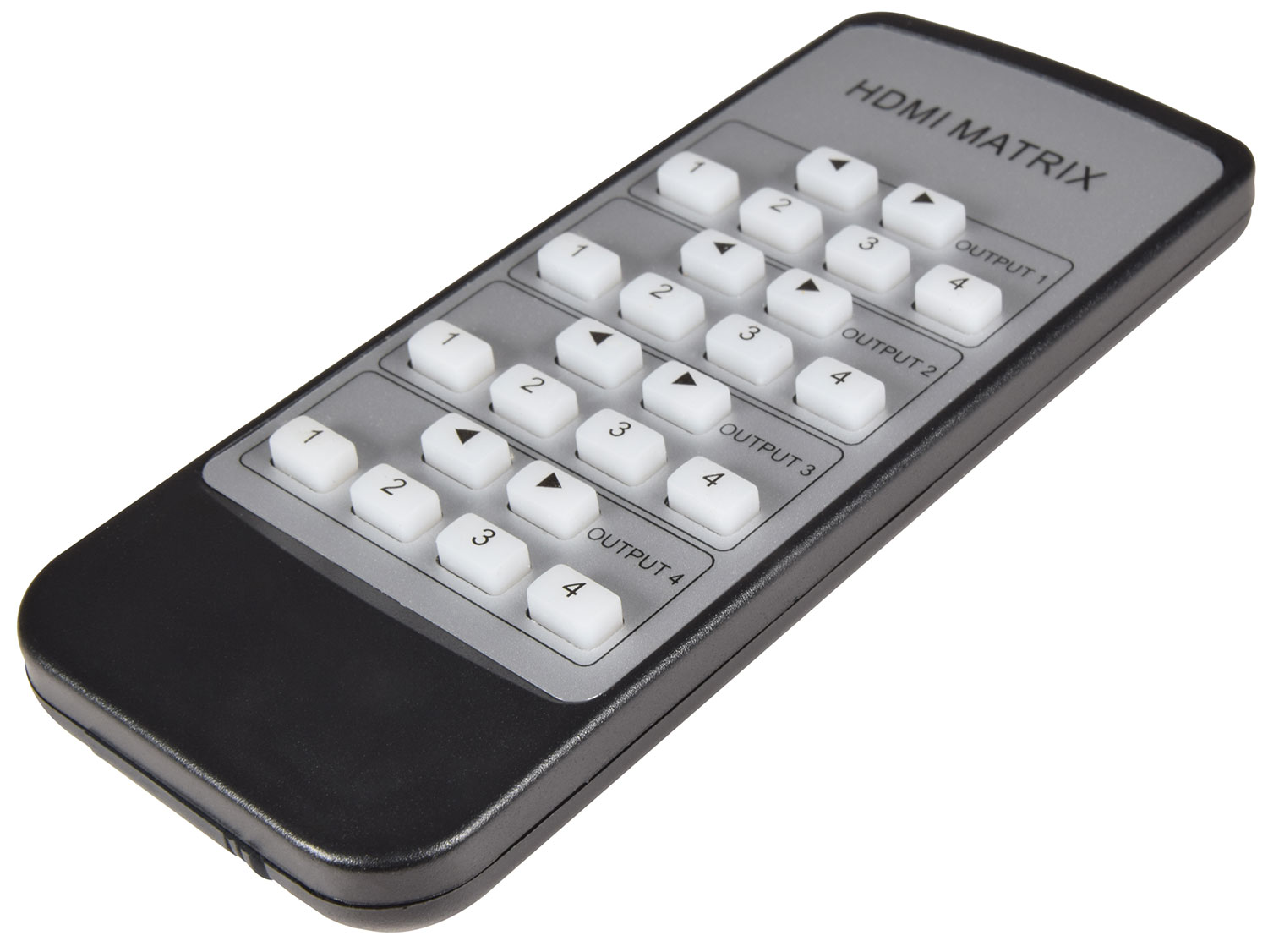

• IR remote control and UK power adaptor supplied

• Max. resolution 3840 x 2160 @ 60Hz
• Display colours 8/10/12bit deep colour
• HDCP version 2.2
• Audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
• Input connections 4x HDMI

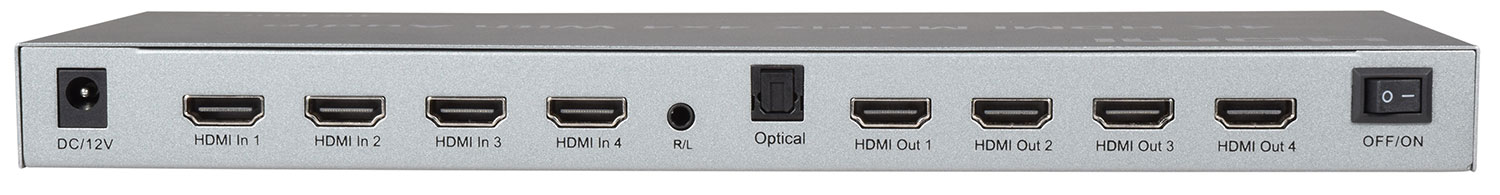

• Output connections 4x HDMI, Optical (Toslink), 3.5mm Stereo
• Max. baud rate 18Gbps
• Transmission distance 30m max 4K @ 30Hz and FHD or 10m max 4K @ 60Hz
• Max. working current 800mA
• Operating temperature range -15°C to +55°C
• Battery : remote 2x AAA (not supplied)

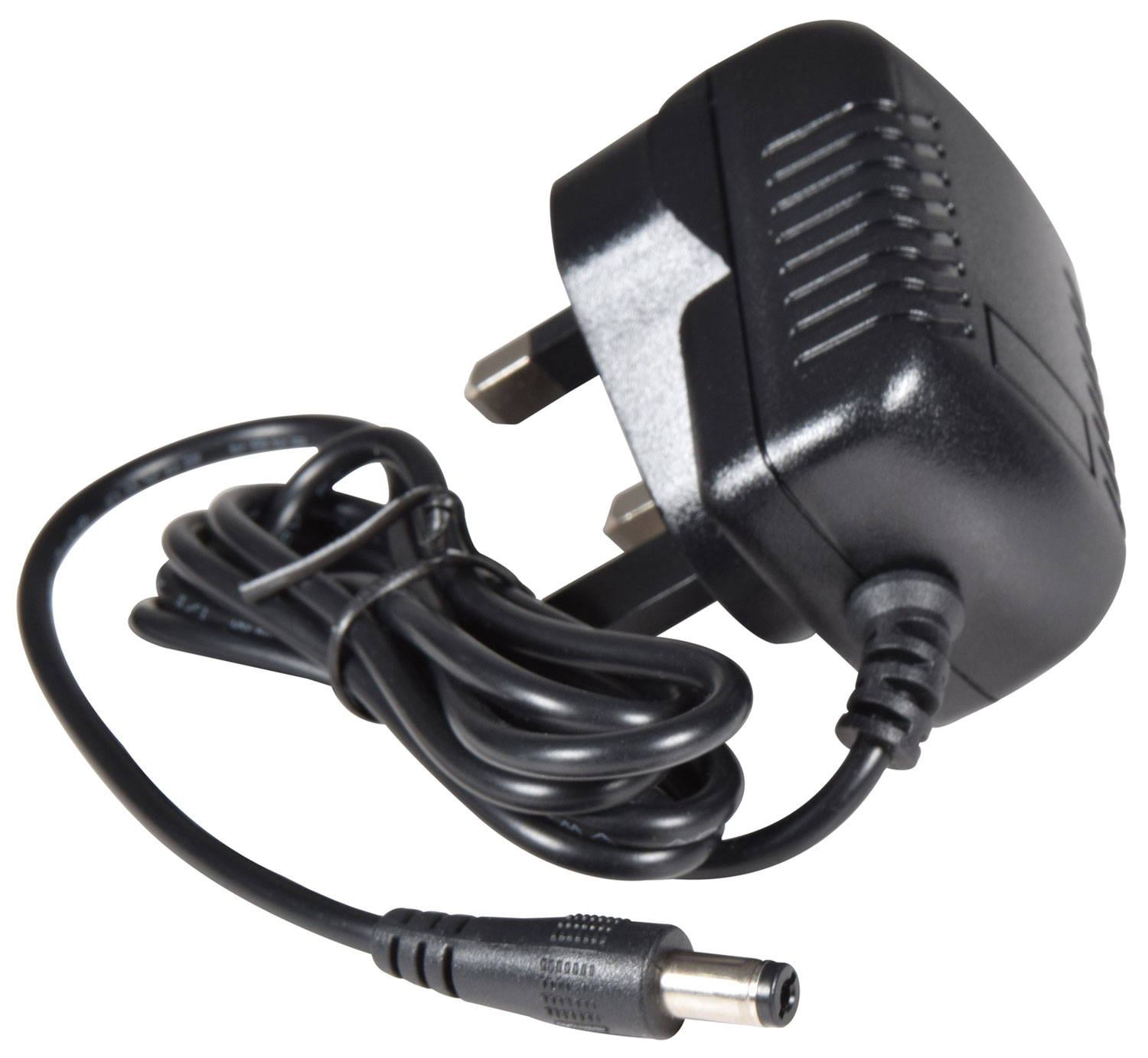

• Power adaptor Input: AC (50Hz, 60Hz) 100-240V, Output: DC12V/1A
• Dimensions 276x143x26mm
• Weight 720g
