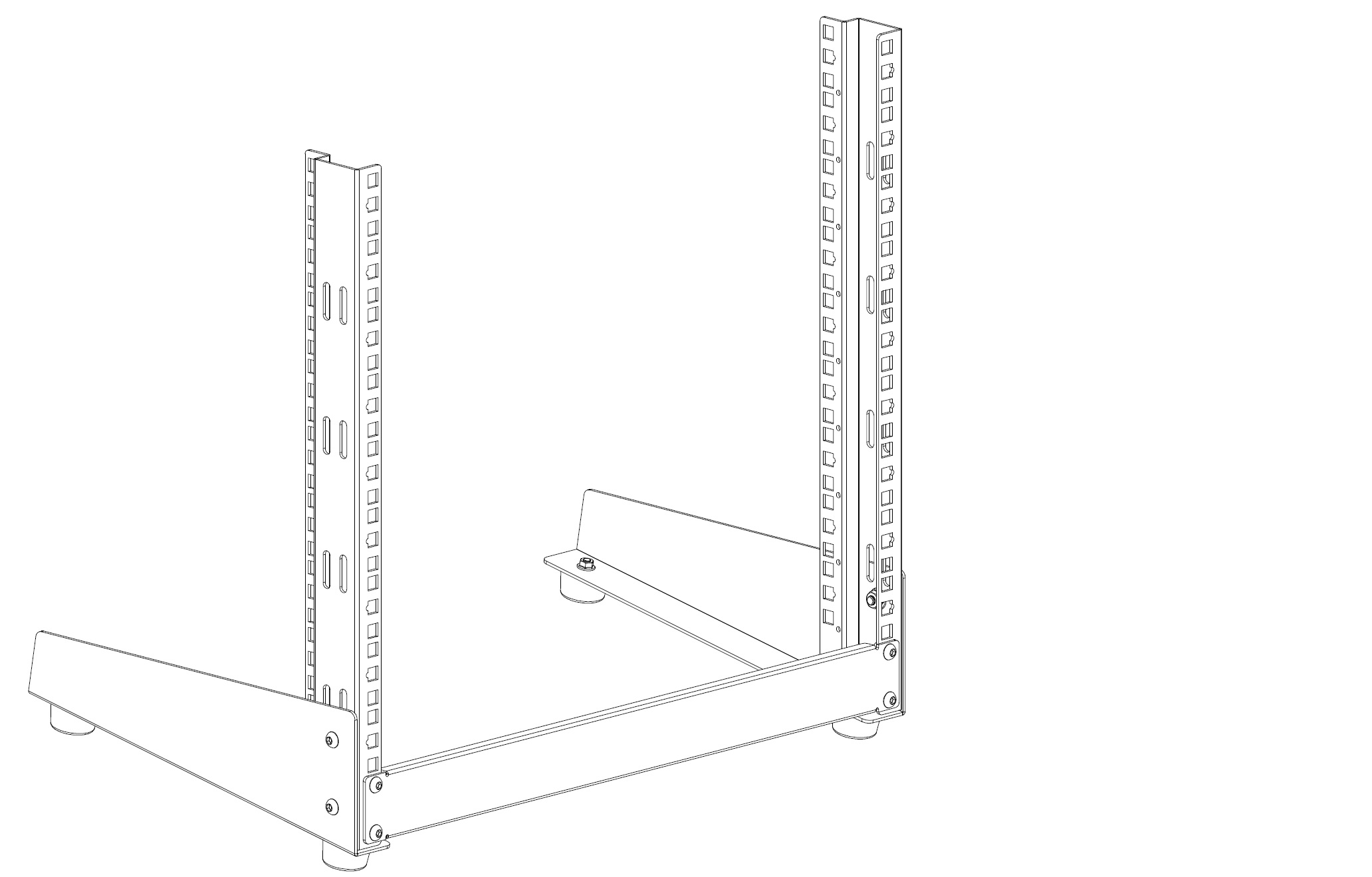

DRS-9U
Desktop Rack Stands
953.559UK
Introduction
Open format stands for stacking 19" rack equipment on a desktop or work surface. Supplied as an easily assembled 5-section kit with rack mounting hardware, pre-punched rack strip and anti-slip rubber feet. A useful option for assembling several units where a full cabinet is not needed.

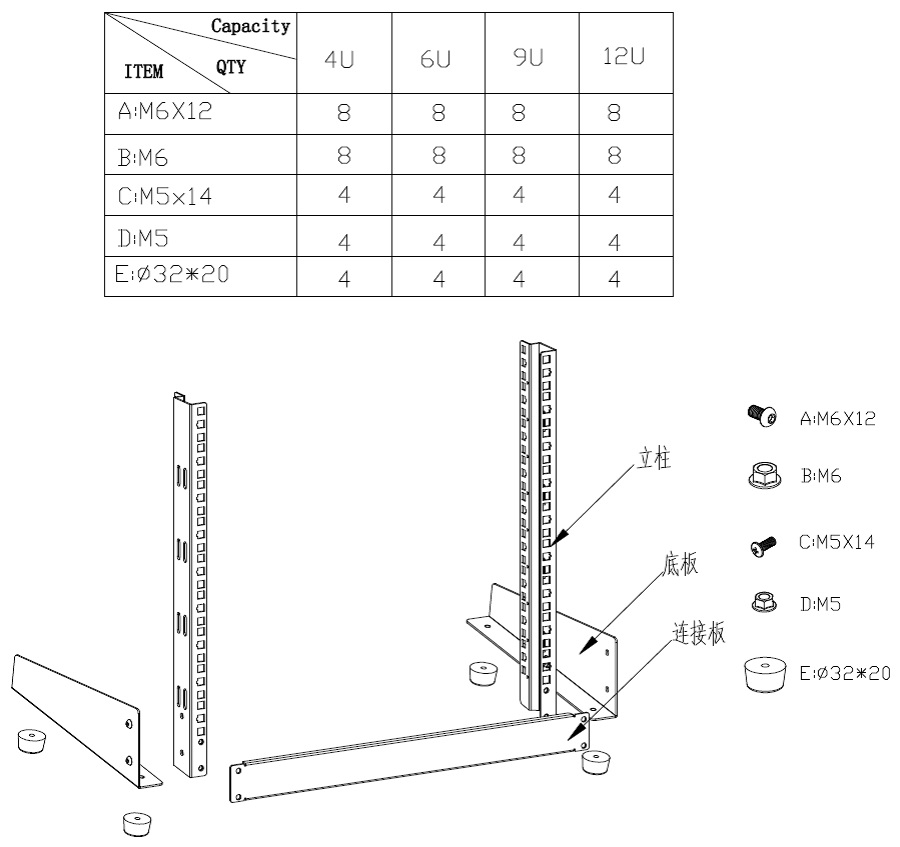

Hardware
- 8 x M6x12 screw
- 8 x M6 nut
- 4 x M5x14 screw
- 4 x M5 nut
- 4 x rubber feet

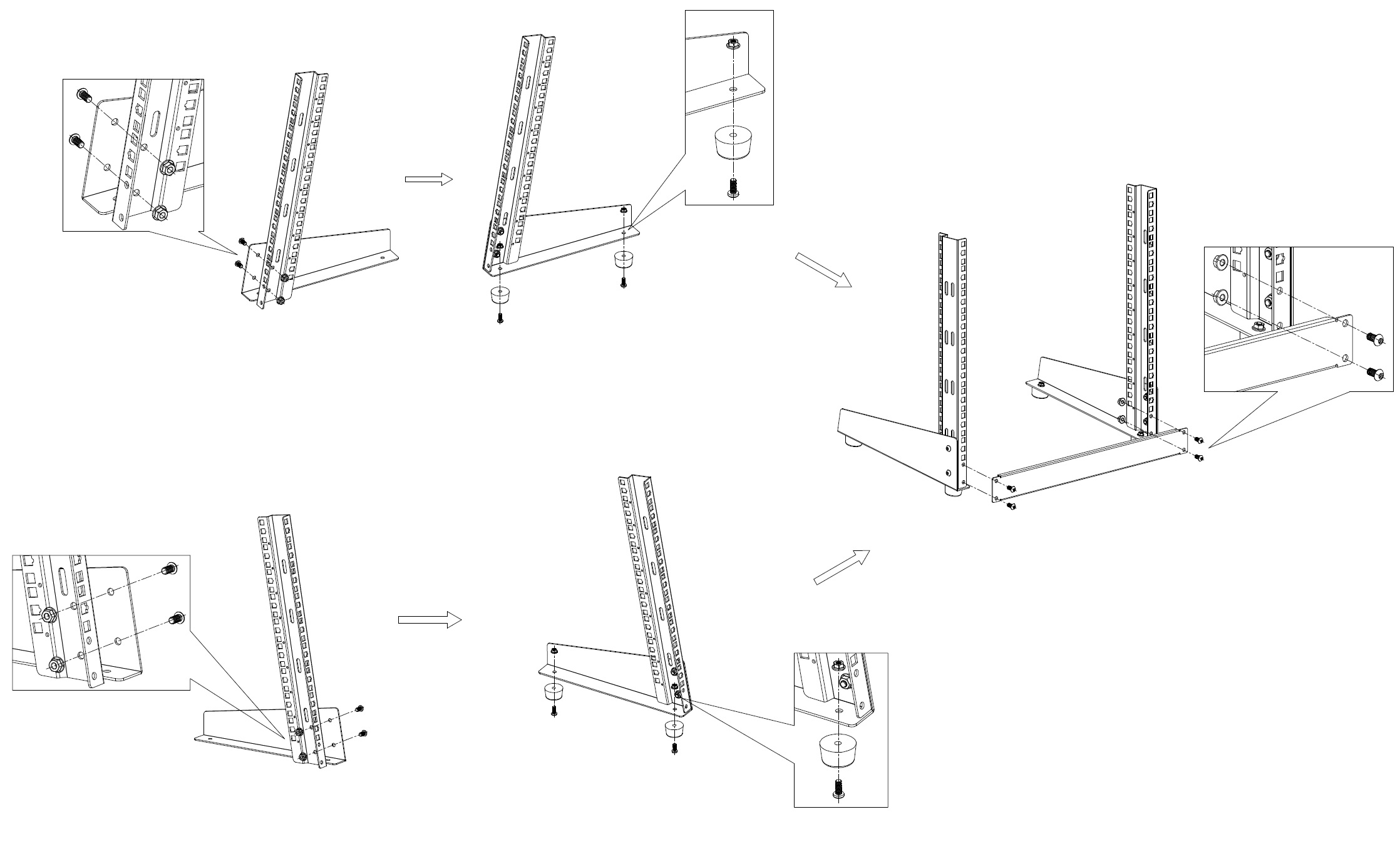

Assembly Steps
Specification
Specification | Value |
---|---|
Rack height | 9U (400mm) |
Dimensions | 470 x 500 x 300mm |
Weight | 2.489kg |
Depth | 450mm |
