ML622
1U Mic/Line Rack Mixer
953.026UK
Introduction
Thank you for choosing an Adastra ML mic/line mixer as part of your sound reinforcement system.
This unit is designed to offer high quality, dependable service for audio mixing and distribution.
Please read this manual to gain the best results from your product and avoid damage through misuse.
Version 2.1
Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty
Safety Notice
- Prior to use, read through this manual.
- Keep the manual in good condition.
- Pay attention to safety warnings.
- Observe all operating requirements.
- Do not use the device near water or wet areas.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- Use mains lead provided and avoid damage to cable or connectors.
- Unplug power from mains during stormy weather or if unused for long periods.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Do not place in damp areas or near liquids or moisture. Do not spill liquids on the housing.
- Please pay attention to warning symbols during transit and placement
- Terminals marked with the lightning symbol are HAZARDOUS LIVE and should only be connected by qualified personnel.
- Ensure that the apparatus is connected to a mains socket with a protective EARTH connection.
- Ensure correct operation of the mains switch.
Warning
To prevent the risk of fire or electric shock, do not expose any components to rain or moisture.
If liquids are spilled on the casing, stop using immediately, allow unit to dry out and have checked by qualified personnel before further use. Avoid impact, extreme pressure or heavy vibration to the case
No user serviceable parts inside – Do not open the case – refer all servicing to qualified service personnel.
Safety
- Check for correct mains voltage and condition of IEC lead before connecting to power outlet
Placement
This unit can be used free-standing or fixed into a 19” rack
Ensure adequate support and access to controls and connectors when rack-mounting
Cleaning
Use a soft cloth with a neutral detergent to clean the housing as required
Use a vacuum cleaner to clear ventilation grilles of any dust or debris build-ups
Do not use strong solvents for cleaning the unit

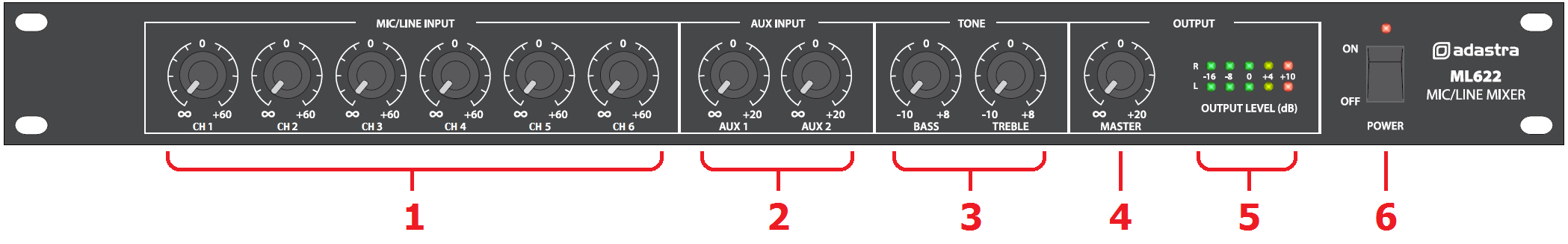

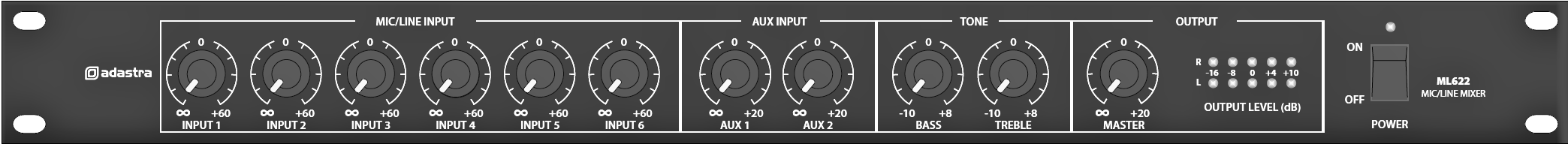

Front Panel
|
|
|
|
---|---|---|---|
|
|
|
|
|
|
|
|

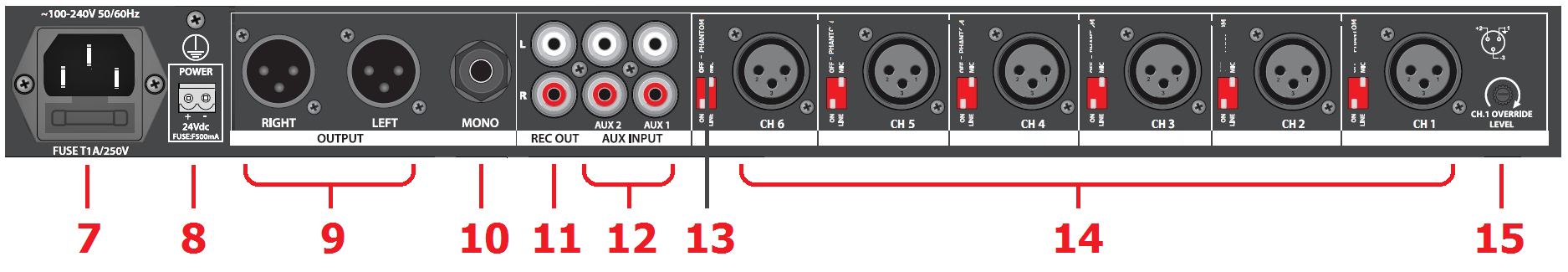

Rear Panel
7. |
|
|
|
---|---|---|---|
8. |
|
|
|
9. |
|
|
|
10. |
|
|
|
11. |
|
Connection
Ensure the Power (6) is switched off until all input and output connections are in place.
Turn all rotary level controls (1,2,4) fully down (anti-clockwise) to avoid loud noises when switching on.
Set the BASS and TREBLE Tone controls (3) to the vertical position (zero)
Connect microphones to the balanced XLR inputs on the rear panel (14).
For microphone inputs, set the Mic/Line DIP switch (13) to “MIC”
Where condenser microphones are used which require phantom power, set the PHANTOM DIP switch to “ON”
Alternatively, mono line inputs can be connected to any of the XLR inputs by setting this DIP switch to “LINE”
Stereo line level sources can be connected to AUX1 and AUX2 RCA inputs (12)
A recording output is provided on 2 RCA connectors (11), which is not governed by the MASTER level (4)
This can be connected to recording equipment or be used as an additional main output if required.
Main output is available via left and right balanced XLR sockets (9) and mono unbalanced 6.3mm jack (10)
Use any or all of these outputs to connect to the amplifier(s) or active speakers as required for the system.
Connect the rear IEC inlet (7) to the mains using the supplied mains lead (or an equivalent approved type). Ensure that the supply voltage is correct for this equipment and that the mains outlet is switched on.
For mobile operation or away from mains supply, a 24Vdc input is provided on screw terminals (8).
Make sure the power switch is turned off before connecting to a 24Vdc power source and observe correct polarity before powering up the unit on DC power.
Operation
Ensure that amplifier(s) or active speaker(s) are switched off before powering up the ML622 mixer.
Switch on the power and the Power LED indicator should light (6)
Now switch on power to the amplifier or active speaker(s) and turn the volume(s) up part way.
Turn up the MASTER volume control (4) half-way.
If connected, speak into a microphone whilst gradually turning up its channel level control (1)
If no microphones are connected, play a line level signal into a channel whilst gradually turning up its level.
The L+R output meters (5) should light up and the sound should be heard through the connected speakers.
Increase the MASTER volume if required and set the channel level control to the required volume.
Repeat the above steps for all connected inputs whilst balancing levels between channels as required.
For the AUX inputs, a single rotary control for each (2) adjusts the level of both left and right RCA inputs.
Sensible use of the output meters (5) will help to avoid overdriving the outputs and/or connected amplifiers.
The +10dB LED should only light briefly on percussive or transient parts of the sound (i.e. bass drum)
If the +10dB LED is lit for any longer than short bursts, the level controls will need to be turned down.
This will avoid signal clipping and overdrive, which can be damaging to equipment connected to the outputs.
For overall tone adjustment, moving the Tone controls (3) up or down can help improve the sound quality.
If the sound is too thin sounding, turn up the BASS rotary. If it is too deep sounding, reduce the BASS level.
If the sound is not very clear, turn up the TREBLE rotary. If it is too harsh sounding, reduce the TREBLE level.
An CH.1 Override function can be set to suppress all other channels when a signal is present on Mic/Line 1.
Speaking into a microphone connected to Mic/Line 1 will cause the signals in all other channels to be reduced.
When Mic/Line 1 is silent, other inputs will resume normal volume level.
The amount by which this function mutes the other channels is set by a rotary control (15) on the rear panel.
Turn down amplifiers or active speakers before powering down the ML622 mixer to avoid loud noises.
Specification
Specification | Value |
---|---|
Power supply | 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals) |
Fuse | T1AL 250V (mains) or F500mA (24Vdc) |
Phantom power | +20Vdc (switchable) |
Inputs : Mic/Line | 6 x balanced XLR |
Inputs : Aux | 2 x L+R RCA |
Outputs | L+R XLR, mono 6.3mm jack, L+R RCA (REC) |
Controls | 6 x Mic/Line level, 2 x Aux level, Treble, Bass, Master |
Input impedance | 3.3k Ohms (mic/line), 10k Ohms (aux) |
Frequency response : mic | 20Hz - 18kHz |
Frequency response : line | 14Hz - 20kHz |
Frequency response : aux | 10Hz - 23kHz |
Input sensitivity : mic | -45dBV |
Input sensitivity : aux/line | -10dBV |
Signal to noise ratio : mic | 55dB |
Signal to noise ratio : aux/line | 60dB |
THD | 0.05% |
Dimensions | 482 x 130 x 44mm |
Weight | 1.43kg |
Precautions
CAUTION | ||
RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL |
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
