EPS86-4:3

Electric Projector Screens

952.321UK

Introduction

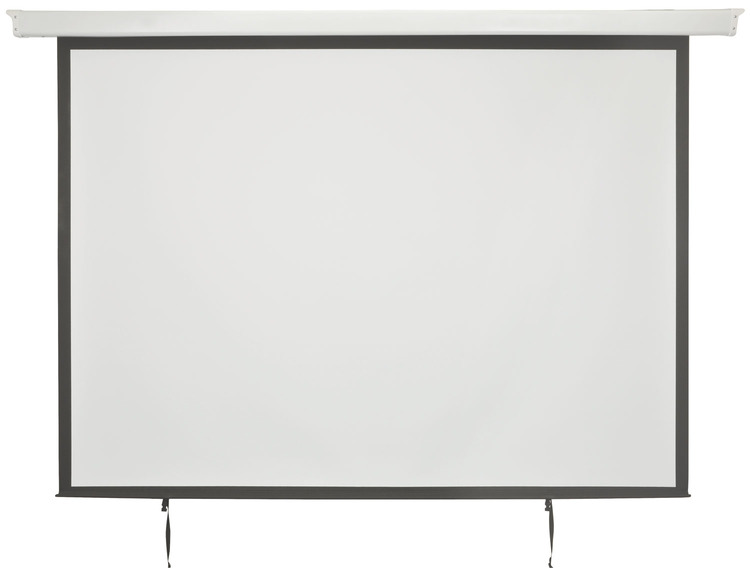

A range of large format projector screens with built-in electric motor controlled via the in-line switch or remote control. The screen is housed in a white steel case with mounting brackets on either end, allowing installation onto ceilings or walls. The screen itself has a weighted bottom bar to prevent the screen jamming in the case or curling. Various sizes available for all types of installation such as classrooms, auditoriums or places of worship.

Features

Fitted with In-line control switch
RF remote control included
Black border enhances the definition of the projected image
Adjustable drop and retract distance limiter
Flame retardant and mildew proof
Low noise electric motor
Available in 4:3 and 16:9 formats

Installation

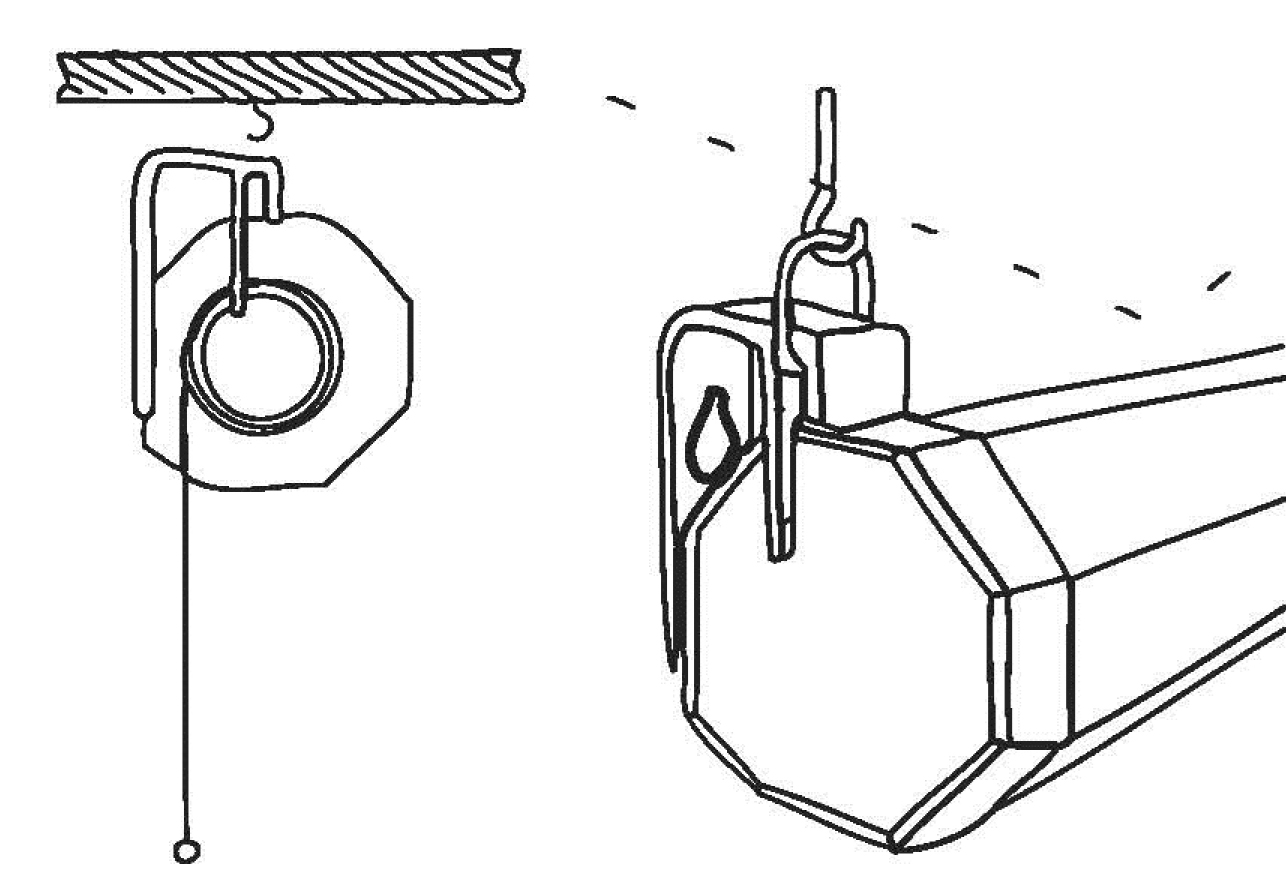

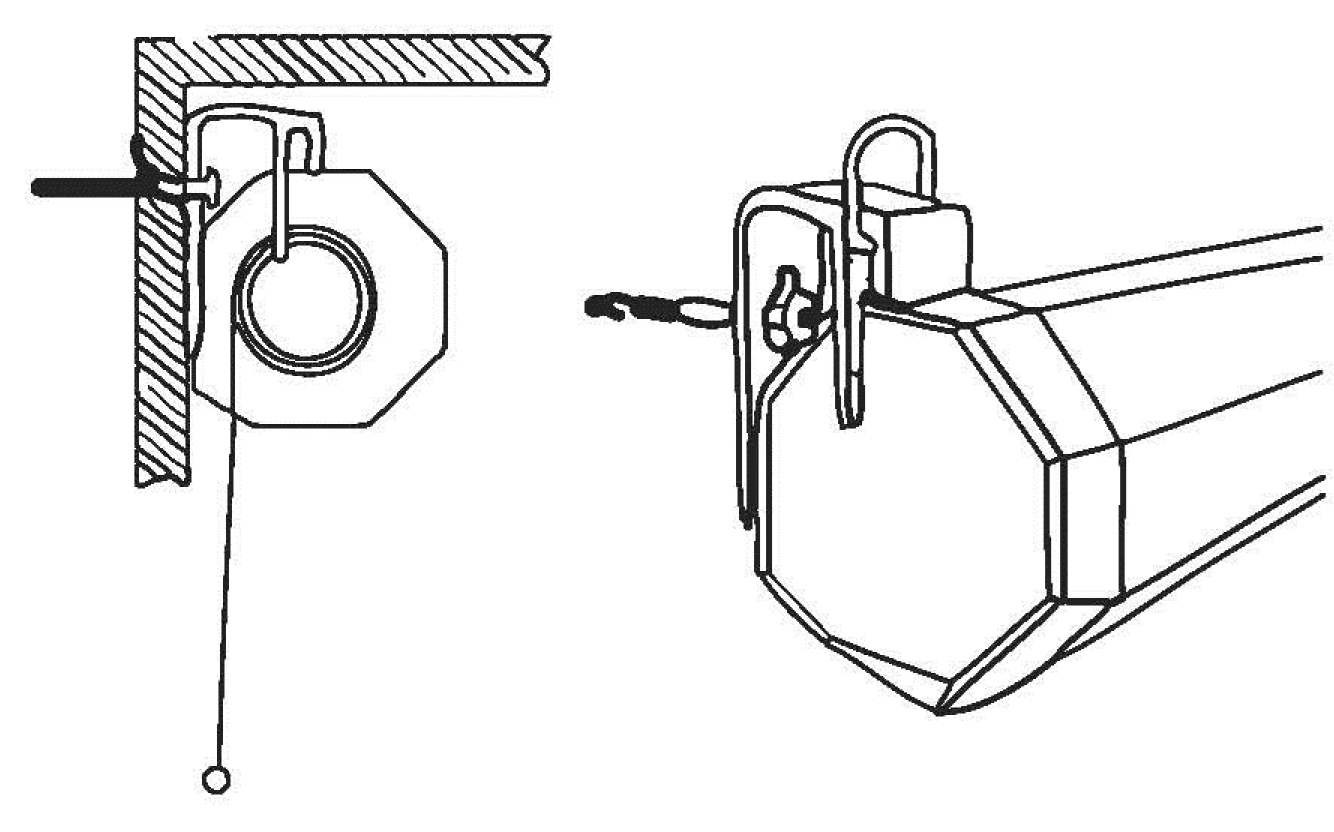

Before installation, please ensure a mains socket is available within 1.5m distance of where the inline controller is going to be installed and ensure the unit is not plugged in during the process of installation. This electric projector screen is suitable for both wall and suspended ceiling mounting, it is important the unit is installed accurately using a spirit level to ensure the screen can operate correctly & safely.

Screen Drop Adjustment

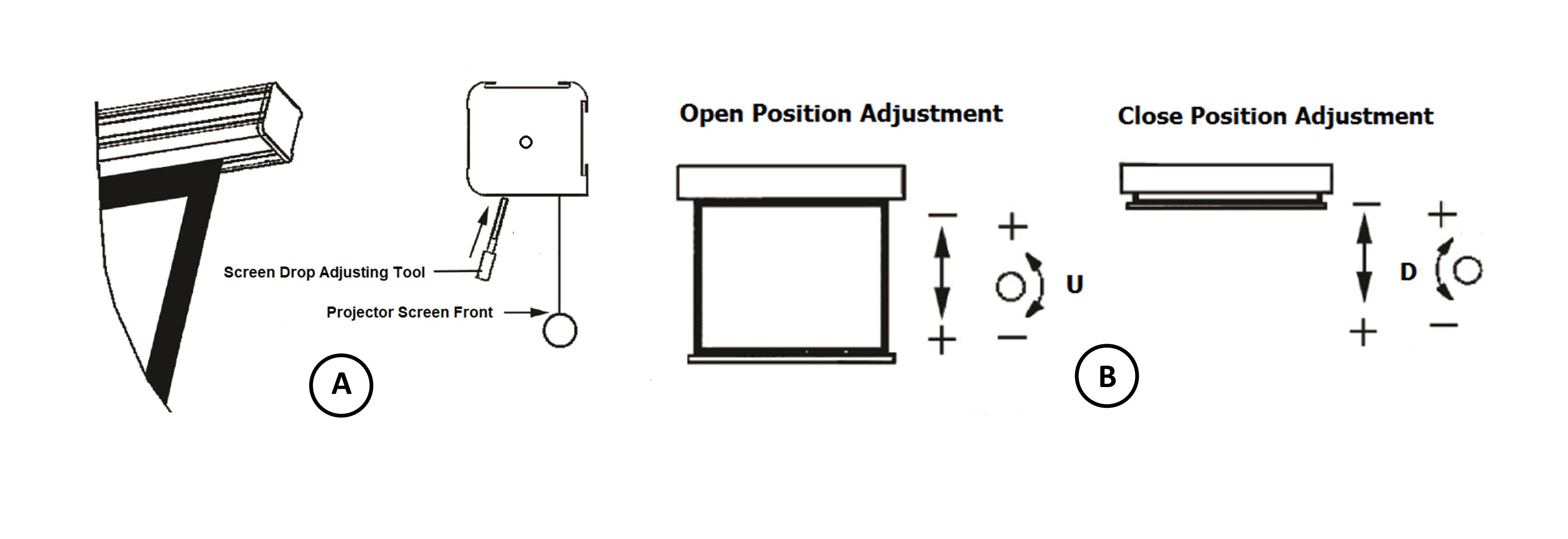

All electric projector screens will be pre-adjusted before delivery. If adjustment is needed to suit your application, please ensure the unit is switched off before you proceed. The drop adjusting screws are located at the right-hand end of the projector screen (see diagram A below). A screen drop adjusting tool is included for the adjustment. Two separate screws set the open and close positions and need to be turned to adjust the limits according to the below diagram B.

Remote Controls

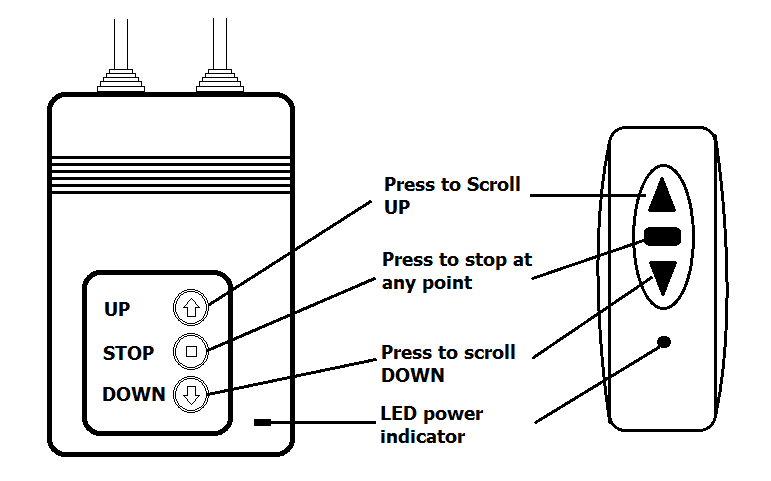

This projector screen is supplied with an in-line controller and RF remote control to operate the screen. Operation functions can be seen in the below diagram.

Maintenance

Maintenance and service of the unit should not be required throughout the duty life of the product. We recommend dusting on a regular basis using a dry microfibre cloth. To remove any stains on the screen surface, use a slightly damp microfibre cloth with max. 5% soap solution. Always ensure the surface is completely dry before closing the screen.

Specification

Specification	Value
Weight	10kg
Housing dimensions	2040 x 88 x 88mm
Screen dimensions	1720 x 1300mm
Max. drop	1595mm
Screen ratio	4:3
Screen size	1660(W) x 1230(H)mm
Screen size	86" (218cm)
Power supply	230Vac, 50Hz
Gain	1.1
Border size	40mm
Viewing angle	100°
Screen colour	Matte white
Remote control frequency	433.92MHz
Lead length	plug to controller: 1.5m
Lead length	controller to housing: 1.5m

Precautions

	CAUTION
	RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit

Safety Notice

Prior to use, read through this safety guide.
Pay attention to safety warnings.
Observe all operating requirements.
For any items designed for indoor use only, do not operate near water or in humid environments.
For cleaning, only use a lint-free, dry cloth.
Install according to the specifications.
Place away from heat sources or heating appliances.
During placement, ensure adequate support for the product and access to controls and connectors.
Do not obstruct any cooling vents or openings and allow adequate space for air flow.
Use only power connections supplied with the product or suitable equivalents.
Do not modify the equipment in any way.
For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
Keep powered products and batteries away from the reach of children.
In case of malfunction, water ingress or other damage, consult qualified service personnel.
Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
For any Earthed mains product, ensure that the power supply has a protective Earth connection.
Keep all packaging materials out of reach of children.

Indoor use only : The "House" symbol identifes electrical equipment designed primarily for indoor use.

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
