EC56V

Metal Quick Fit 100V Ceiling Speakers

952.168UK

Introduction

Metal framed ceiling speakers with a quick-fit design, suitable for mounting into almost any material. All metal, flush fit grille fitted with quality speaker and 100V line transformer tapped at 1.5W, 3W and 6W.

Caution: Please read this manual carefully before operating. Damage caused by misuse is not covered by the warranty.

Features

The EC56V is a low profile, high quality ceiling loudspeaker, equipped with a high-efficiency

6 Watt 100 Volt transformer with three power tappings. It can be used with high ceilings or places where

More back ground noise is present.

This makes the EC56V suitable for the distribution of voice paging and background music.

The housing and grille are made of high quality steel in a hard-wearing white finish.

The housing is flush mount and moisture resistant with a 160° dispersion angle.

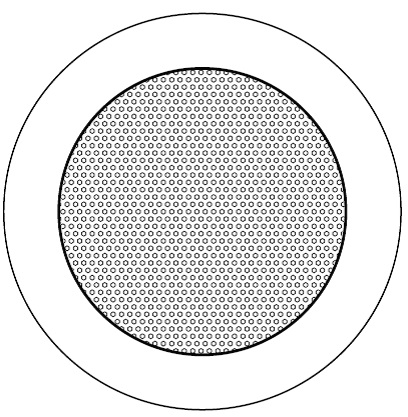

Heavy duty steel perforated grille and edge trim.

Installation is very straightforward via 2 sprung grips

Wiring Guide

Black	White	Yellow	Red
Common	6W	3W	1.5W

Specification

Specification	Value
Driver	135mm (5.25")
Cutout	165mmØ
Dimensions	60 x 197mmØ
Weight	638g
Colour	White
Material	Metal
Dispersion angle	155°
Power rms : 100V line	6W
Mounting depth	57mm
Frequency response	110Hz - 13kHz
SPL @ 1W/1m	90dB (±3dB)
Tappings	1.5, 3, 6W
Weight	638g

Precautions

	CAUTION
	RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit

Safety Notice

Prior to use, read through this safety guide.
Pay attention to safety warnings.
Observe all operating requirements.
For any items designed for indoor use only, do not operate near water or in humid environments.
For cleaning, only use a lint-free, dry cloth.
Install according to the specifications.
Place away from heat sources or heating appliances.
During placement, ensure adequate support for the product and access to controls and connectors.
Do not obstruct any cooling vents or openings and allow adequate space for air flow.
Use only power connections supplied with the product or suitable equivalents.
Do not modify the equipment in any way.
For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
Keep powered products and batteries away from the reach of children.
In case of malfunction, water ingress or other damage, consult qualified service personnel.
Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
For any Earthed mains product, ensure that the power supply has a protective Earth connection.
Keep all packaging materials out of reach of children.

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
