EC36V

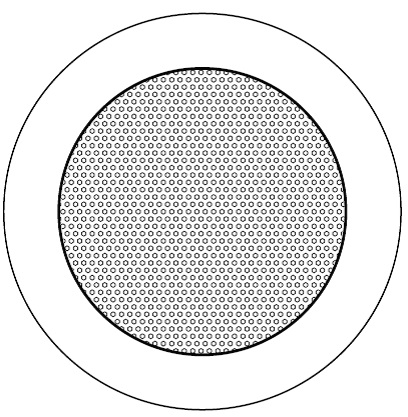

3" Metal Bathroom 100V Ceiling Speaker

952.138UK

Introduction

Miniature ceiling speaker with metal frame and spring retainers for flush-mounting into ceilings or walls. Fitted with a 100V transformer with tappings for 3W or 6W output and a 3" paper cone which is treated with a water-resistant coating to enable installation in wet areas, such as washrooms or food preparation areas.

Caution: Please read this manual carefully before operating. Damage caused by misuse is not covered by the warranty

Features

Powder coated steel housing
100V transformer with 3W & 6W tappings
Water-resistant coated paper cone

In The Box

3" ceiling speaker

Installation

Choose a location in the ceiling where there is at least 70mm void to accommodate the depth of the speaker and transformer. Mark out and cut a circular hole of 95mm diameter and feed the speaker cable through from the amplifier.

Note: The amplifier must be a 100V type and the speaker wire must be double-insulated.

The EC36V has 3 coloured wires feeding to the transformer from a 3-way screw terminal block.

Connect the “-” speaker wire to the black “COM” terminal and connect the “+” speaker wire to either the red “3W” or yellow “6W” terminal, depending on the required power output.

Once connections are made, push the 2 spring clips upward so that they point vertically alongside the magnet of the speaker and offer up to the cut-out in the ceiling, feeding the speaker wire, then the spring clips and the rear of the speaker through the hole. The spring clips will fold back to secure the speaker in place.

Specification

Specification	Value
100V line tappings	3W, 6W
Driver	75mmØ (3") coated paper cone
Sensitivity	87dB
Frequency response	120Hz - 20kHz
Dispersion angle	145°
Cut-out dimensions	95mmØ
Mounting depth	70mm
Construction	Pressed steel frame & basket
Dimensions	70 x 100mmØ
Weight	384g

Precautions

	CAUTION
	RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit

Safety Notice

Prior to use, read through this safety guide.
Pay attention to safety warnings.
Observe all operating requirements.
For any items designed for indoor use only, do not operate near water or in humid environments.
For cleaning, only use a lint-free, dry cloth.
Install according to the specifications.
Place away from heat sources or heating appliances.
During placement, ensure adequate support for the product and access to controls and connectors.
Do not obstruct any cooling vents or openings and allow adequate space for air flow.
Use only power connections supplied with the product or suitable equivalents.
Do not modify the equipment in any way.
For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
Keep powered products and batteries away from the reach of children.
In case of malfunction, water ingress or other damage, consult qualified service personnel.
Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
For any Earthed mains product, ensure that the power supply has a protective Earth connection.
Keep all packaging materials out of reach of children.

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
