CPD-9
8 Way IEC Power Distributor
776.496UK
Introduction
Protect your equipment and organise your power distribution with this 19" rack mounting unit. The front panel features a digital voltage meter and two LED lamps with dimmer control for illuminating your rack.
Please do not open cover as it contains high voltage. This product is not serviceable or repairable by the end user. Please refer to qualified personnel for service or repair.
Please read this manual thoroughly before use.
Any damage caused by misuse of the product will void the warranty.
Features
- 19" 1U rack mountable
- 8 rear and 1 front IEC outlets
- 2 front mounted LED lamps
with dimmer control - Digital voltmeter displays
incoming line voltage - Surge protection
- 10A capacity with circuit breaker

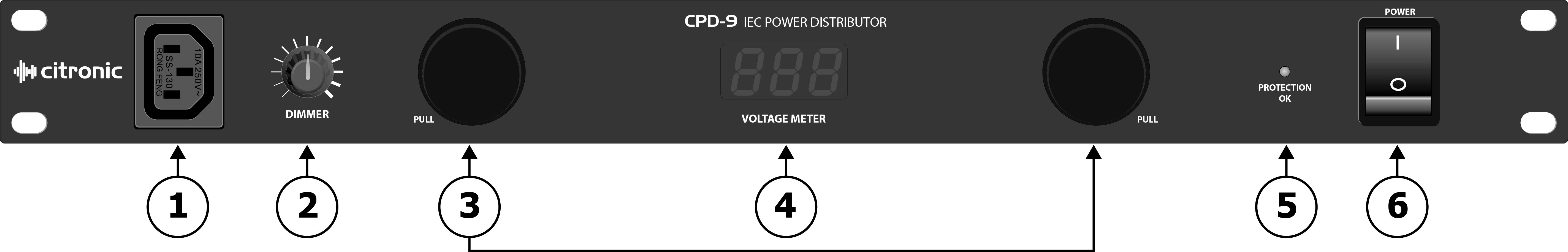

Front Panel
- Switched IEC output
- Dimmer switch for LED rack lamps
- LED rack lamps, pull out to use
- Voltage meter displays incoming line voltage
- Protection ‘OK’ indicator
- On/Off power switch

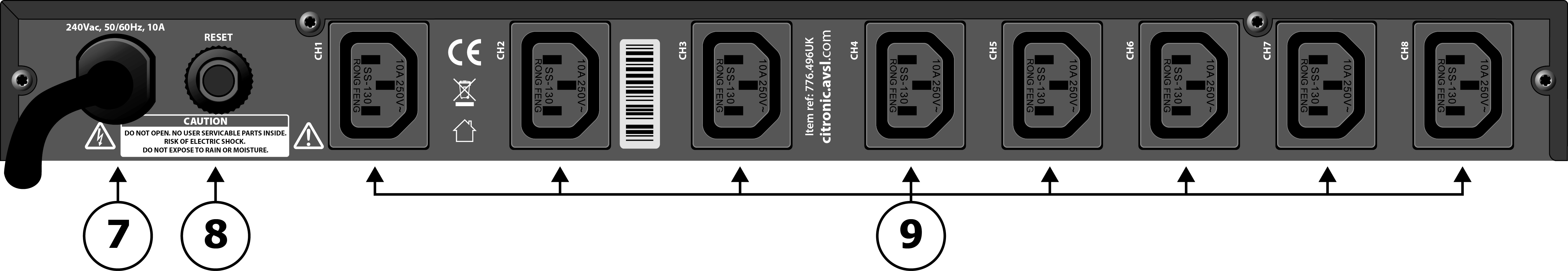

Rear Panel
- Power in
- Limited protection switch, 10A, press to reset
- 8 x IEC power outputs
Specification
| Specification | Value |
|---|---|
| Power supply | 230Vac, 50Hz |
| Max. output current | 10A |
| Outputs | IEC, 8 rear & 1 front mounted |
| LED : type | 2 x 3W LEDs |
| Dimensions | 482 x 178 x 44mm |
| Weight | 2.6kg |
Precautions
 |
CAUTION |  |
| RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
| CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL | ||
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Indoor use only : The "House" symbol identifes electrical equipment designed primarily for indoor use.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
