RC-E5

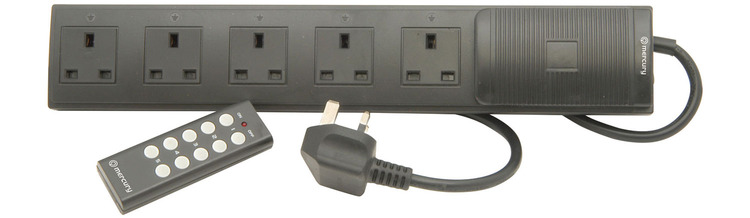

Wireless Remote Control 5 Gang Extension Lead

429.950UK

Introduction

The energy efficient extension lead that allows you to switch appliances off completely so that they use no electricity, rather than leaving them on standby. Leaving appliances in standby mode uses electricity unnecessarily that costs you additional money and contributes to harmful carbon dioxide (CO2) emissions into the environment.

This standby extension lead with 5 sockets is ideal if you have a large range of electrical appliances (AV or PC accessories) which are often left on standby. The standby extension lead remote can control up to 5 different appliances, simply plug in each appliance to the standby extension lead.

With surge protection function, which can absorb surges from small lighting strikes and spikes from the power supply, to protect your products and home appliances from being damaged. This helps to prolong the service life of the product itself and all its connected devices.

Your extension lead will also remain in the OFF mode after a power out, even when the power comes on again.

A “Declaration of Conformity” can be obtained by email request to support@avslgroup.com

Operation

The remote control has 5 pairs of buttons, each with an ON and OFF function, which relate to the 5 sockets on the extension gang. Simply push the relevant ON or OFF button on the remote to turn the relevant socket ON or OFF accordingly.

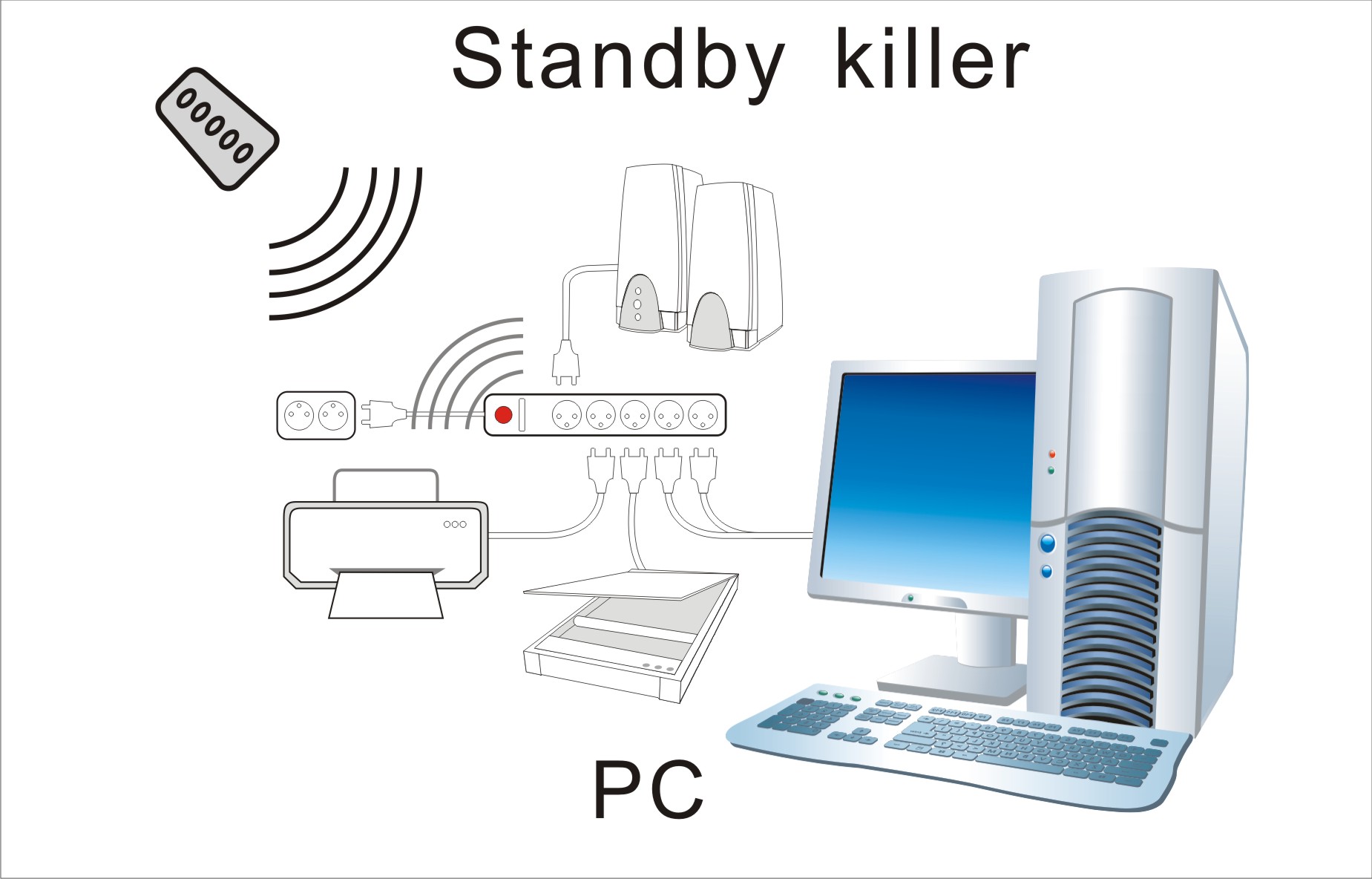

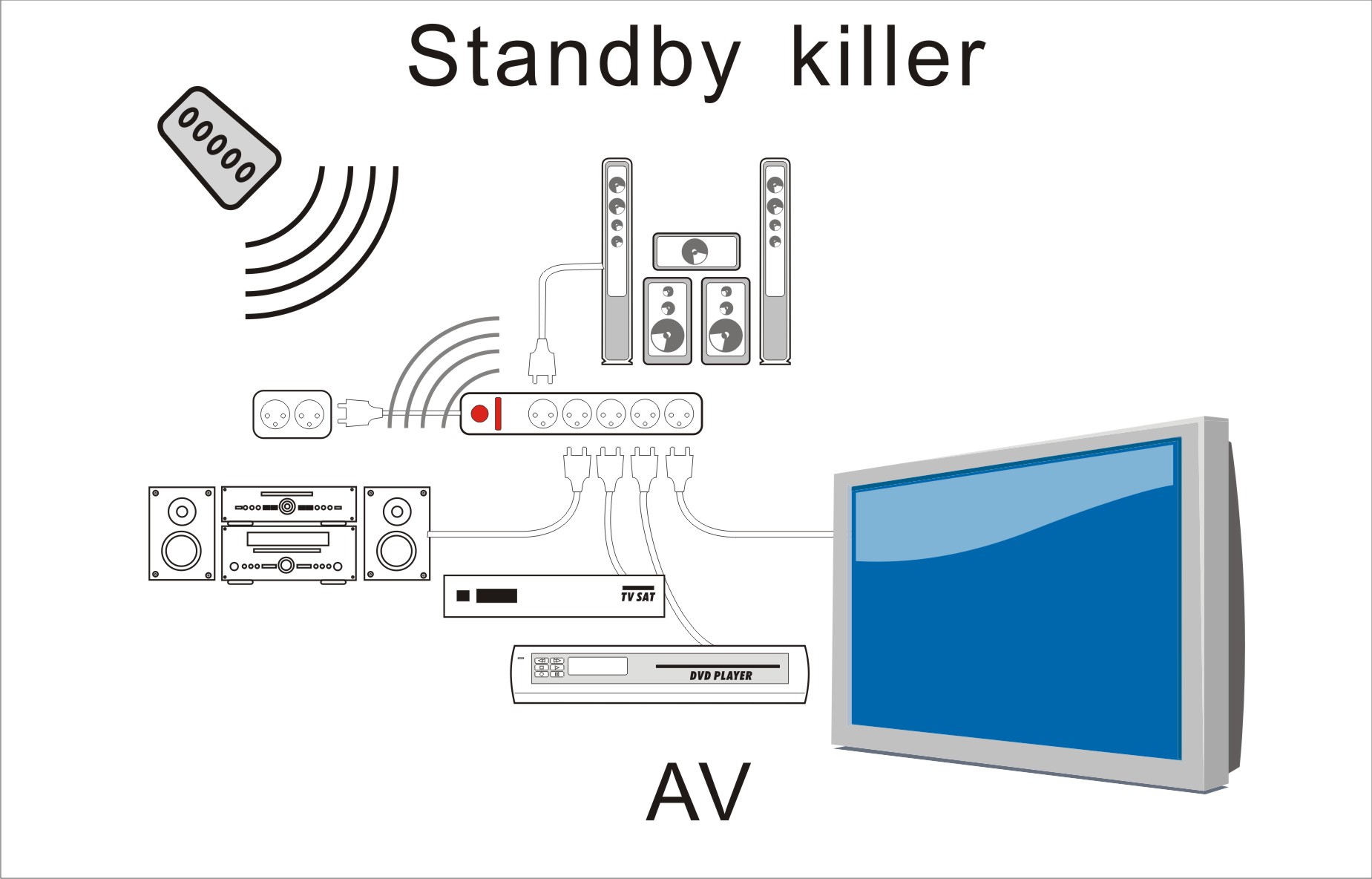

Possible Applications

Warning:

For reasons of electrical safety, this product must never be immersed in water, exposed to damp conditions or excessive force.
Do not use this product if you find that it is damaged in any way.
Never exceed the maximum load current.
Do not attempt to repair this product or take it apart under any circumstances, as this will invalidate your warranty.

Specification

Specification	Value
Voltage	240Vac, 50Hz
Max. load	2400W
Max. current	10A
Standby power	0.58W
Transmission frequency	433.92MHz
Lead length	2.0m
Remote battery	12V, A23
Dimensions	390 x 68 x 35mm
Weight	650g

Precautions

	CAUTION
	RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit

Safety Notice

Prior to use, read through this safety guide.
Pay attention to safety warnings.
Observe all operating requirements.
For any items designed for indoor use only, do not operate near water or in humid environments.
For cleaning, only use a lint-free, dry cloth.
Install according to the specifications.
Place away from heat sources or heating appliances.
During placement, ensure adequate support for the product and access to controls and connectors.
Do not obstruct any cooling vents or openings and allow adequate space for air flow.
Use only power connections supplied with the product or suitable equivalents.
Do not modify the equipment in any way.
For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
Keep powered products and batteries away from the reach of children.
In case of malfunction, water ingress or other damage, consult qualified service personnel.
Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
For any Earthed mains product, ensure that the power supply has a protective Earth connection.
Keep all packaging materials out of reach of children.

Indoor use only : The "House" symbol identifes electrical equipment designed primarily for indoor use.

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
