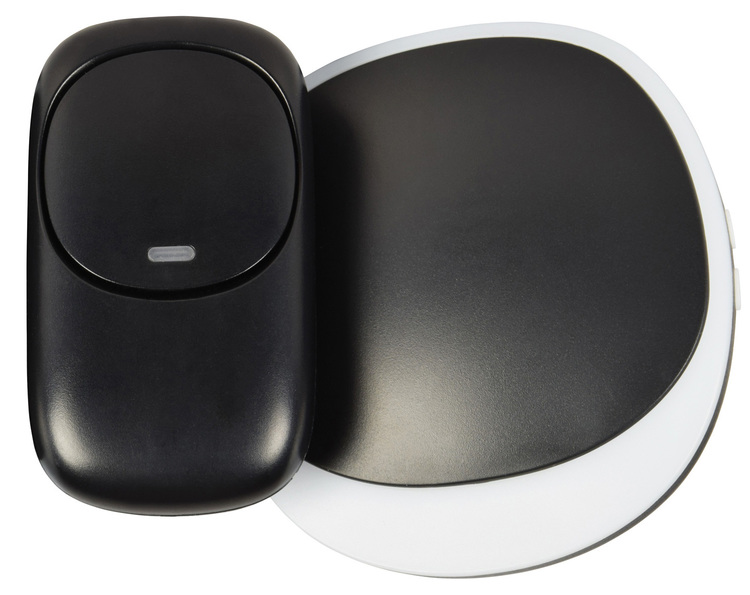

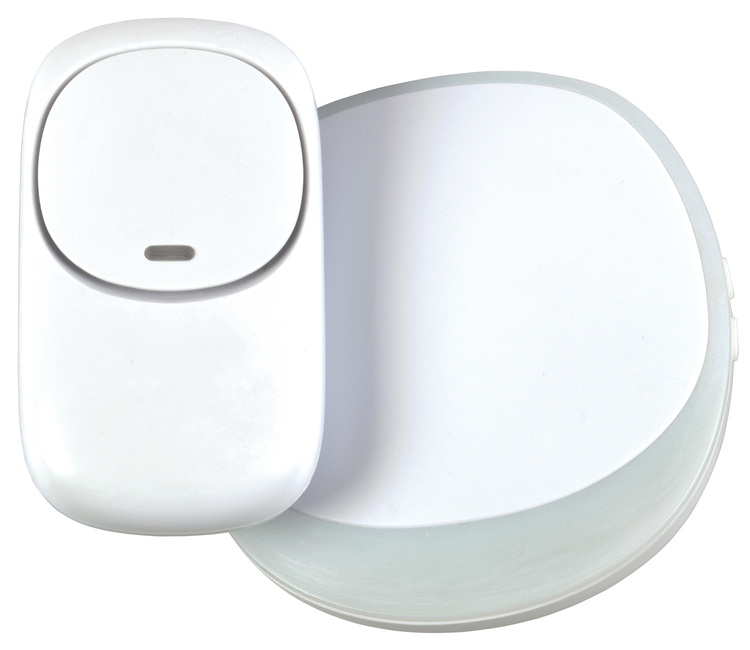

Wireless Plug-in Doorbell with LED Alert

350.310UK

Introduction

A stylish, wireless doorbell set, providing an innovative way to be alerted to visitors. Choose from 38 different ring tones and melodies which notifies via a compact plug-in chime with LED light alert. The chime can be plugged into any room within the wireless range, giving you flexibility to place throughout the home or office.

Features

Stylish modern design with LED light alert
Simple wire-free installation
Auto-learn pairing function
Choice of 38 ring tones and melodies
Can also be used as an assistance button for the elderly

In The Box

Plug-in receiver
Remote transmitter
CR2032 battery (for transmitter)
Self-adhesive pad (for transmitter)
User manual

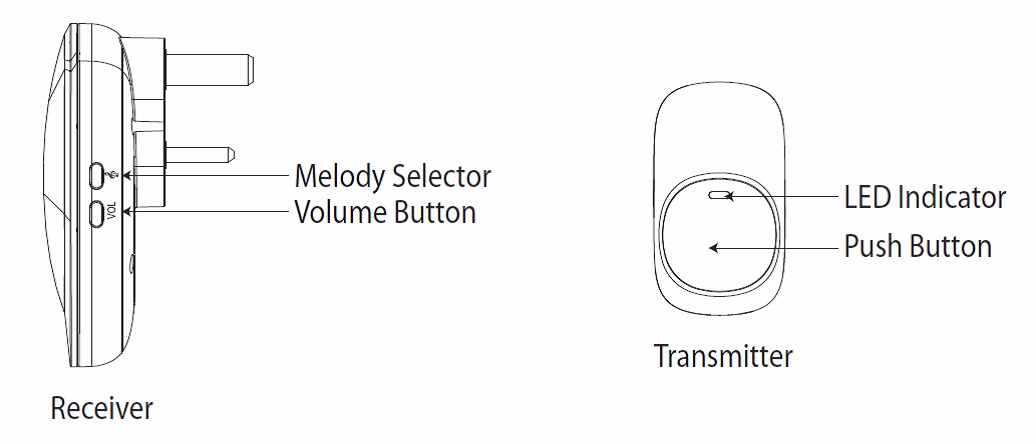

Product Diagram

Installation

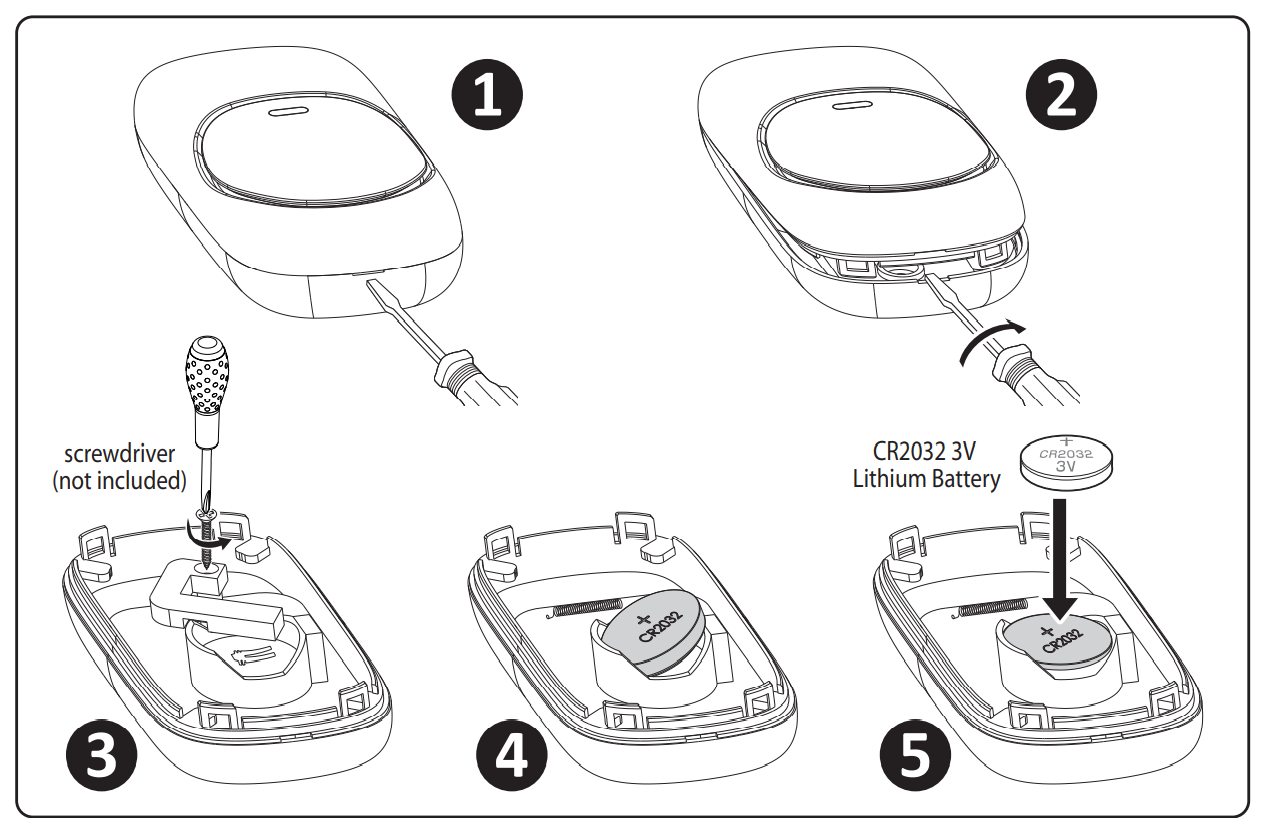

To install the CR2032 battery (supplied) into the transmitter, first insert a small flat bladed screwdriver into the slot on the bottom of the unit, then gently twist to pop the back cover off (Fig 1&2). Remove the battery retaining strip using a Philips screwdriver (Fig 3) then insert the battery ensuring the positive side is facing upwards (Fig 4&5). Finally replace the retaining strip and back cover to complete the installation.

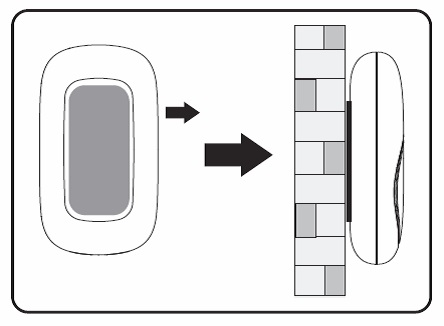

Fix the transmitter on your door or doorframe securely using the self-adhesive pad provided (Fig 6), ensuring it’s in an area that’s not too open to the elements and as close to the receiver location as possible (max distance 200m).
Plug the receiver into an available mains socket in your desired location and switch on. The receiver will now enter learning mode and search for a unique frequency that won’t be interfered with by any other wireless devices in the surrounding area.
Select your desired melody by pressing the melody selection button repeatedly, there are 38 different ones to choose from.
You can also adjust the unit volume by repeatedly pressing the volume button on the side of the receiver. There are 3 levels to choose from, high, medium and low.
Finally, press the transmitter to pair directly with the installed receiver. The transmission range is up to 200m, but this distance can be significantly reduced by obstructions such as walls, doors, floors etc. If the receiver ringtone can’t be heard, ensure it’s set up correctly and try again. In rare instances it may be necessary to move the receiver to a new location if it cannot be paired correctly with the transmitter.

NOTE: You must set your desired melody first before pairing with the transmitter. If you want to change the melody after pairing has taken place, you must switch off the power on the receiver to clear the memory and repeat from step 3 above.

If the receiver sounds at any time without anyone pressing the transmitter, there may be another wireless device close by on the same frequency causing interference. In this instance, switch off the power on the receiver to clear the memory and repeat from step 3 above.

Warning:

For reasons of electrical safety, this device must never be immersed in water, exposed to damp conditions or excessive force.
Do not use this device if you find that it is damaged in any way.
Do not attempt to repair this device or take apart under any circumstances, as this will invalidate your warranty.

Specification

Specification	Value
Colour	White
Frequency	433.92MHz+100KHz
Operating range	Up to 200m (clear line of sight)
Volume	80dB<90dB(within 0.5m)
IP rating	IP44
Power supply : receiver	AC 100~240V
Battery : remote	CR2032 DC3V (supplied)
Dimensions	90 x 85 x 50mm (Receiver); 80 x 45 x 18mm (Transmitter)
Weight	87g (Receiver); 33g (Transmitter)

Precautions

	CAUTION
	RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit

Safety Notice

Prior to use, read through this safety guide.
Pay attention to safety warnings.
Observe all operating requirements.
For any items designed for indoor use only, do not operate near water or in humid environments.
For cleaning, only use a lint-free, dry cloth.
Install according to the specifications.
Place away from heat sources or heating appliances.
During placement, ensure adequate support for the product and access to controls and connectors.
Do not obstruct any cooling vents or openings and allow adequate space for air flow.
Use only power connections supplied with the product or suitable equivalents.
Do not modify the equipment in any way.
For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
Keep powered products and batteries away from the reach of children.
In case of malfunction, water ingress or other damage, consult qualified service personnel.
Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
For any Earthed mains product, ensure that the power supply has a protective Earth connection.
Keep all packaging materials out of reach of children.

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
