Wireless Door Chime with LED Indicator
350.298UK
Introduction

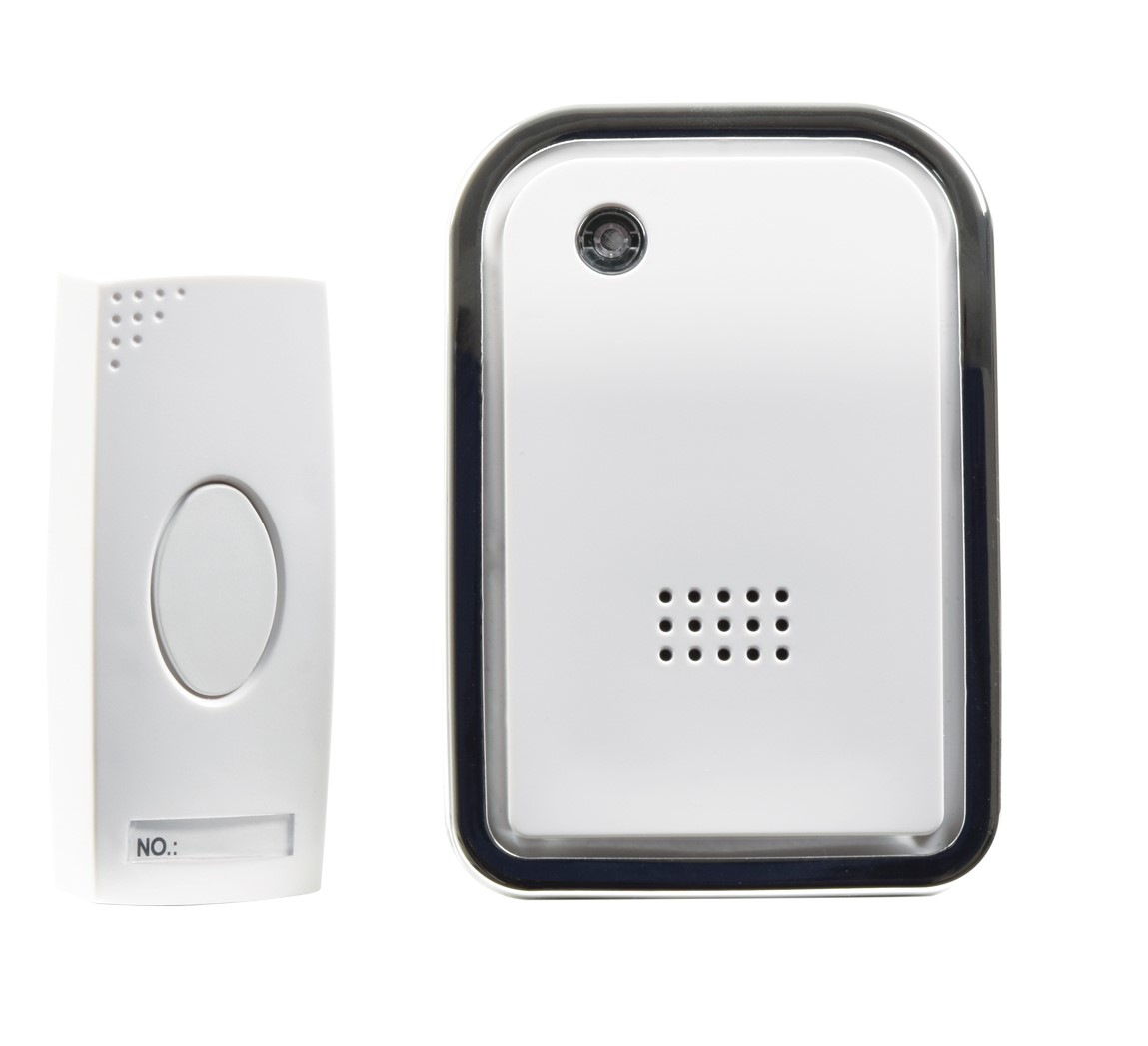

A stylish portable battery-operated wireless doorbell with visual indication and 38 melodies. Easy to setup and use, the internal chime unit can be wall mounted or free-standing. When activated a green LED flashes on the internal unit making it ideal for noisy environments or the hard of hearing.
Features
- Modern stylish design with silver bezel and green LED
- Digital coded radio signal to prevent external interference
- Freestanding or wall-mountable
- Wireless range of up to 100m
- Simple wire free installation
- Choice of 38 melodies
Transmitter Installation
Remove the front cover of the transmitter and insert the 12V battery supplied, observing the polarity indicators within the battery compartment.
Mount the unit on the doorframe or window frame using the adhesive pad provided. Please ensure the mounting surface is clean and free from grease before installation.
Receiver Installation
Insert 2x AA batteries (not supplied) into the receiver unit observing the polarity indicators within the battery compartment and locate within 100m range of the door press transmitter. Try to ensure there is a clear line of sight between the units if possible and that there are no radio receivers or wireless devices in the direct location of the unit to avoid interference.
Press the button on the transmitter to test that both units are connected properly and that there are no issues with signal or interference.
Press the music button on the back of the receiver unit repeatedly to select one of the 38 melodies available.
Press the volume button on the back of the receiver unit repeatedly to select one of the 4 volume settings available.
If the receiver fails to sound when the transmitter is depressed at any time, please replace the batteries.
** Warning:**
For reasons of electrical safety, this device must never be immersed in water, exposed to damp conditions or excessive force.
Do not use this device if you find that it is damaged in any way.
Do not attempt to repair this device or take apart under any circumstances, as this will invalidate your warranty.
Specification
| Specification | Value |
|---|---|
| Battery : receiver | 4.5Vdc (2 x AA) |
| Battery : transmitter | 12Vdc (23A) |
| Transmission frequency | 433.92MHz (±150kHz) |
| Transmission distance | Up to 100m (clear line of sight) |
| Dimensions : receiver | 110 x 30 x 75mm |
| Dimensions : transmitter | 80 x 20 x 36.5mm |
| Weight : receiver | 86g (without batteries) |
| Weight : transmitter | 24g (without battery) |
Precautions
 |
CAUTION |  |
| RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
| CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL | ||
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
