DB295-WHT

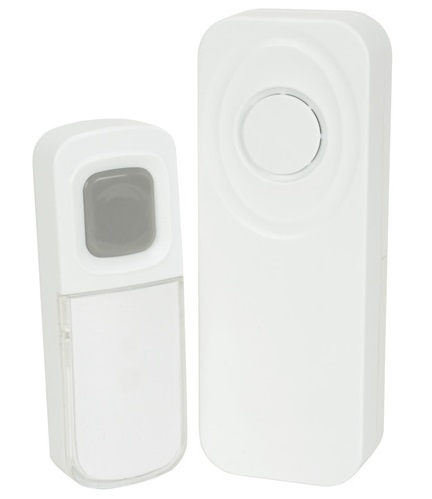

Wireless Waterproof Doorbell with Portable Chime

350.295UK

Introduction

An understated, battery powered doorbell and portable chime with up to 50m wireless range. The IP54-rated waterproof push button simply installs against a door frame using the self-tapping screws provided.

House numbers and names can be displayed on the removable name card, protected beneath a clear plastic cover. A simple ‘ding dong’ melody alerts users to visitors via a compact, lightweight chime that can be moved as required within a 50m operating range of the push button; ideal for large buildings and people with impaired hearing.

Features

Easy to install; no wiring required
Battery operated with low power consumption
Simple ‘ding dong’ melody
Wireless range up to 50m
Waterproof IP54-rated push button with name card

In The Box

Waterproof push button
Portable door chime
Fixing kit
User guide

Installation

Install 2 x AA batteries in the chime unit before use, observing the polarity indicators within the battery compartment.
Place the chime unit in a dry area, away from sunlight and other wireless devices that could affect the signal. Alternatively, fix the unit to a wall using a self-tapping screw, aligned with the keyhole slot to its rear.
To achieve the maximum wireless range, ensure the clearest line of sight between the push button and chime units. The signal is weakened by walls and floors, etc.
Replace the batteries whenever the LED indicator on the doorbell becomes dim or the volume of the chime diminishes.

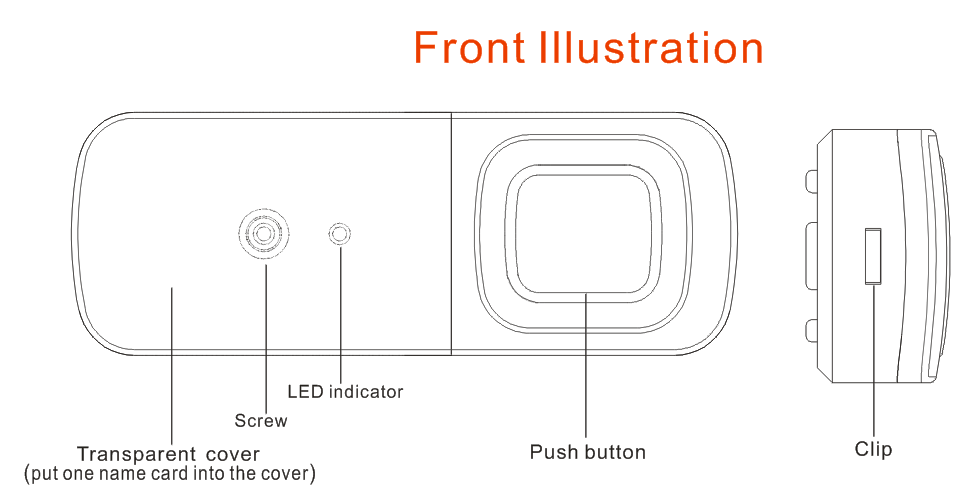

To replace the batteries in the push button unit, remove the transparent name card cover and name card to reveal a small self-tapping screw. Carefully undo and remove the screw with a small Philips screwdriver. Then, using a small slotted screwdriver, apply pressure to the clip located at the bottom of the unit (see diagram below). This will separate the back panel, enabling access to the battery compartment.
Insert the CR2032 battery and replace the back panel, remembering to replace the self-tapping screw on the front of the transmitter.

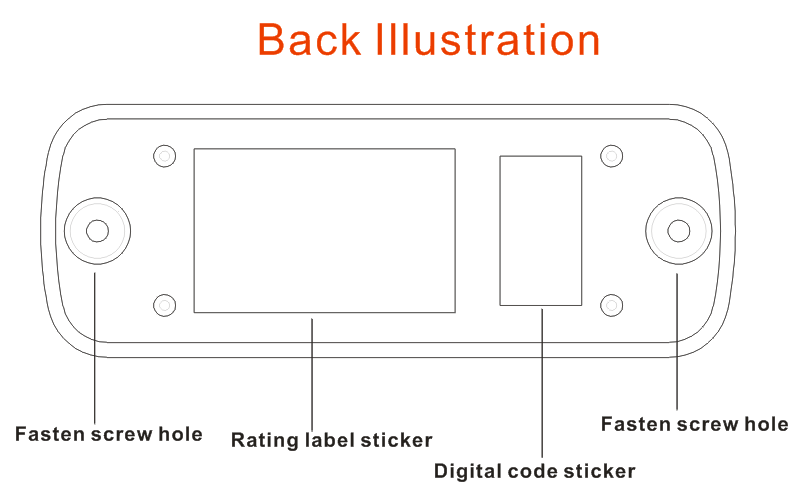

To secure the push button unit to a wall or doorframe, use the fixings provided, corresponding with the screw holes to the rear of the unit (see diagram below). Alternatively, a self-adhesive pad may be used (not provided).

Warning:

For reasons of electrical safety, this device must never be immersed in water, exposed to damp conditions or excessive force.
Do not use this device if you find that it is damaged in any way.
Do not attempt to repair this device or take apart under any circumstances, as this will invalidate your warranty.

Specification

Specification	Value
Colour	White
Frequency	433.92MHz
Range	Up to 50m
Volume	65dB
IP rating	IP54 (transmitter only)
Battery : chime	2x AA (not supplied)
Battery : remote	1x CR2032 (supplied)
Dimensions : chime	120 x 46 x 24mm
Dimensions : remote	94 x 36 x 18mm
Weight : chime	60g
Weight : remote	38g

Precautions

	CAUTION
	RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit

Safety Notice

Prior to use, read through this safety guide.
Pay attention to safety warnings.
Observe all operating requirements.
For any items designed for indoor use only, do not operate near water or in humid environments.
For cleaning, only use a lint-free, dry cloth.
Install according to the specifications.
Place away from heat sources or heating appliances.
During placement, ensure adequate support for the product and access to controls and connectors.
Do not obstruct any cooling vents or openings and allow adequate space for air flow.
Use only power connections supplied with the product or suitable equivalents.
Do not modify the equipment in any way.
For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
Keep powered products and batteries away from the reach of children.
In case of malfunction, water ingress or other damage, consult qualified service personnel.
Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
For any Earthed mains product, ensure that the power supply has a protective Earth connection.
Keep all packaging materials out of reach of children.

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
