MVC043
Motion Sensing Visitor Chime
350.043UK
Introduction

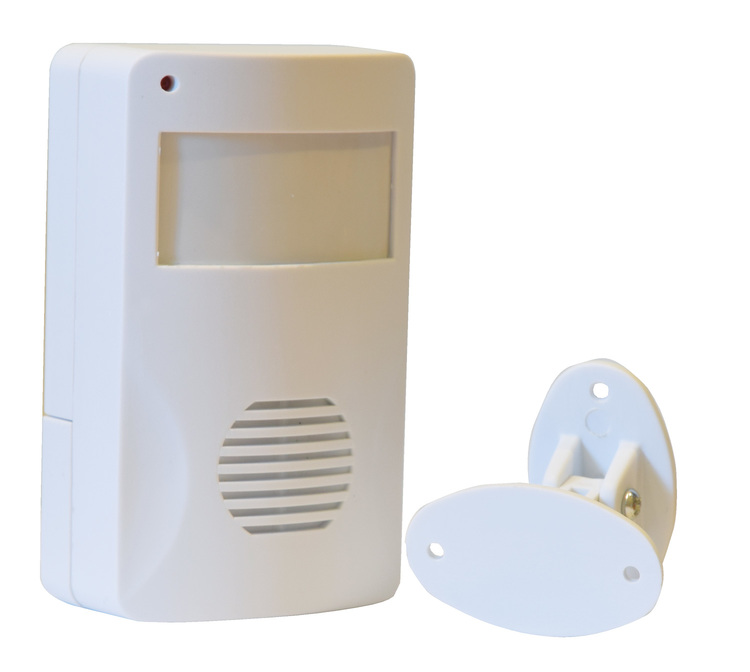

A light sensitive, motion activated door entry chime suitable for office and retail locations. With a range of up to 8 metres and 120° detection angle this unit comes supplied with an adjustable wall bracket enabling you to achieve the perfect coverage for your property.
Features
- Chime sounds when movement is detected within a range of 5 to 8m of the unit.
- 120° movement detection angle.
- Low energy consumption in standby mode.
- Simple ding-dong style melody.
- Power on and battery condition LED.
- Adjustable fixing bracket (supplied) or keyhole slot mounting.
- Uses 2x AA batteries (not supplied).
Installation
Install 2 x AA batteries in the chime before use, observing the polarity indicators within the battery compartment.
Install the unit in a dry area, away from heat and direct sunlight using the fixing bracket supplied for angular adjustment. Alternatively, fix the unit to a wall using a self-tapping screw, aligned with the keyhole slot to its rear for a fixed installation with no adjustment.
The optimum installation height for the chime is around 2-3m from ground level.
Switch on the chime using the power switch on the right-hand side of the unit. It will take around 30 seconds for the unit to stabilise and enter its normal detection state. In this time the LED indicator may blink a few times and is perfectly normal.
Once the unit is in normal operation mode, test the detection area by walking the normal path an intruder or visitor would take and adjust the angle of the mounting bracket if necessary.
Replace the batteries whenever the LED indicator on the chime becomes dim, continuously flashes or the alarm sounds repeatedly.
Warning:
For reasons of electrical safety, this device must never be immersed in water, exposed to damp conditions or excessive force.
Do not use this device if you find that it is damaged in any way.
Do not attempt to repair this device or take apart under any circumstances, as this will invalidate your warranty.
Specification
| Specification | Value |
|---|---|
| Detection range | 5 to 8m |
| Detection angle | 120° |
| Power : battery | DC 3V (1.5V; 2x AA 1.5V battery) |
| Dimensions | 66 x 39 x 106mm |
| Weight | 95g |
Precautions
 |
CAUTION |  |
| RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
| CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL | ||
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
