2WDP010

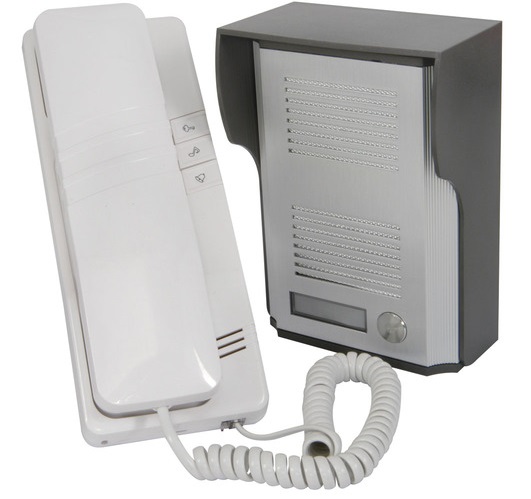

2 Wire Door Phone System
350.010UK
Introduction
This door phone system allows you to talk to visitors before opening the door. There is also an additional function to allow the opening of an electronic lock. Great for use in the home and in apartments, or for the elderly and less mobile.
Features
- Intercom with sharp clear audio
- 16 different ringer options
- Weatherproof outdoor unit (IP44 rated) with a backlit nameplate
- Maximum distance of 100m (using 2 x 0.75mm² cable)
- Supplied with adaptor and wall mount brackets
- Note: Cable not supplied
In The Box
- Outdoor unit
- Indoor unit
- UK power supply
- Unit fixing brackets
Warning:
For reasons of electrical safety, this device must never be immersed in water, exposed to damp conditions or excessive force.
Do not use this device if you find that it is damaged in any way.
Only use the power supply provided by the manufacturer.
When not in use for long periods, disconnect the power supply from the mains.
Do not attempt to repair this device or take apart under any circumstances, as this will invalidate your warranty.
Specification
| Specification | Value |
|---|---|
| Power supply | 12Vac, 1000mA |
| Dimensions (outdoor unit) | 160 x 113 x 68mm |
| Dimensions (indoor unit) | 210 x 85 x 60mm |
| Weight (outdoor unit) | 350g |
| Weight (indoor unit) | 340g |
Precautions
 |
CAUTION |  |
| RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
| CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL | ||
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Indoor use only : The "House" symbol identifes electrical equipment designed primarily for indoor use.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
