QR12PA
QR Series Portable Powered PA Units
178.843UK
Introduction
Thank you for choosing the QR series portable PA unit. Please read this manual prior to use to avoid damage to the item.

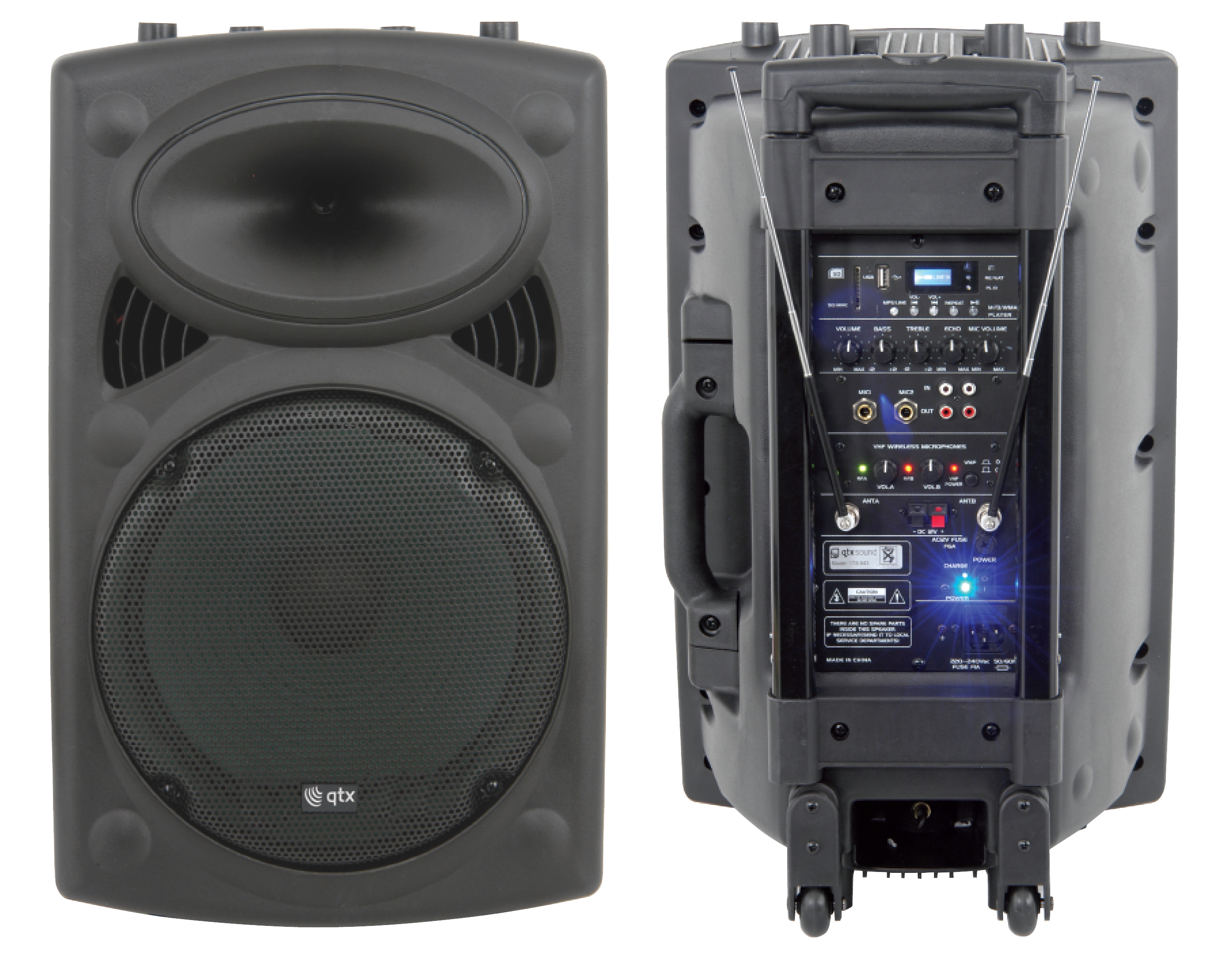

This versatile portable PA unit is packed with features in a compact, manageable enclosure and is suitable for a wide array of applications ranging from public address for presentations to outdoor karaoke.
Order ref: QR12PA (178.843)
QR15PA (178.846)
VERSION 4.
Caution: Please read this manual carefully before operating |
---|
Damage caused by misuse is not covered by the warranty |
Features
- Mains, external or internal D.C. power supply
- Internal 12V rechargeable battery
- VHF wireless microphones included
- Microphone inputs (6.3mm jack)
- Master 2 band EQ and Echo effect for microphones
- Internal USB/SD digital audio media player
- VCV mic override function
- Wireless remote control for media player
- Integral trolley with telescopic handle
- Integral 35mm pole mount
- AUX line input
Package Contents
Please check the contents to ensure that the product has been received in good condition.
- QRPA portable PA unit
- 2 x VHF handheld microphones
- Mains power lead
- IR Remote control for media player
- User manual
If you find any accessory is missing or the product has arrived with any problems, please contact your retailer at once.
This product contains no user-serviceable parts so make no attempt to try to fix or modify this item yourself as this will invalidate the warranty. We recommend you keep the original package and proof of purchase for any possible replacement or returned demand.
Warning
To prevent the risk of fire or electric shock, do not expose this appliance to rain or moisture. To prevent electric shock do not remove the cover. No user serviceable parts inside. Refer servicing to qualified service personnel.
Safety
Prior to connecting mains, ensure that the supply voltage is correct and the mains lead is in good condition.
Avoid ingress of water or particles into the enclosure.
If the mains or D.C. fuse blows, refer the unit to qualified service personnel
If the VHF microphones are to be unused for a long period of time, remove the batteries and store for later use.
Placement
Keep the unit out of direct sunlight and away from heat sources.
Place the unit in an upright position during use and storage.
Keep the unit away from moisture or dusty environments.
Cleaning
Use a soft cloth with a neutral detergent to clean the cabinet, panel and controls.
To avoid damage, do not use solvents to clean this equipment.

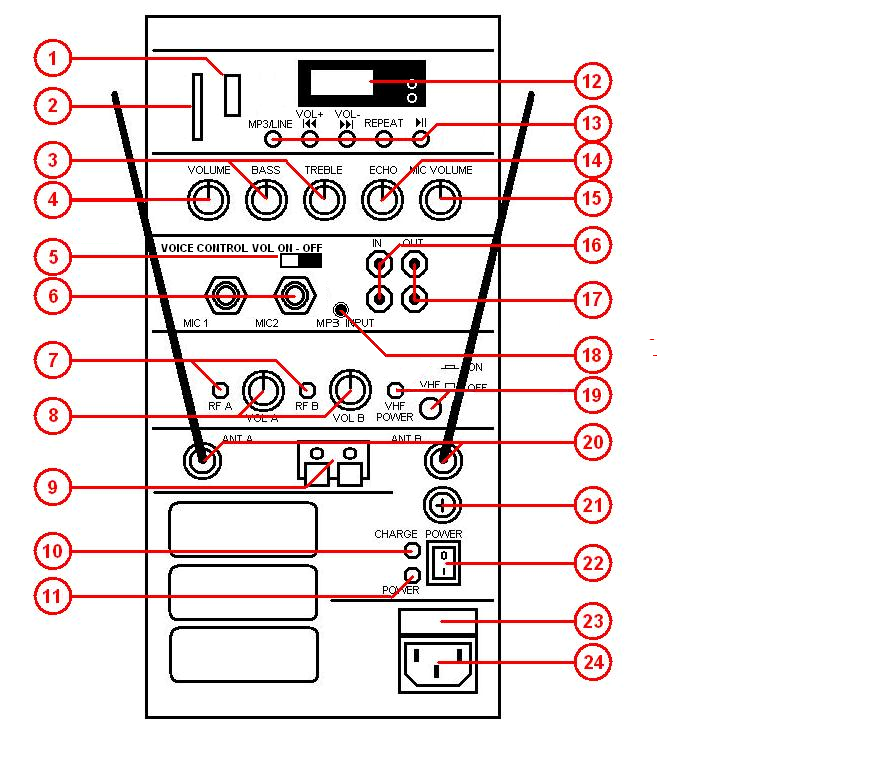

Controls
Operation and Connection
Your new QTX QR-series portable PA unit may arrive with you with the internal battery charged. Before connecting to the mains, switch the unit on and see if the power LED lights. If not, you will need to charge the battery before using away from a mains supply (see “Charging the battery” below)
Connect the QR-series portable PA unit to the mains using the appropriate mains IEC lead supplied. You may otherwise opt to connect the spring terminals at the rear to an external 12Vdc supply, such as a car battery, or use the internal battery if charged.
Power Up
Turn the VOLUME, ECHO and MIC VOLUME controls down (anti-clockwise) and turn the POWER switch on (the power LED should light).
BASS and TREBLE controls should remain pointing vertically (12-o-clock position).
Switch VCV (voice controlled volume) off.
Your QR-series PA unit should now be ready to operate.
VHF Wireless Microphones
For QR12PA and QR15PA, insert the supplied 9V batteries into the handheld microphones by carefully unscrewing the base of each and connecting the “+” and “-“ terminals or the battery to the corresponding clips inside the microphone body, taking care to observe the correct polarity.
For QR10PA, connect the neckband microphone to the bodypack, slide open the bodypack and insert the supplied 9V battery, again observing the correct polarity.
Connect the antennae to the connectors at the rear and extend them fully at an angle.
With the VOL A and VOL B controls turned down, press the VHF ON/OFF button in so that the VHF POWER LED lights.
Switch on each wireless mic in turn – the RF LEDs should light as a result.
If the LED on the transmitter lights dimly, change the battery.
Gradually increase VOL controls, testing each microphone in turn for output through the speaker.
Take care not to incur “feedback” (howling or screeching sound through the speaker) by keeping the microphone a sensible distance from the speaker and pointing away from the speaker so that it doesn’t “hear” the speaker output.
Turning the ECHO control clockwise introduces a pre-set echo function for singing and special effects. BASS and TREBLE can be cut by turning anti-clockwise or boosted by turning clockwise.
When not in use, switch the wireless microphones off.
External Inputs
In addition to the unit’s own VHF microphones, 6.3mm jack inputs are provided to connect external wired or wireless microphones, which are both governed by the MIC VOLUME control.
If required, the music level can be automatically muted when speaking into a microphone by switching the VCV on.
Also, twin RCA and 3.5mm jack input are provided for line input sources such as CD player or ipod. To use these, set the MODE switch on the USB/SD player to “LINE IN”
Adjacent to this twin RCA input is a twin RCA line output carrying the overall main mix.
The AUX is governed by the VOLUME control at the top of the panel.
Internal USB/SD player
Insert a USB memory stick or an SD card with mp3 or wma media stored on it into the relevant slot on the rear panel.
If the LCD display reads “LINE IN”, press the MP3/LINE button and check that the LCD display shows that media is being read from the USB or SD device. If not, press the “>II” button or try removing and re-inserting the memory device.
Increasing the VOLUME control should result in the media being played through the speaker.

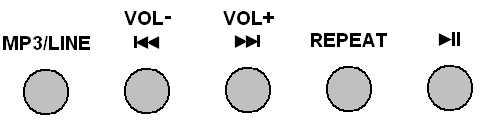

Panel controls are detailed below…
“MP3/LINE” switches music input between internal USB/SD player and AUX
input
“VOL – “ press and hold to decrease volume
“I<<” momentary press for previous track
“VOL +” press and hold to increase volume
“>>I” momentary press for next track
“REPEAT” toggle between repeating all, single or no tracks
“>II” Play / pause track

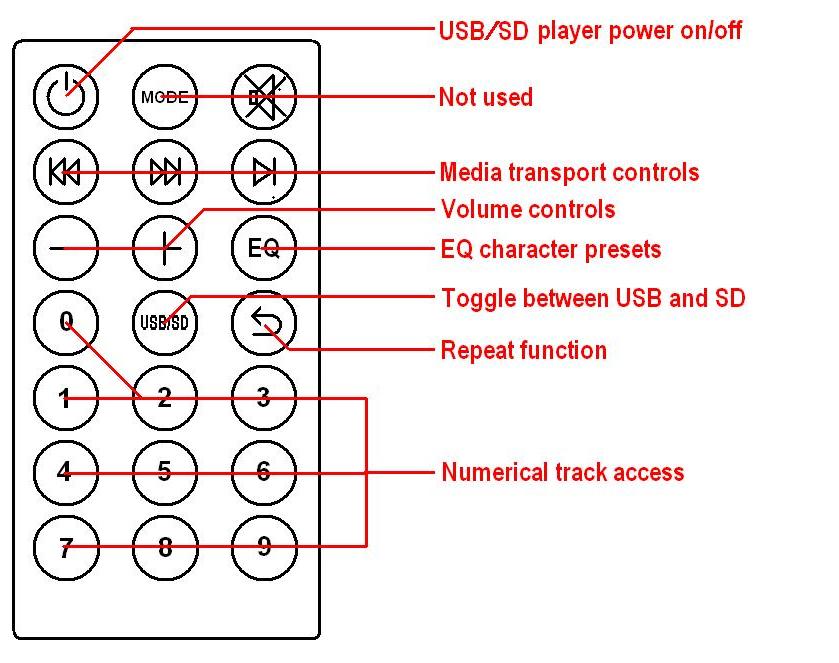

In addition to the panel controls, an infra-red remote control is provided for the USB/SD player which adds some further functions to allow greater control over the media player. To operate, remove the clear plastic tab from the remote to activate the battery.
Charging The Battery
When not in use but connected to the mains, if the POWER switch is in the off position, the internal battery will be re-charged from the mains supply. This can be observed by the CHARGE LED which lights when charging. When fully charged, the CHARGE LED will no longer be lit.
Troubleshooting
Issue | Solution |
---|---|
No output and no LEDs lit | Check POWER switch is on |
Check battery is not drained fully | |
Check mains lead is connected | |
Check mains or D.C. fuse hasn’t blown | |
Power LED lit but no VHF output | Check 9V batteries in wireless transmitters |
Check wireless transmitters are switched on | |
Check VHF POWER is switched on | |
Check MIC VOLUME is not turned down | |
Check RF A and RF B LEDs for radio signal | |
Music level off or keeps cutting out | Check that VCV is not switched on (will mute upon mic. signal) |
Power LED lit but no USB/SD player output | Check USB or SD has correct audio files on |
Check USB or SD is connected properly | |
Press MP3/LINE button and try >II button | |
Check VOLUME is not turned down | |
Press and hold “VOL +” button | |
Check LCD display to see moving numbers | |
Power LED lit but no sound from external inputs | Check leads are OK and connected properly |
Check volume and on/off switch on external mic or line source | |
Check VOLUME or MIC VOLUME control is not fully down | |
Does "LINE IN" show on LCD for AUX input? (Press MP3/LINE) |
Specification
Specification | Value |
---|---|
Weight | 14.0kg |
Dimensions | 570 x 350 x 310mm |
SPL @ 1W/1m | 100dB |
Frequency response | 48Hz - 20kHz |
Power handling : rms | 200W |
Main driver | 300mm (12'') |
Power supply | 220-240Vac, 50/60Hz (IEC) / external 12Vdc / internal battery |
Power consumption max. | 100W |
HF driver | 25mm (1'') Titanium compression driver |
Battery life | Up to 8 hours |
Controls | Volume, Bass, Treble, Echo, Mic volume, VCV & VHF mic levels |
Inputs | 2 wired mic (jack) and aux (RCA & 3.5mm) |
Wireless microphone frequencies | 174.1MHz + 175.0MHz |
Amplifier : output | 50 + 50Wrms |
Precautions
CAUTION | ||
RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL |
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
