QR8PABT

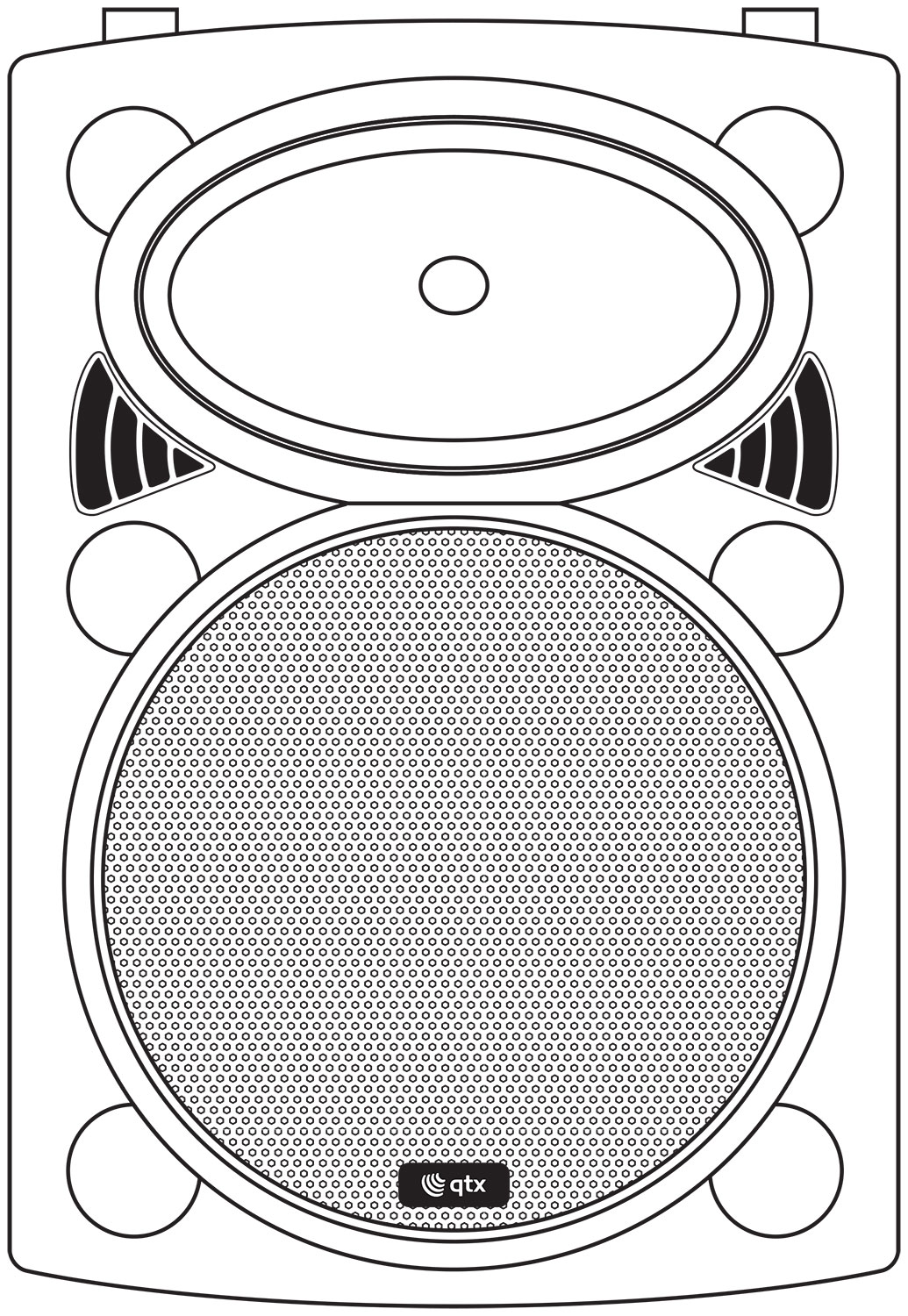

QRPA Portable PA with Bluetooth
178.838UK
Introduction
Thank you for choosing the QRPABT portable PA unit. Please read this manual prior to use to avoid damage to the item.
This versatile portable PA unit is packed with features in a compact, manageable enclosure and is suitable for a wide array of applications ranging from public address for presentations to outdoor karaoke.
Version 1.2
Item ref: 178.838UK, 178.839UK
Caution: Please read this manual carefully before operating |
---|
Damage caused by misuse is not covered by the warranty |
Features
- 15Vdc power adapter with IEC input
- Internal 12V rechargeable battery
- VHF handheld microphone included
- Guitar / Microphone inputs (6.3mm jack)
- Master 2 band EQ and Echo effect for microphones
- Internal USB/SD/FM/BT media player with record function
- Bluetooth pairing with TWS function
- VCV mic override function
- I.R. remote control for media player
- Integral 35mm pole mount
- AUX line input
Please check the contents to ensure that the product has been received in good condition.
- QRPABT portable PA unit
- VHF microphone
- 15Vdc power adaptor and IEC mains lead
- IR Remote control for media player
- User manual
If you find any accessory is missing or the product has arrived with any problems, please contact your retailer at once.
This product contains no user-serviceable parts so make no attempt to try to fix or modify this item yourself as this will invalidate the warranty. We recommend you keep the original package and proof of purchase for any possible replacement or returned demand.
Warning
To prevent the risk of fire or electric shock, do not expose this appliance to rain or moisture. To prevent electric shock do not remove the cover. No user serviceable parts inside. Refer servicing to qualified service personnel.
Safety
Prior to connecting the mains adapter, ensure that the supply voltage is correct and the mains lead is in good condition.
Avoid ingress of water or particles into the enclosure.
If the internal fuse blows, refer the unit to qualified service personnel
If the VHF microphone transmitter is to be unused for a long period of time, remove the batteries and store for later use.
Placement
Keep the unit out of direct sunlight and away from heat sources.
Place the unit in an upright position during use and storage.
Keep the unit away from moisture or dusty environments.
Cleaning
Use a soft cloth with a neutral detergent to clean the cabinet, panel and controls.
To avoid damage, do not use solvents to clean this equipment.

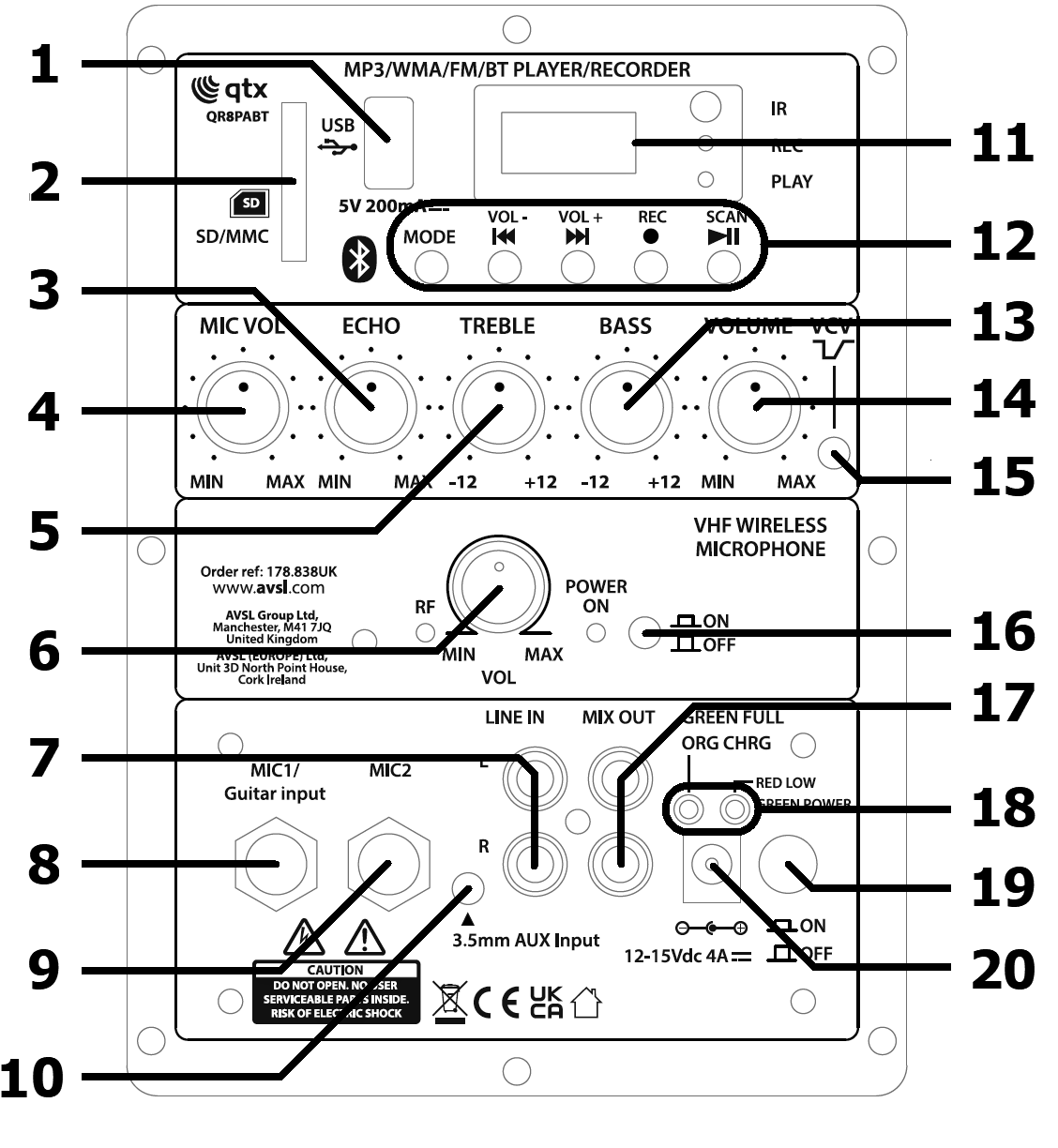

Control Panel
No | Function |
---|---|
1 | USB port |
2 | SD/MMC card slot |
3 | ECHO level |
4 | Wired MIC / guitar volume |
5 | TREBLE EQ |
6 | VHF Mic volume |
7 | LINE IN 2 x RCA |
8 | Wired MIC.1 / guitar input 6.3mm jack |
9 | Wired MIC.2 input 6.3mm jack |
10 | Smart phone / aux input stereo 3.5mm jack |
11 | Media player LCD display & IR receiver |
12 | Media player mode & transport controls |
13 | BASS EQ |
14 | Main volume |
15 | VCV talkover on/off |
16 | VHF wireless receiver on/off |
17 | MIX OUT line output 2 x RCA |
18 | Battery charge & power LEDs |
19 | Power on/off |
20 | DC power input jack |
Powering Up
Your new QRPABT unit may arrive with you with the internal battery charged. Before connecting to the mains with the supplied power adaptor, switch the unit on and check the POWER LED (18). If it is green, there is charge in the battery. If it is red, then you will need to charge the battery before using away from a mains supply
Connect the QRPABT unit to the mains using the supplied power adaptor. You may otherwise opt to connect the DC input jack (20) to an external 12-15Vdc supply, such as a car battery, or use the internal battery if charged.
When not in use but connected to the mains, if the POWER switch (19) is in the off position, the internal battery will be re-charged from the mains supply. This can be observed by the CHARGE LED (18), which will light orange when charging. When fully charged, the CHARGE LED will change to green.
Note: it is recommended to store the PA unit at an ambient temperature and not with the battery fully discharged.
Initial Setup
Turn all VOLUME & ECHO controls down (anti-clockwise) and turn the POWER switch on (the power LED should light). BASS and TREBLE controls should remain pointing vertically (12-o-clock position). Turn up the main VOLUME control part way and switch VCV off. Your QRPABT unit should now be ready to operate.
VHF Microphone
Insert the supplied AA batteries into the handheld microphone by carefully unscrewing the base and connecting the “+” and “-” terminals of the battery to the corresponding contacts inside the microphone body, taking care to observe the correct polarity.
Turn on the VHF receiver (16) and turn the VHF VOL control (6) up (clockwise) part way.
Switch on the wireless mic – the rear panel RF LED should light as a result. If the LED on the transmitter lights dimly, change the battery. Gradually increase the VHF VOL control, testing the microphone for output through the speaker. Take care not to incur “feedback” (howling or screeching sound through the speaker) by keeping the microphone a sensible distance from the speaker and pointing away from the speaker so that it doesn’t hear the speaker output.
Turning the ECHO control (3) clockwise introduces a pre-set echo function for singing and special effects. BASS and TREBLE (13, 5) can be cut by turning anti-clockwise or boosted by turning clockwise.
When not in use, switch the handheld transmitter off and remove the batteries if not being used for long periods.
External Inputs
In addition to the QRPABT’s own VHF microphone, a pair of 6.3mm jack inputs (8, 9) are provided to connect external wired or wireless microphones, which are both governed by the MIC VOL control (4).
(MIC 1 can also accept an electric guitar input).
Twin RCA (7) and a 3.5mm stereo AUX (10) input are provided for line input sources such as CD player or smart phone. Adjacent to the twin RCA input is a twin RCA line output (17) carrying the overall main mix. This can be fed on to further active speakers or portable PA units via a twin RCA lead.
VCV
The VCV button (8) activates a muting function which causes playback from the media player to be temporarily reduced in level when there is input from a microphone. This can be useful to “duck” music when making announcements.
Internal USB/SD player & Bluetooth receiver
The QRPABT onboard media player (11) can play back files from USB/SD/FM media or a paired Bluetooth device.
Insert a USB memory stick or an SD card with compressed digital audio files stored on it into the relevant slot on the top panel. Playback will normally start automatically from the last media inserted (USB or SD).
If the LCD display shows a jack plug (AUX), press the MODE button and check that the LCD display shows that media is being read from the USB or SD device. If not, press the button or try removing and re-inserting the memory device.
Increasing the Master Volume control (16) should result in the audio being played through the speakers.
Rear panel controls for the media player (12) are detailed below…
MODE switches input between USB/SD/FM media or
Bluetooth
press for previous track (hold for volume -)
press for next track (hold for volume +)
REC Press to record audio to media
- Play/Pause playback or FM scan (hold to pair for TWS)
Pressing the REC button initiates recording of external inputs to any inserted USB or SD media as a .wav file.
Pressing REC again will stop the recording. These tracks can be played back from USB/SD in the same way as mp3 files.
In FM mode, press and hold the button to initiate automatic scan of available radio stations, which are then stored to memory as channels in order of frequency. Once completed, use and buttons to step through saved radio stations.
To connect a smart phone or other Bluetooth device to the QRPABT media player, open the Bluetooth menu on your device and search for the QRPABT unit, which is simply called “bluetooth”. Pair with this ID and connect to play audio from the Bluetooth device through the QRPABT unit.
TWS (True Wireless Stereo) can be activated if 2 of the same QRPABT are operated in Bluetooth range of each other.
Switch both units on and before pairing any phone, set each to Bluetooth and press and hold Play. The LED is normally blue flashing before pairing, solid blue when paired, red flashing when TWS pairing, solid red when TWS paired. Pair the master unit to a smartphone and this will play the left channel, whereas the other QRPABT will play the right channel.
Pressing the MODE button will select between FM, Bluetooth & USB/SD playback.
Volume and track navigation can be achieved via the media player control panel. Bluetooth pairing is always available for a single device so long as the device is within reception range. It may be necessary to re-connect if the device has moved out of range and disconnected.

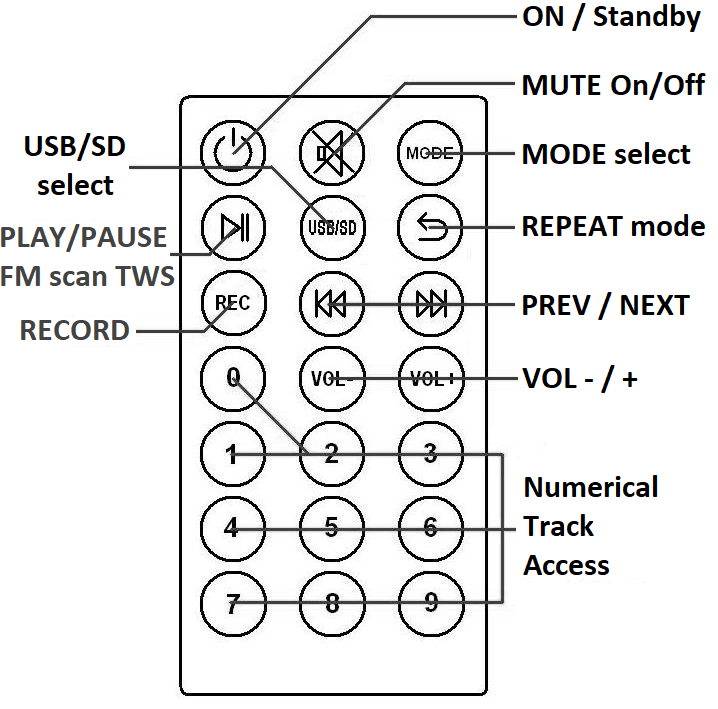

In addition to the panel controls, an infra-red remote control is provided for the media player which adds some further functions to allow greater control over the media player.
To use the remote, remove the clear plastic tab to activate the battery.
Troubleshooting
Issue | Solution |
---|---|
No output and no LEDs lit | Check POWER switch is on |
Check battery is not drained fully | |
Check 15Vdc adaptor is connected if not on battery power | |
Check internal fuse hasn’t blown | |
Power LED lit but no VHF output | Check AA batteries in handheld transmitter |
Check handheld transmitter is switched fully on and not muted | |
Check VHF POWER is switched on | |
Check RF LED is lit (otherwise check transmitter frequency) | |
Music level off or keeps cutting out | Check that VCV is not switched on (will mute upon mic. signal) |
Power LED lit but no media player output | Check USB or SD has mp3 or wma files stored |
Check USB or SD is connected properly | |
Press MODE button and try Play/Pause button | |
In FM tuner mode, ensure that a station is tuned in correctly | |
Check VOLUME is not turned down | |
Press and hold “VOL +” button | |
Check LCD display to see track countdown | |
Power LED lit but no sound from external inputs | Check leads are OK and connected properly |
Check volume and on/off switch on external mic or line source | |
Check VOLUME or MIC VOLUME control is not fully down |
Specification
Specification | Value |
---|---|
Weight | 9.1kg |
Dimensions | 290 x 400 x 230mm |
Main driver | 200mmØ (8") |
Power supply | Internal battery or 12/15Vdc @ 3A mains adaptor (supplied) |
Amplifier : output | 50 + 50W max. |
Battery life | Up to 8 hours |
Controls | MIC.1/guitar, MIC.2, Echo, Bass, Treble, Master Volume & VHF mic volume, VCV |
Bluetooth version | 4.0 |
Inputs | Mic.1/guitar, Mic.2 (6.3mm jack), Line In (L+R RCA), AUX (3.5mm stereo jack) |
Carrier frequency | 174.1MHz + 175.0MHz (12" & 15" only) |
Precautions
CAUTION | ||
RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL |
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
