QX8BT

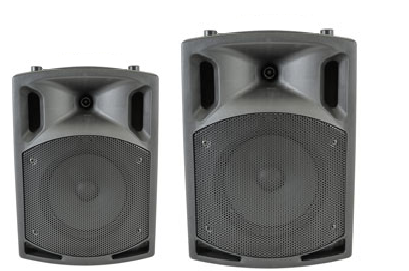

QX Series Active Moulded Speakers with Bluetooth

178.752UK

Introduction

Version 1.1

Thank you for choosing the QXBT active speaker with Bluetooth™ technology. This versatile active speaker can deliver playback from a paired Bluetooth device and a mic or line input source simultaneously.

Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty

Package Contents

Please check the contents to ensure that the product has been received in good condition with the appropriate mains lead(s). If you find any accessory is missing or the product has arrived with any problems, please contact your retailer at once.

Warning

This product contains no user-serviceable parts so make no attempt to try to fix or modify this item yourself as this will invalidate the warranty. We recommend you keep the original package and proof of purchase for any possible replacement or returned demand. To prevent the risk of fire or electric shock, do not expose this appliance to rain or moisture. To prevent electric shock do not remove the cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

Placement

Keep the unit out of direct sunlight and away from heat sources.

Keep the unit away from moisture or dusty environments.

Mount the unit on a stable surface, 35mm pole mount or suspend using the integral flying points.
Ensure that any supporting structures have adequate load capacity for the weight of the unit.

Cleaning

Use a soft cloth with a neutral detergent to clean the cabinet, panel and controls.

To avoid damage, do not use solvents to clean this equipment.

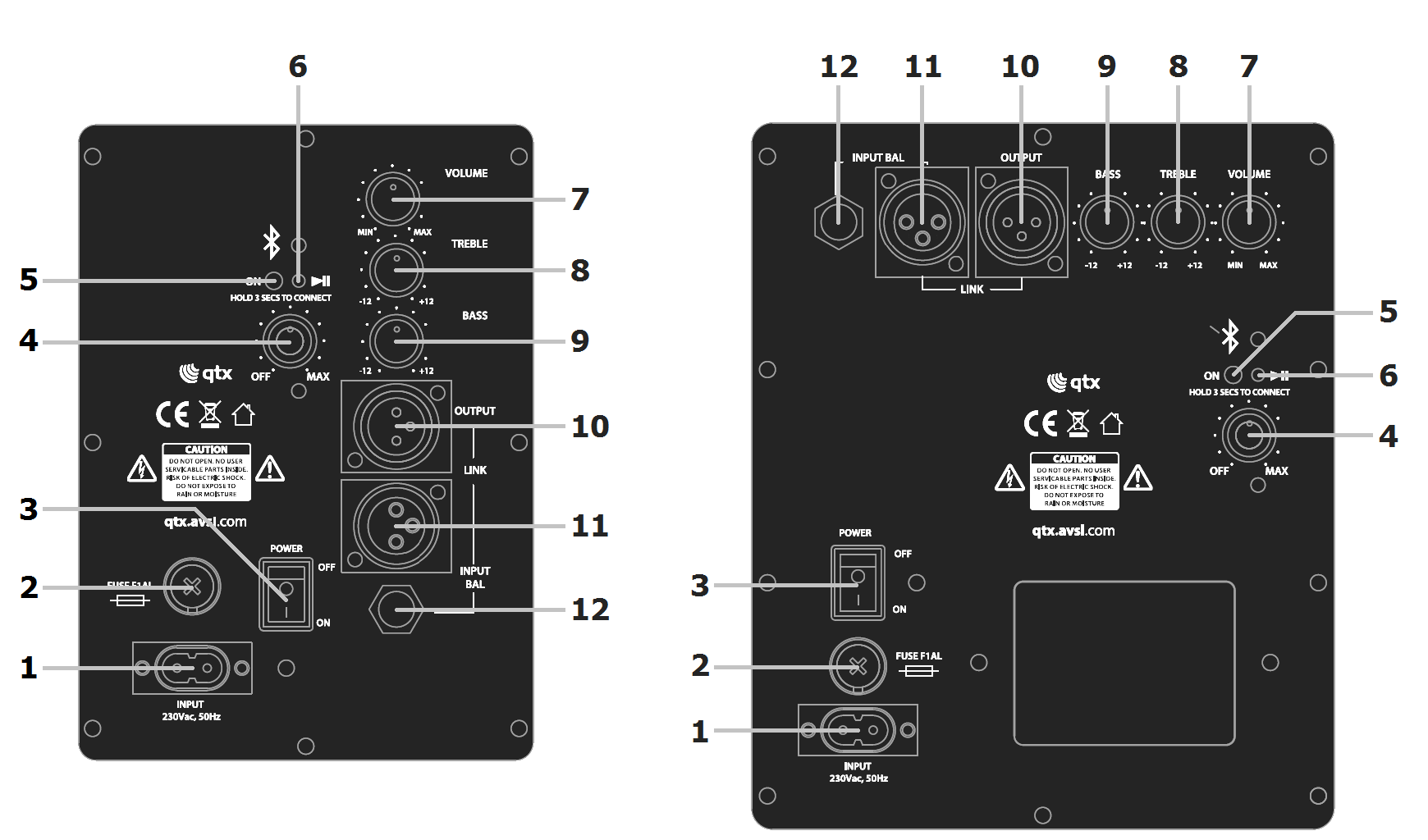

Rear Panel Layout

No		No		No
1.	Fig.8 mains inlet	5.	Bluetooth play button	9.	Bass EQ control
2.	Mains fuse holder	6.	Bluetooth indicator	10.	Line output XLRM
3.	Power on/off switch	7.	Volume control	11.	Mic input XLRF
4.	Bluetooth off/volume	8.	Treble EQ control	12.	Line input 6.3mm jack

Operation

Connect any line input (CD, mp3 player, home keyboard etc.) to the QXBT speaker via the 6.3mm jack line input (12) or alternatively, connect a microphone to the XLR mic input (11)

Turn the VOLUME control (7) fully down and turn the POWER switch (3) on. BASS and TREBLE controls

(8, 9) should remain pointing vertically (12-o-clock position).

Turn up the VOLUME control part way and test the input signal (line or microphone) for output through the speaker. Adjust the VOLUME to the required output level and TREBLE and BASS controls to adjust the overall tone of the output (clockwise to boost, anti-clockwise to cut).

Bluetooth™ Connection

QXBT units are fitted with a Bluetooth receiver, which is operated via a rotary control (4) and play button (5) on the rear panel. When the rotary control is turned fully off, power to the Bluetooth receiver is off.

If switched off, turn the Bluetooth rotary control clockwise to switch power on to the Bluetooth receiver. Turning the rotary control up increases Bluetooth output level – halfway is a reasonable position to start.

Press and hold the Bluetooth play button for 3 seconds and the Bluetooth indicator (6) will flash blue. If the playback source is already paired, the connection will be made with the QXBT speaker and a chime will sound to confirm this.

If not paired, press the play button briefly again to see the LED flash between blue and red.

At this point, the Bluetooth receiver is made visible to all Bluetooth devices in range.

Scan for Bluetooth devices on your playback source and check for a device called “bluetooth” (lower case). Select this device and opt to connect and your sending device should state that it is connected to “bluetooth” for audio output and the LED should flash blue and a beep will confirm the pairing.

Play audio from your sending device and check for output through the QXBT speaker.

If there is no output from Bluetooth, check if there is more than one device in range called “bluetooth”

In the eventuality that more than one device is called “bluetooth”, try each device in turn until the QXBT unit is found. Check also that the volume level is turned up on the sending device.

Once audio is playing through the QXBT speaker from Bluetooth, adjust the rotary control (4) to the required volume.

The QXBT speaker’s Bluetooth receiver has duplex Play/Pause control over the sending device.

Press the Bluetooth button on the rear panel to remotely pause or resume playback from the sending device. This is useful when the audio is played from a phone in a pocket or on an armband or from a PC or Mac computer.

Bluetooth on the QXBT speaker can only pair to a single device at any one time and should be operable over a range of 5 to 8 metres.

Turning the rotary control fully down clicks the power off and shuts down the Bluetooth receiver.

Specification

Specification	Value
Weight	6.8kg
Dimensions	290 x 400 x 225mm
Crossover frequency	4kHz
Max. SPL	117dB
Frequency response	55Hz - 20kHz
HF driver : coil size	25mmØ
HF driver	25mm Ti compression driver
LF driver : coil size	35mmØ
LF driver	200mm (8")
SPL @ 1W/1m	94dB
Power rms	100W
Power max.	200W
Inputs	Line (XLR, Jack)
Power supply	230Vac, 50Hz (FIg.8)
Bluetooth version	4.0
SNR	87dB
THD	0.1%
Dispersion	90° x 60° (H x V)
Impedance	4 Ohms

Precautions

	CAUTION
	RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit

Safety Notice

Prior to use, read through this safety guide.
Pay attention to safety warnings.
Observe all operating requirements.
For any items designed for indoor use only, do not operate near water or in humid environments.
For cleaning, only use a lint-free, dry cloth.
Install according to the specifications.
Place away from heat sources or heating appliances.
During placement, ensure adequate support for the product and access to controls and connectors.
Do not obstruct any cooling vents or openings and allow adequate space for air flow.
Use only power connections supplied with the product or suitable equivalents.
Do not modify the equipment in any way.
For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
Keep powered products and batteries away from the reach of children.
In case of malfunction, water ingress or other damage, consult qualified service personnel.
Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
For any Earthed mains product, ensure that the power supply has a protective Earth connection.
Keep all packaging materials out of reach of children.

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
