CU-50

USB Recording Microphone and Stand

173.633UK

Introduction

Compact studio condenser microphone for podcasting and vocal recording. Fitted with a back-electret capsule, driven by an onboard preamp. Echo effect and mute function are switchable via 2 illuminated buttons at the front. Connection to a PC or Mac computer is via the supplied USB lead and operates as a plug & play USB audio device.The complete assembly is housed in a black anodised die-cast body with a large steel grille for the capsule. Supplied with a collar clamp and mini tripod for convenient, table-top operation.

Features

All metal construction
Built-in echo effect for vocals
Supplied with clamp for standard mic stands
Supplied with mini folding tripod stand
Supplied with USB A to B lead

In The Box

CU-50 compact USB studio microphone
Threaded collar clamp
Mini tripod stand
USB A to B lead

Setting Up

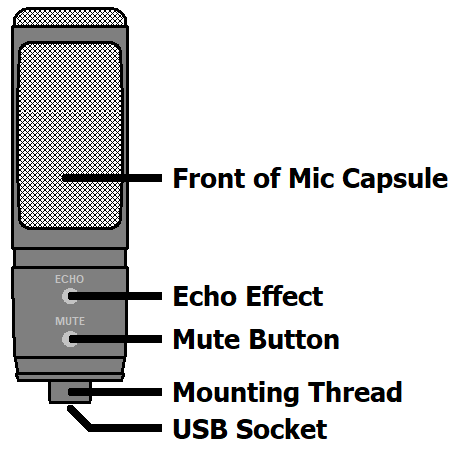

Mount the CU-50 to the supplied angle-adjustable holder by rotating it onto the Mounting Thread at the base of the microphone, surrounding the USB socket.

This holder can be screwed onto to the supplied mini tripod stand for tabletop use or attached to a standard microphone stand or boom arm

(remove the 3/8” thread adaptor for 5/8” threads)

Connect the supplied USB lead to the type B Socket at the base of the microphone housing and the other end to an available USB port on a PC or Mac computer.

The computer will recognise the CU-50 as a “USB Audio Device” in the sound or audio settings.

Operation

Selecting the CU-50 (“USB Audio Device”) as the input device within the recording or streaming software will set the microphone as the input source.

Pressing the MUTE button will cause this button to illuminate and will mute the microphone.

Pressing MUTE again will un-mute the microphone.

If an echo effect is required, this can be introduced by pressing the ECHO button, which will be illuminated when the echo effect is active. Pressing ECHO again will switch off the echo effect.

The CU-50 can be disconnected and re-connected to USB as a hot-swappable device.

Disconnect from USB after use to preserve the computer battery or power supply.

Specification

Specification	Value
Capsule	14mmØ back electret
Polar pattern	Cardioid
Connection	USB type B (power & digital audio)
Lead length	1.5m
Frequency response	20Hz - 20kHz
Sampling format	16-bit
Sample rate	44.1kHz or 48kHz
Controls	Echo on/off, Mute on/off
S/N ratio	78dB
Sensitivity	-40dB (±2dB)
Dimensions	147 x 50mmØ (microphone only)
Weight	272g (microphone only)

Precautions

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
