MM1-B
Mechanical Metronome
173.315UK

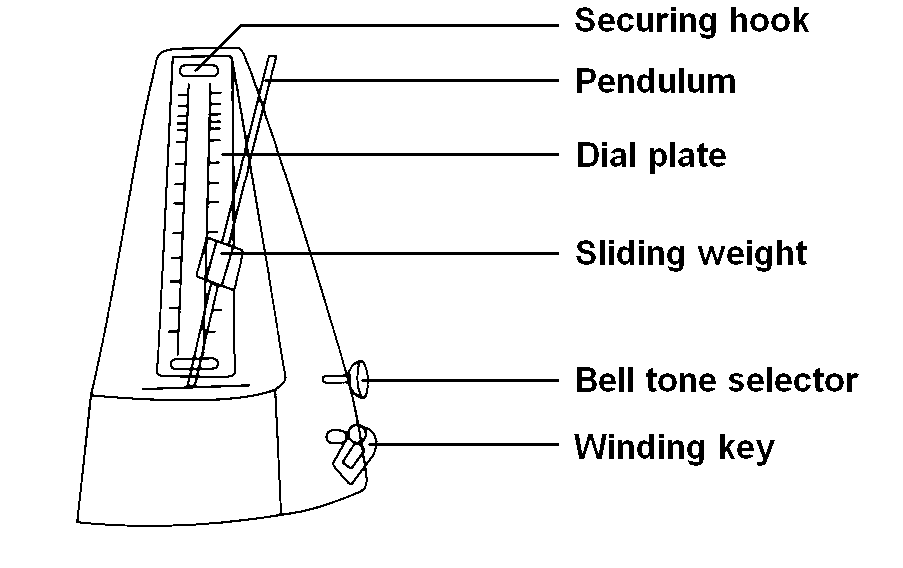

Operation
This metronome operates by clockwork motion. Wind up the spring using the winding key, taking care not to over-wind it.
Move the sliding weight to the desired tempo as shown on the dial plate immediately above the sliding weight.
Pull out the bell tone selector to ring on the desired beat, denoting the length of each bar of music.
Gently unhook the pendulum from the securing hook and move to the left or right to begin the rocking motion.
Gently stop the pendulum by hand after use and place it in the securing hook.
If the motion runs out, stop the pendulum and secure it before winding up the spring.
Precautions
Use the metronome on a level surface
If the pendulum becomes stuck or jams to the left or right, do not force towards the centre, gently wind the key to move it.
Return the pendulum to the centre and place in the securing hook after use.
Keep the metronome away from excessively humid or dusty environments.
Clean with a dry lint-free cloth, do not use solvents or detergents.
Do not disassemble the metronome or remove any parts (e.g. sliding weight or bell tone selector).
Specification
Specification | Value |
---|---|
Tolerance | <1% |
Dimensions | 118 x 206 x 104mm |
Weight | 470g |
