IEM58 Compact 5.8GHz In-Ear Monitoring System

Introduction

Thank you for choosing the Chord IEM58 in-ear monitoring system. This compact system provides high quality wireless foldback with full freedom of movement and can also be used for wireless audio transmission to active speakers in a PA system. Please read this manual before using this equipment to avoid damage through incorrect operation and to get the best performance from this equipment.

Contents

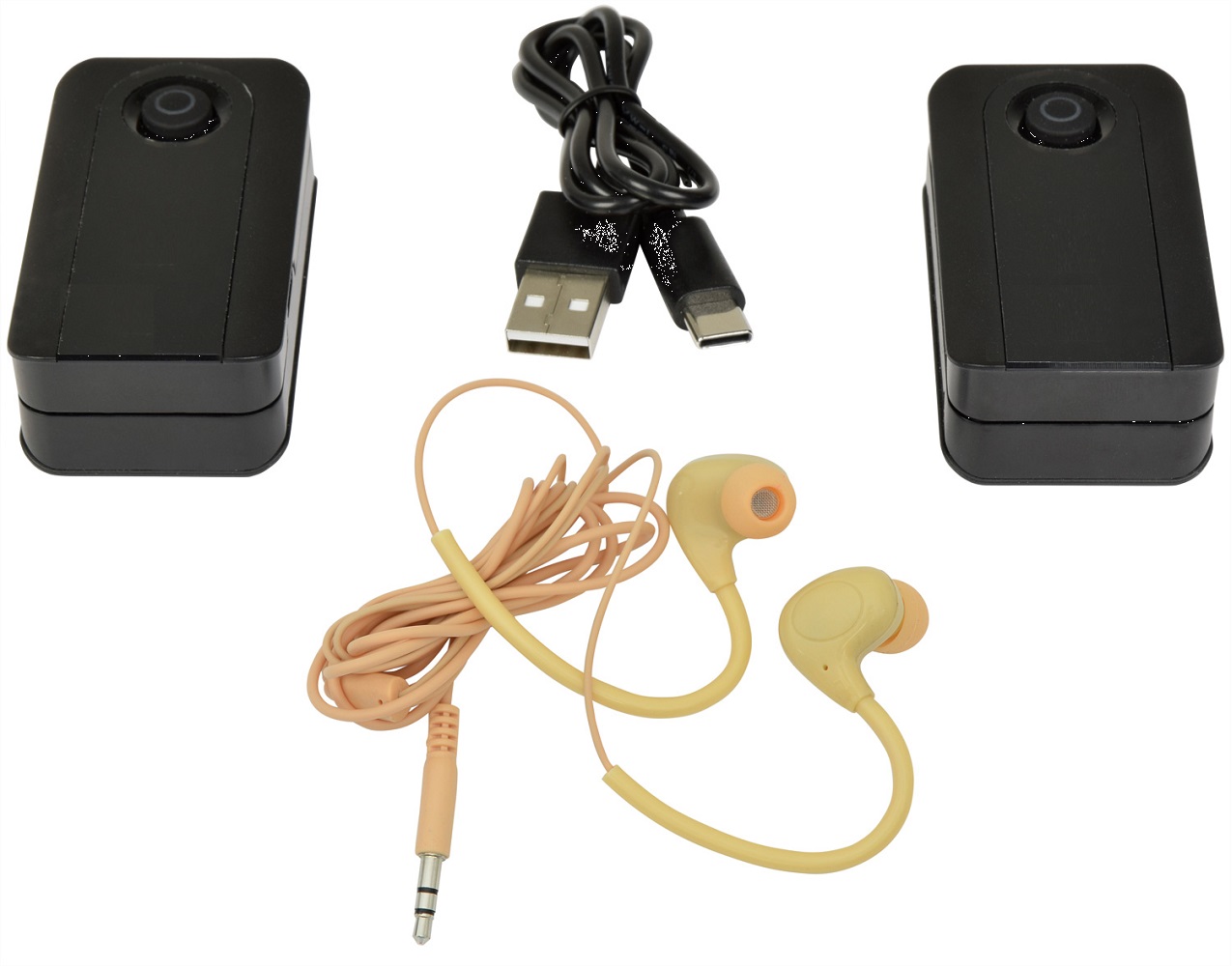

Please take care when unpacking this product. Inspect for any damage and ensure you have the following components…

• Miniature Rechargeable 5.8GHz transmitter
• Miniature Rechargeable 5.8GHz receiver
• Stereo in-ear monitoring headphones
• USB A to C charging lead

Warning

To prevent the risk of damage to the equipment, do not expose any of the components to rain or moisture.

If liquids are spilled on any component, stop using immediately, allow unit to dry out and have checked by qualified personnel before further use.

Avoid impact or heavy vibration to any of the components or over-stretching of the cables.

No user serviceable parts inside transmitter or receiver - refer servicing to qualified service personnel.

Safety

• Ensure that the transmitter and receiver are charged using a standard 5V USB charger with 1A minimum output.

• Avoid ingress of water or particles into the transmitter or receiver.

• Do not attempt to replace the internal batteries.

Placement

• Ensure good line-of-sight contact between transmitter and receiver for best reception.

• Keep all components out of direct sunlight and away from heat sources.

• Do not place heavy objects on top of the receiver or transmitter.

Cleaning

• Use a soft cloth with a neutral detergent to clean the body of the transmitter and/or receiver.

• To avoid damage, do not use solvents to clean the components.

• Sterile wipes may be used on the supplied earphones – be sure to avoid ingress of fluids into the apertures.

Transmitter and Receiver

Setting Up

The IEM58 has been designed with simplicity in mind and requires minimum effort to set up.

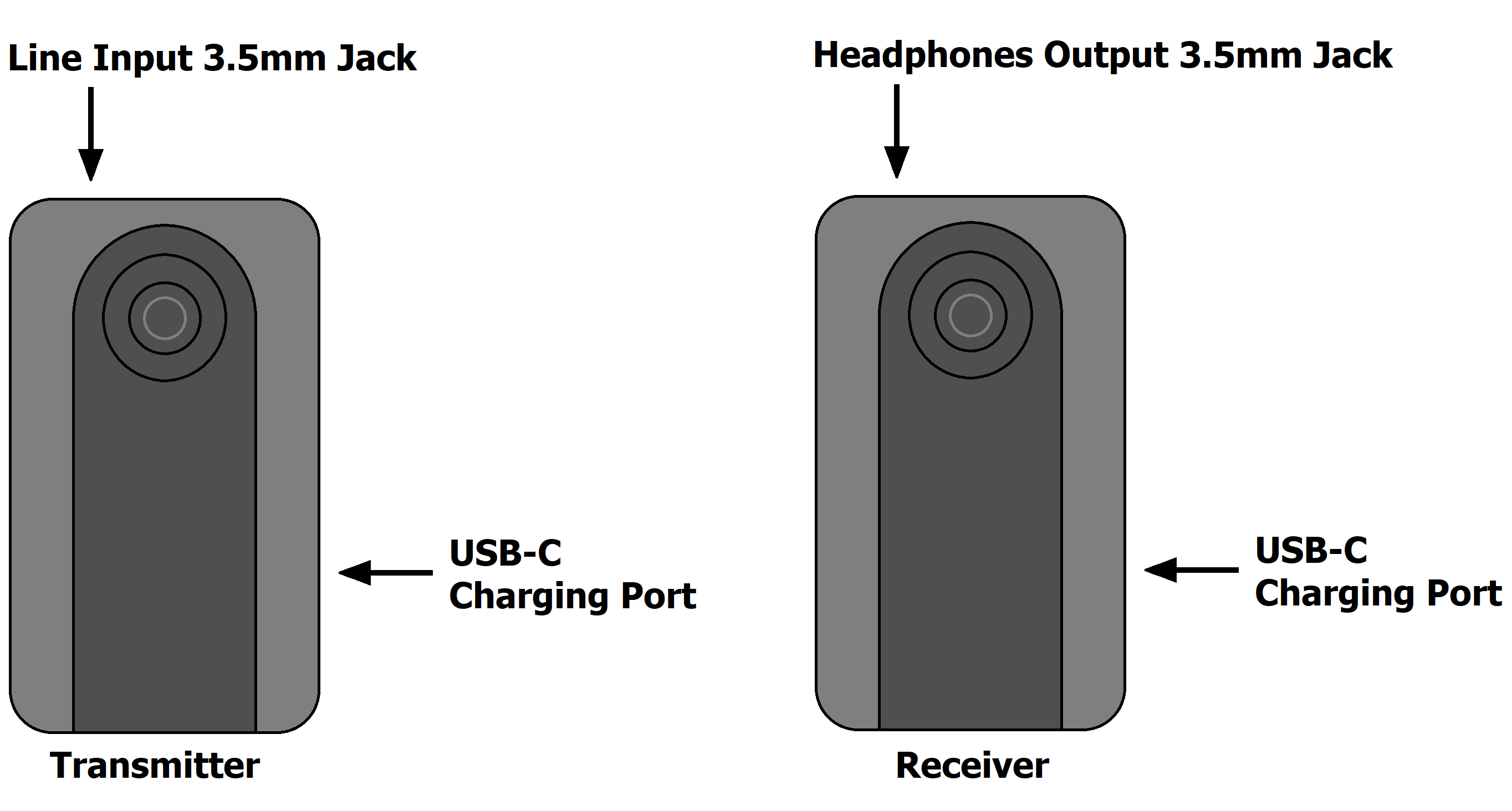

There is just an illuminated button, USB-C charging port and 3.5mm stereo jack on each unit.

It is advised to charge the transmitter and receiver fully (2 hours each) from USB before first use.

Connect a standard 5Vdc USB charger to the USB-C connector on each unit for recharging.

The push button will light solid green when charging (… or blue/green if the unit is switched on)

The green light will go out when charging is complete.

Connect a stereo line level signal to the transmitter via the 3.5mm stereo jack on top.

This can be the headphones output, aux out or monitor out from a mixing console.

Note: it may be necessary to use leads or adaptors that convert the mixer output connections to a 3.5mm stereo plug for the transmitter.

Connect the supplied in-ear headphones (or other 32Ω type) to the 3.5mm jack on the receiver.

This output could also be used as a line input for an active speaker or mixing console if required.

The transmitter and receiver may already be paired with each other when bought as a set.

Additional receivers (171.899UK) may be bought for multi-listener applications.

The pairing procedure between transmitter and receiver is mentioned further below.

The push button on each unit should be pressed and held for 3 seconds, which will cause the push button to flash blue. When both transmitter and receiver are flashing blue, they will connect if they are already paired and the push buttons will change from flashing to solid blue.

When this happens, the transmitter will be sending audio wirelessly to the receiver.

Pressing the button on the transmitter or receiver for 5 seconds will cause the push button to flash blue and green at the same time. This is now in pairing mode and removes any previous pairing setting. When a transmitter and receiver are flashing blue and green together, they will pair automatically, and the LED will change to continuous blue when paired and connected.

Operation

Once the transmitter and receiver are paired and connected, the audio signal will transmit wirelessly between them. Clip the receiver to a convenient area of clothing and listen through the earphones.

The audio level should be controlled from the mixing console (or other audio source that is used).

It is advised to start with a lower volume level to avoid hearing damage and increase as necessary. For most volume levels, the IEM58 system should have adequate dynamic range. However, if the sound seems to be distorted or overdriven, it is advised to roll back the volume level to avoid overloading the transmitter and to check the charge level of both transmitter and receiver.

The carrier frequency for IEM58 is in the 5.8GHz digital band, which uses intelligent frequency switching to maintain a strong wireless connection and avoids heavily occupied frequencies in busy Wi-Fi environments. A range of up to 30m is possible without obstacles between the two units.

When not being used, it is important to switch off the transmitter and receiver by pressing and holding the push button for 3 seconds so that the blue light is out. Pressing the button for 3 seconds again will resume the connection for either unit.

When the battery in either unit is low, the button will flash blue/blue-green - slowly at first and faster as charge goes lower - and it will need re-charging. Eventually the flashing unit will shut down.

Note: leaving the units with very low or no charge can eventually damage the internal batteries.
