DSM26
Digital Speaker Management System
170.665UK
Introduction
Thank you for choosing the DSM26 Digital Speaker Management System.
This unit has been designed to offer professional quality performance with open flexibility to address a wide range of sound reinforcement applications. Please read this manual and keep fit or reference to gain the best results from this equipment and avoid damage through misuse.
Features
- 2 inputs, 6 outputs, fully balanced
- Independent parametric EQs
- Delay and Compressor/Limiter/Gate functions
- All inputs/outputs independently controlled
- Controllable via front panel, USB or LAN
- PC editing software included
Contents
Panel controls and connectors Page 3
Panel operation
- Input parameter setting Page 4
- Output parameter setting Page 5
- Main Menu setting Page 6
PC editing software operation
- Setting up Page 7
- Connection Page 8
- Program menu Page 9
- Channel function Page 10
- LAN setup Page 11
- Specification Page 12
Safety Instructions
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this item near water.
- Clean only with dry cloth.
- Do not block any of the ventilation openings.
- Do not install near any heat sources such as radiators, heat registers, stoves or other items (including amplifiers) that produce heat.
- Do not defeat the safety purpose of the polarised plug. The wide
blade is provided for your safety.
If the provided plug does not fit into the item or the mains socket, consult an electrician for replacement. - Protect the power cord from being walked on or pinched particularly
at plug, convenience receptacles, and point where they exit
from the item. Only use attachments/accessories specified by the manufacturer. - Use only with a cart, stand, tripod, bracket or table specified by
the manufacturer, or sold with the item.
When a cart is used, use caution when moving the cart/item combination to avoid injury. - Unplug this item during lighting storms or when unused for long periods of time.
- Refer all servicing to qualified service personnel. Servicing is required when the item has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the item, the item has been exposed to rain or moisture, does not operate normally, or has been dropped (Note: accidental or cosmetic damage is not covered by the items 12 month warranty).
- Please keep the unit in a safe environment.
- Do not store anything on top of the item.
The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation mark within the equilateral triangle is intended to
alert the user to the presence of important operation
and maintenance (servicing) instructions in the literature
accompanying this appliance.

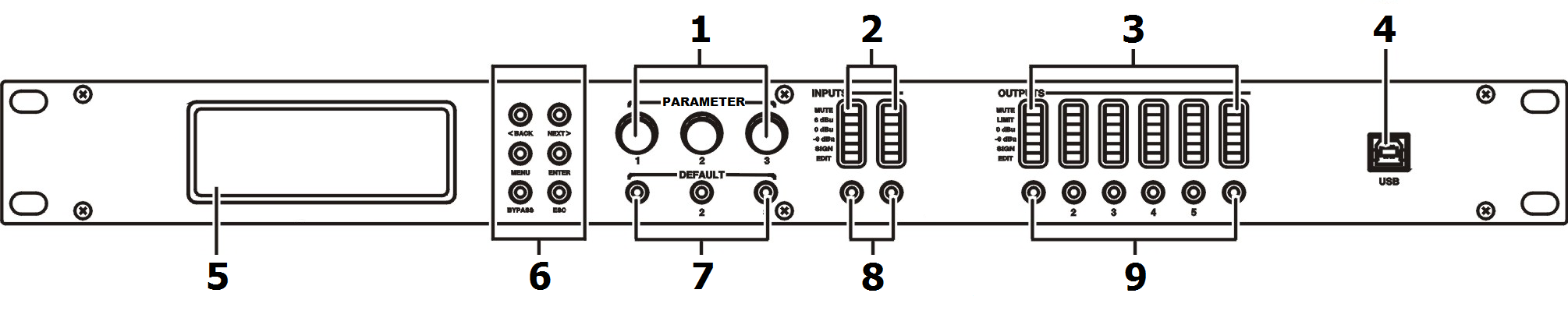

Front Panel Controls and Connectors
1. Rotary Encoders – 3 parameter adjust and menu navigation controls
2. Input channel LEDs
3. Output channel LEDs
4. USB connection - Type B connector for linking to PC
5. LCD Display - Displays parameters and programming menu
6. Menu navigation buttons:
- BACK – selects previous menu item
- NEXT – selects next menu item
- MENU – Enter menu
- ENTER – Confirms selection
- BYPASS – bypasses process for comparison with unaffected signal
- ESCAPE – escapes from current screen
7. Default buttons
8. Input EDIT/MUTE key - Press to mute, press & hold 3sec to edit
9. Output EDIT/MUTE key - Press to mute, press & hold 3sec to edit

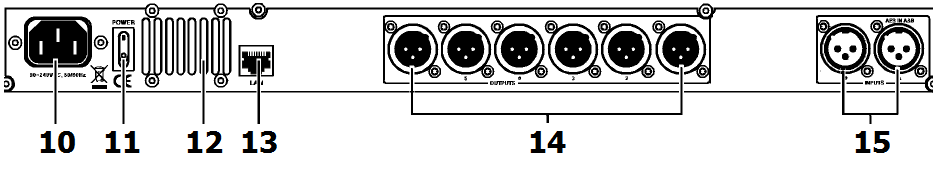

Rear Panel Controls and Connectors
10. IEC connector - Mains inlet
11. Power switch - Switches mains power to the DSM26
12. Ventilation grille - Do not cover or obstruct airflow to this vent
13. RJ45 connector - LAN Connection to PC or other DSM2-6
14. Output connectors - Balanced XLR output connectors
15. Input connectors - Balanced XLR input connectors (analogue or AES digital on input A)
Panel Operation
Input Parameter Setting
Pressing a Mute/Edit button will Mute or un-mute that specific input.
Press & hold the MUTE/EDIT key for IN A or IN B for 3 seconds to enter edit mode.
Using the BACK and NEXT navigation buttons will step through the various menu options.
1. Input Name
Parameter 1 rotary control selects the letter or figure
Parameter 2 rotary control moves to the next or previous character
Press ENTER to confirm when the name is set as required
2. Input Delay
Delay 0-1000ms / 0-346m / 0-1134.88ft (independent per channel)
Parameter 1 rotary control performs fine adjustment
Parameter 2 rotary control performs coarse adjustment
3. Input Polarity
Polarity [+] Normal / [-] Inverted (independent for each channel)
Parameter 1 rotary control toggles between + and - polarity
4. Input Gain
Gain -40 to +6dB in 0.1dB steps (independent for each channel)
Parameter 1 rotary adjusts the Gain value
5. Input EQ
Input EQ1 - EQ8 (8 independent EQs for each channel)
Press BACK or NEXT buttons to step through EQ1 to EQ8
Parameter 1 rotary selects the filter type:
Parametric (PEQ), High-Shelf (Hi-S) or Low-Shelf (Lo-S)
Press ENTER to confirm the filter type and move down to parameter settings.
Parameter 1 rotary control adjusts the cutoff frequency (20Hz to 20kHz)
Parameter 2 rotary control adjusts the gain (-30 to +15dB)
Parameter 3 rotary control selects bandwidth/slope (0.05-3.00oct or 6-12dB/oct)
Press ENTER to confirm parameter settings
6. Noise Gate
Noise gate threshold -120 to +10dBu
Parameter 1, 2 or 3 rotary controls adjust the gate threshold
Output Parameter setting
Pressing a Mute/Edit button will Mute or un-mute that specific input.
Press & hold the MUTE/EDIT key for IN A or IN B for 3 seconds to enter edit mode.
Using the BACK and NEXT navigation buttons will step through the various menu options.
1. Output Name
Parameter 1 rotary control selects the letter or figure
Parameter 2 rotary control moves to the next or previous character
Press ENTER to confirm when the name is set as required
2. Signal Source
Select On or Off for signal input A and input B
Parameter 1, 2 or 3 rotary control selects on or off status
Press ENTER to toggle between input A and input B
3. Output Gain
Gain range -40 to +15dBu
Parameter 1 rotary control adjusts output gain
4. Output Polarity
Polarity [+] Normal / [-] Inverted (independent for each channel)
Parameter 1 rotary control toggles between + and - polarity
5. Output Delay
Delay 0-1000ms / 0-346m / 0-1134.88ft (independent per channel)
Parameter 1 rotary control performs fine adjustment
Parameter 2 rotary control performs coarse adjustment
6. Crossover HPF
Crossover High-pass filter settings (independent
per channel)
Parameter 1 rotary control adjusts cutoff frequency (20Hz-20kHz)
Parameter 2 rotary control sets filter type (Linkwitz-Riley, Bessel, Butterworth)
Parameter 3 rotary control sets the slope gradient (12/18/24/48dB per octave)
7. Crossover LPF
Crossover Low-pass filter settings (independent
per channel)
Parameter 1 rotary control adjusts cutoff frequency (20Hz-20kHz)
Parameter 2 rotary control sets filter type (Linkwitz-Riley, Bessel, Butterworth)
Parameter 3 rotary control sets the slope gradient (12/18/24/48dB per octave)
8. Output EQ
Output EQ1 - EQ6 (6 independent EQs for each channel)
Press BACK or NEXT buttons to step through EQ1 to EQ6
Parameter 1 rotary selects the filter type:
Parametric (PEQ), High-Shelf (Hi-S) or Low-Shelf (Lo-S)
Press ENTER to confirm the filter type and move down to parameter settings.
Parameter 1 rotary control adjusts the cutoff frequency (20Hz to 20kHz)
Parameter 2 rotary control adjusts the gain (-30 to +15dB)
Parameter 3 rotary control selects bandwidth/slope (0.05-3.00oct or 6-12dB/oct)
Press ENTER to confirm the parameter settings.
9. Output compressor/limiter
Output Compressor or Limiter (independent for each channel)
Parameter 1 rotary control selects Compressor or
Limiter. Press ENTER to confirm
In Compressor mode, press BACK or NEXT buttons to toggle between 2 pages:
Page 1: Parameter 1 adjusts the Threshold (-30 to +20dBu)
Page 1: Parameter 2 adjusts the Attack (0.3 to 100ms)
Page 1: Parameter 3 adjusts the Release time (2x, 4x, 6x, 8x, 16x, 32x Attack time)
Page 2: Parameter 1 selects Manual or Auto mode (Auto overrides Page 1 parameters)
Page 2: Parameter 2 adjusts the Clip Limiter (2dB to 12dB above threshold)
Page 2: Parameter 3 adjusts the Ratio (1:1, 1:2, 1:4, 1:8, 1:16, 1:32, 1:64, 1:Max)
In Limiter mode, there is only one page of parameters.
Page 1: Parameter 1 adjusts the Threshold (-30 to +20dBu)
Page 1: Parameter 2 adjusts the Attack (0.3 to 100ms)
Page 1: Parameter 3 adjusts the Release time (2x, 4x, 6x, 8x, 16x, 32x Attack time)
Main Menu
Pressing the MENU button enters the main menu for system settings.
The BACK and NEXT buttons or Parameter 1 to navigate through the sub-menus. Press ENTER to select an option.
- X-over (crossover) 1) Load program, 2) Store program, 3) Erase program.
Program copy Copy all input and output settings from a stored program to another program. Parameter 1 selects source, Parameter 2 selects target, Press ENTER to copy.
Channel copy Copy all parameter settings from any input or output channel to another channel.
Parameter 1 selects source, Parameter 2 selects target, Press ENTER to copy.
- Input Parameter 1 selects between Analogue or Digital (AES) input type.
- Security Parameter 1 = character, Parameter 2 = previous/ next, Press ENTER = lock (or unlock).
- System 1) Backlight Keep On or Auto-off after 25s.
2) System info. Press ENTER to see the system information
3) Temperature: Parameter 1 adjusts the maximum temperature before cut-out
4) Filter Display: Parameter 1 selects filter Bandwidth or Q parameter display
5) Scene change: Enable/disable buttons 1, 2 and 3 as hot keys for 3 favourite programs
6) Scene key setup: Use Parameter 1, 2 and 3 to set Favourites 1, 2 and 3
7) WIFI Factory Reset – not used (future development)
PC Software Operation
Setting up
The Citronic DSM26 can be operated individually from a PC via USB and can also be linked in multiples over a wider, long-distance network via LAN connection. A maximum of 250 units may be linked together by this method.
If connecting via LAN, see the “LAN Setup” section further on in this document.
Before connecting a DSM26 via USB, install the software from the supplied disc.
Locate the driver file “PL2303_Driver” and double click to install (this will usually require a re-start once installed)

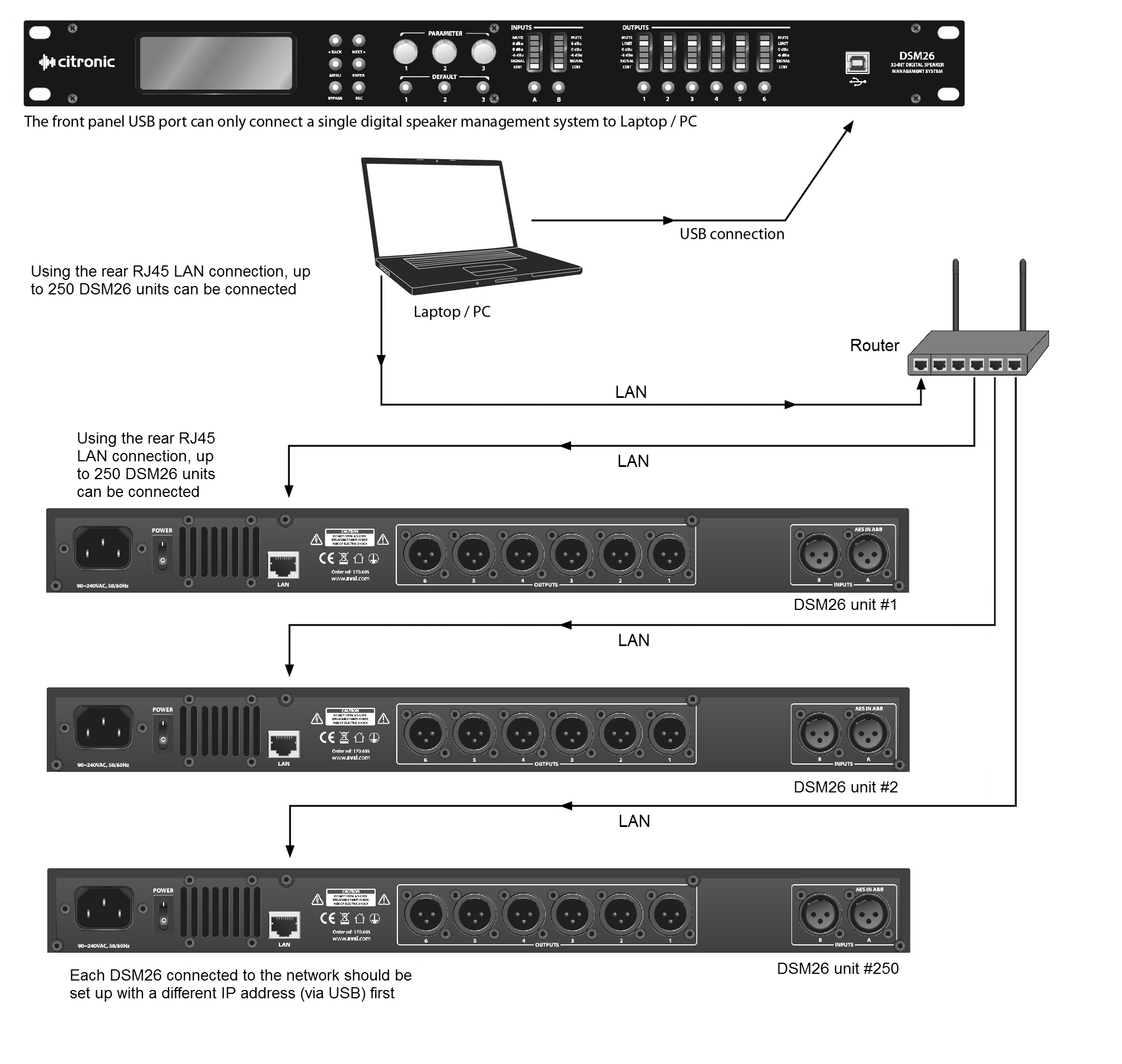

Connect the DSM26 via USB or LAN as shown below and double click the file named “DSP Ver 3.9”

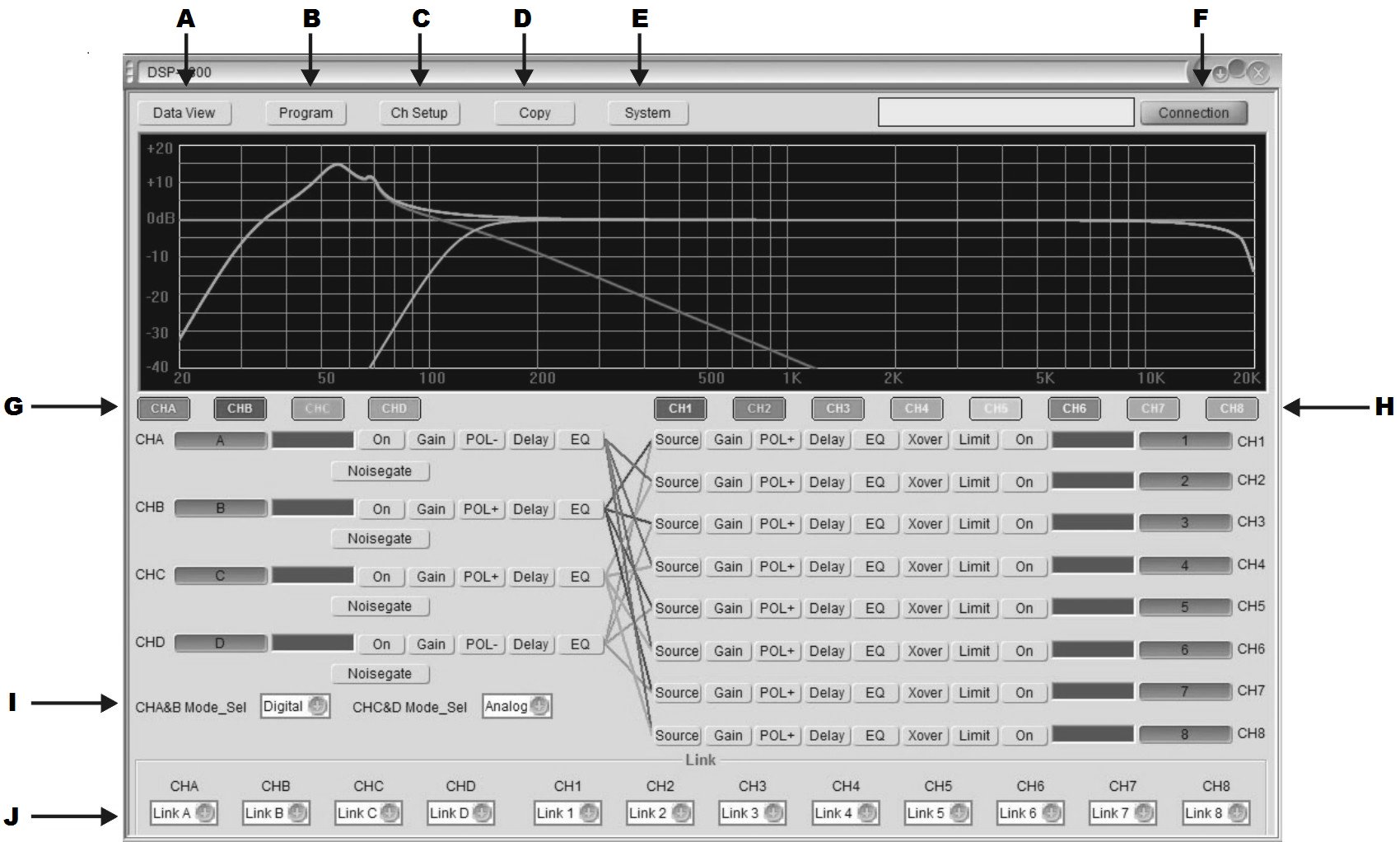

Screen Shot
Note: 4 input, 8 output software version shown – will default to 2 in, 6 out when DSM26 is connected
|
|
|
|
---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Connection

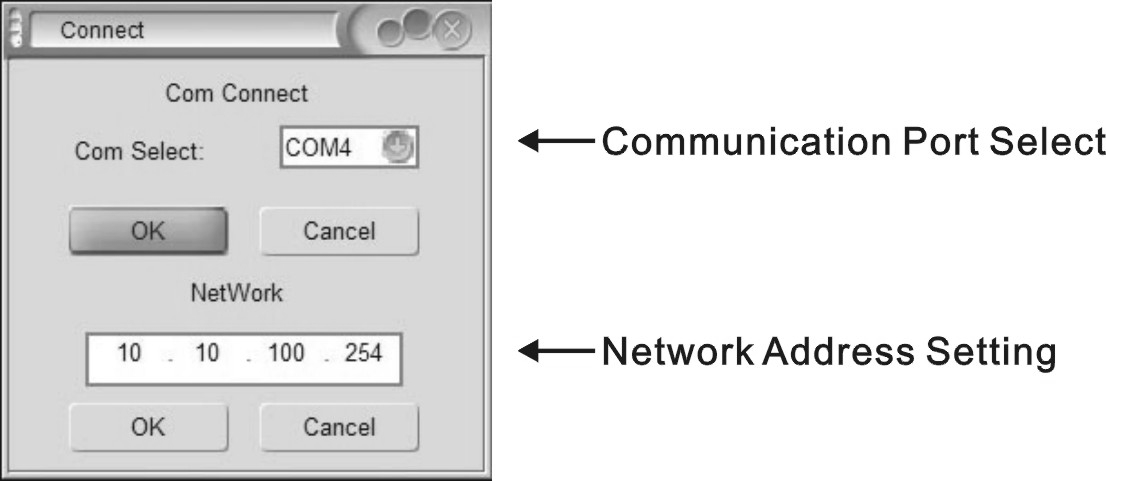

In order for the PC to communicate with the DSM26, it is necessary to
establish a connection.
Click on “Connection” (F)

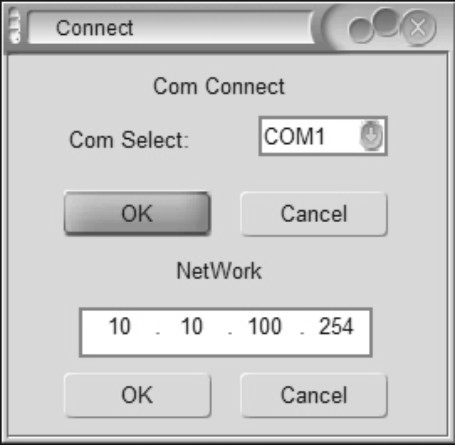

The following menu will be displayed
The software will normally be able to detect the correct COM port and this will be displayed.
Click OK to confirm the USB connection between PC and DSM26. If
unsuccessful, try a different COM port from the list.
If COM port is not detected automatically, open the PC’s Hardware Device
Manager.
(e.g. “Start-Settings-Control Panel-System-Hardware-Device Manager” or
type “Device Manager” into the search box)
Look in “Ports” to identify which port is being used for the DSM26.
Select the correct port for the connected DSM26 in the Connection menu (COM4 is shown in the above example)

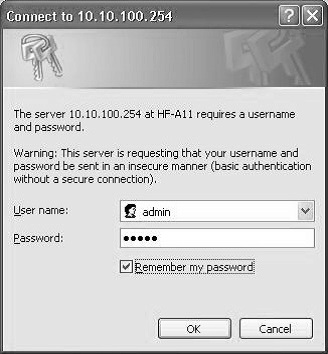

If connecting via LAN, enter a workable IP address which is not occupied by other equipment into the “Network” field.
Program Menu

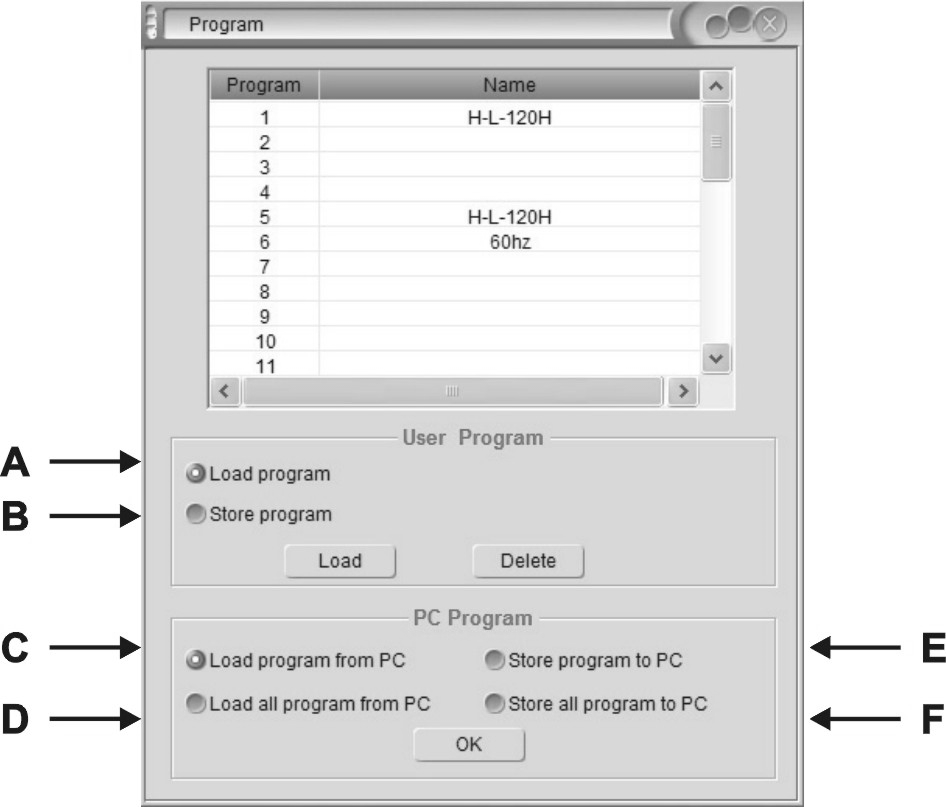

Clicking on the Program button at the top of
the main screen will open the following window.
|
|
---|---|
|
|
|
|
|
|
|
|
|
|
To load a program, check button A, click on the program in the list in the top half of the window and then click the Load button.
To delete a program, click on it in the list in the top half of the window and then click the Delete button.
To save a program after editing, check button B, select a blank program or one for over-writing, type a name in the text field and click the Save button.
Selected programs or All programs may be saved to PC or loaded from PC by checking buttons C, D, E or F and clicking “OK”
Channel setup

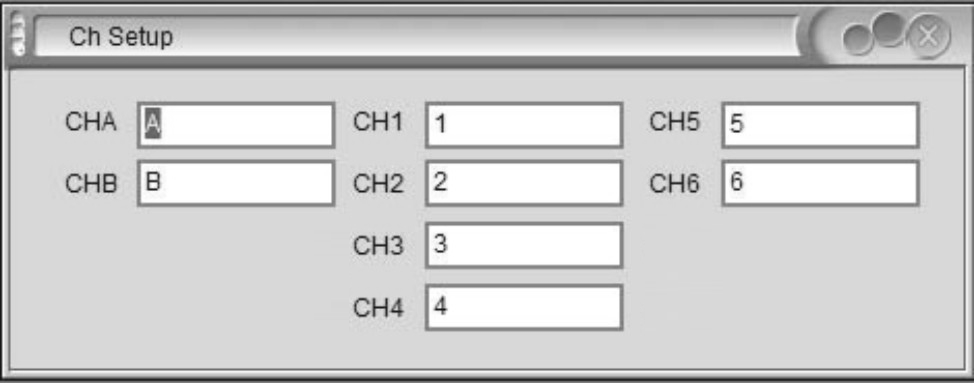

Clicking the Ch Setup button will open the widow shown opposite.
Click in each window and type a name for each input and output, then hit return to rename that channel
Copy function

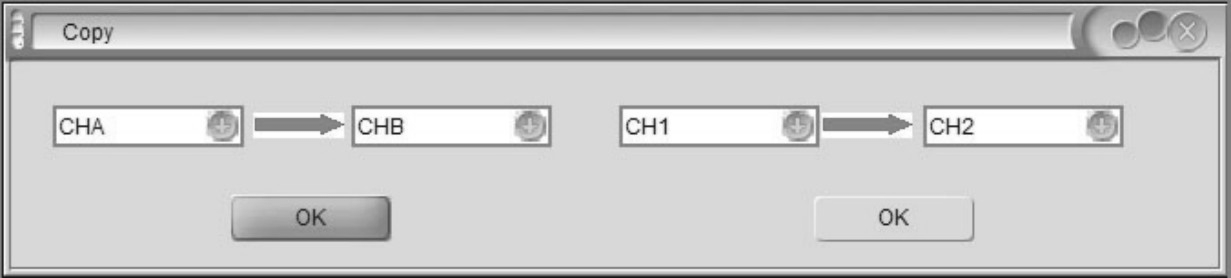

Clicking the Copy button in the main screen will open the widow shown opposite.
Select inputs (left side) or outputs (right side) to copy from and to and click OK to copy all settings across.
System menu

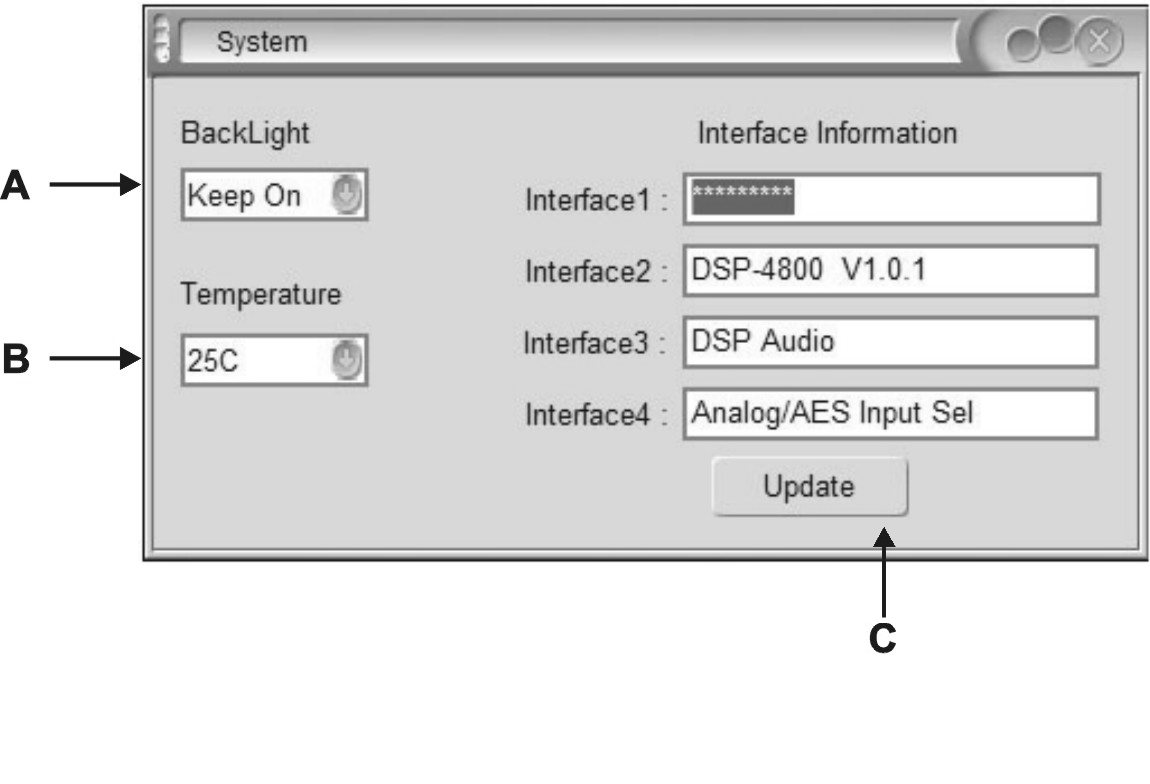

Clicking the System button in the main screen will open the widow shown opposite.
|
|
---|---|
|
|
|
|
Channel Functions
Clicking on an input channel button switches the button between its own colour or grey.
When it is grey, its frequency curve will not be
displayed in the top window. Clicking on any of the channel functions
button will open an editing window for that function
|
|
---|---|
|
|
|
|
|
|
|
|
|
|

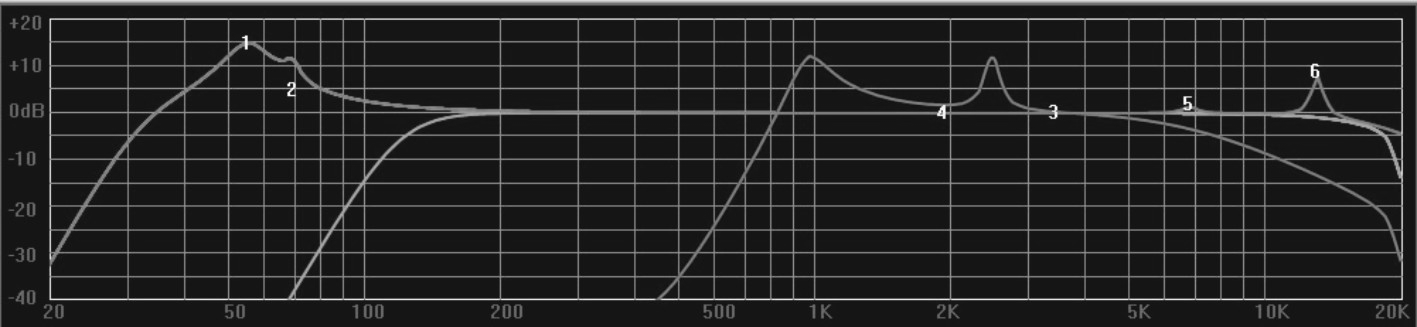

In EQ edit mode, click and drag EQ numbers on the curve graph to adjust the centre frequency for each filter
Clicking on an output channel button also switches the button between its own colour or grey.
When it is grey, its frequency curve will not be displayed in the top window. Clicking on any of the channel functions button will open an editing window for that function.
|
|
---|---|
|
|
|
|
|
|
|
|
|
|
|
|
Clicking on any function button will enter editing mode for that function.

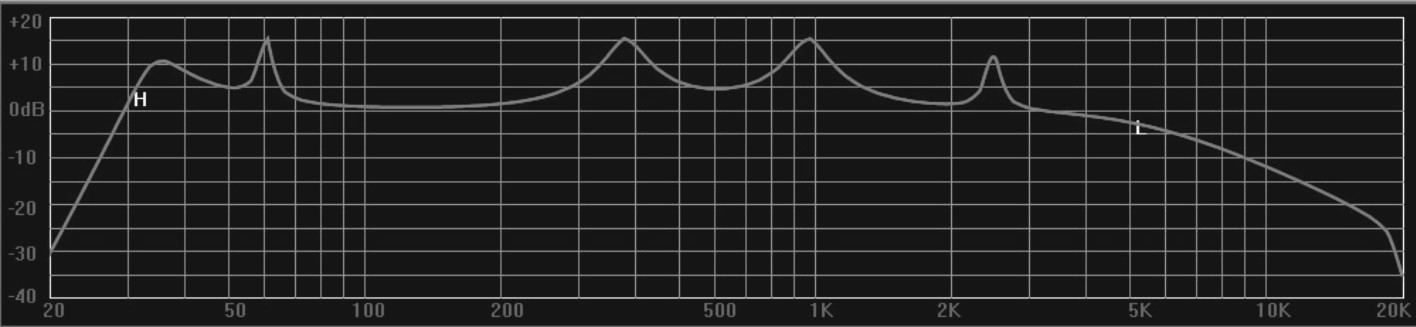

In Crossover edit mode, click and drag H or L to adjust the centre frequency for each filter
LAN setup

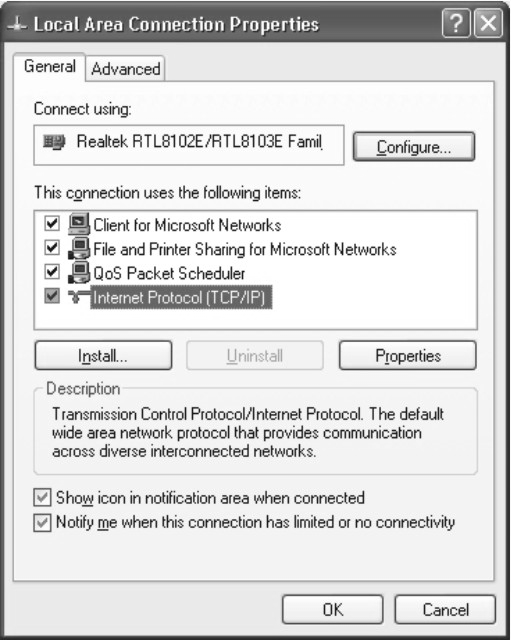

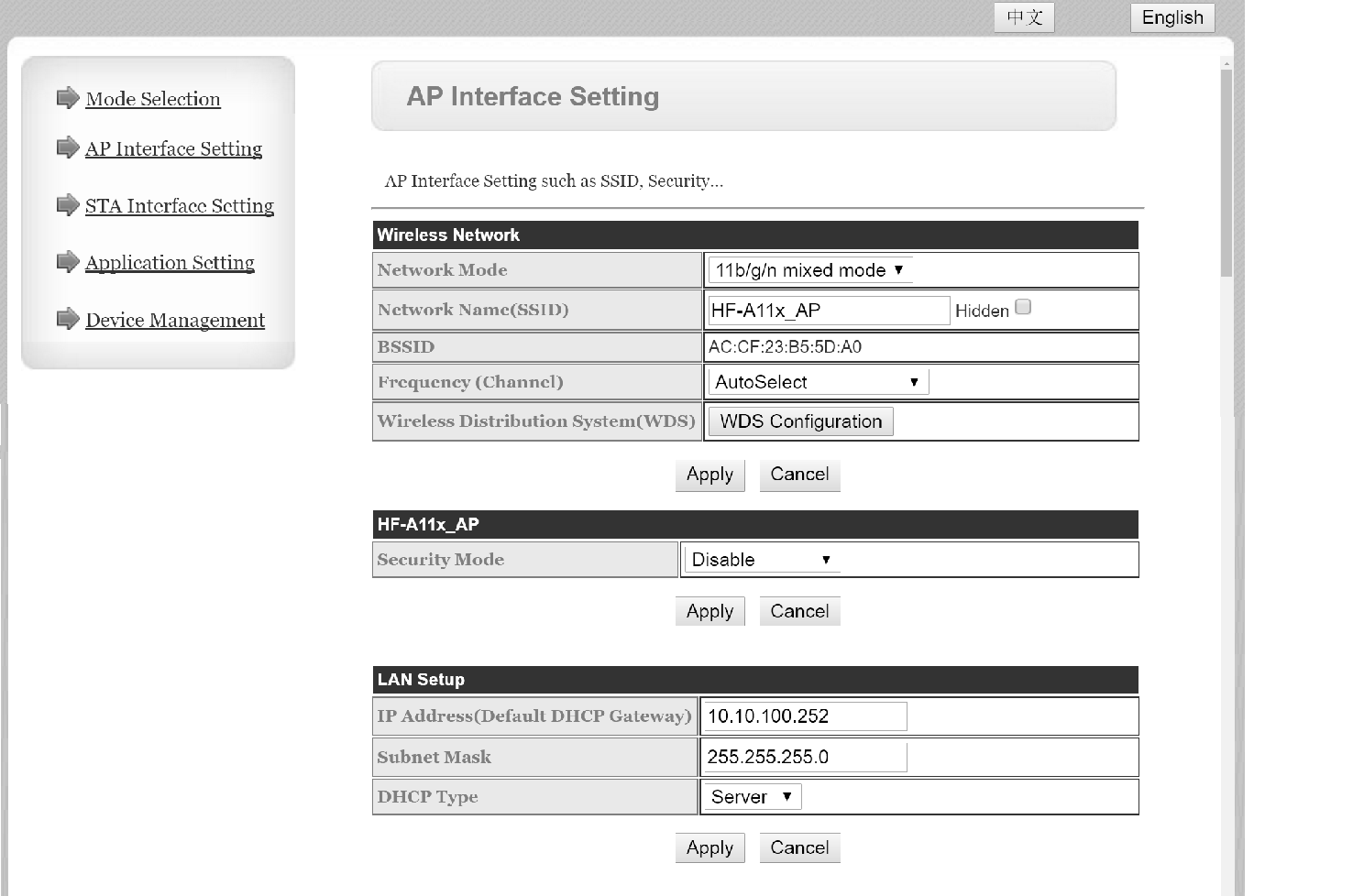

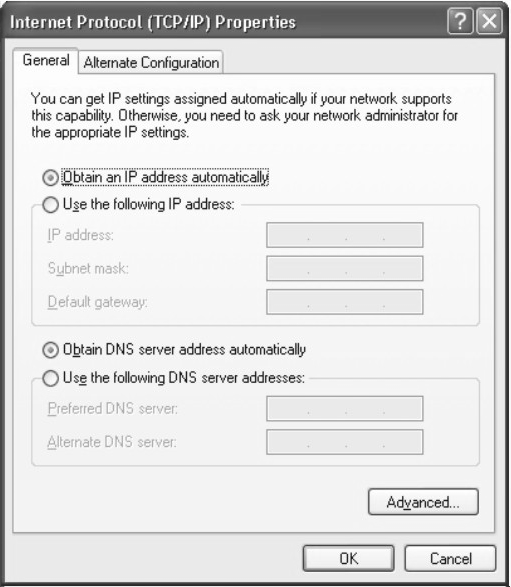

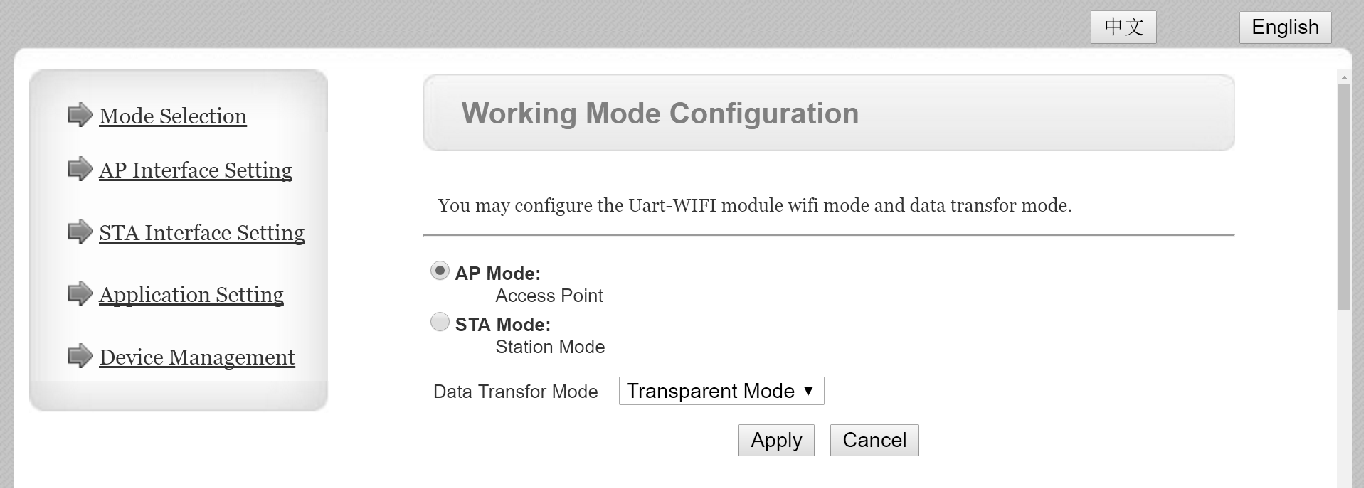

On the PC that is to be connected with the DSM26 (or multiple units), navigate to the network adaptor properties.
e.g. in Windows 10, click the start button and click the settings icon (cog symbol)
Select Network & Internet and Ethernet.
Select Change Adapter Options, right click the relevant connection and select Properties.
The window opposite should appear, showing network adaptor options.
Right click on TCP/IP and the window opposite will appear.
Ensure that the button for Obtain an IP address automatically
This will ensure that the PC will connect to the DSM26 unit as a LAN host.
The next step is to connect the PC to the DSM26 unit directly via LAN cable.
In the DSM26 software main screen, click the Connection button.
The window opposite will open, showing the COM
port and IP settings.
Click OK below the auto-detected IP address and the DSM26 will connect.
Once connected directly to the PC via LAN cable, it is possible to access the DSM26 network
adaptor from the PC by opening a browser window (IE, MS Edge or Chrome etc.)
Type in the (auto-detected) IP address of the DSM26 into the address bar of the browser.
(e.g. as shown in the connection window opposite, this would be “http://10.10.100.254”)
A security window will open as follows…
Both User name and Password are “admin” by default.
Once logged into the DSM26, an edit window will open, as shown below.
If the display is not in English, click the English button. There are
many advanced settings within this menu, which should only be edited by
the network
administrator but the basic LAN settings are easily
set as follows.
Click on the “AP Interface Setting” link and a new window will open to edit network settings.
In the AP Interface Setting window, it is possible to edit the IP
address of the DSM26 for LAN connection. Enter a new valid IP address
into the top field of the “LAN Setup” section (Wireless does not apply
to the DSM26 unless modified)
Click “Apply” and a message will appear advising…
“Set Successfully, Restart to use new setting”
Click on the “Device Management” link.
(the login user name and password can be edited here)
Click on the “Restart” button and the DSM26 will restart.
Note: to log back in, it will be necessary to input the new IP address into the browser address bar (and new user name and password if they have been edited)
The unit can now be connected to the main LAN network and connected by its IP address in the DSP Ver3.9 application.
Specification
Specification | Value |
---|---|
Outputs | 6 balanced XLR |
Inputs | 2 balanced XLR or AES digital |
Power supply | 115/230Vac, 50/60Hz (IEC) |
Power consumption | <25W |
Fuse | T315mA |
Crossover | HPF + LPF fully programmable per output |
Filter type | Linkwitz-Riley; Bessel; Butterworth. |
PC Com port | USB and LAN (RJ45) |
CMRR | 65dB (50Hz-10kHz) |
Input/output polarity | In phase (+) or reverse (-) |
Input EQ | 8-band parametric EQ |
Input Noise Gate | -120dBu to +10dBu |
Processor | 96kHz, 32-bit floating point DSP |
Mute | Any input or output channel |
Limiter | 1 per output (adjustable) |
Output EQ | 8-band: Hi/Lo-shelf or Para |
Delay | 0-650ms per output |
Frequency response | 20Hz-20kHz |
Input impedance : balanced | >10k Ohms |
Output impedance : balanced | <60 Ohms |
Dimensions | 482 x 44 x 220mm |
Weight | 3.19kg |
Precautions
CAUTION | ||
RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL |
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
AVSL Group Ltd, Unit 2 Bridgewater Park, Taylor Road, Manchester, M41 7JQ, Unitied Kingdom
AVSL (EUROPE) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, Ireland
