QTFX-B2

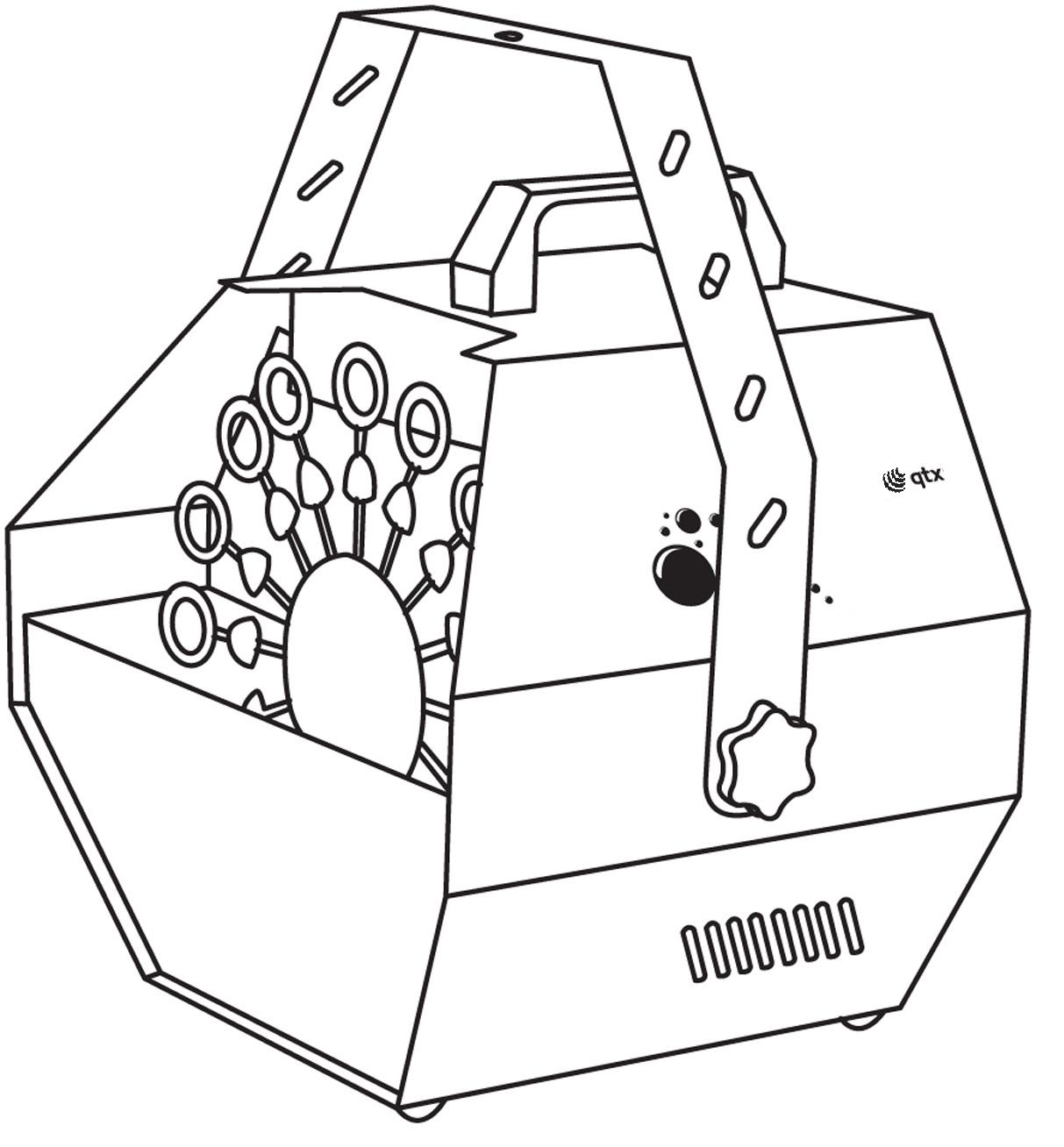

QTFX-B2: Bubble Machine
160.563UK
Introduction
Thank you for choosing the QTFX-B2 bubble machine as part of your stage effects equipment. Please read and keep this manual to achieve the best results with your new purchase and avoid damage through misuse.
Unpacking
Your QTFX-B2 should reach you in good condition, supplied with IEC mains lead(s).
If there are any signs of damage or items missing from the packaging, contact your dealer immediately.
Warning
To prevent risk of fire or electric shock, do not expose electrical parts to rain or moisture.
If liquids are spilled on the housing or through the vents, disconnect the mains, allow the QTFX-B2 to dry out and have it checked by qualified personnel before further use.
Avoid any impact, dropping or extreme pressure to the housing.
No user serviceable parts inside - do not open the case.
Refer all servicing to qualified service personnel.
Placement
The QTFX-B2 has an open front fluid tank and should be operated in an upright position.
Choose a position where the bubble output is facing the area to be filled.
Ensure easy access to the rear panel and to the bubble fluid tank for
refilling and cleaning.
When moving the unit around, take care not to spill the contents of the
tank inside the machine.
Safety
Check for correct mains voltage and condition of IEC lead before connecting to power outlet
This unit must be earthed
Cleaning
Use a soft dry or slightly damp cloth to clean the casing
Do not use strong solvents for cleaning the unit
Empty contents and rinse the bubble fluid tanks after each use

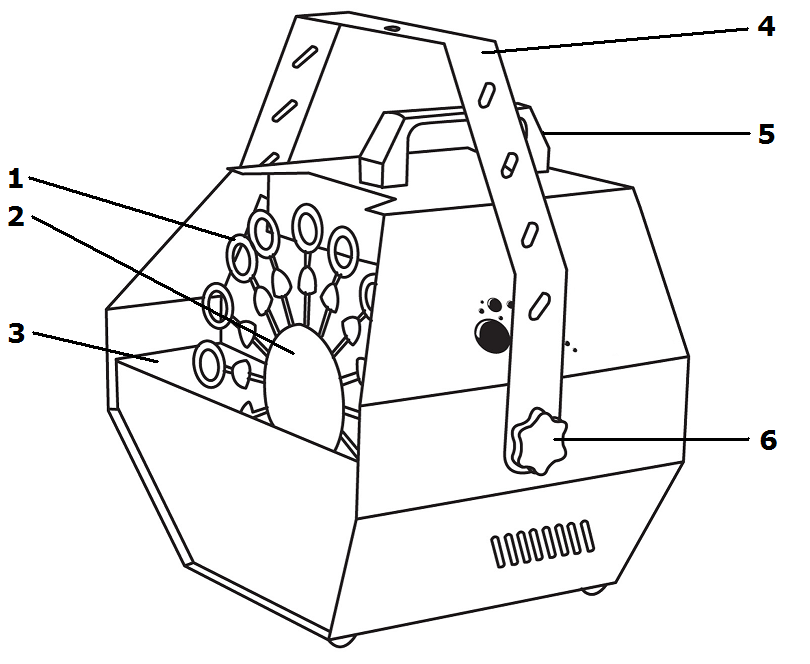

Layout
No | Description |
---|---|
1 | Bubble wand |
2 | Bubble wheel |
3 | Fluid tank |
4 | Mounting bracket |
5 | Carry handle |
6 | Thumb screw |

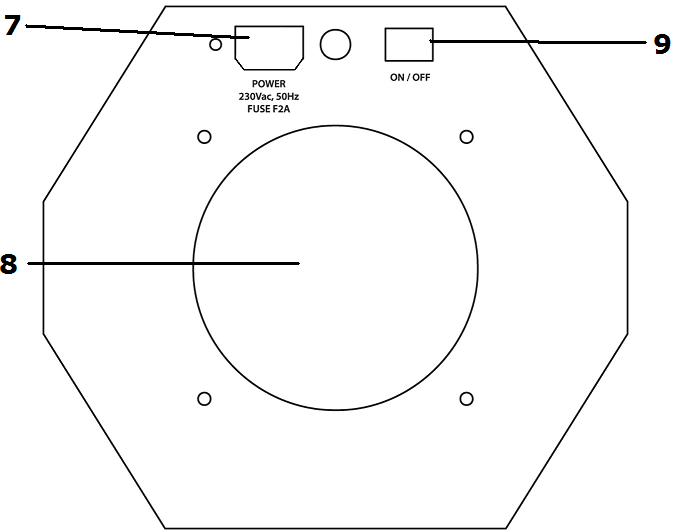

Rear Panel
No | Description |
---|---|
7 | IEC mains inlet |
8 | Fan (do not cover) |
9 | Power switch |
Setup and Operation
The QTFX-B2 requires bubble fluid to produce the effect.
It is recommended to use qtx bubble fluid for best results (160.574UK,
160.575UK)
For bubbles that glow in UV light, qtx UV bubble fluid may be used
(160.576UK, 160.577UK)
A chart for recommended fluids is included further along in this
document
- Position the QTFX-B2 on a stable surface or mount upright using the integral bracket.
- Pour bubble fluid directly into the front open tank, taking care not to spill on electrical parts of the machine.
- Connect the IEC mains plug.
- Switch power on at the rear panel to begin producing bubbles.
- Switch off to stop producing bubbles.
- Disconnect from mains when usage is finished.
- Empty remaining bubble fluid back into container or dispose as appropriate.
- Rinse fluid tray with water and wipe clean before next use.
Troubleshooting
Issue | Solution |
---|---|
Power switch not lit when switched on | Check mains is correct voltage & switched on |
Check IEC lead and mains inlet fuse | |
No bubbles output | Check fluid tank is filled enough to cover wands |
Ensure rear fan grille is not obstructed |
Specification
Specification | Value |
---|---|
Power supply | 230Vac, 50Hz (IEC) |
Power consumption | 40W |
RPM | 20 |
Fluid capacity | 0.6 litres |
Dimensions | 290 x 240 x 220mm |
Weight | 2.0kg |
Precautions
CAUTION | ||
RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL |
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Indoor use only : The "House" symbol identifes electrical equipment designed primarily for indoor use.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
AVSL Group Ltd, Unit 2 Bridgewater Park, Taylor Road, Manchester, M41 7JQ, Unitied Kingdom
AVSL (EUROPE) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, Ireland
