QTFX-B3

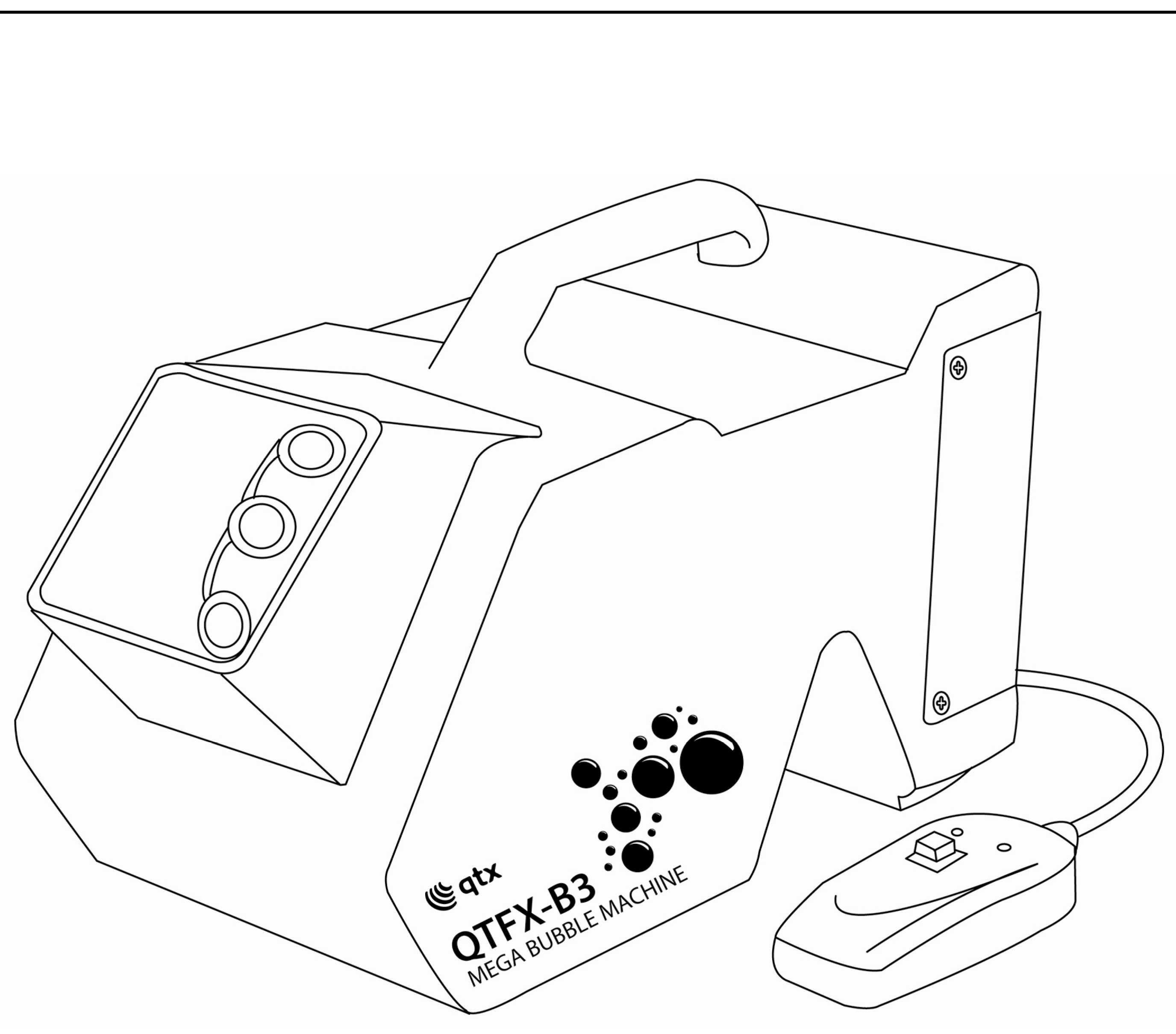

QTFX-B3: Mega Bubble Machine

160.560UK

Introduction

Unique to QTX, this lightweight bubble machine features barrel rolling wands which produce an incredible amount of bubbles. It is made from heavy duty ABS plastic and features a high quality low noise fan. Ideal for events, parties and mobile discos.

Features

· High bubble output

· High speed fan with low noise

· Made from Lightweight heavy-duty plastic

· Easy fill and empty tank

· Includes handheld remote control

Warning

To prevent the risk of fire or electric shock, do not expose any components to rain or moisture.

If liquids are spilled inside the housing (other than in the fluid reservoir), stop using immediately, allow unit to dry out and have checked by qualified personnel before further use. Avoid impact, extreme pressure or heavy vibration to the case

No user serviceable parts inside – Do not open the case – refer all servicing to qualified service personnel.

Safety

Check for correct mains voltage and condition of IEC lead before connecting to power outlet.
The IEC inlet has a mains fuse. Only replace the fuse with the same type.
If continually blowing fuses, have the unit checked by qualified service personnel.
This unit must be earthed!

Placement

Caution: This unit must only be used on a flat surface. Do not tilt or move whilst in use.

Do not obstruct the front of the machine, fan or vents.

Allow adequate space for refilling the tank and routine maintenance.

Do not position where the fixture will be exposed to rain, extreme temperatures changes, vibration or restricted ventilation.

Cleaning

Periodically wipe and/or rinse the fluid reservoir with water to avoid buildup of residue.
Use a soft cloth with a neutral detergent to clean the housing as required.
Clear vents periodically with a soft brush and vacuum cleaner.

Unpacking

Please check the contents to ensure that the product has been received in good condition.

QTFX B3 bubble machine
Remote control
User’s Guide
IEC mains lead(s)

If you find any accessory is missing or the machine has arrived with any problems,

please contact your local dealer at once.

Do not try to fix this item yourself, as this will invalidate the warranty.

Please keep the original package and invoice for any possible replacement or returned demand.

Recommended fluid

For the QTFX-B3 bubble machine we strongly recommend the following fluid which has been specifically formulated for the best results.

160.574UK High quality bubble fluid 1 Litre

160.575UK High quality bubble fluid 5 Litre

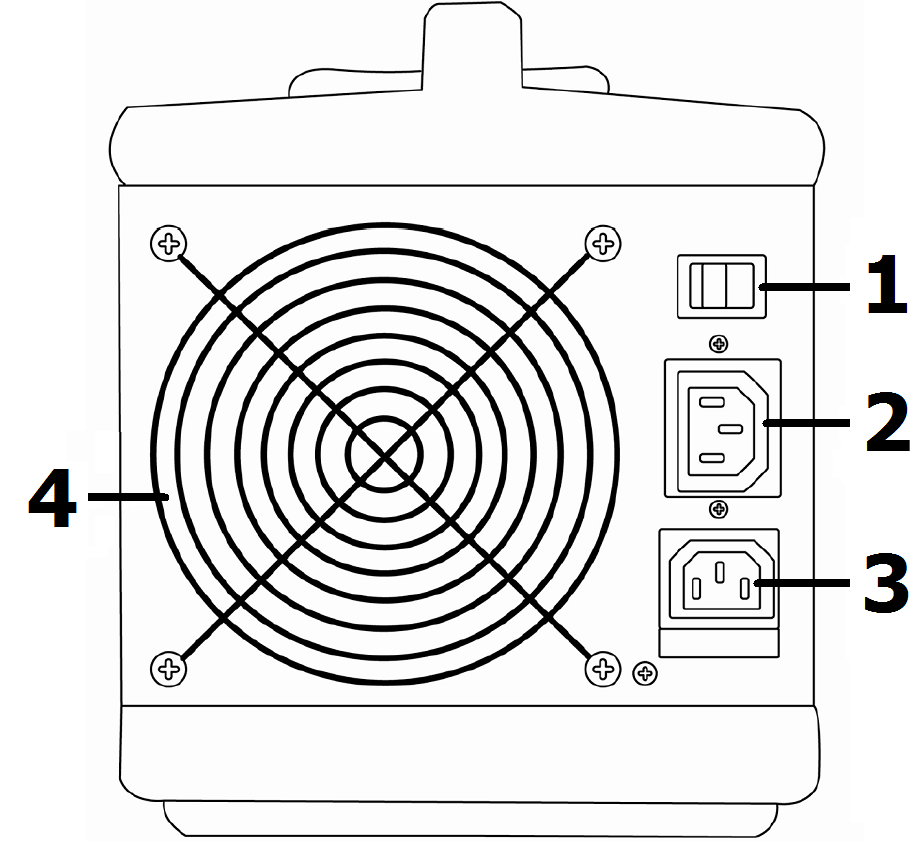

Rear Panel

No	Description
1	Power on/off switch
2	Remote control connector
3	Mains inlet IEC and fuse holder
4	Air inlet vent

Operation

Place on a flat surface.
Connect the wired remote control (2).
Pour the contents of the bubble fluid into the front tank so the bubble wands are submerged.
Connect the IEC mains plug (3) and switch the power on (1).
Press the button on the remote control to switch bubble output on or off.
After use unplug from the mains and empty the remaining contents back into the bubble fluid container or dispose of appropriately.
Clean the fluid reservoir before the next use.

Specification

Specification	Value
Power supply	230Vac, 50Hz (IEC)
Power consumption	40W
RPM	30
Fluid capacity	1.8 litres
Dimensions	340 x 175 x 210mm
Weight	1.2kg

Precautions

	CAUTION
	RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit

Safety Notice

Prior to use, read through this safety guide.
Pay attention to safety warnings.
Observe all operating requirements.
For any items designed for indoor use only, do not operate near water or in humid environments.
For cleaning, only use a lint-free, dry cloth.
Install according to the specifications.
Place away from heat sources or heating appliances.
During placement, ensure adequate support for the product and access to controls and connectors.
Do not obstruct any cooling vents or openings and allow adequate space for air flow.
Use only power connections supplied with the product or suitable equivalents.
Do not modify the equipment in any way.
For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
Keep powered products and batteries away from the reach of children.
In case of malfunction, water ingress or other damage, consult qualified service personnel.
Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
For any Earthed mains product, ensure that the power supply has a protective Earth connection.
Keep all packaging materials out of reach of children.

Indoor use only : The "House" symbol identifes electrical equipment designed primarily for indoor use.

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
