HZ-800
HZ-800: Haze Machine 800W
160.498UK
Introduction
The HZ-800 is a high efficiency 800W haze machine capable of producing 12,000 cu.ft per minute of haze to rapidly fill venues. The volume and speed of fill can be easily controlled using the included wired controller with LCD panel or keyfob-style RF wireless remote. For automated operation, a 2 channel DMX connection is also available. The fluid bottle can be removed for easy refilling and there is a slot window to indicate the current fluid level.
Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty
Features
- 800W Haze Vaporiser
- Haze output ~12,000 cu.ft/min
- Wired Controller with button control and LCD display
- 433Mhz keyfob-style RF wireless remote
- 2-Channel DMX connections
- Removable fluid tank
In The Box
Please check the contents to ensure that the product has been received in good condition.
- HZ-800 Haze Machine
- Wired Controller
- RF Remote Control
- UK Mains Lead
- User Guide
If you find any accessory is missing or the machine has arrived with damage, please contact your local dealer at once. Do not try to fix this item yourself or you will invalidate the warranty. Please keep the original packaging and invoice for any possible replacement or return demands.
Warnings
To prevent risk of fire or electric shock, do not expose electrical parts to rain or moisture.
If liquids are spilled on areas other than inside the fluid tank, disconnect the mains, allow the unit to dry out and have it checked by qualified personnel before further use.
Avoid any impact, dropping or extreme pressure to the housing.
No user serviceable parts inside - do not open the case.
Allow the unit to acclimatise to room temperature before operating.
The HZ-800 has a built-in fluid container and should be operated in an upright position. Ensure that the unit is positioned on a stable, non-slip surface.
Safety and Cleaning
Check for correct mains voltage and condition of IEC lead before connecting to mains.
This unit must be earthed.
This unit uses a heating element – be aware that parts of the housing may be hot during use!
Use a soft dry or slightly damp cloth to clean the casing.
Do not use strong solvents for cleaning the housing.
Clean the haze mechanism periodically by operating with distilled water instead of haze.
It is also recommended to use fog machine cleaning fluid (160.670UK) periodically.
Recommended Fluids:
For the HZ-800 haze machine, we strongly recommend the following fluid which has been specifically formulated to perform best with any heater-based haze machines.
QTX ref code |
Description | Size |
---|---|---|
160.591UK | High quality professional haze fluid | 5 Litre |
160.596UK | Eco haze fluid | 5 Litre |

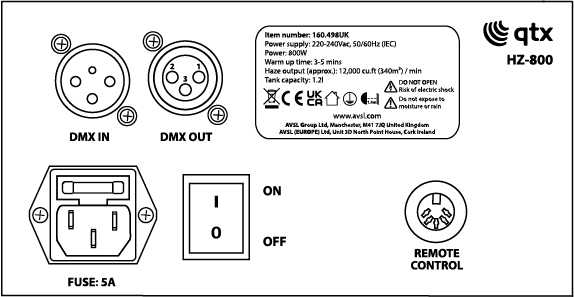

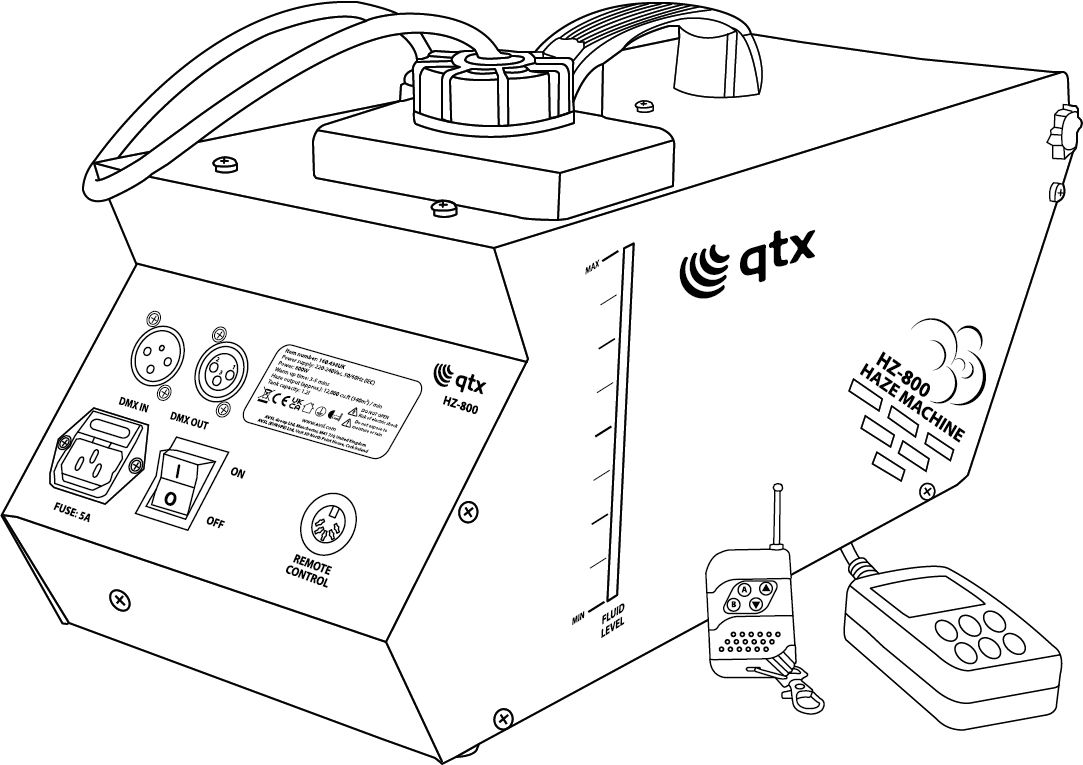

Rear Panel
Setting Up
Unpack the HZ-800 unit.
Unscrew the top cap of the tank and remove to fill with haze fluid.
Replace the bottle and screw the cap securely, making sure that the pipe is fed down to the bottom of the bottle to ensure a consistent flow of fluid.
Connect the wired remote controller to the socket on the rear panel.
If DMX is to be used for control, connect the DMX signal from the controller to the DMX IN XLR connector. Any further DMX controlled units may be connected via the DMX OUT XLR connector.
Connect the IEC mains plug and power the unit on.
The unit will begin the warming up process and the display panel on the wired remote will display “Warm up” which normally takes around 3-5 minutes.
Once the unit is warm enough for use the display panel will change to “Ready”.
Operation
Use the control buttons on the panel of the wired controller to operate the unit’s modes and functions quickly and efficiently as below:
Button | Response |
---|---|
Function | Scrolls between DMX, Pump, Wind, Interval and Duration modes |
Up | Increase function or setting |
Down | Decrease function or setting |
Timer | Enter timer mode |
Start/Stop | Turn pump on/off |
Manual | Manually adjusts the fan speed |
The LCD panel on the wired controller will display the following outputs:
Function | Display |
---|---|
Warm up state | Warm up or Ready |
DMX address code | 1-512 |
Pump settings | Pump |
Fan settings | Wind |
Time setting | Interval |
Continuous smoke time setting | Duration |
The small RF remote control supplied can also be used when wireless control of the unit is needed. Its possible to increase and decrease the values of the pump (button A) and wind (button B) settings using the remote control. As the receiver for the RF remote is fitted inside the wired controller this must be connected and switched on for it to function correctly.
If the LCD panel display is showing the DMX address, the unit will operate from DMX control as follows:
Chanel | No | Control |
---|---|---|
0 | Off | |
Channel 1 (start address) | 1-255 | Pump control 1-100% |
Channel 2 (start address +1) | 0-255 | Fan speed slow to fast |
Troubleshooting
Issue | Solution |
---|---|
No power to main unit | Check mains voltage is correct and socket is switched on |
or wired controller | Check IEC lead is OK and connected properly |
Check mains fuse in IEC connector and fuse in plug top | |
If fuse blowing repeatedly, refer to qualified service personnel | |
Power to unit but no | Check fluid level in tank |
haze output in manual | If fluid is OK and pump working, the lines may be blocked |
or continuous mode | Check that output is not set to zero on the control panel |
Check that output is not switched off on the keyfob remote | |
If blocked, clean with fog machine cleaner & distilled water | |
Check that if DMX mode is selected, the DMX channel is correct | |
In DMX mode, check that haze output is not set to zero |
Specification
Specification | Value |
---|---|
Power supply | 220-240Vac, 50/60Hz (IEC) |
Fuse rating | 5A |
Power | 800W |
Warm up time | 3 to 5 minutes. |
Remote control frequency | 433.92Mhz |
Haze output (approx.) | 12,000 cu.ft (340m³) per minute. |
Fluid capacity | 1.2 litres |
Dimensions | 485 x 195 x 230 mm |
Weight | 4.9kg |
Precautions
CAUTION | ||
RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL |
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Indoor use only : The "House" symbol identifes electrical equipment designed primarily for indoor use.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
