WYSP-500W

WYSP-500W: Wall Hung Haze Machine

160.497UK

About this manual

This manual provides essential information for installing, operating, and maintaining your product. Please read and keep this manual to ensure the best performance from your purchase and to avoid damage resulting from improper use.

Introduction

Thank you for choosing the WYSP-500W wall hung haze machine. Please read this manual prior to use to avoid damage to the item. This versatile Haze generator unit is packed with features in a compact, manageable enclosure and is suitable for a wide array of applications ranging from Bar and nightclub Installations to Mobile DJ setups.

Safety information

This section contains important safety instructions that must be followed to reduce the risk of injury, damage to the product, or damage to other equipment. Read all safety information before installing, operating, or servicing the product. Failure to follow these instructions may result in personal injury, property damage, or impaired product performance.

Warning

To prevent the risk of fire or electric shock, do not expose any of the components to rain or moisture.
If liquids are spilled on any component, stop using immediately, allow unit to dry out and have checked by qualified personnel before further use.
Avoid impact or heavy vibration to any of the components.
No user serviceable parts inside.
Refer servicing to qualified service personnel.

Placement

Keep the unit out of direct sunlight and away from heat sources.
Keep the unit away from moisture or dusty environments.
Allow adequate space for cooling around the unit.
Do not place heavy objects on top of the unit.

Cleaning

Use a soft cloth with a neutral detergent to clean the housing as required.
A soft brush can be used to clear debris from the unit without damaging it.
Do not use solvents for cleaning the unit.

Controls and features

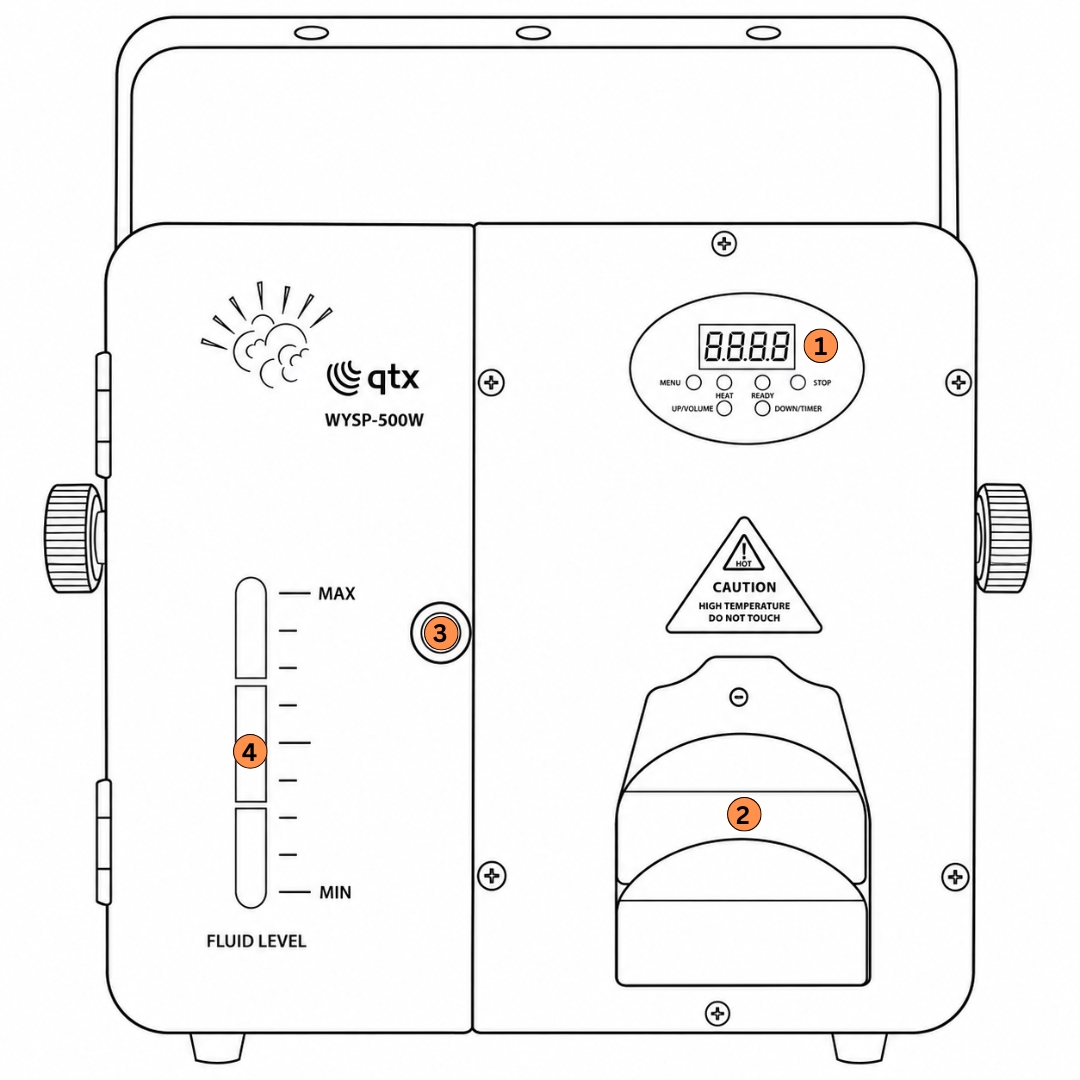

Front Panel

1. Display and Control Panel

2. Haze Output

3. Fluid Tank Door

4. Fluid Tank Level

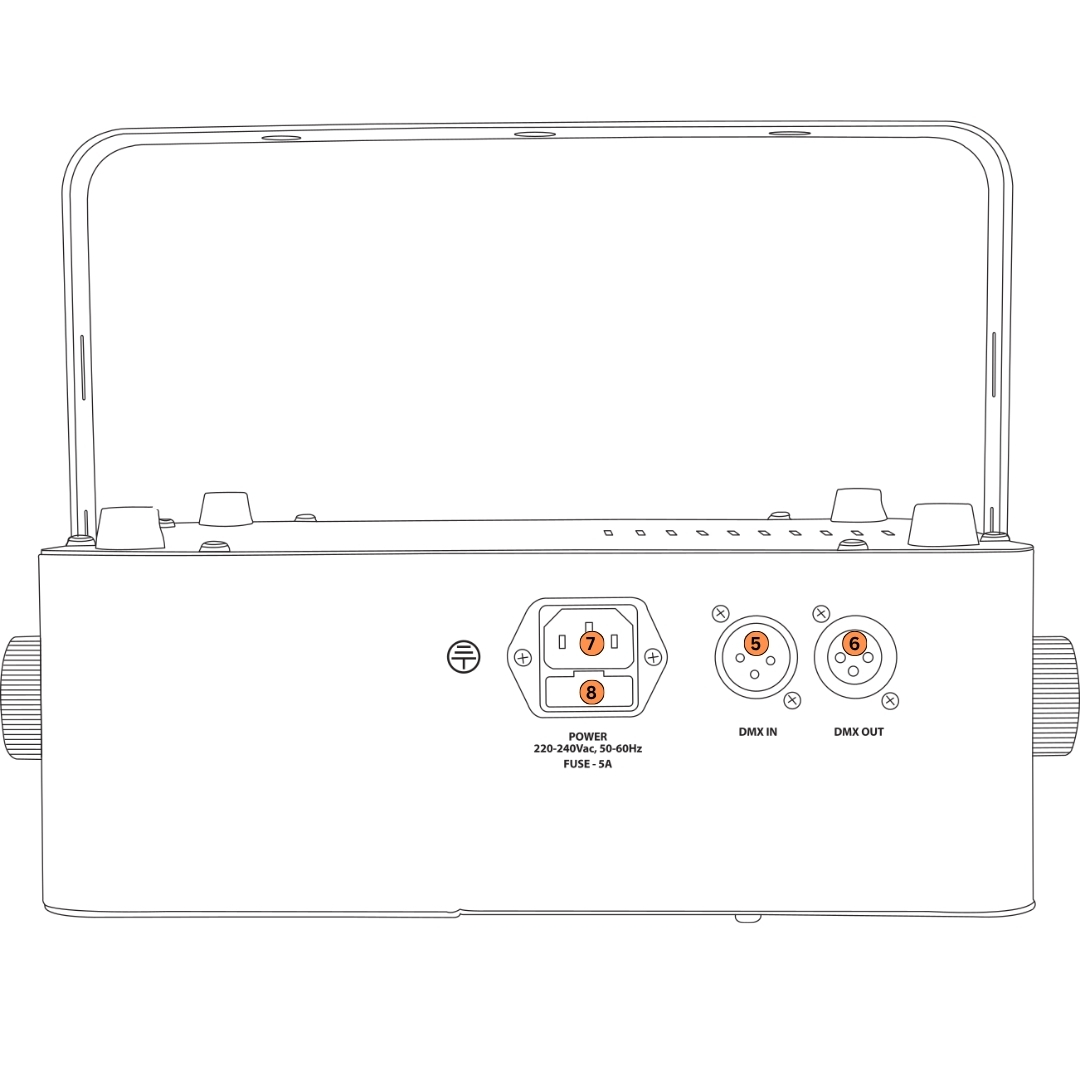

Top Panel

toppanel

5. DMX In

6. DMX Out

7. IEC Power Inlet

8. Fuse

Power requirements

Power supply: 100–240 Vac, 50/60 Hz.
Use only the supplied or approved power adapter.

Installation and setup

1. Unpack the unit and verify all supplied components are present.

2. Place the unit on a stable, level surface, attach to a clamp via the supplied bracket or hang onto sufficient wall via the screw locations on the back of the unit .

3. Connect required cables as described below.

4. Apply power (if applicable).

Operation

Basic menu operation

Press the Menu button to enter the settings Menu.
Press the Up/Volume and Down/Timer buttons to navigate through the various setting functions.

Menu	Options and Settings	Description
-UP-		Fog Machine Heating
[___]		Heating completed
NOFU		No Liquid Detection
A001	001–512	DMX Address Code
P001	001-100	Haze Output
F001	001-100	Fan Speed
I010	001-900	Interval
D001	001-900	Sound Mode

Indicator Lights

When the machine is heating, the red indicator light is on. After preheating is completed, the green indicator light turns on.

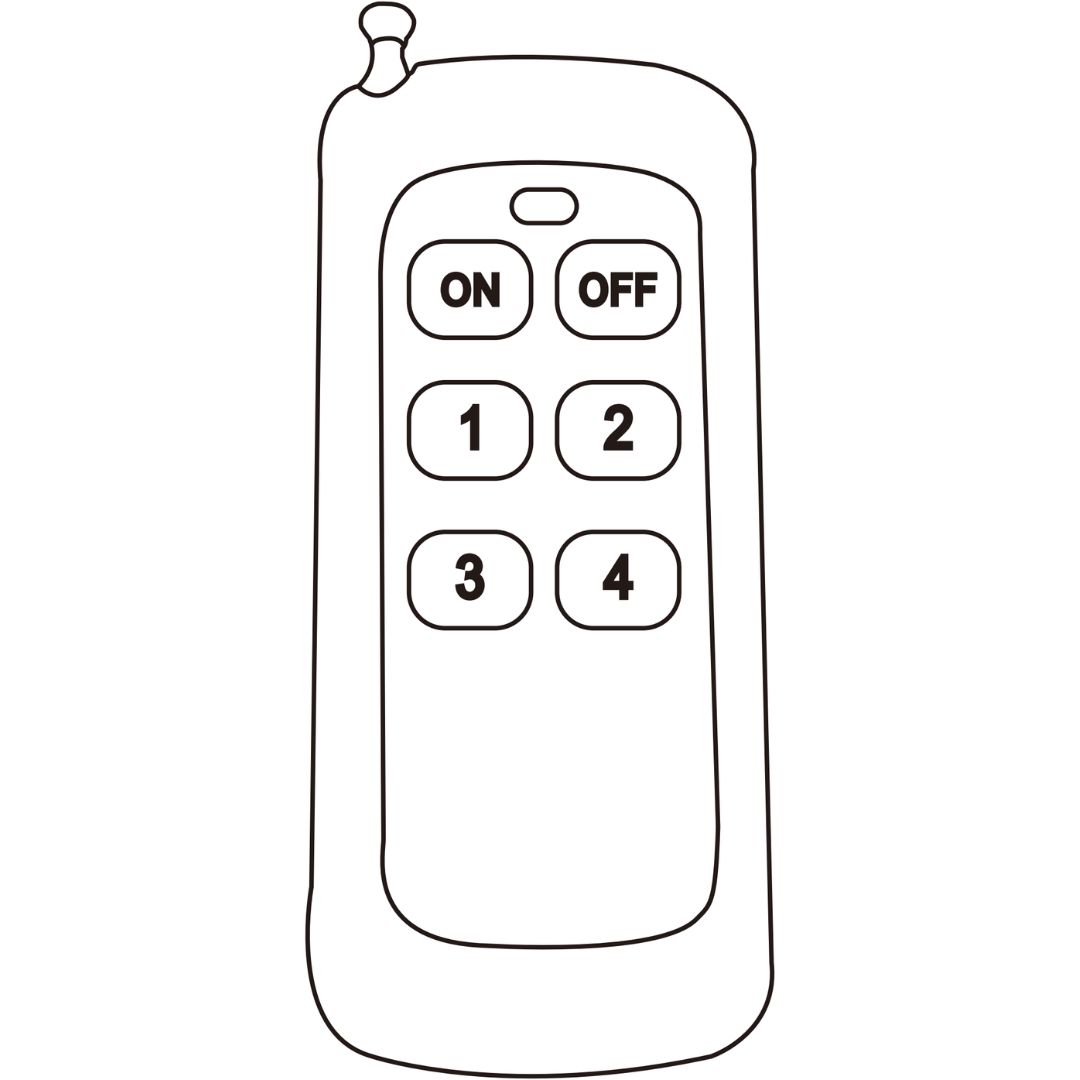

Remote Operation

remote

ON. Start Operation

OFF. Stop Operation

1. Increase Smoke Output

2. Decrease Smoke Output

3. Increase Fan Speed

4. Decrease Fan Speed

DMX Operation

DMX Address Setting

1. Press the Menu button until A001 is displayed.

2. Press the Up or Down buttons to find your desired address.

DMX Traits

2 CH	Setting	DMX Value	Function
CH 1	Haze Output	000–009	Smoke Off
"	""	010-255	Output Volume 5-100%
CH 2	Fan Speed	000–009	Minimum Fan Speed
"	""	010-255	fan Speed 5-100%

Maintenance

Regular maintenance is required to ensure the product’s longevity.
Inspect cables and connectors periodically.

Troubleshooting

If the unit does not operate as expected, consult the table below before contacting technical support. Many common issues can be resolved by checking connections, power sources, or settings.

Before proceeding

Ensure the unit is installed and operated according to this manual.
Verify that all connections are secure.
Restore the unit to its default or minimum configuration before troubleshooting.

Before any maintenance

Switch off the unit and disconnect it from the power source (if applicable).
Allow the unit to cool before handling.
Do not remove covers or attempt internal repairs.

Common issues

The following table lists common issues and corrective actions that do not require opening the unit.

Fault	Test Notes
No power ( mains)	Check mains voltage is correct and outlet is switched on
"	Check lead and fuse
No Output	Check Unit Has heated correct and the green ready light is on
"	Check there is sufficient fluid in tank
"	Allow enough time for fluid to purge to pump Est 1 min
"	Check DMX settings from controller (dimmer levels)
Unresponsive to DMX	Check the unit is set to the correct DMX Address
"	Check DMX Connection and Leads
"	Check DMX Controller is not Set to Blackout
"	Check DMX Controller is set to the correct fixture
Overheating/Cutting Out	Ensure adequate ventilation and unit is not too close to a heat source

Disposal and recycling

Dispose of this product in accordance with local environmental regulations. Do not dispose of electronic equipment with household waste.

Compliance

This product complies with applicable safety and EMC standards.

Specification

Specification	Value
Heating element	500W
Warm up time	1 Minute ( Approx.)
Haze output (approx.)	7,000 Cu Ft per Minute
Tank capacity	1.2L
Modes	Manual, Wireless Remote and DMX512
DMX channels	2 CH
Remote control frequency	433Mhz
DMX connection	3 Pin DMX (In/Out)
Power connection	IEC In
Power supply	220-240 Vac, 50/60 Hz
Power consumption	525w
Fuse	F5A
Dimensions	290mm x 280mm x 120mm (W/Bracket)
Weight	3.7kg

Precautions

	CAUTION
	RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit

Safety Notice

Prior to use, read through this safety guide.
Pay attention to safety warnings.
Observe all operating requirements.
For any items designed for indoor use only, do not operate near water or in humid environments.
For cleaning, only use a lint-free, dry cloth.
Install according to the specifications.
Place away from heat sources or heating appliances.
During placement, ensure adequate support for the product and access to controls and connectors.
Do not obstruct any cooling vents or openings and allow adequate space for air flow.
Use only power connections supplied with the product or suitable equivalents.
Do not modify the equipment in any way.
For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
Keep powered products and batteries away from the reach of children.
In case of malfunction, water ingress or other damage, consult qualified service personnel.
Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
For any Earthed mains product, ensure that the power supply has a protective Earth connection.
Keep all packaging materials out of reach of children.

Indoor use only : The "House" symbol identifes electrical equipment designed primarily for indoor use.

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
