HZ-1500LED
HZ-1500LED: LED Fog Machine 1500W
160.495UK
Introduction

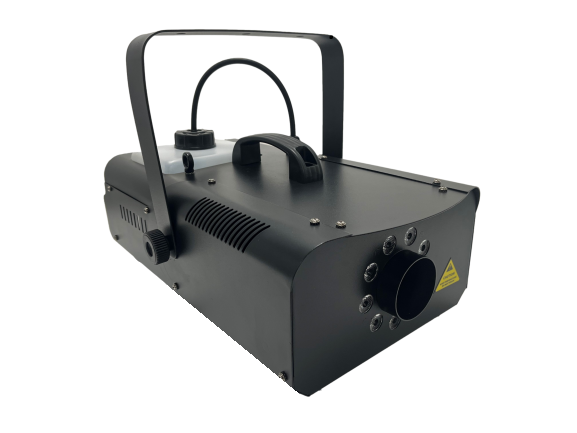

A high efficiency 1500W haze machine capable of producing 20,000 cu.ft per minute of haze to rapidly fill larger venues. The haze effect can then be highlighted with an array of colours from the 9 bright LED's housed in the front of the unit. The haze and light effects are easily controlled using either the included keyfob-style RF wireless remote or by 6-channel DMX connection. The 2.3 litre fluid bottle can be removed for easy refilling and there is a slot window to indicate the current fluid level.
Caution: Please read this manual carefully before operating. Damage caused by misuse is not covered by the warranty
Features
- 1500W haze vaporizer with around 20,000 cu.ft/min output
- Nine powerful 3W LEDs add a bright colourful light show to the haze effect
- 433Mhz keyfob-style RF wireless remote
- 6-Channel DMX connections
- Removable 2.3 litre fluid tank
- High grade haze fluid should be used with this machine (we recommend 160.591UK)
In The Box
Please check the contents to ensure that the product has been received in good condition.
- HZ-1500LED Haze Machine
- RF Remote Control & transmitter
- UK/EU Mains Leads
- Mounting bracket & screws
- User guide
If you find any accessory is missing or the machine has arrived with damage, please contact your local dealer at once. Do not try to fix this item yourself or you will invalidate the warranty. Please keep the original packaging and invoice for any possible replacement or return demands.
Warnings
- To prevent risk of fire or electric shock, do not expose electrical parts to rain or moisture.
- If liquids are spilled on areas other than inside the fluid tank, disconnect the mains, allow the unit to dry out and have it checked by qualified personnel before use.
- Avoid any impact, dropping or extreme pressure to the housing.
- No user serviceable parts inside - do not open the case.
- Allow the unit to acclimatise to room temperature before operating.
- The HZ-1500LED has a built-in fluid container and should be operated in an upright position. Ensure that the unit is positioned on a stable, non-slip surface.
Safety and Cleaning
- Check for correct mains voltage and condition of IEC lead before connecting to mains.
- This unit must be earthed.
- This unit uses a heating element – be aware that parts of the housing may be hot during use!
- Use a soft dry or slightly damp cloth to clean the casing.
- Do not use strong solvents for cleaning the housing.
- Clean the haze mechanism periodically by operating with distilled water.
- It is also recommended to use fog machine cleaning fluid (160.670UK) periodically.
Recommended Fluids:
For the HZ-1500LED haze machine, we strongly recommend the following fluid which has been specifically formulated to perform best with any heater-based haze machines.
QTX ref code |
Description | Size |
---|---|---|
160.591UK | High quality professional haze fluid | 5 Litre |
160.596UK | Eco haze fluid | 5 Litre |

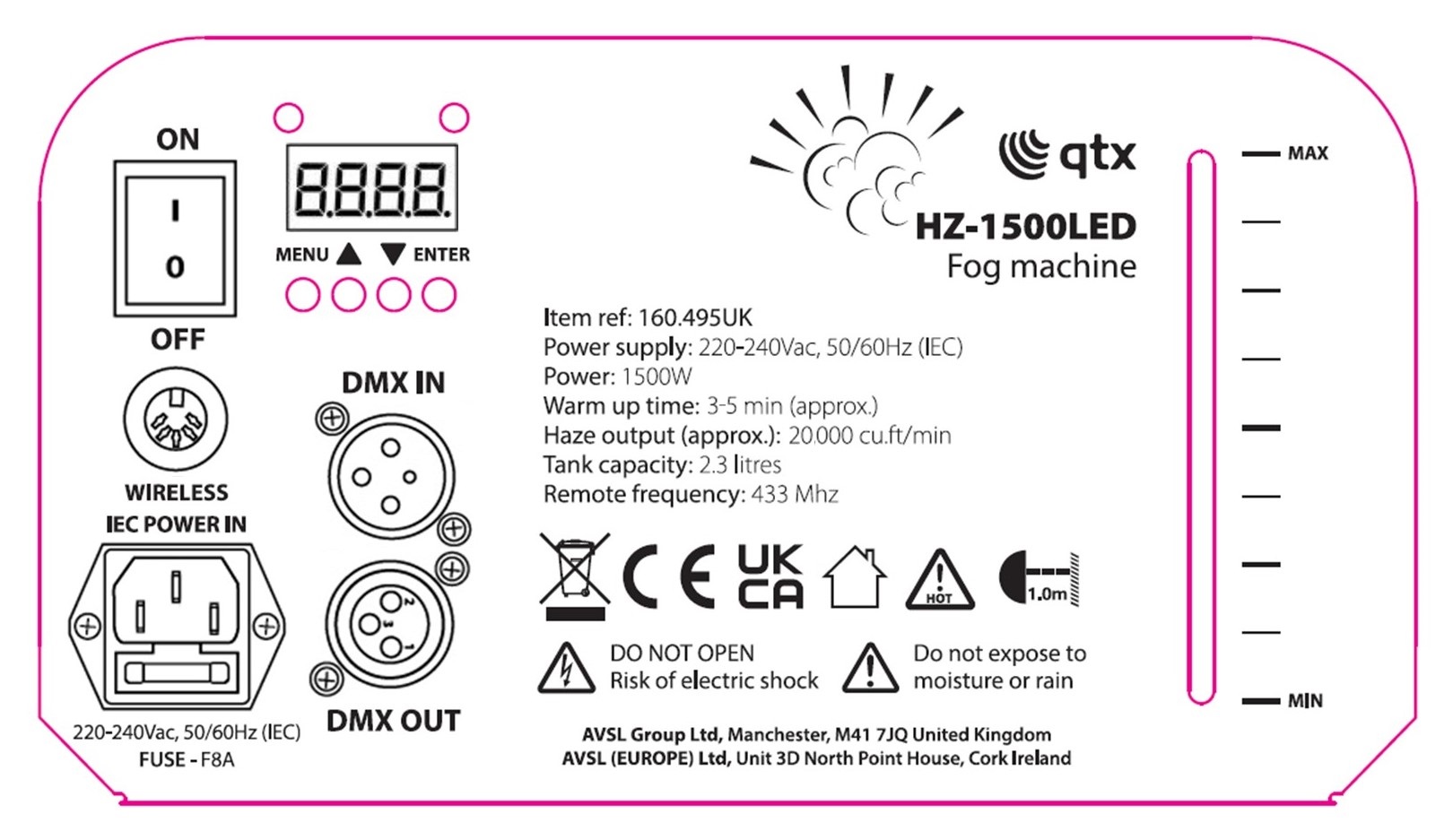

Rear Panel
Setting Up
- Unpack the HZ-1500LED unit.
- Unscrew the top cap of the tank and remove to fill with haze fluid.
- Replace the bottle and screw the cap securely, making sure that the pipe is fed down to the bottom of the bottle to ensure a consistent flow of fluid.
- Connect the RF remote transmitter to the socket marked “Wireless” on the rear panel.
- If DMX is to be used for control, connect the DMX signal from the controller to the DMX IN XLR connector. Any further DMX controlled units may be connected via the DMX OUT XLR connector.
- Connect the IEC mains plug and power the unit on.
- The unit will begin the warming up process which normally takes around 3-5 minutes.
Operation
Use the control buttons on the rear panel of the unit to operate the unit’s modes and functions quickly and efficiently as below:
Button | Response |
---|---|
Menu | Scrolls between DMX and LED modes |
Up | Increase function or setting |
Down | Decrease function or setting |
Enter | Enter mode select |
The LCD panel on the rear of the unit will display the following outputs:
Function | Display | Content |
---|---|---|
DMX address code | d001-d512 | See DMX table below |
LED settings | LEd000 | Red LED |
LEd001 | Green LED | |
LEd002 | Blue LED | |
LEd003 | Amber LED | |
LEd004 | Purple LED | |
LEd005 | Cyan LED | |
LEd006 | LED colour fade | |
LEd007 | White LED strobe effect |
The small RF remote control supplied can also be used when wireless control of the unit is needed. Ensure the wireless RF controller is connected to the unit, to use the remote for the following functions:
R: Red LED control
G: Green LED control
B: Blue LED control
FOG: Haze effect on demand
If the LCD panel display is set to DMX mode (d001-d512), the unit will operate by DMX control as follows:
Channel | Value | Content |
---|---|---|
CH1 | 0-255 | Haze effect low to high |
CH2 | 0-255 | LED colour fade slow to fast |
CH3 | 0-255 | Red LED low to high |
CH4 | 0-255 | Green LED low to high |
CH5 | 0-255 | Blue LED low to high |
CH6 | 0-255 | White LED strobe effect slow to fast |
Troubleshooting
Issue | Solution |
---|---|
No power to main unit | Check mains voltage is correct and socket is switched on |
or wired controller | Check IEC lead is OK and connected properly |
Check mains fuse in IEC connector and fuse in plug top | |
If fuse blowing repeatedly, refer to qualified service personnel | |
Power to unit but no | Check fluid level in tank |
haze output in manual | If fluid is OK and pump working, the lines may be blocked |
or continuous mode | Check that output is not set to zero on the control panel |
Check that output is not switched off on the keyfob remote | |
If blocked, clean with fog machine cleaner & distilled water | |
Check that if DMX mode is selected, the DMX channel is correct | |
In DMX mode, check that haze output is not set to zero |
This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines
Errors and omissions excepted.
Copyright© 2022 AVSL Group Ltd, Unit 2 Bridgewater Park, AVSL (Europe)
Ltd, Unit 3D North Point House,
Taylor Road, Trafford Park, Manchester. M41 7JQ. North Point Bus. Park, New Mallow Road, Cork, Ireland.
Specification
Specification | Value |
---|---|
Power supply | 220-240Vac, 50/60Hz (IEC) |
Fuse rating | F8A |
Power | 1500W |
Warm up time | 3 to 5 minutes |
Remote control frequency | 433Mhz |
Fog output (approx.) | 20,000 cu.ft/min |
Fluid capacity | 2.3 litres |
LED : power | 3W x 9pcs |
Battery : remote | 23A 12V (not supplied) |
Dimensions | 465 x 250 x 190mm |
Weight | 6.45kg |
Precautions
CAUTION | ||
RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL |
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Indoor use only : The "House" symbol identifes electrical equipment designed primarily for indoor use.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
