QTFX-400

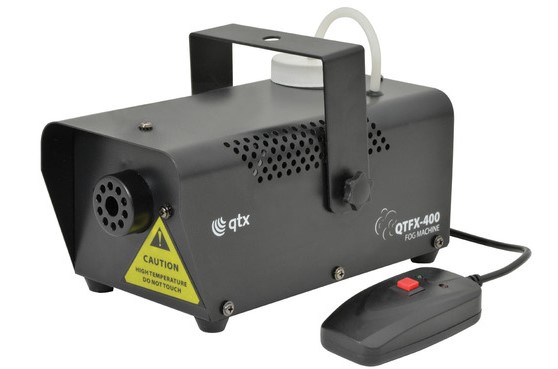

QTFX-400: Compact Fog Machine 400W

160.461UK

Introduction

Thank you for choosing the QTFX-400 compact fog machine as part of your stage effects system. This product is designed to offer professional quality performance in a neat and manageable format.

Please read these instructions in full to gain the best results from this item and avoid damage to the unit through misuse.

Unpacking

Your QTFX-400 should reach you in good condition and should be supplied with IEC mains lead(s), mounting bracket and a wired handheld remote control.
If there are any signs of damage or items missing from the packaging, contact your dealer immediately.

Warning

To prevent risk of fire or electric shock, do not expose electrical parts to rain or moisture.

If liquids are spilled on the housing or through the vents, disconnect the mains, allow the QTFX-400 to dry out and have it checked by qualified personnel before further use.

Avoid any impact, dropping or extreme pressure to the housing.

No user serviceable parts inside - do not open the case.

Allow the QTFX-400 to acclimatize to room temperature before operating.

Refer all servicing to qualified service personnel.

Placement

The QTFX-400 has a built-in fluid tank and should be operated in an upright position.
If free-standing, ensure that the QTFX-400 is positioned on a stable, non-slip surface.

If mounted at height, use the integral bracket and it is advisable to add a safety cable.

Safety

Check for correct voltage and condition of IEC lead before connecting to power outlet.
Check the condition of the remote lead and ensure that it is not trapped.
This unit must be earthed.
This unit uses a heating element - do not touch the nozzle area whilst in use!

Cleaning

Use a soft dry or slightly damp to clean the casing
Do not use strong solvents for cleaning the unit
It is recommended to use fog machine cleaning fluid (160.670UK) periodically

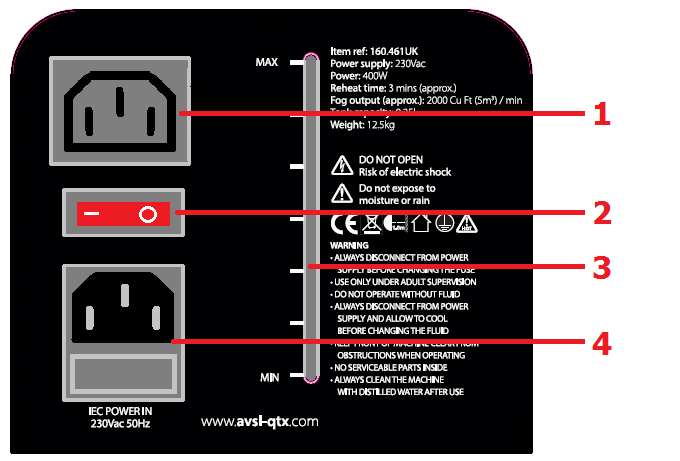

Rear Panel

No	Description
1	Remote control connection (IEC female)
2	Mains power on/off rocker switch
3	Fog fluid fill level indication
4	Mains inlet (IEC male) and fuse holder

Setting Up

The QTFX-400 requires fog fluid to produce the effect.
It is recommended to use one of the range of qtx fog fluids for best results.
A chart for recommended fog fluids is included further along in this document

Unscrew the top cap of the tank and remove to fill with the selected fog fluid.
Replace the cap and close securely, ensuring the pipe is fed down to the bottom of the bottle so a consistent flow of fluid is supplied to the machine.
Connect the supplied remote control to the female IEC on the rear panel.
Connect the IEC mains plug.

Operation

Check the fog fluid level indicator at the rear and fill if necessary
Switch the mains power on
Heat up time is usually between 3-4 minutes. Please ensure that the remote button is not pressed during the heat up time.
When the machine is ready to operate, the light on the remote control will illuminate. You may now press the button for fog on demand
When the remote control light is off, the QTFX-400 needs time to re-heat. Do not attempt to produce fog until the light is lit.
During prolonged use, periodically check that the fluid level is not empty
Switch off when not in use. Unplug from mains if not in use for long periods

Troubleshooting

Warning: Hot components! ... Switch off and allow to cool before touching the unit

Issue	Solution
No light on mains switch	Check mains voltage is correct and socket is switched on
	Check IEC lead is OK and connected properly
	Check mains fuse and fuse in plug top
	If fuse blowing repeatedly, refer to qualified service personnel
Remote light stay s off	Check remote is connected properly
	If light is permanently off, refer to qualified service personnel
Remote light is on but no fog output	Check fog fluid level
	If fluid is OK and pump working, the lines may be blocked
	Check that nozzle is not blocked or obstructed
	If blocked, clean with fog machine cleaner & distilled water

Specification

Specification	Value
Power supply	240Vac, 50Hz (IEC)
Power consumption	400W
Fluid capacity	0.25 litres
Fog output (approx.)	2000 Cu Ft (57m³) / min (approx)
Reheat time	3 - 4 minutes
Remote control	Momentary switch, IEC connection
Dimensions	120 x 150 x 240mm
Weight	1.5kg

Precautions

	CAUTION
	RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit

Safety Notice

Prior to use, read through this safety guide.
Pay attention to safety warnings.
Observe all operating requirements.
For any items designed for indoor use only, do not operate near water or in humid environments.
For cleaning, only use a lint-free, dry cloth.
Install according to the specifications.
Place away from heat sources or heating appliances.
During placement, ensure adequate support for the product and access to controls and connectors.
Do not obstruct any cooling vents or openings and allow adequate space for air flow.
Use only power connections supplied with the product or suitable equivalents.
Do not modify the equipment in any way.
For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
Keep powered products and batteries away from the reach of children.
In case of malfunction, water ingress or other damage, consult qualified service personnel.
Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
For any Earthed mains product, ensure that the power supply has a protective Earth connection.
Keep all packaging materials out of reach of children.

Indoor use only : The "House" symbol identifes electrical equipment designed primarily for indoor use.

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
