LT245120-WW
24V High Output LED Tape - 5m Reel
156.776UK
Installation Guide
Installation
Lyyt high output LED tape is supplied on 5m reels and operates from a
24Vdc power supply.
Installation should be carried out by competent electrical installers,
observing the relevant electrical safety procedures.
The tape has a self-adhesive backing to allow it to be easily attached to a clean, non-porous surface.

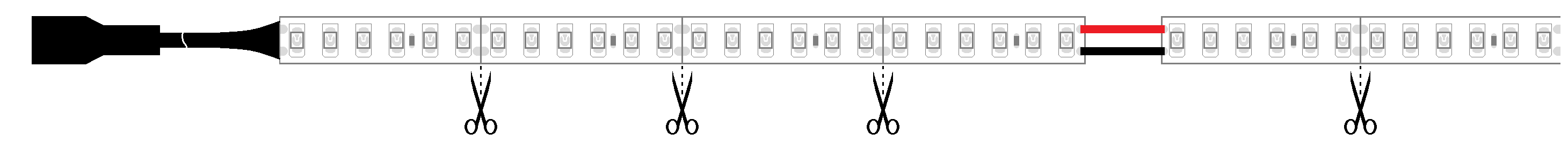

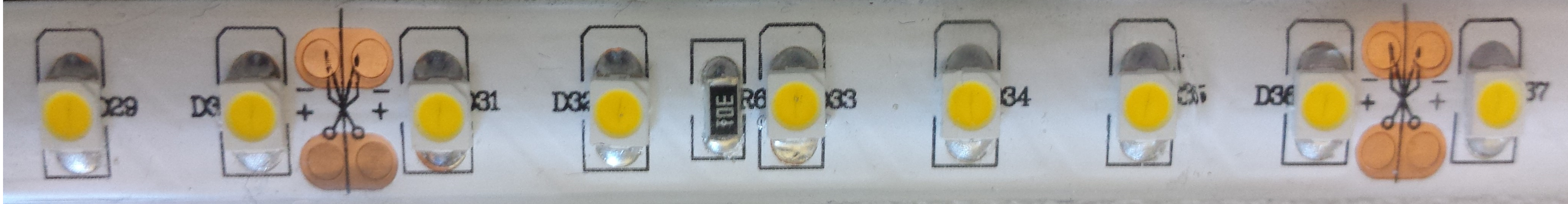

Where less than 5m of tape is needed, there are solder points as shown below, where the tape may be cut to size. These cut points will be at 5cm intervals. In order to re-connect to another length of tape after cutting, strip away the epoxy coating at the solder points and solder a wire from “+” to “+” and a wire from “-” to “-” as shown below.
Some accessories are supplied with the tape reel for this purpose or alternatively, Lyyt connection clips may also be used to join lengths of tape (156.135UK – 156.140UK). In order to retain weather-proofing, it is advised to seal the cuts and joints with silicone glue.
Each 5m reel of single colour LED tape is fitted with a 2.1mm DC jack socket for power input for easy connection to a power supply. This connector may be removed and stripped for bare wire connection if a 2.1mm jack is not fitted to the power supply.

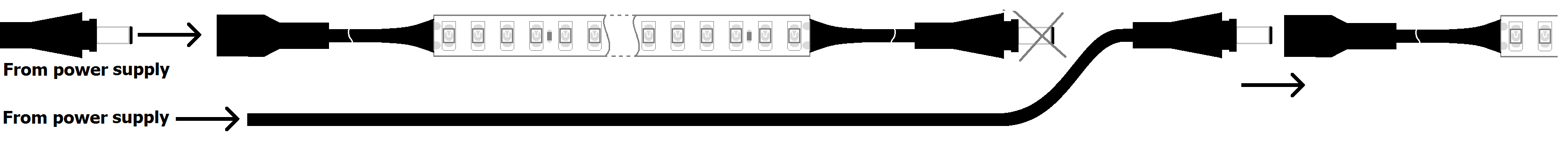

If the power supply has enough capacity to power more than one reel, another reel can be connected to the end of the first reel via the 2.1mm DC jack plug.
For Lyyt high output LED tape, it is recommended to link no more than 15m of tape in sequence.
Using a separate wire to loop “+” and “-” back to the power supply will help to avoid dimming at the far end through voltage drop.
To connect beyond these lengths, a parallel wire must be run from the power supply to the further reels of tape.
Power Requirements
It is imperative that the power supply should have higher than the rated capacity in Amps (A) for the current required to power the length(s) of LED tape installed. Please see the table below for reference.
| Tape length | 5m | 10m | 15m | 20m | 25m | 30m |
|---|---|---|---|---|---|---|
| Current | 2A | 4A | 6A | 8A | 10A | 12A |
| Suggested PSU | 153.759UK | 153.760UK | 153.761UK | 153.762UK | 153.763UK | 153.764UK |
Lyyt high output LED strips can also be operated via the Lyyt single colour 12/24V controllers, amplifiers or dimmers.
153.770UK, 153.795UK or 153.799UK.
Specification
| Specification | Value |
|---|---|
| Colour | Warm white |
| Colour temperature | 3000K |
| Voltage | 24Vdc |
| Number of LEDs | 120/m |
| Beam angle | 140° |
| Cut intervals | 5cm |
| Reel length | 5m |
| LED : type | Epistar™ SMD3528 |
| LED : spacing | 8mm |
| IP rating | IP65 |
| Current | 400mA per metre |
| Luminous flux (Lumens per metre) | 720lm/m |
| Light intensity per LED | 2400mcd |
| Power consumption per metre | 9.6W |
| Cross-section | 10.3 x 2.55mm |
| Weight | 210g |
Precautions
 |
CAUTION |  |
| RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
| CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL | ||
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
