LT24560-RGBW
24V LED Tape 5m - RGBW 60/m
156.772UK
Introduction
Super-bright IP65 rated RGBW LED tape which when connected to a controller can produce any colour of the rainbow. Supplied on 5m reel with an adhesive back this tape is easy to setup and quick to install. Its 24Vdc supply and low power consumption makes it suitable for a wide variety of applications from homes to vehicles and from shops to bars and nightclubs. The LEDs will last up to 50,000 hours and are covered with an epoxy coating to protect the tape from general wear and tear as well as being water resistant, making cleaning an easy task.
Installation
Installation of this LED tape should be carried out by competent electrical installers, observing the relevant electrical safety procedures.
Lyyt RGBW LED tape has a self-adhesive backing to allow it to be easily attached to a clean, non-porous surface.

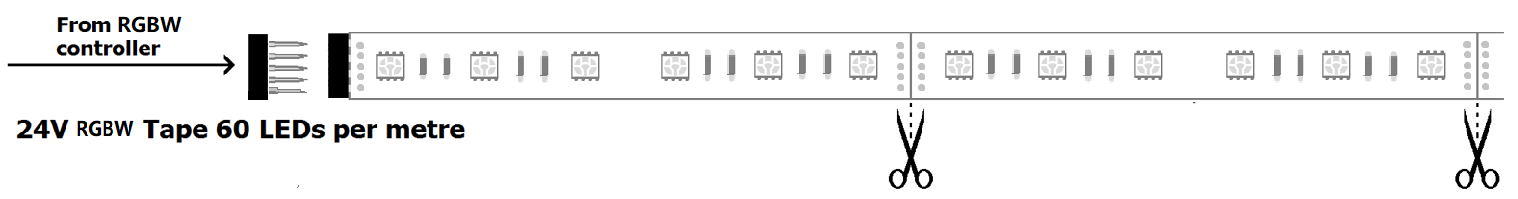

Where less than 5m of tape is needed, there are solder points as shown below, where the tape may be cut to size. These cut points are at 10cm intervals. To re-connect to another length of tape after cutting, strip away the epoxy coating at the solder points and solder a wire from V+, G, R, B and W to corresponding points on the next length of tape. Some accessories are supplied with the tape reel for this purpose. To retain weatherproofing, it is advised to seal the cuts and joints with silicone glue.
Each 5m reel of RGBW LED tape is fitted with a 5-pin connector for power input from an RGBW controller. Ensure that the V+, G, R, B and W pins are connected the correct way round. 24V tape can be installed in 10m lengths between repeater/amplifiers by using the included 5-pin couplers to connect 2 reels together in sequence. The amplifier repeater ensures that extension reels mimic the colour changes of the original reel as dictated by the controller.
It is imperative that the power supply, controller, and amplifier/repeater should have higher than the rated capacity in Amps (A) for the current required to power the length(s) of LED tape installed. Please see the table below for reference.
| Tape Length | 5m | 10m | 15m |
|---|---|---|---|
| Current for 24V RGBW tape 60 LED/m | 3.35A | 6.7A | 10.05A |
Please visit www.avsl.com to select from our range of 24Vdc power supplies, RGBW controllers and RGBW amplifier/repeaters that are suitable for powering Lyyt RGBW LED tapes
Specification
| Specification | Value |
|---|---|
| Voltage | 24Vdc |
| Beam angle | 180° |
| Light intensity per LED (millicandelas) | 1800-2000mcd |
| LED : type | Sanan SMD5050 |
| Reel length | 5m |
| IP rating | IP65 |
| Power consumption per metre | 16W |
| LED : quantity per metre | 60 |
| LED : spacing | 12mm |
| LED : colour | RGB and Cold White |
| Cut points | 10cm |
| Colour rendering index (CRI, Ra) | >80 |
| Current | 670mA per metre |
| Cross-section | 12 x 4mm |
| Weight | 0.126kg |
Precautions
 |
CAUTION |  |
| RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
| CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL | ||
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
