HIPAR-100

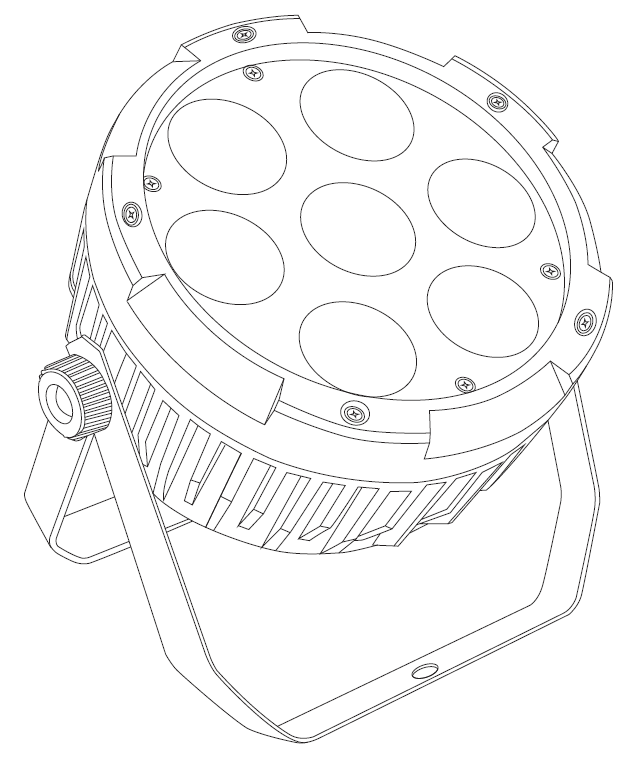

HIPAR-100: 100W Weatherproof RGBWA PAR Can
154.323UK
Introduction
Thank you for your purchase of the QTX HIPAR-100 outdoor LED PAR light. This fixture has been designed to provide powerful and colourful light coverage to a wide area for indoor or outdoor areas Please read and keep this manual for reference to gain the best results from this product and avoid damage through misuse.
 |
Caution: Please read this manual carefully before operating |
|---|---|
| Damage caused by misuse is not covered by the warranty |
Warning
To prevent the risk of fire or electric shock, ensure all power connections are watertight.
No user serviceable parts inside – Do not open the case – refer all servicing to qualified service personnel.
Safety
Check for correct mains voltage and condition of power lead before connecting to a power outlet.
Placement
- Use the included dual mounting bracket to fix to a stand/truss or free-standing on a stable surface.
- Use secondary safety fixings if mounting overhead.
- Ensure adequate airflow around the fixture housings.
- Ensure adequate access to controls and connections.
Cleaning
- Use a soft cloth with a neutral detergent to clean the casing as required.
- Do not use strong solvents for cleaning the unit.
In The Box
Please open the package carefully and check that all contents are present and in good condition.
Contact your retailer if any part is missing or broken.
- HIPAR-100 LED PAR can
- Dual mounting bracket
- UK mains plug to waterproof socket lead
- DMX XLR plug to waterproof socket lead

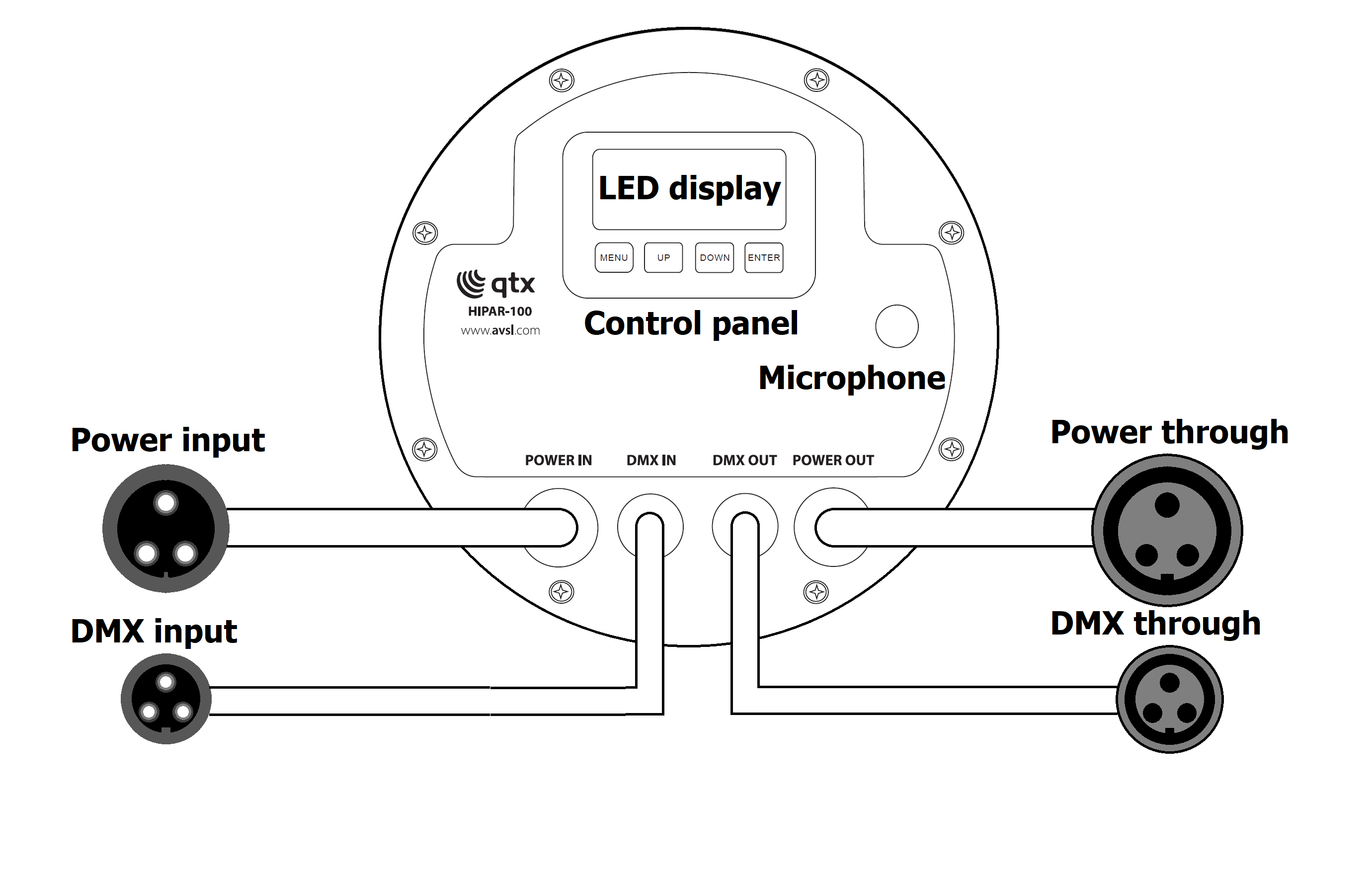

Rear Panel
Installation
The HIPAR-100 is supplied with a dual hanging bracket, which can also be used as a free-standing support.
When installing the fixture, ensure all fixings are secure, controls and connections are accessible and allow enough space for air to circulate around the housing. Do not aim directly in line of sight or very close to people where the extremely bright output of the fixture may be harmful to eyesight.
The HIPAR-100 is IP65 weatherproof and all electrical connections are hard-wired with waterproof connectors.
An XLR to waterproof connector is provided for adapting the DMX input lead to a standard DMX signal input.
A mains plug to waterproof connector is provided to adapt the power input lead to a standard mains supply.
Connect the waterproof connectors securely, ensuring that the notches are aligned for correct polarity.
The waterproof plugs have a threaded collar which must be fully tightened onto the waterproof socket.
The HIPAR-100 also has DMX through and power through leads for connecting onto further HIPAR cans in a daisy-chain manner. Ensure that the mains power supply is capable of the total load of all cans connected.
Setting Up
Check all connections are properly made and power up the HIPAR-100 can.
The LED display will light and show the current mode or status.
Use the control panel keys to adjust the stand-alone or DMX control settings.
Press MENU to step through the menu options and press ENTER when you reach the required page.
Press UP and DOWN keys to adjust the value of the parameter and press ENTER again to confirm.
Press MENU again to go back to stepping through menu options.
Please see the table on the following page for the full list of menu options.
Onboard Menu
| Display | Press Enter to set value Press Enter again to confirm |
Description | |
|---|---|---|---|
| Addr | A001 - A512 | DMX start address | |
| Chnd | 5Ch - 9Ch | DMX channel mode – 5 or 9 channels | |
| FAIL | d512 - nASt - SLAU | Master/Slave/DMX mode (FAIL means no Master/Slave) | |
| rxxx | r000 - r255 | Manual colour red level 0-100% | |
| 9xxx | 9000 - 9256 | Manual colour green level 0-100% | |
| 6xxx | 6000 - 6257 | Manual colour blue level 0-100% | |
| uxxx | u000 - u258 | Manual colour white level 0-100% | |
| Axxx | A000 - A258 | Manual colour amber level 0-100% | |
| nodE | Suxx | Enter to set Su00 - Su99 | Sound activated colour change (00 - 99= mic sensitivity) |
| Coxx | Enter to set Co01 - Co15 | Static colour (01 - 15= colour selection) | |
| Auxx | Enter to set Au00 - Au99 | Auto colour jump program (00 - 99= speed) | |
| FAxx | Enter to set FA00 - FA99 | Auto colour scroll program (00 - 99= speed) | |
| St00 | St00 - St99 | Strobe (00 = off, 01 - 99= speed) |
Standalone Operation
To operate the HIPAR-100 in standalone (autonomous) mode, navigate to FAIL and select Master mode.
Sound-activated, Static colour, Auto, Fade & Strobe modes described above will operate without DMX control.
To control further HIPAR cans in master-slave mode, connect the DMX through from a master HIPAR-100 in standalone mode to the DMX input of a “slave” HIPAR can that is set to Slave mode under the FAIL menu.
Further HIPAR cans set to Slave mode may be connected from DMX through to DMX input in a daisy chain.
If the strobe setting is St01 - St99, a flashing strobe effect will be applied to the Auto program (slow to fast)
For custom static colours, adjusting the values of rxxx, 9xxx, bxxx, uxxx and Axxx gives a manual colour mix.
DMX Operation
The HIPAR-100 is compatible with standard DMX512 control.
Connect the supplied XLR plug to waterproof socket lead to the DMX input lead of the first HIPAR can in line to be controlled. Connect further HIPAR cans from the DMX through of the first can to the DMX input of the second can and DMX through of the second can to the DMX input of the third can etc. until all HIPAR cans are connected in a daisy-chain.
Connect the XLR plug to a DMX controller, ensuring that this connection is protected from the elements.
(the XLR plug is not a waterproof connector)
The HIPAR-100 has either 5 or 9 DMX channels as described in the tables on the following pages. Set the DMX value to the required start address via the control panel and this will become the DMX address of channel 1.
To select the DMX channel mode, step through the onboard menu to Chnd and press ENTER to select either 5Ch for 5-channel mode or 9Ch for 9-channel mode.
DMX Channels – 5 Channel Mode
| Ch.1 | 000 - 255 | Red level 0-100% |
|---|---|---|
| Ch.2 | 000 - 255 | Green level 0-100% |
| Ch.3 | 000 - 255 | Blue level 0-100% |
| Ch.4 | 000 - 255 | White level 0-100% |
| Ch.5 | 000 - 255 | Amber level 0-100% |
5-channel DMX mode gives straightforward dimming for individual colour components.
DMX Channels – 9 Channel Mode
| Ch.1 | 000 - 255 | Master dimmer level 0-100% |
|---|---|---|
| Ch.2 | 000 | Strobe effect off |
| 001 - 255 | Strobe effect speed slow to fast | |
| Ch.3 | 000 - 010 | Macro function off |
| 011 - 095 | Macro - Static colour | |
| 096 - 177 | Macro - Colour change | |
| 178 - 255 | Macro - Colour scroll | |
| Ch.4 | 000 - 255 | Macro speed 0-100% / Static colour select |
| Ch.5 | 000 - 255 | Red level 0-100% |
| Ch.6 | 000 - 255 | Green level 0-100% |
| Ch.7 | 000 - 255 | Blue level 0-100% |
| Ch.8 | 000 - 255 | White level 0-100% |
| Ch.9 | 000 - 255 | Amber level 0-100% |
In 9-channel mode, Ch.1 master dimmer setting affects the overall output in any mode.
A custom static colour can be mixed manually on channels 5 to 9 and strobe setting via channel 2.
Macro settings are similar in operation to the stand-alone auto settings with preset static colour, colour-change and colour-scroll programs all accessible from the setting of channel 3.
The speed of the selected effect (macro) is determined by the setting of channel 4.
Specification
| Specification | Value |
|---|---|
| Power supply | 110-240Vac, 50/60Hz |
| Power consumption max. | 100W |
| LED : quantity | 7 |
| LED : type | 15W RGBWA (5-in-1) |
| DMX channels | 5 or 9CH |
| Beam angle | 45° |
| IP rating | IP65 |
| Modes | Auto, sound-activated, master/slave, DMX512 |
| Connections | Power in, power out, DMX in, DMX out |
| Dimensions | 223 x 210 x 178mm |
| Weight | 3.14kg |
Precautions
 |
CAUTION |  |
| RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
| CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL | ||
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
AVSL (EUROPE) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, Ireland
