RP4

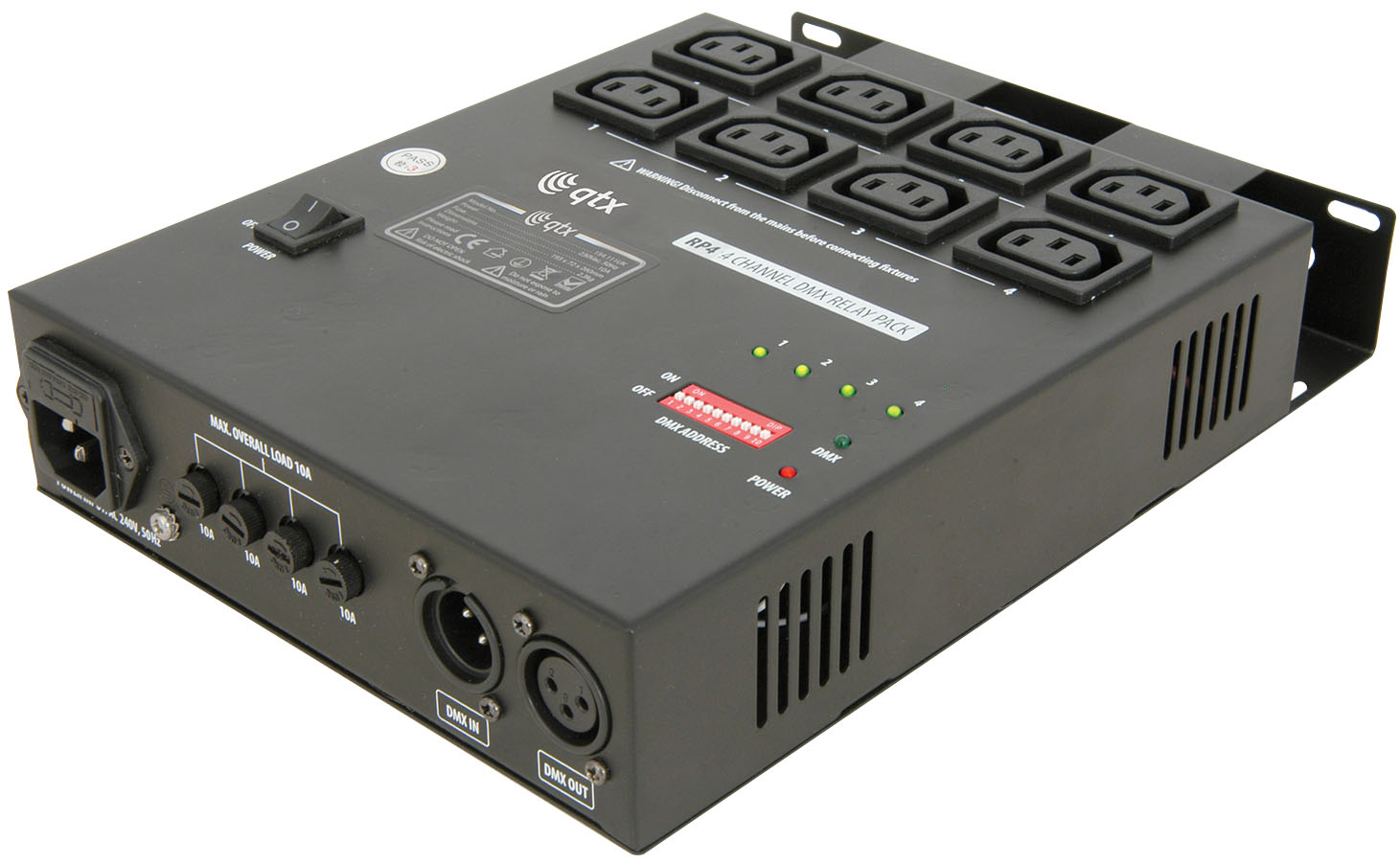

4 Channel DMX Relay Pack
154.111UK
Introduction
The RP4 4 channel DMX relay pack has 4 DMX channels each with 2 IEC power outputs per channel. It completely turns the power on and off saving energy and preserving the lifespan of your light effects. This is ideal for use with LED light effects, which when used with traditional dimmer packs turn on and off randomly with the pulsed voltage sent through the system.
![]() |
Caution: Please read this manual carefully before operating |
---|---|
Damage caused by misuse is not covered by the warranty |
Features
- 4 DMX channel output
- Power ON/OFF for each channel
- DIP switch DMX addressing
- Wall mountable
Warning Before Use
This item is for Professional use only. Please take note of the following instructions before using this device.
- This unit must be earthed.
- Do not turn on the power until all connections are securely made.
- Always disconnect from the mains before replacing any fuse
- There are no user serviceable parts inside
Fuses
The RP4 can carry maximum overall load of 10 amps. Each channel can also carry a maximum overall load of 10 amps but the unit is factory fitted with 10amps on each channel. These can be changed but the maximum overall load and each channel load must not exceed 10 amps. You must be professionally qualified in order to carry this out.

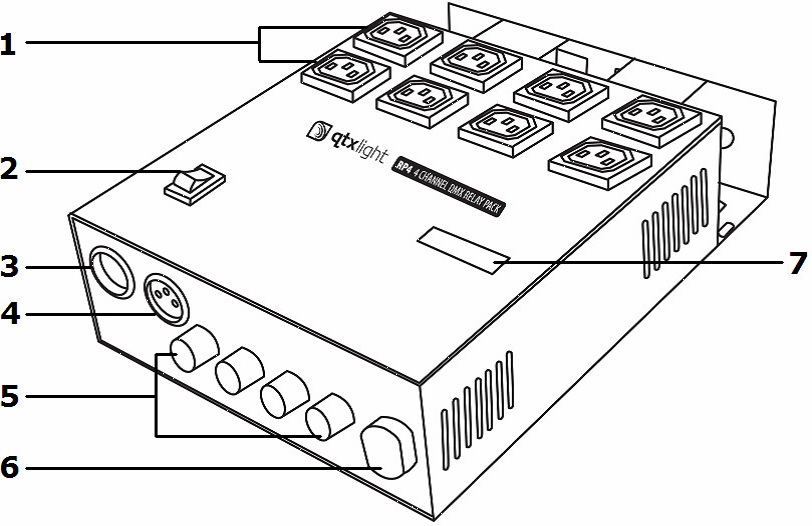

Layout
No | Description |
---|---|
1. | IEC Power outputs (2 x IEC per channel) |
2. | Power on/off switch |
3. | DMX input XLRM |
4. | DMX loop output XLRF |
5. | Channel fuses |
6. | AC power inlet |
7. | DIP switch settings |
Operation

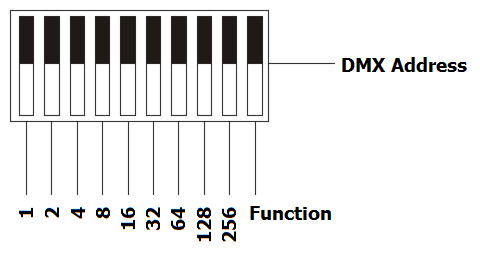

DIP Switch Settings
DIP switch ON | Setting | |
---|---|---|
10 | DMX control - Set start address using DIP switches 1- 9 | |
1 | Channel 1 ON | DIP switch 10 is OFF |
2 | Channel 2 ON | |
3 | Channel 3 ON | |
4 | Channel 4 ON |
The RP4 can be used as a 4 Channel DMX switch pack or for standalone operation:
Stand alone: Set DIP switch 10 to OFF then use switch 1 to 4 to turn on / turn off each channel
DMX Mode: Set DIP switch 10 to ON and use DIP switches 1 - 9 to set the DMX start address.
In DMX mode, 4 channels (starting at the selected start address) can be used to turn on or turn off each channel by adjusting the slider accordingly (000/0% = OFF, 255/100% = ON)
Specification
Specification | Value |
---|---|
Power supply | 230Vac, 50Hz (IEC) |
Dimensions | 193 x 72 x 260mm |
Weight | 2.3kg |
Precautions
CAUTION | ||
RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL |
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Indoor use only : The "House" symbol identifes electrical equipment designed primarily for indoor use.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
