PS60
Universal 12Vdc Power Supplies
153.744UK
Introduction

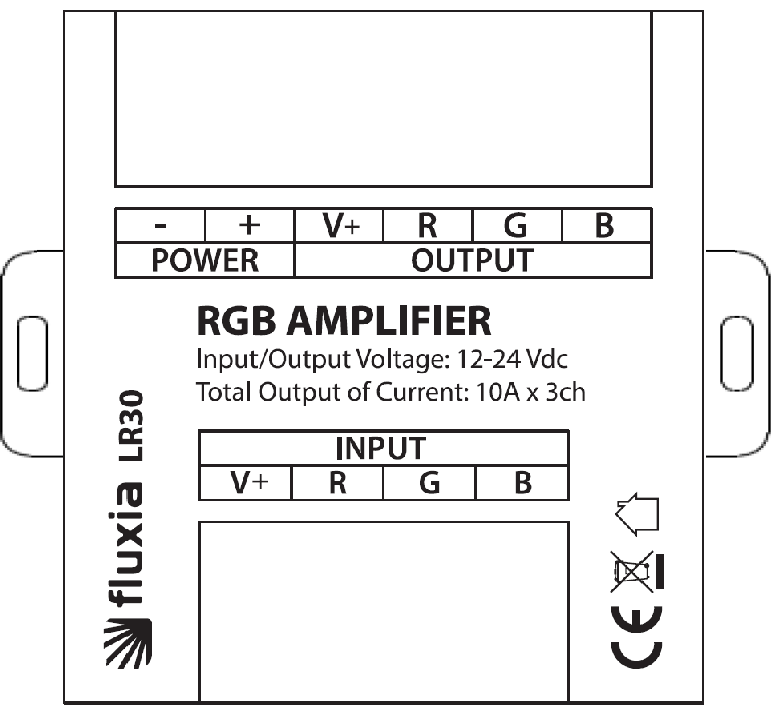

The LR30 is a signal repeater designed to allow extended runs of 12V or 24V RGB LED tape and strip. Any RGB LED tape controller has a limited amount of current capacity, which means that it can only control a limited length of LED tape. The LR30 acts as a signal repeater or amplifier so that further lengths of tape can be added to the controlled “incoming” length of tape and all colours will be repeated across both tapes.
Setting Up
- Connect the Blue, Red, Green and Voltage+ connections at the end of the incoming tape to the B, R, G and + screw terminals labeled “INPUT”.
- Connect the Blue, Red, Green and Voltage+ connections at the beginning of the continuation tape to the B, R, G and + screw terminals labeled “OUTPUT”.
- Connect an appropriate DC power supply for the LED tapes (either 12V or 24V) to the screw terminals labelled “POWER”.

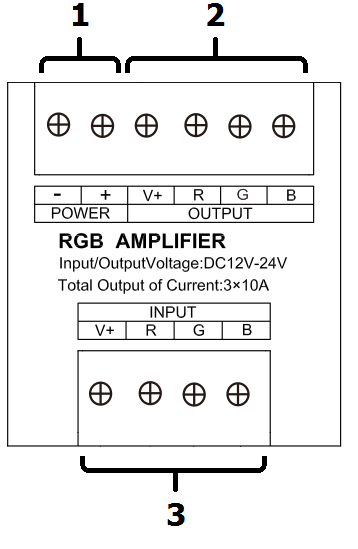

- POWER 12Vdc or 24Vdc power supply connection.
- OUTPUT Blue, Red, Green and Voltage+ connections to continuation LED tape.
- INPUT Blue, Red, Green and Voltage+ connections from incoming LED tape.

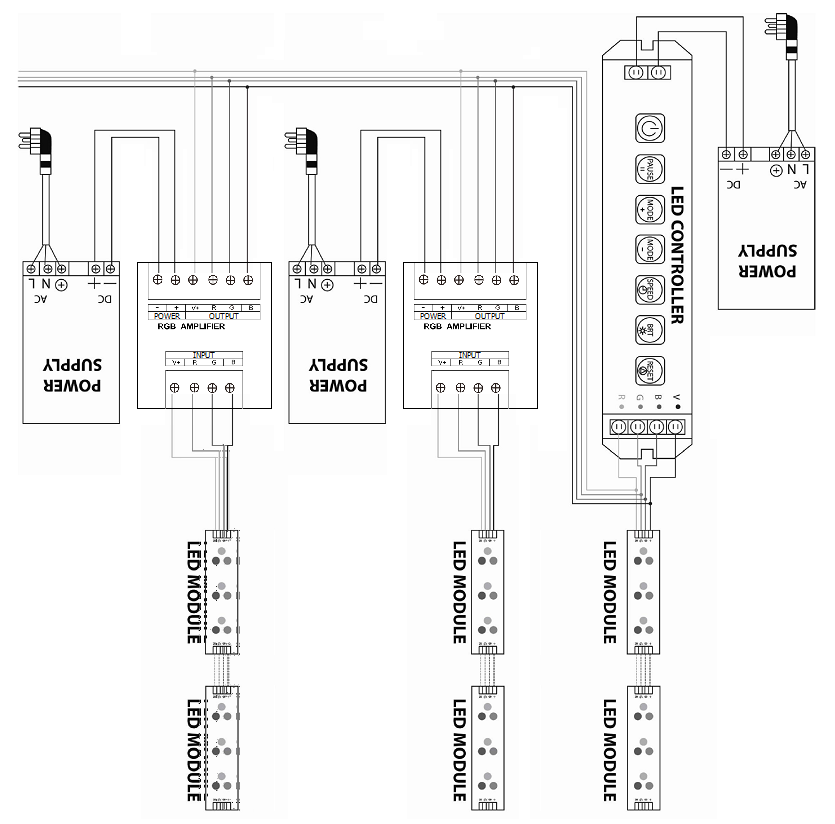

Example of Connecting in an Array Format

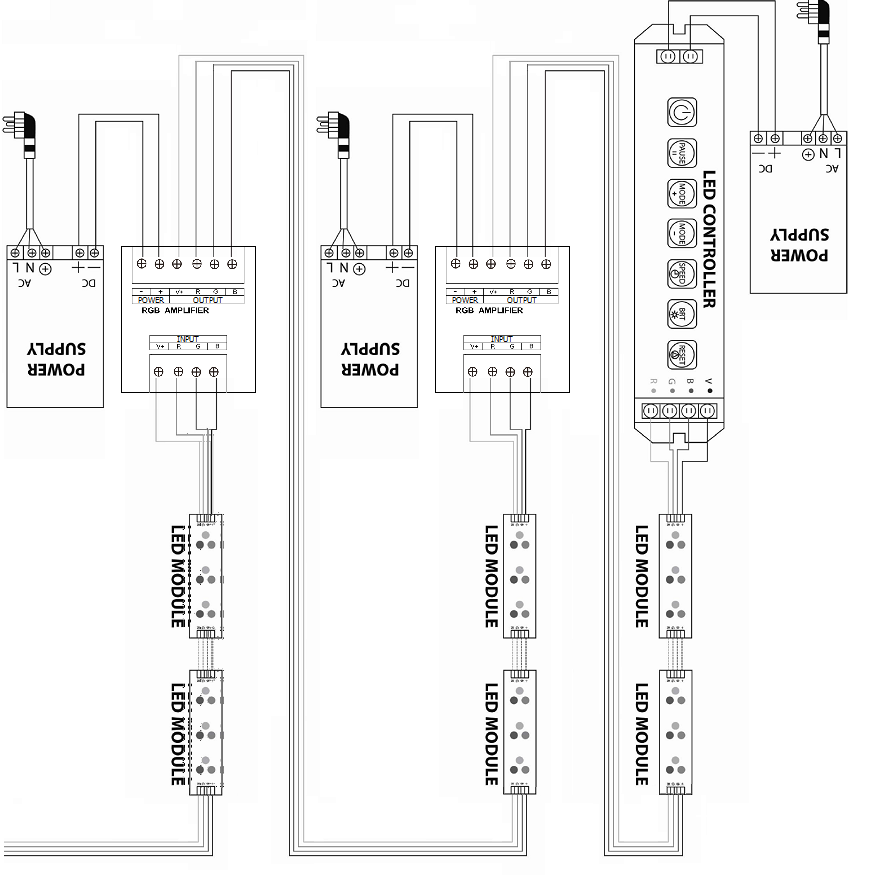

Example of Connecting in Series
Specification
| Specification | Value |
|---|---|
| Weight | 240g |
| Dimensions | 222 x 29 x 21mm |
| Output feeds | 1 |
| Max. current | 5A |
| Max. power output | 60W |
| Power supply | 185-250Vac, 50/60Hz |
| Voltage out | 12Vdc |
| IP rating | IP67 |
Precautions
 |
CAUTION |  |
| RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
| CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL | ||
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
