MBM-1

Battery Powered Mirror Ball Motor

153.106UK

Introduction

Thank you for choosing the QTX MBM-1 battery powered mirror ball motor. This item will provide a convenient solution for small to medium tasks where no mains power is available. Please read the below instructions to ensure proper implementation and avoid damage through misuse.

General Safety

The MBM-1 is intended for indoor use only. Keep away from damp or humid environments.
Keep the motor and housing dust free and do not allow particles to enter the mechanism.

Clean the MBM-1 periodically with a dry, lint free cloth. Do not use solvents on the casing.

Keep away from heat sources or direct sunlight.

Installation

The MBM-1 mirror ball motor is powered by a single 1.5V cell (D type) which should be installed before installation. Open the battery compartment and connect the D cell, ensuring the correct polarity as indicated.Positioning of the mirror ball motor is very important. Safety is the most important factor. Please note the following to avoid failure and possible injury…

The motor and mirror ball should be out of reach to avoid tampering
The mirror ball should not weight more than 2kg
The chain holding the mirror ball should be adequate for the load
The fixing into the ceiling must be strong enough to hold both mirror ball and motor

Operation

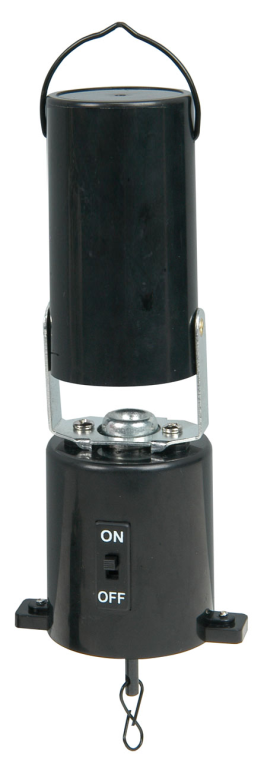

To start the motor rotation, slide the side-mounted switch to the on position. The spindle will rotate and so the mirror ball will rotate also. The MBM-1 is hinged to allow some sideways movement if the load is not perfectly symmetrical. Remember to switch off when not needed to preserve the battery. If not being used for long periods, remove the battery and store in a dry place.

Specification

Specification	Value
Battery	1.5V (1 x D) not supplied
Max. weight load	2kg
Rotation per minute	6rpm
Dimensions	180 x 50mmØ
Weight	130g

Precautions

	CAUTION
	RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit

Safety Notice

Prior to use, read through this safety guide.
Pay attention to safety warnings.
Observe all operating requirements.
For any items designed for indoor use only, do not operate near water or in humid environments.
For cleaning, only use a lint-free, dry cloth.
Install according to the specifications.
Place away from heat sources or heating appliances.
During placement, ensure adequate support for the product and access to controls and connectors.
Do not obstruct any cooling vents or openings and allow adequate space for air flow.
Use only power connections supplied with the product or suitable equivalents.
Do not modify the equipment in any way.
For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
Keep powered products and batteries away from the reach of children.
In case of malfunction, water ingress or other damage, consult qualified service personnel.
Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
For any Earthed mains product, ensure that the power supply has a protective Earth connection.
Keep all packaging materials out of reach of children.

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
