PinBatt Bar

PinBatt Bar: 3 x 5w Battery Led Pinspot Bar

151.684UK

About this manual

This manual provides essential information for installing, operating, and maintaining your product. Please read and keep this manual to ensure the best performance from your purchase and to avoid damage resulting from improper use.

Introduction

Thank you for choosing the Citronic PinBatt Bar. Please read this manual prior to use to avoid damage to the item. This versatile led pinspot bar unit which is packed with features in a compact, manageable enclosure and is ideal for highlighting tables, displays and key features within event spaces

Safety information

This section contains important safety instructions that must be followed to reduce the risk of injury, damage to the product, or damage to other equipment. Read all safety information before installing, operating, or servicing the product. Failure to follow these instructions may result in personal injury, property damage, or impaired product performance.

Warning

To prevent the risk of fire or electric shock, do not expose any of the components to rain or moisture.
If liquids are spilled on any component, stop using immediately, allow unit to dry out and have checked by qualified personnel before further use.
Avoid impact or heavy vibration to any of the components.
No user serviceable parts inside.
Refer servicing to qualified service personnel.

Placement

Keep the unit out of direct sunlight and away from heat sources.
Keep the unit away from moisture or dusty environments.
Allow adequate space for cooling around the unit.
Do not place heavy objects on top of the unit.

Cleaning

Use a soft cloth with a neutral detergent to clean the housing as required.
A soft brush can be used to clear debris from the unit without damaging it.
Do not use solvents for cleaning the unit.

Controls and features

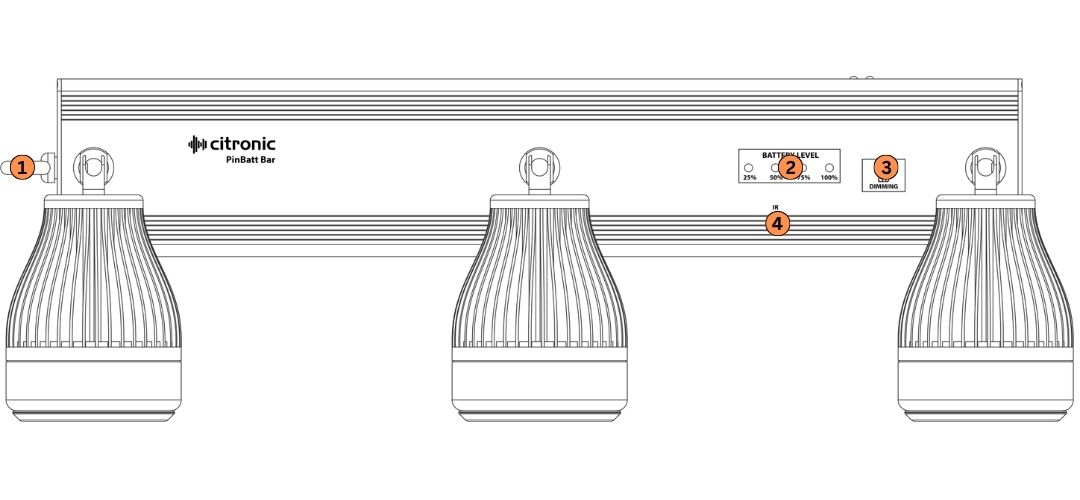

Front Panel

1. Safety Eye

2. Battery Level Indicator

3. Led Dimmer Button

4. Infared Receiver

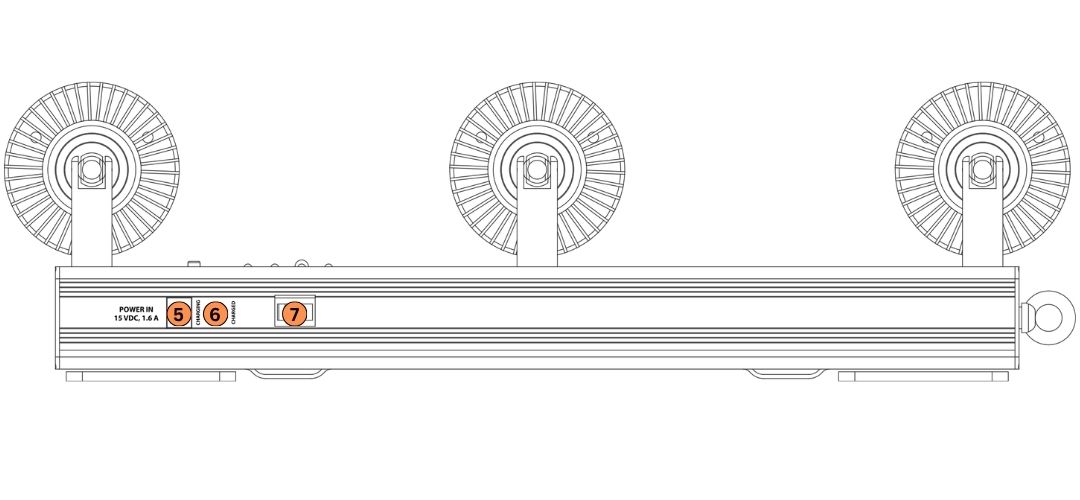

Side Panel

sidepanel

5. Power In

6. Charging Indicator

7. Power Switch

Power requirements

Power supply: 100–240 Vac, 50/60 Hz.
Output voltage: 15 VDC, 1.6 A
Use only the supplied or approved power adapter.

Installation and setup

1. Unpack the unit and verify all supplied components are present.

2. Place the unit on a stable, level surface or attach via the rigging options.

3. Connect required cables as described below.

4. Apply power (if applicable).

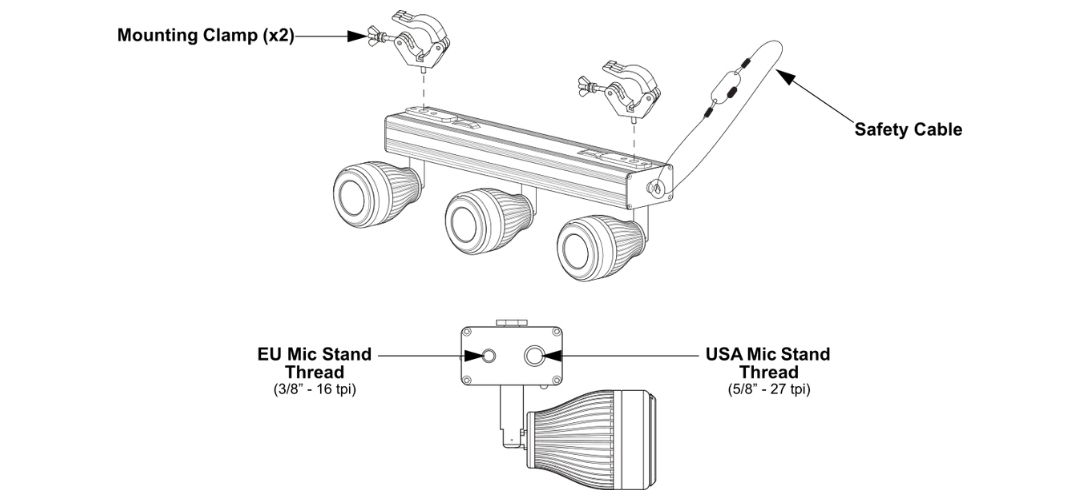

Mounting

-Attach the included diffusers easily with the built-in magnets. mounting

-DO NOT insert anything other than a microphone stand into the Mic Stand Thread. Doing so may cause damage to the product.

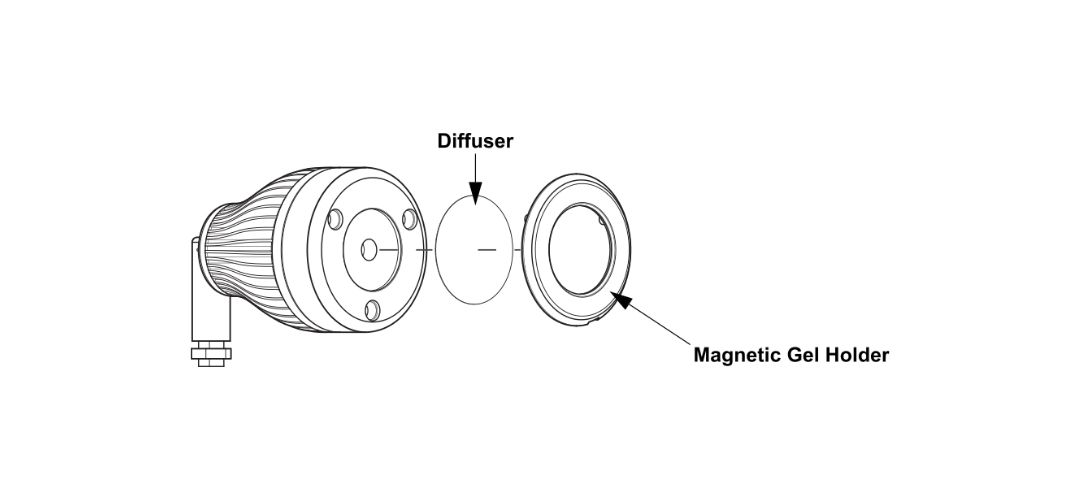

Diffuser Installation

diffuser

Operation

Battery Charging

The charging indicators on the PinBatt bar show red when the battery is charging, and green when it is fully charged. -Do not charge the battery in a closed container.

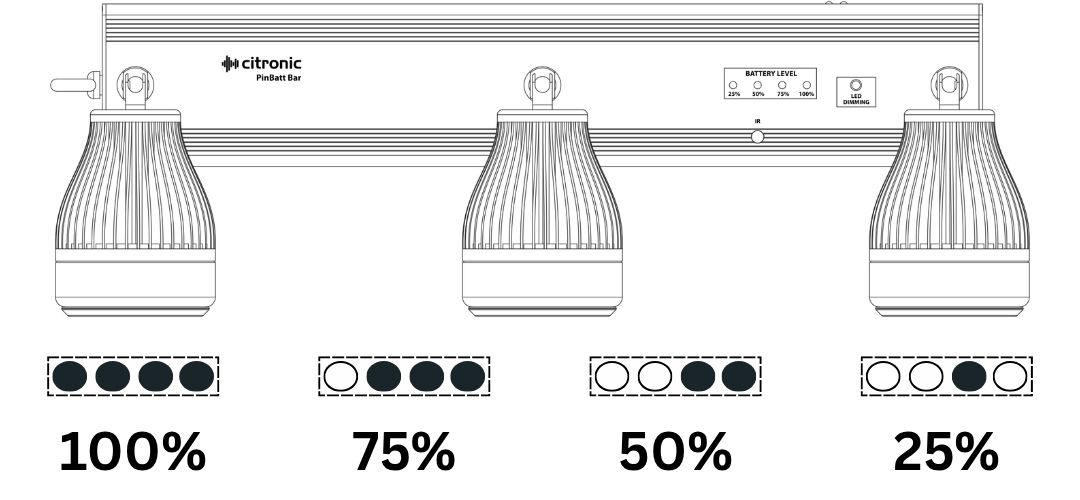

Battery Life Indicator

-The battery life indicator shows the remaining amount of internal battery life. Batterylife

Battery Charge Notes

Avoid depleting the battery below 10%.
For best results, charge the battery in a temperature between 32 °F (0 °C), and 95 °F (35 °C).
When charging the battery, keep the product at least 1 m from any open flame or hot plate.
If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the device.
While charging, the device may heat up. This is normal and should not affect the device’s lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.
Do not charge the battery in a closed container.
Do not charge the battery for more than 24 hours.

Basic Operation

Once the unit is charged please turn the Power Switch to the On position for Use.
Press the Led Dimmer Button to cycle through the preset dimming Options

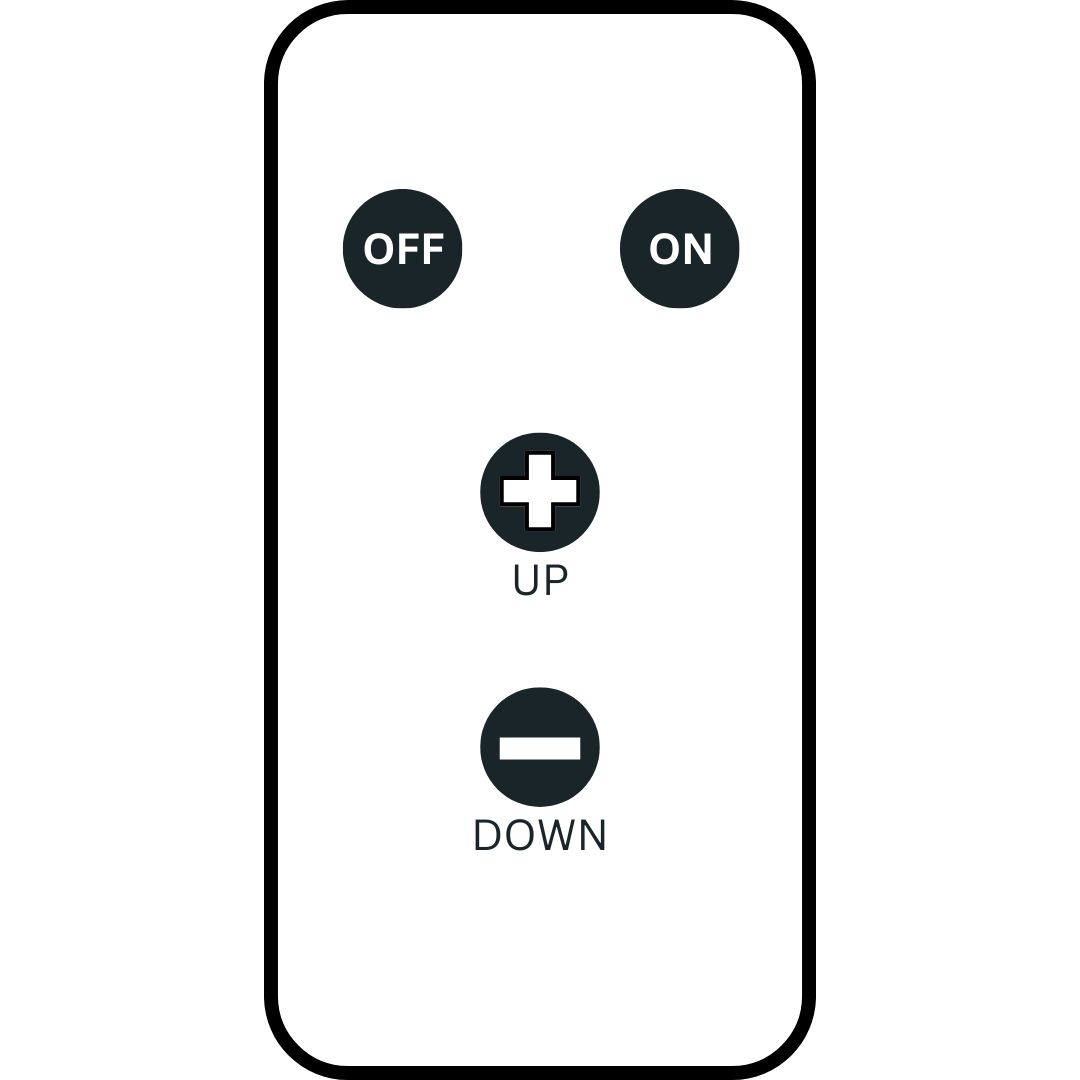

Remote Operation

Remote - Once the unit is charged please turn the Power Switch to the On position for Use. - Use the Off/On buttons to Control light Source dimmer on/off. - Use the Up/Down buttons to Control the preset Dimmer Options.

Maintenance

Regular maintenance is required to ensure the product’s longevity.
Inspect cables and connectors periodically.

Troubleshooting

If the unit does not operate as expected, consult the table below before contacting technical support. Many common issues can be resolved by checking connections, power sources, or settings.

Before proceeding

Ensure the unit is installed and operated according to this manual.
Verify that all connections are secure.
Restore the unit to its default or minimum configuration before troubleshooting.

Before any maintenance

Switch off the unit and disconnect it from the power source (if applicable).
Allow the unit to cool before handling.
Do not remove covers or attempt internal repairs.

Common issues

The following table lists common issues and corrective actions that do not require opening the unit.

Fault	Test Notes
No power ( mains)	Check mains voltage is correct and outlet is switched on
"	Check lead and fuse
No Light Output	Check Unit Power switch is set to ON
Overheating/Cutting Out	Ensure adequate ventilation and unit is not too close to a heat source

Disposal and recycling

Dispose of this product in accordance with local environmental regulations. Do not dispose of electronic equipment with household waste.

Compliance

This product complies with applicable safety and EMC standards.

Specification

Specification	Value
LED : power	3 x 5W 4000k
Beam angle	5°
Lux	@2m 3,898 lux (per spot)
Modes	Manual, Wireless Remote
Pan range	360°
Tilt range	180°
Battery life (hours)	Up to 8 Hours
Recharge time	7.5 Hours
Power supply	15 VDC, 1.6 A (external psu: 100/240 VAC, 50/60 Hz)
Power consumption	18W,0.2A @230v 50Hz
Dimensions	106mm x 127mm x 358mm
Weight	1.9 kg

Precautions

	CAUTION
	RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit

Safety Notice

Prior to use, read through this safety guide.
Pay attention to safety warnings.
Observe all operating requirements.
For any items designed for indoor use only, do not operate near water or in humid environments.
For cleaning, only use a lint-free, dry cloth.
Install according to the specifications.
Place away from heat sources or heating appliances.
During placement, ensure adequate support for the product and access to controls and connectors.
Do not obstruct any cooling vents or openings and allow adequate space for air flow.
Use only power connections supplied with the product or suitable equivalents.
Do not modify the equipment in any way.
For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
Keep powered products and batteries away from the reach of children.
In case of malfunction, water ingress or other damage, consult qualified service personnel.
Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
For any Earthed mains product, ensure that the power supply has a protective Earth connection.
Keep all packaging materials out of reach of children.

Indoor use only : The "House" symbol identifes electrical equipment designed primarily for indoor use.

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
