Compact Full Motion TV/Monitor Wall Mount Bracket

Introduction

Thank you for choosing the HQS201 bracket. This bracket is constructed from reinforced steel for mounting screen from 13” to 40” up to 15kg. Designed to be easily installed and supplied with all required installation hardware.

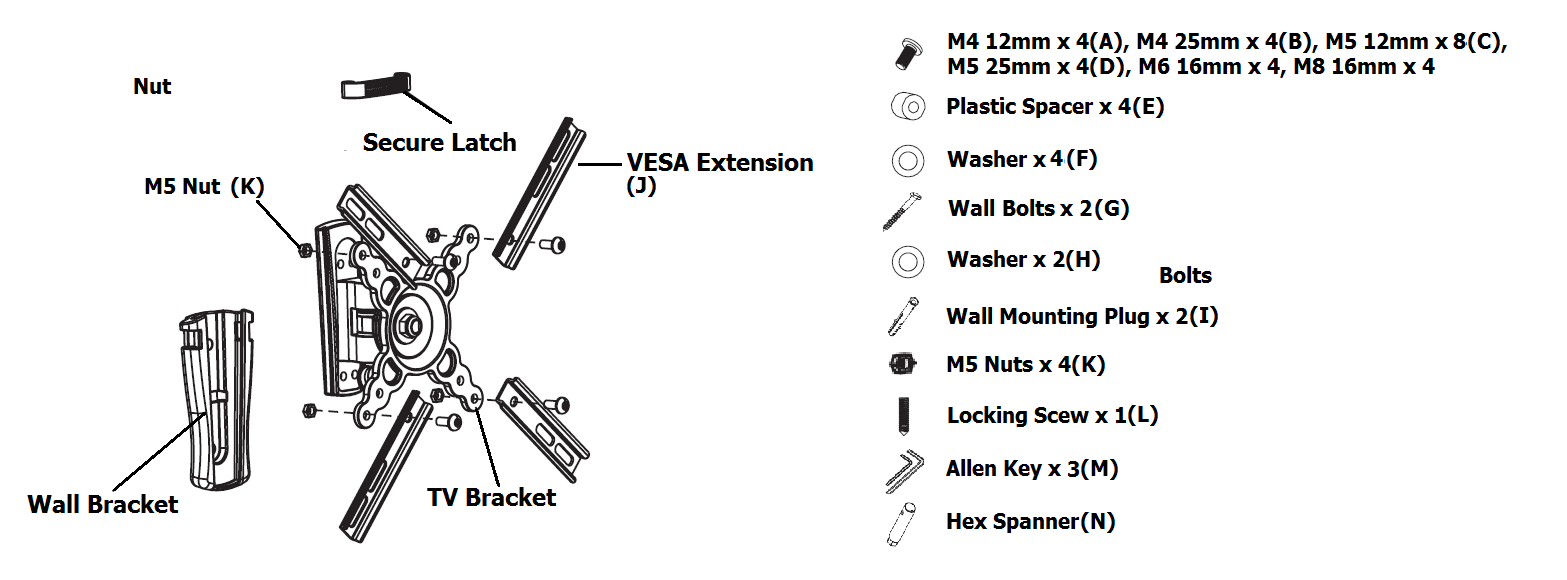

Contents

Please check all contents listed below are included inside the box. If anything is missing please return to the retailer or dealer.

For this installation you will also require a pencil, tape measurer, electric drill, stud finder and a Philips (cross) screw driver.

Fixing Wall Bracket

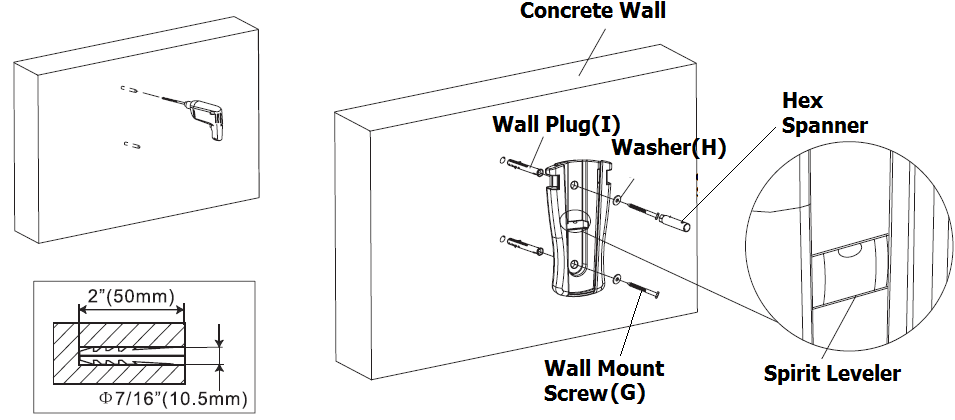

For concrete wall installation first of all work out the height of the installation and ensure it is level using the spirit level. Use a pencil to mark where the mounting holes will be and use an electric drill to drill a hole that is around 10.5mm in diameter and 50mm deep. Insert the wall plugs into the holes and install the wall bracket as follows.

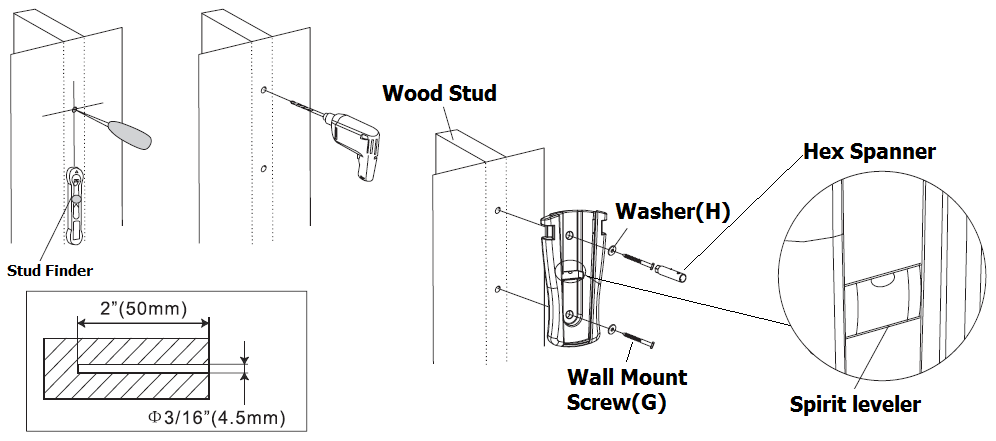

For plaster wall installation first of all find out where the wood stud is behind the wall using a stud finder. Then work out the height of the installation and ensure it is level using the spirit level. Use a pencil to mark where the mounting holes will be and use an electric drill to drill a hole that is around 4.5mm in diameter and 50mm deep. Install the wall bracket as follows.

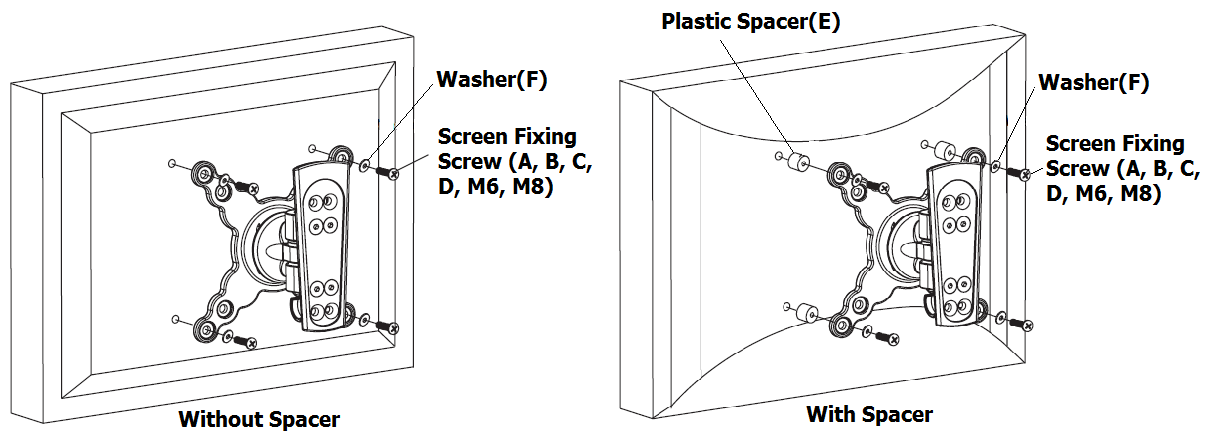

Fixing TV bracket to the screen, please use plastic spacer if the back of the screen is uneven.

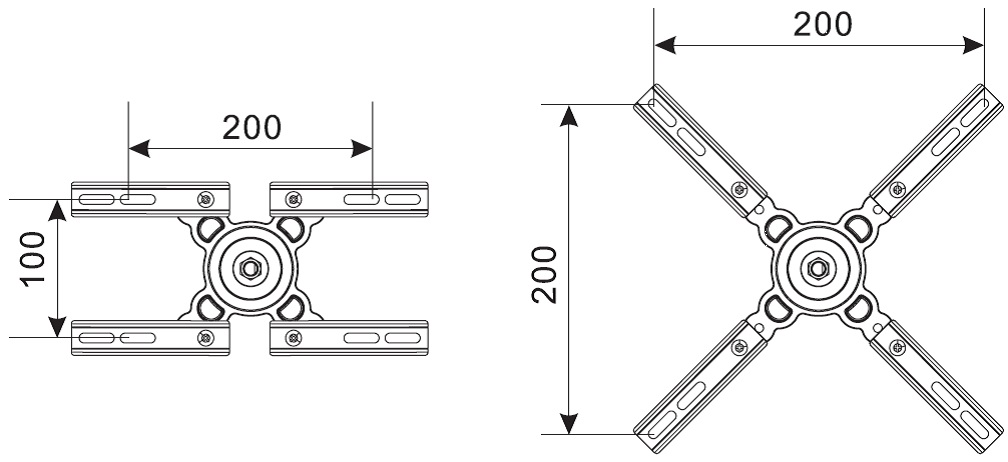

For VESA sizes bigger than 100x100, the supplied adaptors may be used. Attach the VESA extension arms as shown below using M5 12mm screws and nuts supplied.

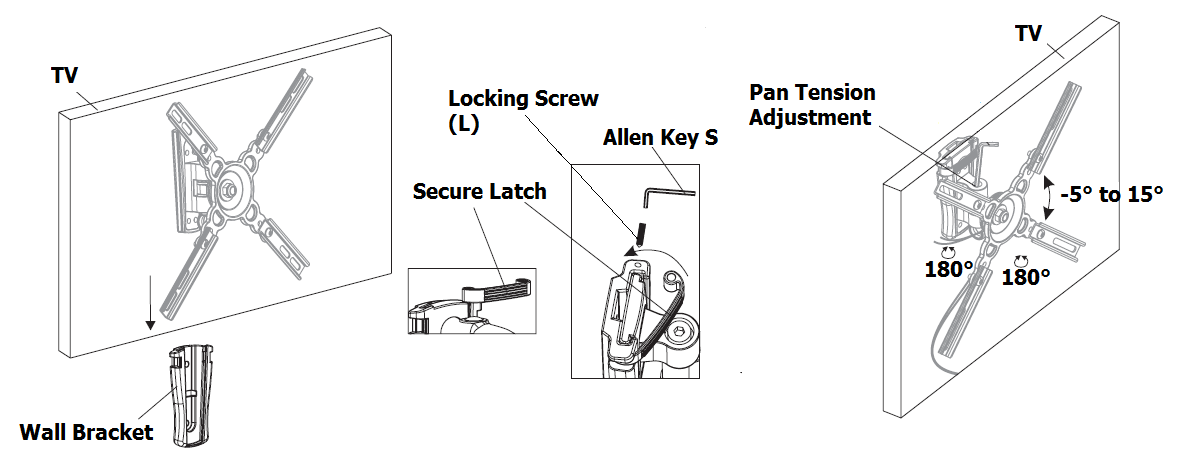

Slide the TV with attached mount onto the wall bracket. Clip the secure latch on and screw down the locking screw using the supplied Allen key. The tension of the pan can be adjusted with the Allen key as show below. Tuck all cables into the cable management hook at the bottom of the bracket to finish the installation.
